headlight bulb INFINITI JX 2013 Owner's Manual

1. Front camera (if so equipped) (P. 4-36)
2. Engine hood (P. 3-20)
3. Windshield wiper and washer switch,wiper blades (P. 2-26, 8-18)
4. Windshield-washer fluid (P. 8-18)
5. Power windows (P. 2-50)
6. Door locks, INFINITI Intelligent Key,
Remote Engine Start (if so equipped) ,
keys (P. 3-4, 3-7, 3-18,3-2)
7. Mirrors, side camera (if so equipped)
(P. 3-29, 4-36)
8. Tire pressure (P. 9-11)
9. Flat tire (P. 6-3)
10. Tire chains (P. 8-38)
11. Replacing bulbs (P. 8-26)
12. Headlight and turn signal switch
(P. 2-30)
13. Fog light switch (P. 2-35)
14. Corner sensors (if so equipped)
(P. 4-40)
See the page number indicated in paren-
theses for operating details.
LII2043
EXTERIOR FRONT
Illustrated table of contents0-3

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer . . ...................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-7
Warning lights .................................2-7
Indicator lights ................................ 2-11
Audible reminders ............................. 2-13
Vehicle Information Display ........................2-14
How to use the vehicle information display .......2-14
Startup display ................................ 2-15
Settings ...................................... 2-15
Vehicle information display warnings and
indicators ..................................... 2-21
Security systems ................................. 2-24
Vehicle security system ......................... 2-24
INFINITI vehicle immobilizer system ..............2-25
Windshield wiper and washer switch ...............2-26
Switch operation .............................. 2-27Rain-sensing auto wiper system
(if so equipped)
............................... 2-28
Rear window wiper and washer switch ..............2-29
Rear window and outside mirror defroster switch .....2-30
Headlight and turn signal switch ....................2-30
Xenon headlights .............................. 2-30
Headlight control switch ........................ 2-31
Daytime running light system (Canada only) ......2-33
Instrument brightness control ...................2-34
Turn signal switch ............................. 2-34
Fog light switch ............................... 2-35
Horn ............................................ 2-35
Heated front seats (if so equipped) .................2-35
Heated rear seats (if so equipped) ..................2-37
Climate control seat switch (if so equipped) .........2-38
Heated steering wheel (if so equipped) .............2-39
Warning systems switch (if so equipped) ............2-40
V ehicle

Dynamic Control (VDC) off switch ...........2-41
Power inverter switch (if so equipped) ..............2-41
Power outlets .................................... 2-41
12v outlets ................................... 2-41
120v outlet (if so equipped) ....................2-43

Anti-lock Braking System (ABS) warning lightSeat belt warning light and chimeMalfunction indicator light (MIL)
orBrake warning lightSupplemental air bag warning lightSecurity indicator light
Charge warning lightFog light indicator lightSide light and headlight indicator light (green)
Low tire pressure warning lightFront passenger air bag status lightSlip indicator light
Master warning lightHigh beam indicator light (blue)Turn signal/hazard indicator lights
Power steering warning lightIntelligent Brake Assist (IBA) off indicator light
(if so equipped)Vehicle Dynamic Control (VDC) off indicator
light

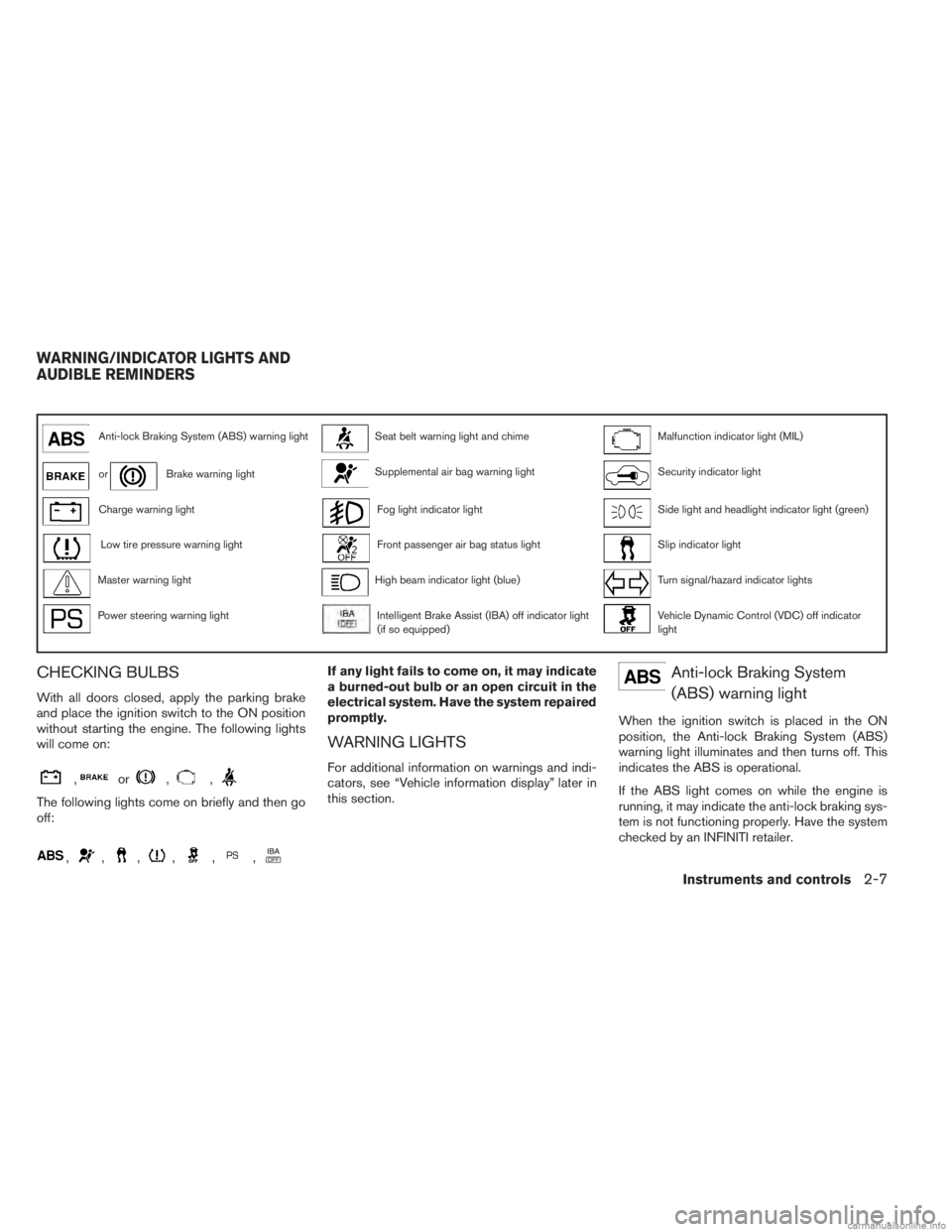

CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch to the ON position
without starting the engine. The following lights
will come on:
,or,,
The following lights come on briefly and then go
off:
,,,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING LIGHTS
For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.
Anti-lock Braking System(ABS) warning light
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.
If the ABS light comes on while the engine is
running, it may indicate the anti-lock braking sys-
tem is not functioning properly. Have the system
checked by an INFINITI retailer.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7

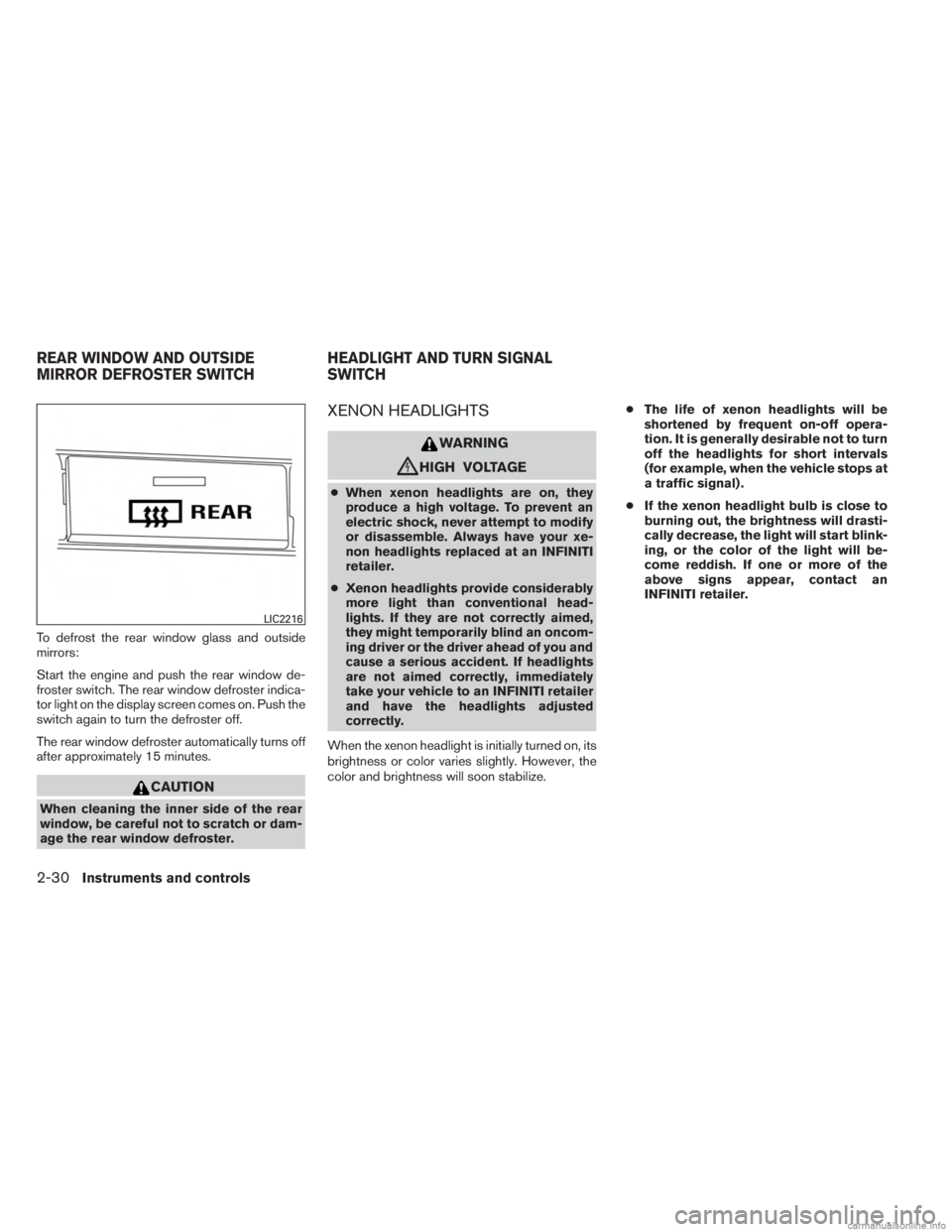

To defrost the rear window glass and outside
mirrors:
Start the engine and push the rear window de-
froster switch. The rear window defroster indica-
tor light on the display screen comes on. Push the
switch again to turn the defroster off.
The rear window defroster automatically turns off
after approximately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.
XENON HEADLIGHTS
WARNING
cHIGH VOLTAGE
●When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at an INFINITI
retailer.
● Xenon headlights provide considerably
more light than conventional head-
lights. If they are not correctly aimed,
they might temporarily blind an oncom-
ing driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to an INFINITI retailer
and have the headlights adjusted
correctly.
When the xenon headlight is initially turned on, its
brightness or color varies slightly. However, the
color and brightness will soon stabilize. ●
The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn
off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
● If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will be-
come reddish. If one or more of the
above signs appear, contact an
INFINITI retailer.
LIC2216
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
2-30Instruments and controls

4. Close the lid securely as illustratedCD.
5. Operate the buttons to check the operation.
See an INFINITI retailer if you need assistance for
replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation. Note: Changes or modifications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate the
equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.

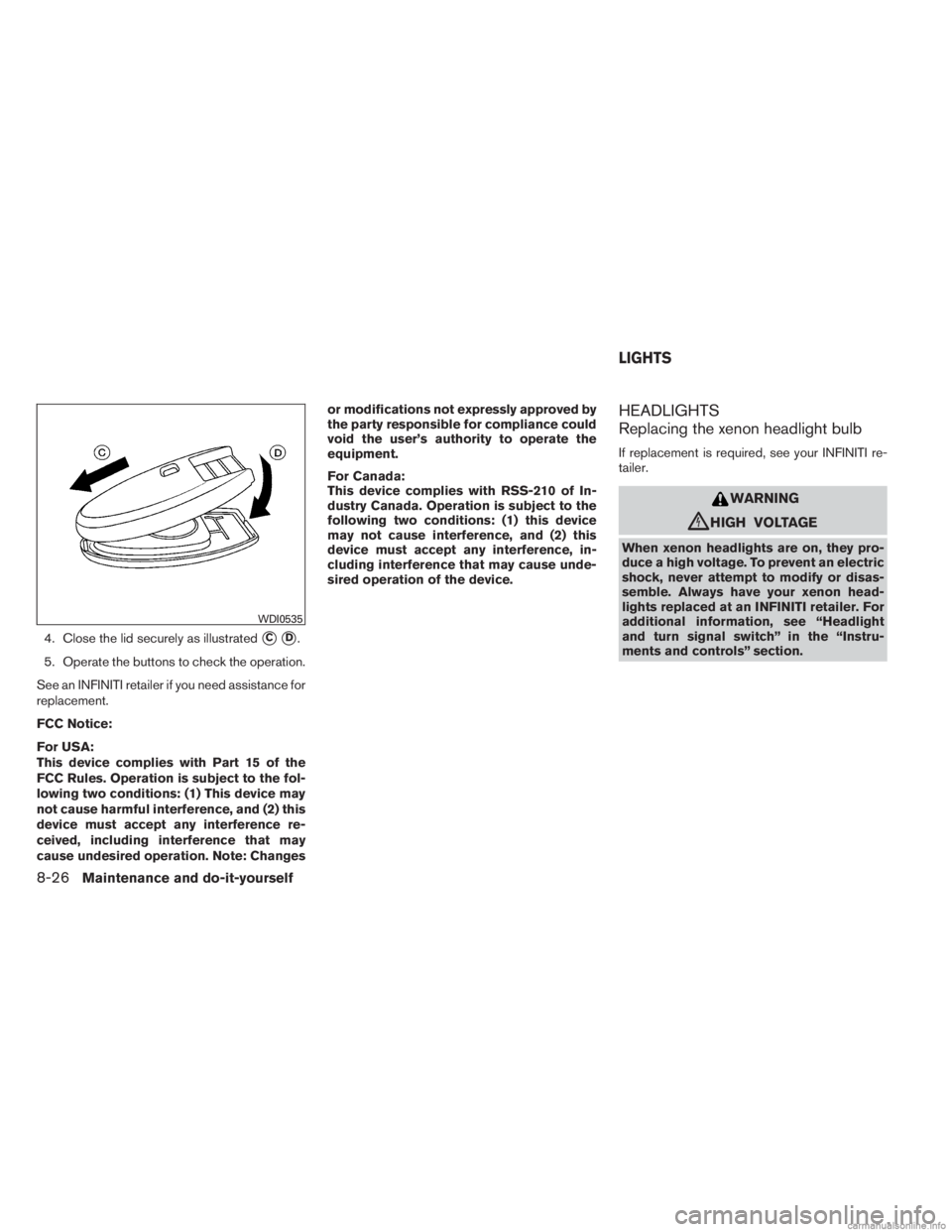

HEADLIGHTS
Replacing the xenon headlight bulb
If replacement is required, see your INFINITI re-
tailer.
WARNING
cHIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon head-
lights replaced at an INFINITI retailer. For
additional information, see “Headlight
and turn signal switch” in the “Instru-
ments and controls” section.
WDI0535
LIGHTS
8-26Maintenance and do-it-yourself

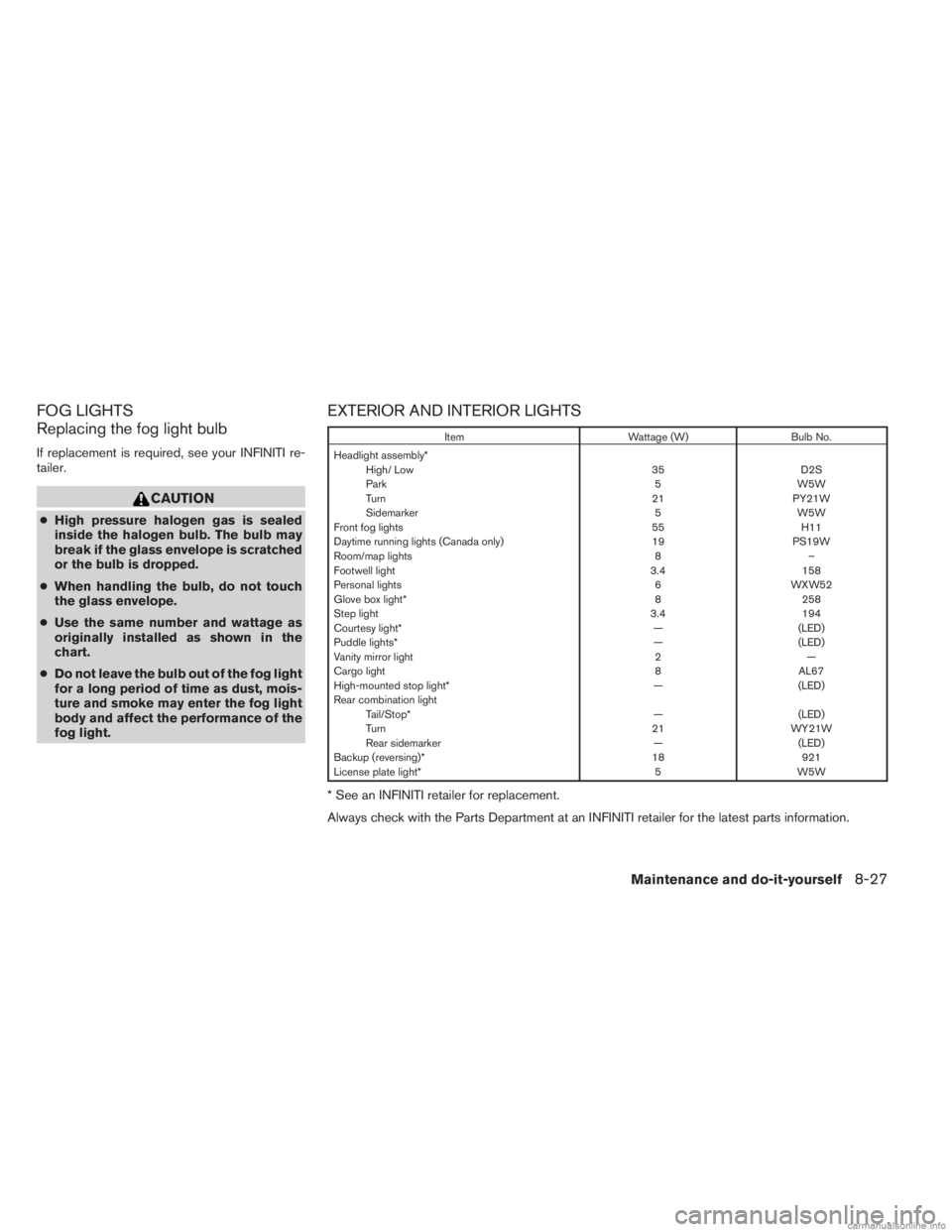

FOG LIGHTS
Replacing the fog light bulb
If replacement is required, see your INFINITI re-
tailer.
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight assembly* High/ Low 35D2S
Park 5W5W
Turn 21PY21W
Sidemarker 5W5W
Front fog lights 55H11
Daytime running lights (Canada only) 19PS19W
Room/map lights 8–
Footwell light 3.4158
Personal lights 6WXW52
Glove box light* 8258
Step light 3.4194
Courtesy light* —(LED)
Puddle lights* —(LED)
Vanity mirror light 2—
Cargo light 8AL67
High-mounted stop light* —(LED)
Rear combination light Tail/Stop* —(LED)
Turn 21WY21W
Rear sidemarker —(LED)
Backup (reversing)* 18921
License plate light* 5W5W
* See an INFINITI retailer for replacement.
Always check with the Parts Department at an INFINITI retailer for the latest parts information.
Maintenance and do-it-yourself8-27

1. Headlight assembly
2 Map light
3 Personal light
4. Fog light/ Daytime running light(Canada only)
5. Cargo light
6. Courtesy light
7. Rear combination light
8. License plate light
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
LDI2093
WDI0263
8-28Maintenance and do-it-yourself

10 Index
A
Aiming control, headlights ...........2-33
Air bag (See supplemental restraint
system) .....................1-49
Air bag system Front (See supplemental front impact
air bag system) ...............1-57
Airbagwarninglabels.............1-64
Airbagwarninglight...........1-64,2-11
Air cleaner housing filter ............8-18
Air conditioner Air conditioner service ...........4-60
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls ....4-55
Servicing air conditioner ..........4-60
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-34
Antenna....................4-102
Anti-lock brake warning light ..........2-7
Anti-lock Braking System (ABS) ........5-91
Audible reminders ...............2-13
Audio system ..................4-61
Bluetooth®audio..............4-97
Compact disc (CD) player .........4-82
FM/AM/SAT radio with compact disc
(CD)player.................4-78
Audio System iPod®Player................4-93 Audio system
Radio ....................4-61
Steering wheel audio control switch . . .4-101
USB interface ................4-89
Autolight switch .................2-31
Automatic Automatic drive positioner .........3-31
Automatic power window switch .....2-51
Automatic anti-glare inside mirror .......3-29
Automatic door locks ..............3-6
B
Battery ......................8-14
Chargewarninglight.............2-8
Before starting the engine ...........5-14
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-97
Bluetooth®audio................4-97
Bluetooth® hands-free phone
system .................4- 115, 4-129
Boosterseats..................1-45
Brake Anti-lock Braking System (ABS) ......5-91
Brake fluid ..................8-12
Brake light (See stop light) .........8-27
Brake system ................5-90
Brake warning light ..............2-8
Brake wear indicators ........2-13,8-20
Parking brake operation ..........5-19
Self-adjusting brakes ............8-20 Brakes
......................8-20
Break-inschedule ...............5-84
Brightness/contrast button .......4-13,4-28
Brightness control Instrument panel ..............2-34
Bulb check/instrument panel ..........2-7
Bulbreplacement................8-27
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargolight ...................2-56
Cargo (See vehicle loading information) . . .9-13
CarphoneorCBradio............4-115
CDcareandcleaning.............4-100
CD player (See audio system) .........4-82
Check tire pressure ...............2-23
Child restraints .......1-28,1-28,1-29,1-31
Precautions on

child
restraints ........1-29,1-36,1-41,1-45
Top tether strap anchor point locations . .1-34
Child restraint with top tether strap ......1-33
Child safety rear door lock ............3-7
Chimes,audiblereminders...........2-13
Cleaning exterior and interior ..........7-2
Clock (models with navigation system) ......4-25
Clockset ....................4-25
C.M.V.S.S. certification label ..........9-10
Cold weather driving ..............5-96
Compact disc (CD) player ...........4-82

Fusiblelinks ...................8-22G
Garage door opener, HomeLink® Universal
Transceiver ................2-57,2-61
Gascap .....................3-24
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Generalmaintenance...............8-2
Glovebox.....................2-46
Gloveboxlock..................2-46
H
Hands-free phone system,
Bluetooth®...............4- 115, 4-129
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-30
Headlightcontrolswitch ............2-31
Headlights....................8-26
Headlights,aimingcontrol............2-33
Heated seats ............2-35,2-37,2-38
Heated steering wheel .............2-39
Heater Heater and air conditioner controls .....4-55
Heater operation ...............4-55
HomeLink® Universal Transceiver ....2-57,2-61
Hood release ...................3-20 Hook
Luggagehook................2-48
Horn .......................2-35
I
Ignition Switch Push-Button Ignition Switch ........5-10
Image viewer ...................4-28
Immobilizer system .............3-4,5-13
Important vehicle information label .......9-10
In-cabin microfilter ................8-18
Increasing fuel economy .............5-86
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).....................2-7
INFINITI vehicle immobilizer
system ................2-25,3-4,5-13
Inside automatic anti-glare mirror ........3-29
Inside mirror ...................3-29
Instrument brightness control ..........2-34
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-34
Intelligent cruise control (ICC) system Brake assist .................5-49
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-55
iPod® Player ...................4-93
ISOFIX child restraints .............1-31 J
Jump starting ...................6-10
K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .......3-2,3-7
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial

number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-64
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-31
License plate Installing the license plate ..........9-12
Liftgate......................3-20
Lift gate release .................3-23
Light Airbagwarninglight.........1-64, 2-11
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-7
Bulbreplacement..............8-27
10-3

Chargewarninglight.............2-8
Foglightswitch ...............2-35
Headlight and turn signal switch......2-30
Headlightcontrolswitch ..........2-31
Headlights..................8-26
Interiorlight..................2-55
Lightbulbs..................8-26
Low tire pressure warning light ........2-8
Low windshield-washer fluid warning
light......................2-23
Passenger air bag and status light .....1-58
Security indicator light ............2-13
Warning/indicator lights and audible
reminders ...................2-7
Lights Maplights ..................2-56
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Gloveboxlock................2-46
Lift gate release ...............3-23
Power door locks ...............3-6
Loose fuel cap warning .............2-24
Lowfuelwarninglight ..........2-10,2-22
Low tire pressure warning light ..........2-8
Low windshield-washer fluid warning light . . .2-23
Luggage hook ..................2-48
Luggage rack (see roof rack) ..........2-49
Luggage (See vehicle loading information) . .9-13
Luggage storage
(seevehicleloadinginformation)........2-48 M
Maintenance Changing the maintenance interval . .4-8, 4-20
Displaying the maintenance notice
reminder .................4-8,4-21
Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Resetting the maintenance interval . .4-8, 4-20
Seatbeltmaintenance............1-27
Setting .................4-8,4-20
Underthehoodandvehicle .........8-4
Malfunction indicator light ............2-12
Maplights ....................2-56
Map pocket ....................2-43
Meters and gauges ................2-4
Instrument brightness control ........2-34
Mirror Automatic anti-glare inside mirror ......3-29
Inside mirror .................3-29
Outside mirror control ............3-30
Outside mirrors ...............3-30
Vanity mirror .................3-28
Moonroof .....................2-52
N
NISSAN voice recognition system ......4-140
O
Octane rating (See fuel octane rating) ......9-4Odometer
.....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirror control ..............3-30
Outside mirrors .................3-30
Overheat If your vehicle overheats ...........6-12
Owner’s manual order form ...........9-32
Owner’s manual/service manual order
information ....................9-32
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-89
Phone, Bluetooth® hands-free
system ................. 4
-115, 4-129
Power Power door locks ...............3-6
Power outlet ..............2-41,2-43
Power rear windows .............2-51
Power steering fluid .............8-12
Power steering system ...........5-90
Power windows ...............2-50
Rear power windows ............2-51
Power inverter switch ..............2-41
10-4
