When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the sensor may detect ve-
hicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the system to work inappropriately.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.Distance control assist system display
and indicators
The display is located between the speedometer
and tachometer.
1. Distance Control Assist (DCA) system switch indicator:
Indicates that the dynamic driver assistance
switch is ON.
SSD0253LSD2068
5-72Starting and driving

2. Vehicle ahead detection indicator:Indicates whether it detects a vehicle in front
of you. To turn on the DCA system, push the dynamic
driver assistance switch
1on the steering wheel
after starting the engine. The Distance Control
Assist (DCA) system switch indicator light
2in
the vehicle information display will illuminate.
Push the dynamic driver assistance switch again
to turn off the DCA system. The Distance Control
Assist (DCA) system switch indicator light will
turn off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH
(5 km/h).
WARNING
When the DCA system is not necessary, be
sure to turn off the dynamic driver assis-
tance switch. Using the system when it is
not necessary may result in an accident.
The dynamic driver assistance switch is used for
the LDP, DCA and BCI systems. When the dy-
namic driver assistance switch is pushed, the
LDP system will also turn on or off simultaneously.
The DCA system can be individually set to on or
off on the display. If the system is set to off, the
system will not turn on even if the dynamic driver
assistance switch is pushed to on. To set the
system to on or off on the display, see “Setting
DCA system to ON/OFF” in this section.
Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.
1. Press the
button, and select the “Set-
tings” using the
. Then press the EN-
TER button.
2. Select the “Driver Aids”, and press the EN- TER button.
3. Select “Forward”, and press the ENTER but- ton.
LSD2077LSD2069
Starting and driving5-73

4. To turn on the “Assistance (DCA)” check thebox using the ENTER button.
If the LDP, BSI and DCA systems are set to OFF
on the information display and when the dynamic
driver assistance switch is pushed, the LDP ON
indicator light, BSI ON indicator light, and the
Distance Control Assist (DCA) system switch
indicator light will blink for approximately 2 sec-
onds.
For additional information on LDP and BSI, see
“Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system and Blind
Spot Warning/Blind Spot Intervention” in this
section.
Under the following conditions, the Distance
Control Assist system will not operate and the
DCA cancellation message will pop up: ● When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic driver
assistance switch.)
For details about the SNOW mode switch,
see “Snow mode switch” in this section. ●
When the VDC system is off (To use the
DCA system, turn on the VDC, then push the
dynamic driver assistance switch.)
For details about the VDC system, see “Ve-
hicle Dynamic Control (VDC) system” in this
section.
● When ABS or VDC (including the traction
control system) is operating
When the Conventional (fixed speed) cruise con-
trol mode is operating, the DCA system will not
operate. (To use the DCA system, turn the Con-
ventional (fixed speed) cruise control mode off,
then push the dynamic driver assistance switch.)
For details about the Conventional (fixed speed)
cruise control mode, see “Intelligent Cruise Con-
trol (ICC) system “Full speed range” in this sec-
tion.
When the engine is turned off, the system is
automatically turned off.
1System set display with vehicle ahead
2System set display without vehicle ahead
LSD2126
5-74Starting and driving

System operation
WARNING
The Distance Control Assist system auto-
matically decelerates your vehicle to help
assist the driver to maintain a following
distance from the vehicle ahead. Manually
brake when deceleration is required to
maintain a safe distance upon sudden
braking by the vehicle ahead or when a
vehicle suddenly appears in front of you.
Always stay alert when using the DCA
system.
The Distance Control Assist (DCA) system helps
assist the driver to keep a following distance to
the vehicle ahead by braking and moving the
accelerator pedal upward in the normal driving
condition.
When a vehicle is detected ahead:
The vehicle ahead detection indicator comes on.
When vehicle approaches a vehicle ahead: ● If the driver’s foot is not on the accelerator
pedal, the system activates the brakes to
decelerate smoothly as necessary. If the ve-
hicle ahead comes to a stop, the vehicle
decelerates to a standstill within the limita-
tions of the system. ●
If the driver’s foot is on the accelerator pedal,
the system moves the accelerator pedal up-
ward to assist the driver to release the ac-
celerator pedal.
When brake operation by driver is required:
The system alerts the driver by a warning chime
and blinking the vehicle ahead detection indica-
tor. If the driver’s foot is on the accelerator pedal
after the warning, the system moves the accel-
erator pedal upward to assist the driver to switch
to the brake pedal.
The stoplights of the vehicle come on when
braking is performed by the DCA system.
When the brake operates, a noise may be
heard. This is not a malfunction.
WARNING
● When the vehicle ahead detection indi-
cator light is not illuminated, the system
will not control or warn the driver.
● Depending on the position of the accel-
erator pedal, the system may not be
able to assist the driver to release the
accelerator pedal appropriately. ●
If the vehicle ahead comes to a stand-
still, the vehicle decelerates to a stand-
still within the limitations of the system.
The system will release brake control
with a warning chime once it judges the
vehicle is at a standstill. To prevent the
vehicle from moving, the driver must
depress the brake pedal. (The system
will resume control automatically once
the system reaches 3 MPH (5 km/h)) .
Overriding the system:
The following driver’s operation overrides the
system operation. ● When the driver depresses the accelerator
pedal even further while the system is mov-
ing the accelerator pedal upward, the DCA
system control of the accelerator pedal is
canceled.
● When the driver’s foot is on the accelerator
pedal, the brake control by the system is not
operated.
● When the driver’s foot is on the brake pedal,
neither the brake control nor the alert by the
system operates.
● When the Intelligent Cruise Control system
is set, the DCA system will be cancelled.
Starting and driving5-75

Approach warning
If your vehicle comes closer to the vehicle ahead
due to rapid deceleration of that vehicle or if
another vehicle cuts in, the system warns the
driver with the chime and DCA system display.
Decelerate by depressing the brake pedal to
maintain a safe vehicle distance if:● The chime sounds.
● The vehicle ahead detection indicator blinks.
The warning chime may not sound in some cases
when there is a short distance between vehicles.
Some examples are: ● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when your
vehicle approaches vehicles that are parked or
moving slowly. NOTE:
The approach warning chime may sound
and the system display may blink when ICC
sensor detects vehicles in other lanes
Aor
objects on the side of the road
A. This may
cause the DCA system to operate inappro-
priately. The ICC sensor may detect these
objects when the vehicle is driven on wind-
ing roads, narrow roads, hilly roads or when
entering or exiting a curve. In these cases
you will have to manually control the
proper distance ahead of your vehicle. Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .

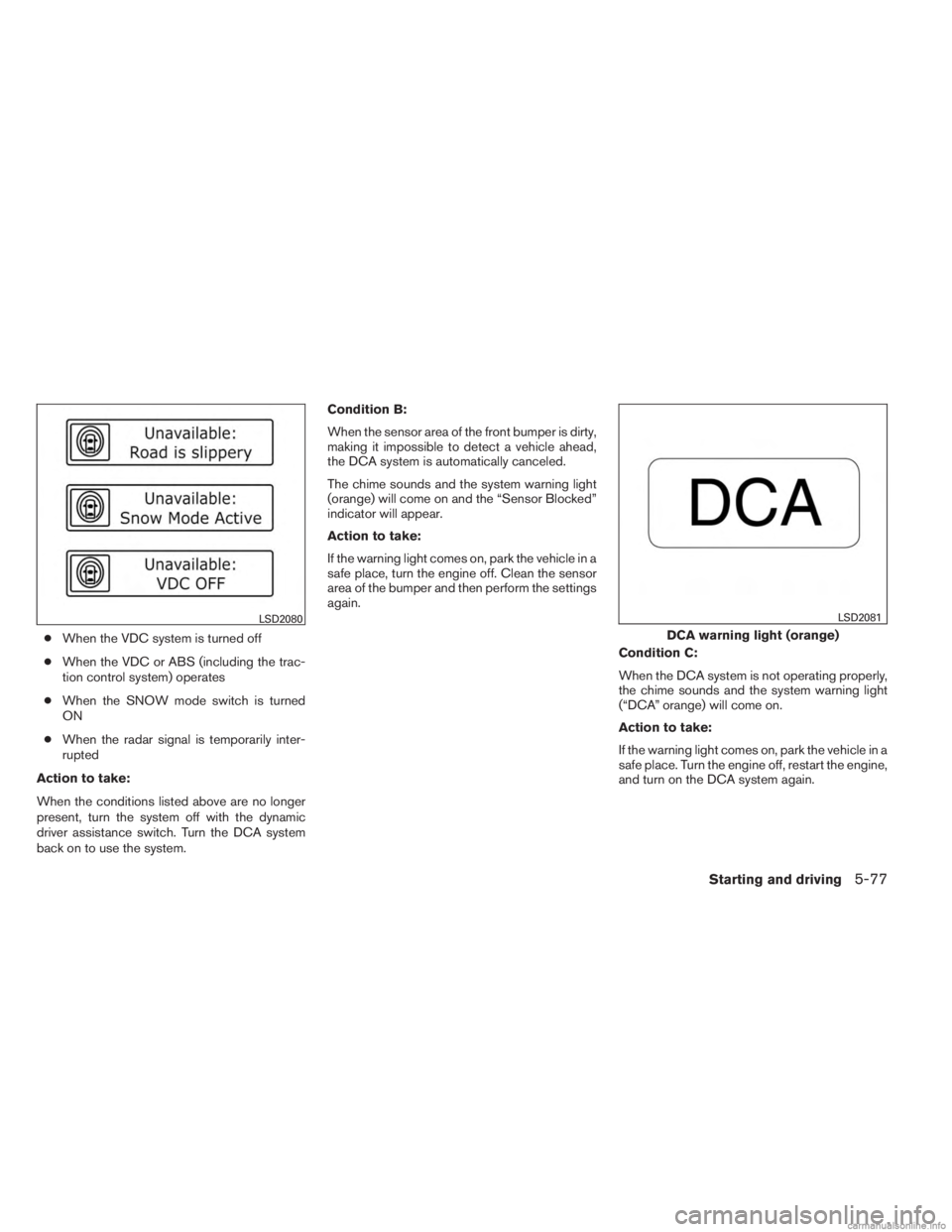

Automatic cancellation
Condition A:
Under the following conditions, the Distance
Control Assist system is automatically canceled.
The chime will sound and the Distance Control
Assist (DCA) cancellation message will pop up.
SSD0284A
5-76Starting and driving

●When the VDC system is turned off
● When the VDC or ABS (including the trac-
tion control system) operates
● When the SNOW mode switch is turned
ON
● When the radar signal is temporarily inter-
rupted
Action to take:
When the conditions listed above are no longer
present, turn the system off with the dynamic
driver assistance switch. Turn the DCA system
back on to use the system. Condition B:
When the sensor area of the front bumper is dirty,
making it impossible to detect a vehicle ahead,
the DCA system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.
Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. Clean the sensor
area of the bumper and then perform the settings
again.
Condition C:
When the DCA system is not operating properly,
the chime sounds and the system warning light
(“DCA” orange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
and turn on the DCA system again.
LSD2080
DCA warning light (orange)
LSD2081
Starting and driving5-77

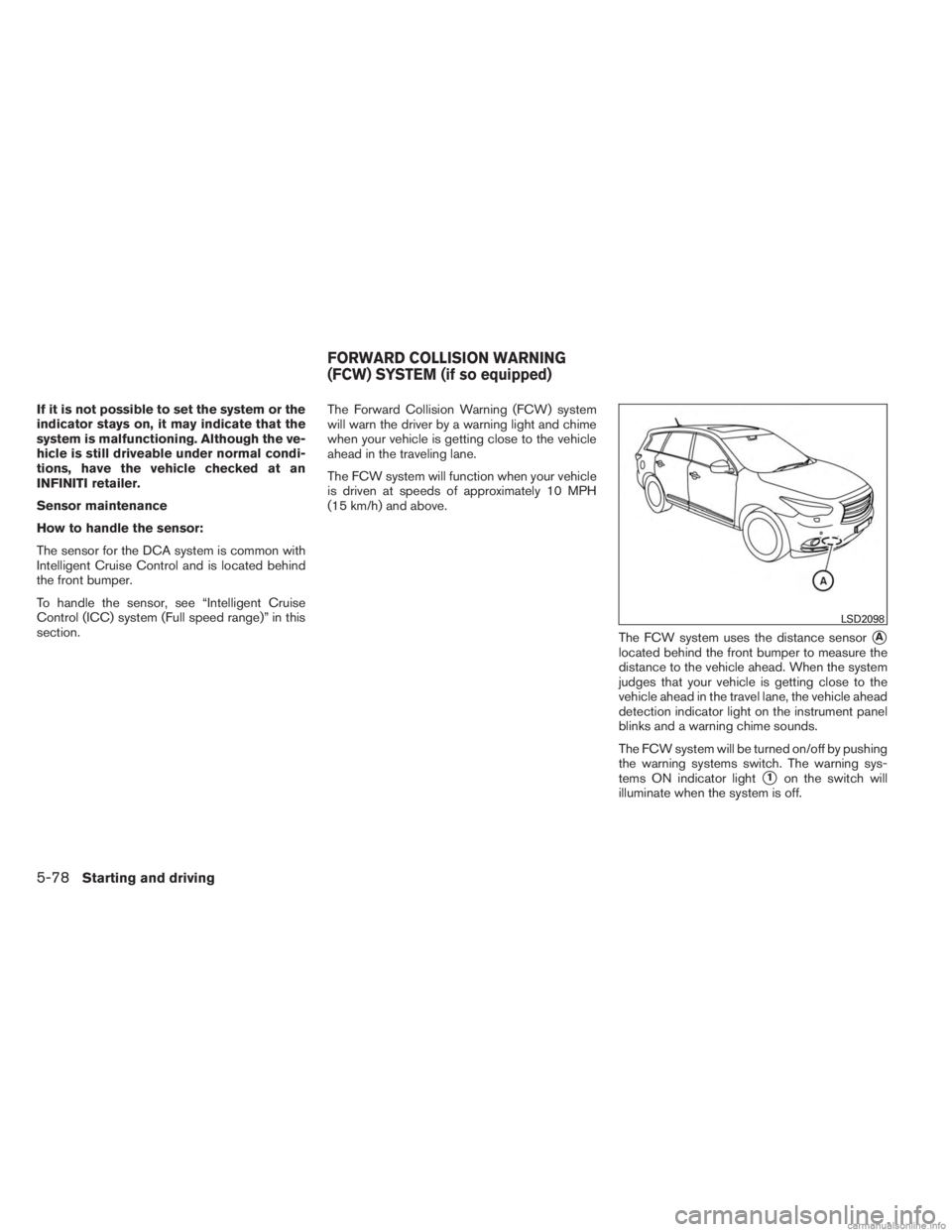

If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked at an
INFINITI retailer.
Sensor maintenance
How to handle the sensor:
The sensor for the DCA system is common with
Intelligent Cruise Control and is located behind
the front bumper.
To handle the sensor, see “Intelligent Cruise
Control (ICC) system (Full speed range)” in this
section.The Forward Collision Warning (FCW) system
will warn the driver by a warning light and chime
when your vehicle is getting close to the vehicle
ahead in the traveling lane.
The FCW system will function when your vehicle
is driven at speeds of approximately 10 MPH
(15 km/h) and above.
The FCW system uses the distance sensor
A
located behind the front bumper to measure the
distance to the vehicle ahead. When the system
judges that your vehicle is getting close to the
vehicle ahead in the travel lane, the vehicle ahead
detection indicator light on the instrument panel
blinks and a warning chime sounds.
The FCW system will be turned on/off by pushing
the warning systems switch. The warning sys-
tems ON indicator light
1on the switch will
illuminate when the system is off.
LSD2098
FORWARD COLLISION WARNING
(FCW) SYSTEM (if so equipped)
5-78Starting and driving

PRECAUTIONS ON FCW SYSTEM
WARNING
●The FCW system is intended to warn
you before a collision but will not avoid
a collision. It is the driver’s responsibil-
ity to stay alert, drive safely and be in
control of the vehicle at all times.
● As there is a performance limit, the sys-
tem may not provide a warning in cer-
tain conditions. ●
The system will not detect the following
objects:
– Pedestrians, animals or obstacles in the roadway
– Oncoming vehicles in the same lane
● The system will not detect another ve-
hicle under the following conditions:
– When the sensor gets dirty and it is impossible to detect the distance
from the vehicle ahead.
– When the radar signal is temporarily interrupted
● The sensor generally detects the sig-
nals returned from the reflectors on a
vehicle ahead. Therefore, the system
may not function properly under the fol-
lowing conditions:
– When the sensor area of the front bumper gets dirty or it is impossible
to detect the distance from the ve-
hicle ahead.
– When visibility is low (such as rain, fog, snow, etc.) .
– When snow or road spray from trav- eling vehicles is splashed.
Vehicle ahead detection light
SSD0749
Warning systems switch
LSD2015
Starting and driving5-79

– When excessively heavy baggage isloaded in the rear seat or the luggage
room of your vehicle.
– When abruptly accelerating or decelerating.
– On a steep downhill slope or on roads with sharp curves.
– When there is a highly reflective ob- ject near the vehicle ahead (for ex-
ample, being very close to another
vehicle, signboard, etc.)
– When you are towing a trailer.
● Depending on certain road conditions
(curved or beginning of a curve) , vehicle
conditions (steering position or vehicle
position) , or the preceding vehicle’s
conditions (position in lane, etc.) , the
system may not function properly. The
system may detect highly reflective ob-
jects such as signs and other stationary
objects on the road or near the traveling
lane and provide unnecessary warning.
● The system may not function in offset
conditions.
● The system may not function when the
distance to the vehicle ahead is ex-
tremely close. ●
The system is designed to automati-
cally check the sensor’s functionality. If
the sensor area of the front bumper is
covered with ice, a transparent or trans-
lucent bag, etc., the system may not
detect them. In these instances, the sys-
tem may not be able to warn the driver
properly. Be sure to check and clean the
sensor area of the front bumper
regularly.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
● A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system
may not warn the driver soon enough.
● The system will be cancelled automati-
cally with a beep sound and a message
will pop up under the following
conditions:
– When the sensor area of the front bumper is dirty
– When the system malfunctions If the system cancels and a message pops up
with a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine off.
Check to see if the sensor area of the front
bumper is blocked. If the sensor area of the front
bumper is blocked, remove the object blocking
and restart the engine.
If the sensor is malfunctioning, have the system
checked by an INFINITI retailer.
5-80Starting and driving

FCW SYSTEM OPERATION
The FCW system will function at speeds of ap-
proximately 10 MPH (15 km/h) and above, when
the system turns on.
The warning systems switch is used to turn on
and off the FCW system when it is activated
using the settings menu on the information dis-
play. See “How to enable/disable the FCW sys-
tem” using the settings menu later in this section.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the FCW, the Lane Departure Warning (LDW) and the Blind Spot Warning
(BSW) systems are deactivated.
When the warning systems switch is pushed, the
LDW and BSW system will also turn on or off
simultaneously. See “Lane Departure Warning
(LDW) system/Lane Departure Prevention (LDP)
system” and “Blind Spot Warning (BSW)/Blind
Spot Intervention (BSI)/Back-up Collision Inter-
vention (BCI) systems” in this section.
The setting mode can be changed using the
warning systems switch. To change the setting
mode, push and hold the warning systems switch
for more than 4 seconds when the warning sys-
tems ON indicator is off. When the mode is
changed, a chime sounds and the lane departure
warning light (orange) flashes.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC) system” in this section.
How to enable/disable the FCW
system
Perform the following steps to enable or disable
the FCW system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button. 2. Select “Driver Aids”, and press the ENTER
button.
3. To set the FCW system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Forward” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “Warning (FCW)”
Warning systems switch
LSD2015
Starting and driving5-81
