Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
s1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the engine oil
is hot.
cWaste oil must be disposed of properly.
c Check your local regulations.
Perform steps 4 to 7 only when the engine oil
filter change is needed.
4. Loosen the oil filters2with an oil filter
wrench. Remove the oil filter by turning it
by hand.
5. Wipe the engine oil filter mounting sur- face with a clean rag.
CAUTION
Be sure to remove any old rubber gasket re-
maining on the mounting surface of the engine.
Failure to do so could lead to engine failure.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten ad-
ditionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N´m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain
plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N´m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
CAUTION
The dipstick must be inserted in place to pre-
vent oil spillage from the dipstick hole while
filling the engine with oil.
See ªCAPACITIES AND RECOMMENDED
FUEL/LUBRICANTSº in the ª9. Technical and
consumer informationº section for drain and refill capacity. The drain and refill capacity
depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover into positionas the following steps.
a. Pull the center of the small plastic clip out.
b. Hold the engine undercover into position.
c. Insert the clip through the undercover into the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the other bolts that hold the un- dercover in place. Be careful not to strip
the bolts or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
8-14Maintenance and do-it-yourself
wÐ
Ð
05/15/09Ðpattie
X

WARNING
cProlonged and repeated contact with used
engine oil may cause skin cancer.
c Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
c Keep used engine oil out of reach of children.
5-SPEED AUTOMATIC TRANSMISSION
When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION
cUse Genuine NISSAN Matic S ATF. If Genuine
NISSAN Matic S ATF is not available, Genuine
NISSAN Matic J ATF may also be used.
c Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF or Matic J
ATF will cause deterioration in driveability
and automatic transmission durability, and
may damage the automatic transmission,
which is not covered by the INFINITI new ve-
hicle limited warranty.
7-SPEED AUTOMATIC TRANSMISSION
Contact an INFINITI retailer if replacement is
required.
CAUTION
cUse only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
c Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty.
AUTOMATIC TRANSMISSION FLUID
Maintenance and do-it-yourself8-15
wÐ
Ð
05/15/09Ðpattie
X

Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
window washer fluid warning light comes on.
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window
washer fluid into the tank opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a wind-
shield washer antifreeze. Follow the manufac-
turer's instructions for the mixture ratio.
Refill the reservoir more frequently when driv-
ing conditions require an increased amount of
window washer fluid.Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
CAUTION
c
Do not substitute engine anti-freeze coolant
for window washer solution. This may result
in damage to the paint.
c Do not fill the window washer reservoir tank
with washer fluid concentrates at full
strength. Some methyl alcohol based
washer fluid concentrates may permanently
stain the grille if spilled while filling the win-
dow washer reservoir tank.
c Pre-mix washer fluid concentrates with wa-
ter to the manufacturer's recommended lev-
els before pouring the fluid into the window
washer reservoir tank. Do not use the win-
dow washer reservoir tank to mix the washer
fluid concentrate and water. c
Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
c Make certain the terminal connections are
clean and securely tightened.
c If the vehicle is not to be used for 30 days or
longer, disconnect the negative ( 2) battery
terminal cable to prevent discharging it.
WARNING
c Do not expose the battery to flames or elec-
trical sparks. Hydrogen gas generated by
the battery is explosive. Do not allow battery
fluid to contact your skin, eyes, fabrics, or
painted surfaces. After touching a battery or
battery cap, do not touch or rub your eyes.
Thoroughly wash your hands. If the acid con-
tacts your eyes, skin or clothing, immedi-
ately flush with water for at least 15 minutes
and seek medical attention.
c Do not operate the vehicle if the fluid in the
battery is low. Low battery fluid can cause a
higher load on the battery which can gener-
ate heat, reduce battery life, and in some
cases lead to an explosion.
c When working on or near a battery, always
wear suitable eye protection and remove all
jewelry.SDI1829
WINDOW WASHER FLUID BATTERY
Maintenance and do-it-yourself8-17
wÐ
Ð
05/15/09Ðpattie
X

JUMP STARTING
If jump starting is necessary, see ªJUMP START-
INGº in the ª6. In case of emergencyº section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
CAUTION
cDo not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
c Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.

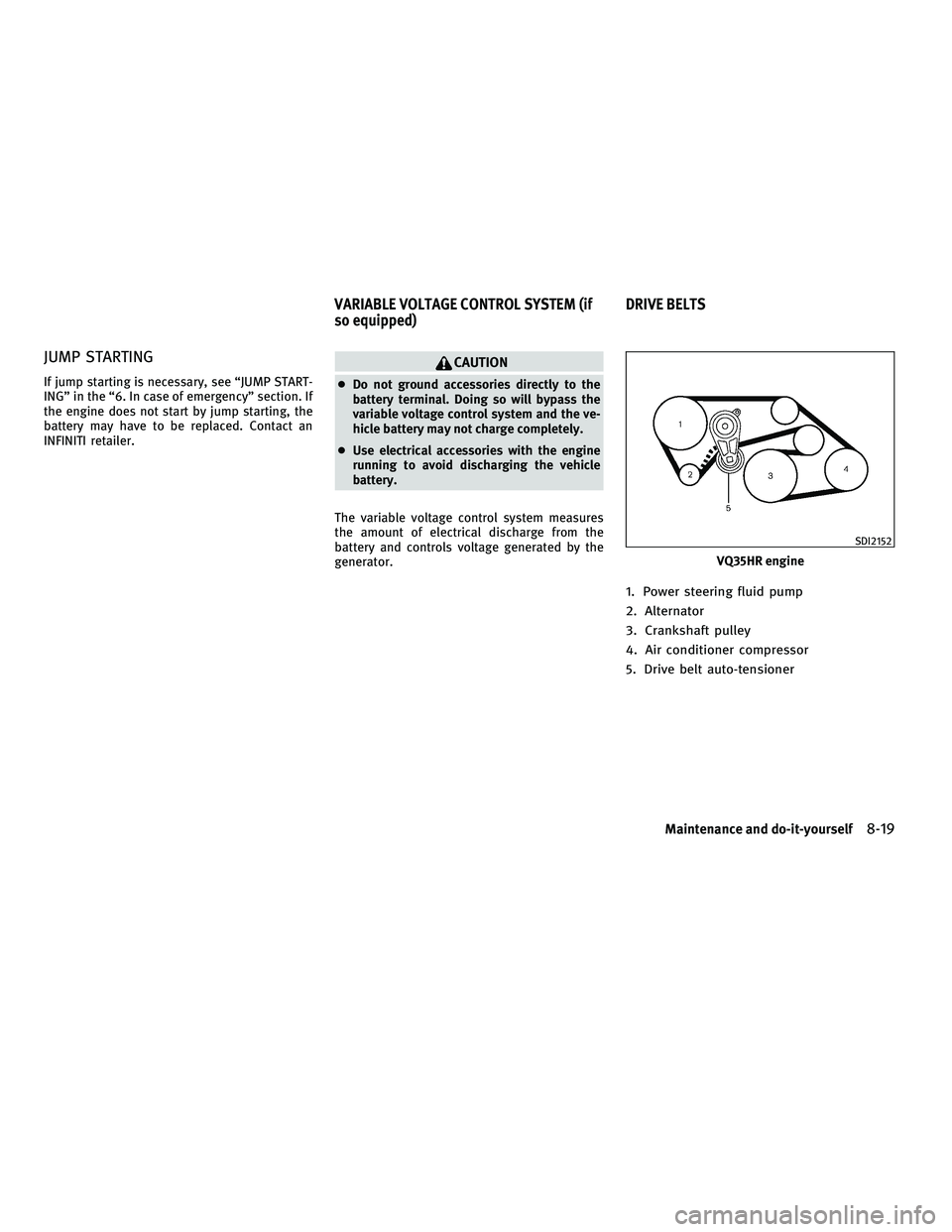

1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
VQ35HR engine
SDI2152
VARIABLE VOLTAGE CONTROL SYSTEM (if
so equipped) DRIVE BELTS
Maintenance and do-it-yourself8-19
wÐ
Ð
05/15/09Ðpattie
X

1. Water pump
2. Alternator
3. Crankshaft pulley
4. Power steering fluid pump
5. Air conditioner compressor
WARNING
Be sure the ignition switch is in the LOCK posi-
tion before servicing drive belts. The engine
could rotate unexpectedly.
1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted by an INFINITI
retailer.
2. Have the belts checked regularly for con- dition and tension.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VK45DE engine
SDI1411B
SPARK PLUGS
8-20Maintenance and do-it-yourself
wÐ
Ð
05/19/09Ðtbrooks
X

REPLACING SPARK PLUGS
If replacement is required, see an INFINITI re-
tailer for servicing.
Platinum-tipped spark plugs (for
VK45DE engine model)
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance log shown in
the ªINFINITI Service and Maintenance Guideº.
Do not reuse the spark plugs by cleaning or
regapping.
Always replace spark plugs with recommended
or equivalent ones.
Iridium-tipped spark plugs (for
VQ35HR engine model)
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
ªINFINITI Service and Maintenance Guideº, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones.Remove the retainers
s1as illustrated and pull
out the filter element
s2.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
SDI2020
VQ35HR engine
SDI2033
AIR CLEANER
Maintenance and do-it-yourself8-21
wÐ
Ð
05/15/09Ðpattie
X

nance log shown in the ªINFINITI Service and
Maintenance Guideº. When replacing the filter,
wipe the inside of the air cleaner housing and
the cover with a damp cloth.
WARNING
cOperating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
isn't there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
c Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
CAUTION
Worn windshield wiper blades can damage the
windshield and impair driver vision.
VK45DE engine
SDI1830
WINDSHIELD WIPER BLADES
8-22Maintenance and do-it-yourself
wÐ
Ð
05/15/09Ðpattie
X

REPLACING
Replace the wiper blades if they are worn.
1. Push the ignition switch to the ON posi-tion and turn the windshield wiper switch
on. Push the ignition switch to the LOCK
position when the wiper is in the fully up
position. The wiper will stop as illustrated.
The wiper should be in the fully up position to
avoid scratching the engine hood or wiper
arm.
2. Pull the wiper arm.
3. Push the release tab
sA, and then move
the wiper blade down the wiper arm
s1
while pushing the release tab to remove.
4. Insert the new wiper blade onto the wiper arm until a click sounds.
5. Rotate the wiper blade so the dimple is in the groove.
CAUTION
cAfter wiper blade replacement, return the
wiper arm to its original position;
otherwise it may be damaged when the hood
is opened.
c Make sure the wiper blades contact the
glass; otherwise the arm may be damaged
from wind pressure.
SDI2185SDI1649
Maintenance and do-it-yourself8-23
wÐ
Ð
05/19/09Ðtbrooks
X

Some vehicles are equipped with engine com-
partment and passenger compartment fuse
boxes that use only type
sAfuses. Other ve-
hicles are equipped with type
sAfuses in the
engine compartment fuse box and type
sB
fuses in the passenger compartment fuse box.
Type
sAfuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type
sAfuses can be installed in the engine
compartment and passenger compartment fuse
boxes. If a type
sAfuse is used to replace a typesB
fuse, the typesAfuse will not be level with the
fuse pocket as shown in the illustration. This
will not affect the performance of the fuse.
Make sure the fuse is installed in the fuse box
securely.
Type
sBfuses cannot be installed in the under-
hood fuse boxes. Only use type
sAfuses in the
underhood fuse boxes.
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the LOCK position and the headlight
switch is turned off.
SDI1751SDI1752SDI1479A
FUSES
Maintenance and do-it-yourself8-25
wÐ
Ð
05/15/09Ðpattie
X
