VK45DE ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7)
3. Engine oil filler cap (P. 8-12) 4. Brake fluid reservoir (P. 8-16)
5. Window washer fluid reservoir (P. 8-17)
6. Engine coolant reservoir (P. 8-10)
7. Power steering fluid reservoir (P. 8-16)8. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
9. Engine drive belt location (P. 8-19)
10. Engine oil dipstick (P. 8-12)
11. Air cleaner (P. 8-21)
* Shown with the engine compartment access panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2154
ENGINE COMPARTMENT
Illustrated table of contents0-11
wÐ
Ð
05/14/09Ðpattie
X

VQ35HR ENGINE*
1. Fuse/fusible link holder (P. 8-25)
2. Battery (P. 8-17)Ð Jump starting (P. 6-7) 3. Radiator filler cap (P. 8-10)
Ð Vehicle overheat (P. 6-10)
4. Engine oil dipstick (P. 8-12)
5. Engine oil filler cap (P. 8-12)
6. Brake fluid reservoir (P. 8-16) 7. Window washer fluid reservoir (P. 8-17)
8. Power steering fluid reservoir (P. 8-16)
9. Air cleaner (P. 8-21)
10. Engine drive belt location (P. 8-19)
11. Engine coolant reservoir (P. 8-10)
* Shown with the engine compartment access
panels removed. For removal and replacement
instructions, see ªENGINE COMPARTMENT
CHECK LOCATIONSº in the ª8. Maintenance
and do-it-yourselfº section.
SDI2307
0-12Illustrated table of contents
wÐ
Ð
05/14/09Ðpattie
X

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VK45DE engine ................................. 8-6
VQ35HR engine ................................ 8-8
Engine cooling system ............................ 8-10
Checking engine coolant level ...................8-11
Changing engine coolant ........................ 8-11
Engine oil ....................................... 8-12
Checking engine oil level ......................8-12
Changing engine oil and filter ..................8-12
Automatic transmission fluid ......................8-15
5-speed automatic transmission ................8-15
7-speed automatic transmission ................8-15
Power steering fluid .............................. 8-16
Brake fluid ...................................... 8-16
Brake fluid ................................... 8-16
Window washer fluid ............................. 8-17
Battery .......................................... 8-17
Jump starting ................................. 8-19Variable voltage control system (if so equipped)
....8-19
Drive belts ....................................... 8-19
Spark plugs ..................................... 8-20
Replacing spark plugs ......................... 8-21
Air cleaner ....................................... 8-21
Windshield wiper blades .......................... 8-22
Cleaning ...................................... 8-22
Replacing ..................................... 8-23
Brakes .......................................... 8-24
Self-adjusting brakes .......................... 8-24
Brake pad wear warnings ......................8-24
Fuses ........................................... 8-25
Engine compartment ........................... 8-25
Passenger compartment ....................... 8-27
Battery replacement .............................. 8-28
Intelligent Key ................................ 8-28
Lights ........................................... 8-30
Headlights .................................... 8-31
Exterior and interior lights .....................8-32
Wheels and tires ................................. 8-34
Tire pressure .................................. 8-34
Tire labeling .................................. 8-38
Types of tires ................................. 8-40
Tire chains ................................... 8-41
Changing wheels and tires..................... 8-41
wÐ
Ð
05/15/09Ðpattie
X

Steering wheel:Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold. Engine drive belts*:
Make sure that the drive
belts are not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 10 or 15 minutes for the
oil to drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
ªPRECAUTIONS WHEN STARTING AND DRIVINGº
in the ª5. Starting and drivingº section for
exhaust gas (carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately.
Power steering fluid level* and lines: Check the
level when the fluid is cold, with the engine off.
Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves, etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody:
The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
ªCLEANING EXTERIORº in the ª7. Appearance
and careº section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself
wÐ
Ð
05/19/09Ðtbrooks
X

1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir
5. Window washer fluid reservoir6. Engine coolant reservoir
7. Power steering fluid reservoir
8. Radiator filler cap
9. Engine drive belt location
10. Engine oil dipstick11. Air cleaner
SDI2154
Maintenance and do-it-yourself8-7
wÐ
Ð
05/19/09Ðtbrooks
X

1. Fuse/fusible link holder
2. Battery
3. Radiator filler cap
4. Engine oil dipstick
5. Engine oil filler cap6. Brake fluid reservoir
7. Window washer fluid reservoir
8. Power steering fluid reservoir
9. Air cleaner
10. Engine drive belt location11. Engine coolant reservoir
SDI2307
Maintenance and do-it-yourself8-9
wÐ
Ð
05/19/09Ðtbrooks
X

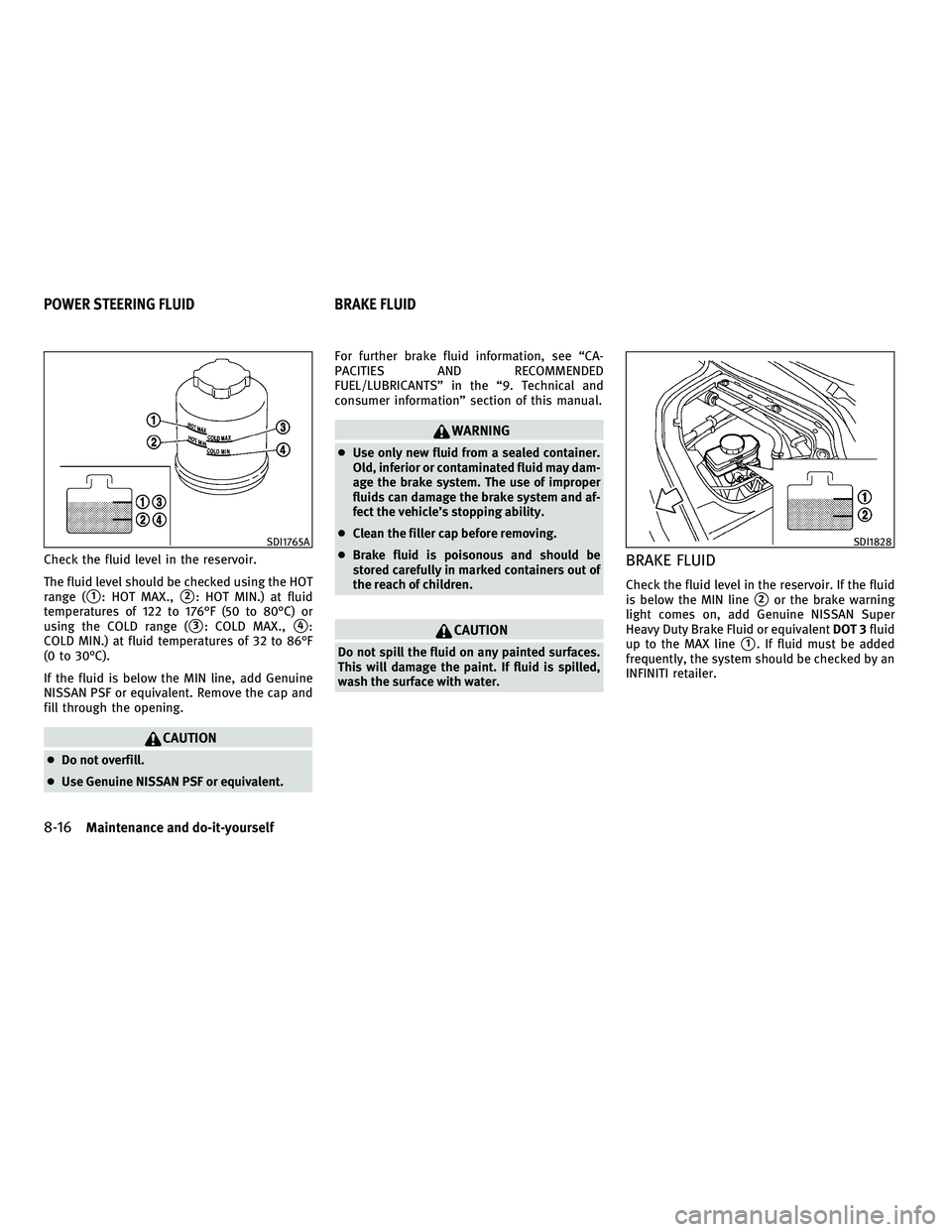

Check the fluid level in the reservoir.
The fluid level should be checked using the HOT
range (
s1: HOT MAX.,s2: HOT MIN.) at fluid
temperatures of 122 to 176ÉF (50 to 80ÉC) or
using the COLD range (
s3: COLD MAX.,s4:
COLD MIN.) at fluid temperatures of 32 to 86ÉF
(0 to 30ÉC).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION
c Do not overfill.
c Use Genuine NISSAN PSF or equivalent. For further brake fluid information, see ªCA-
PACITIES AND RECOMMENDED
FUEL/LUBRICANTSº in the ª9. Technical and
consumer informationº section of this manual.
WARNING
c
Use only new fluid from a sealed container.
Old, inferior or contaminated fluid may dam-
age the brake system. The use of improper
fluids can damage the brake system and af-
fect the vehicle's stopping ability.
c Clean the filler cap before removing.
c Brake fluid is poisonous and should be
stored carefully in marked containers out of
the reach of children.
CAUTION
Do not spill the fluid on any painted surfaces.
This will damage the paint. If fluid is spilled,
wash the surface with water.
BRAKE FLUID
Check the fluid level in the reservoir. If the fluid
is below the MIN line
s2or the brake warning
light comes on, add Genuine NISSAN Super
Heavy Duty Brake Fluid or equivalent DOT 3fluid
up to the MAX line
s1. If fluid must be added
frequently, the system should be checked by an
INFINITI retailer.
SDI1765ASDI1828
POWER STEERING FLUID BRAKE FLUID
8-16Maintenance and do-it-yourself
wÐ
Ð
05/15/09Ðpattie
X

JUMP STARTING
If jump starting is necessary, see ªJUMP START-
INGº in the ª6. In case of emergencyº section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
CAUTION
cDo not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
c Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
VQ35HR engine
SDI2152
VARIABLE VOLTAGE CONTROL SYSTEM (if
so equipped) DRIVE BELTS
Maintenance and do-it-yourself8-19
wÐ
Ð
05/15/09Ðpattie
X

1. Water pump
2. Alternator
3. Crankshaft pulley
4. Power steering fluid pump
5. Air conditioner compressor
WARNING
Be sure the ignition switch is in the LOCK posi-
tion before servicing drive belts. The engine
could rotate unexpectedly.
1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted by an INFINITI
retailer.
2. Have the belts checked regularly for con- dition and tension.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
VK45DE engine
SDI1411B
SPARK PLUGS
8-20Maintenance and do-it-yourself
wÐ
Ð
05/19/09Ðtbrooks
X

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the ª8.
Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure
Imp measureLiter
Fuel 20 gal 16-5/8 gal 76 See ªFUEL RECOMMENDATIONº later in this section.
Engine oil*1
Drain and refill With oil filter change VK45DE AWD 6-1/8 qt 5-1/8 qt 5.8 ·Engine oil with API Certification Mark*2, *3
·Viscosity SAE 5W-30*2, *3
2WD 5-7/8 qt 4-7/8 qt 5.5
VQ35HR AWD/2WD 5-1/8 qt 4-3/8 qt 4.9
Without oil filter change VK45DE AWD 5-1/2 qt 4-5/8 qt 5.2
2WD 5-1/8 qt 4-3/8 qt 4.9
VQ35HR AWD/2WD 4-7/8 qt 4 qt 4.6
Cooling system With reservoir VK45DE 11 qt 9-1/8 qt 10.4 50% Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
50% Demineralized or distilled water
VQ35HR 9-3/4 qt 8-1/8 qt 9.2
Reservoir 7/8 qt 3/4 qt 0.8
Automatic Transmission Fluid (ATF) ÐÐÐ Genuine NISSAN Matic S ATF*4
Differential gear oil ÐÐÐ Genuine NISSAN Differential Oil Hypoid Super GL-5, 80W-90 or API
GL-5, Viscosity SAE 80W-90*5
Transfer fluid ÐÐÐ Genuine NISSAN Matic J ATF*6
Power Steering Fluid (PSF) Refill to the proper oil level according to
the instructions in the ª8. Maintenance
and do-it-yourselfº section. Genuine NISSAN PSF or equivalent*7
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
wÐ
Ð
05/15/09Ðpattie
X
