service interval INFINITI M 2010 Owners Manual

Maintenance information
The maintenance intervals can be displayed for
your desired maintenance items.
To set the maintenance interval for Reminders 1
to 4, choose an item using the INFINITI control-
ler and push theENTERbutton.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set Re-
minder 1. Use the same steps to set the other
maintenance information.
1. Reset the driving distance to the new maintenance schedule.
2. Set the interval (mileage) of the mainte- nance schedule. To determine the recom-
mended maintenance interval, refer to
your ªINFINITI Service and Maintenance
Guideº.
3. To display the reminder automatically when the set trip distance is reached,
highlight the ª Interval Reminder º key
with the INFINITI controller and push the
ENTER button.
4. To return the display to MAINTENANCE INFO., push the BACKbutton.
With navigation system
SAA1554
Without navigation system
SAA1807
With navigation system
SAA1555
Monitor, climate, audio, phone and voice recognition systems4-11
wÐ
Ð
05/14/09Ðpattie
X

Your new INFINITI has been designed to have
minimum maintenance requirements with long
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your IN-
FINITI's fine mechanical condition, as well as its
emission and engine performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance. You are a vital link in the mainte-
nance chain.
SCHEDULED MAINTENANCE
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your ªINFINITI Service and
Maintenance Guideº. You must refer to that
guide to ensure that necessary maintenance is
performed on your INFINITI at regular intervals.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for propervehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer,
an INFINITI retailer.
WHERE TO GO FOR SERVICE
If maintenance service is required or your ve-
hicle appears to malfunction, have the systems
checked and serviced by an INFINITI retailer.
INFINITI technicians are well-trained specialists
and are kept up-to-date with the latest service
information through technical bulletins, service
tips, and in-retailer information systems. They
are completely qualified to work on INFINITI
vehicles
beforework begins.
You can be confident that an INFINITI retailer's
service department performs the best job to
meet the maintenance requirements on your
vehicle Ð in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have an
INFINITI retailer do it promptly. In addition, you
should notify an INFINITI retailer if you think
that repairs are required.
When performing any checks or maintenance
work, see ªMAINTENANCE PRECAUTIONSº later
in this section.EXPLANATION OF MAINTENANCE
ITEMS
Additional information on the following items
with ª*º is found later in this section.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:
Check that all doors
and the engine hood operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
8-2Maintenance and do-it-yourself
wÐ
Ð
05/15/09Ðpattie
X

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
s1.
If the oil level is below
s2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
s3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
CHANGING ENGINE OIL AND FILTER
Change the engine oil and filter according to the
maintenance intervals shown in the INFINITI
Service and Maintenance Guide.
Vehicle set-up
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a suitable floor jack and safety jack stands.
cPlace the safety jack stands under the
vehicle jack-up points.
c A suitable adapter should be attached to
the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the center
point of the undercover.
b. Then remove the other bolts that hold the undercover in place.
VK45DE engine
SDI1822
VQ35HR engine
SDI2045
ENGINE OIL
8-12Maintenance and do-it-yourself
wÐ
Ð
05/19/09Ðtbrooks
X

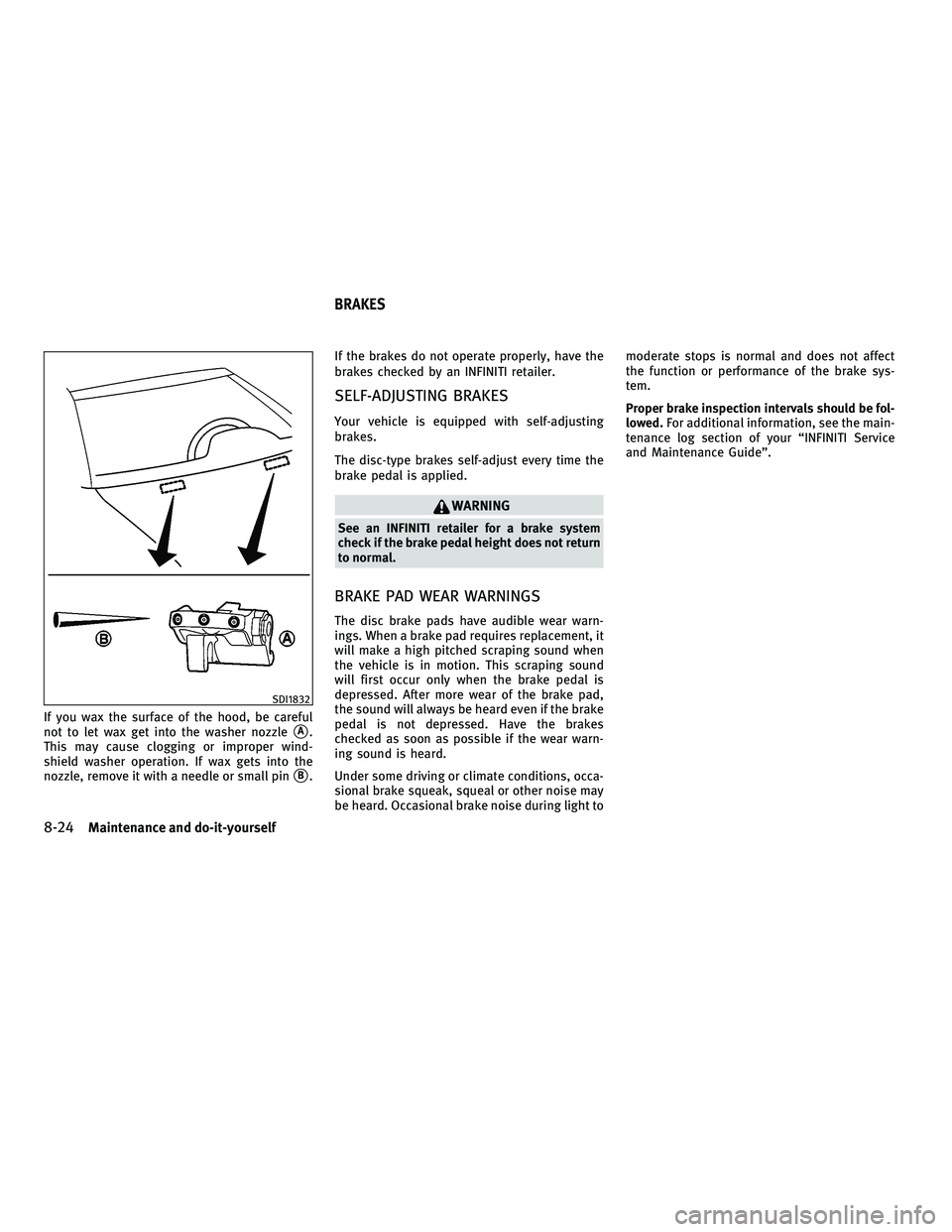

If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
sA.
This may cause clogging or improper wind-
shield washer operation. If wax gets into the
nozzle, remove it with a needle or small pin
sB. If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNINGS
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.
For additional information, see the main-
tenance log section of your ªINFINITI Service
and Maintenance Guideº.
SDI1832
BRAKES
8-24Maintenance and do-it-yourself
wÐ
Ð
05/15/09Ðpattie
X

1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance, see ªCA-
PACITIES AND RECOMMENDED
FUEL/LUBRICANTSº earlier in this section.
INFINITI recommends the use of an energy
conserving oil in order to improve fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant to select the engine oil viscosity based on
the temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When replac-
ing, use the genuine oil filter or its equivalent
for the reason described in ªChange intervalsº.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and a
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the INFINITI new vehicle limited
warranty.
STI0505
9-6Technical and consumer information
wÐ
Ð
05/15/09Ðpattie
X

Your engine was filled with a high quality
engine oil when it was built. You do not have to
change the oil before the first recommended
change interval. Oil and filter change intervals
depend upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes.
crepeated short distance driving at cold out-
side temperatures,
c driving in dusty conditions,
c extensive idling,
c stop and go commuting
Refer to the ªINFINITI Service and Maintenance
Guideº for the maintenance schedule.
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI ve-
hicle must be charged with the refrigerant HFC-
134a (R-134a) and the oil, NISSAN A/C system oil
Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or oil will cause
severe damage to the air conditioning system
and will require the replacement of all air con-
ditioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth's ozone
layer. Although this refrigerant does not affect
the earth's atmosphere, certain governmental
regulations require the recovery and recycling
of any refrigerant during automotive air condi-
tioning system service. Your INFINITI retailer
has the trained technicians and equipment
needed to recover and recycle your air condi-
tioning system refrigerant.
Contact an INFINITI retailer when servicing your
air conditioning system.
Technical and consumer information9-7
wÐ
Ð
05/15/09Ðpattie
X
