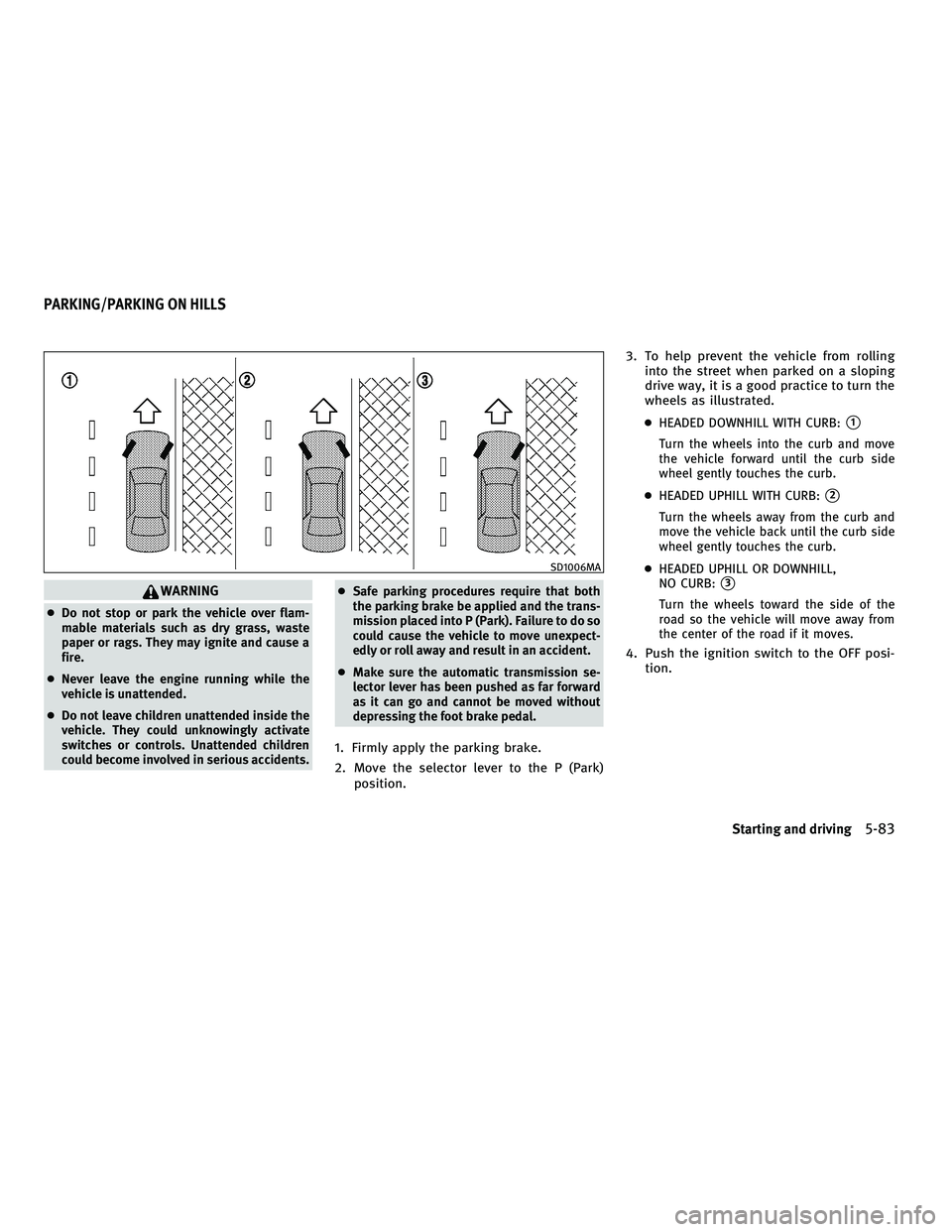

WARNING
●Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission placed into P (Park). Failure to do so
could cause the vehicle to move unexpect-
edly or roll away and result in an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
1. Firmly apply the parking brake.
2. Move the selector lever to the P (Park)
position. 3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL,
NO CURB:
3
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.
4. Push the ignition switch to the OFF posi- tion.
SD1006MA
PARKING/PARKING ON HILLS
Starting and driving5-83
—
—
01/12/10—pattie


6 In case of emergency
Roadside assistance program...................... 6-2
Emergency engine shut off ......................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Changing a flat tire ............................. 6-3
Jump starting ..................................... 6-8 Push starting
.................................... 6-10
If your vehicle overheats ........................... 6-11
Towing your vehicle .............................. 6-12
Towing recommended by INFINITI ...............6-13
Vehicle recovery (freeing a stuck vehicle) ........6-15
—
—
07/15/10—tbrooks


CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
5. Start the engine of the booster vehicleA
and let it run for a few minutes.
6. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle being jump
started
B.
CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
7. After starting your engine, carefully dis- connect the negative cable and then the
positive cable (
4→3→2→1). 8. Replace the vent caps (if so equipped). Be
sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
9. Put the battery cover on.
Do not attempt to start the engine by pushing.
CAUTION
● Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
PUSH STARTING
6-10In case of emergency
—
—
01/13/10—pattie

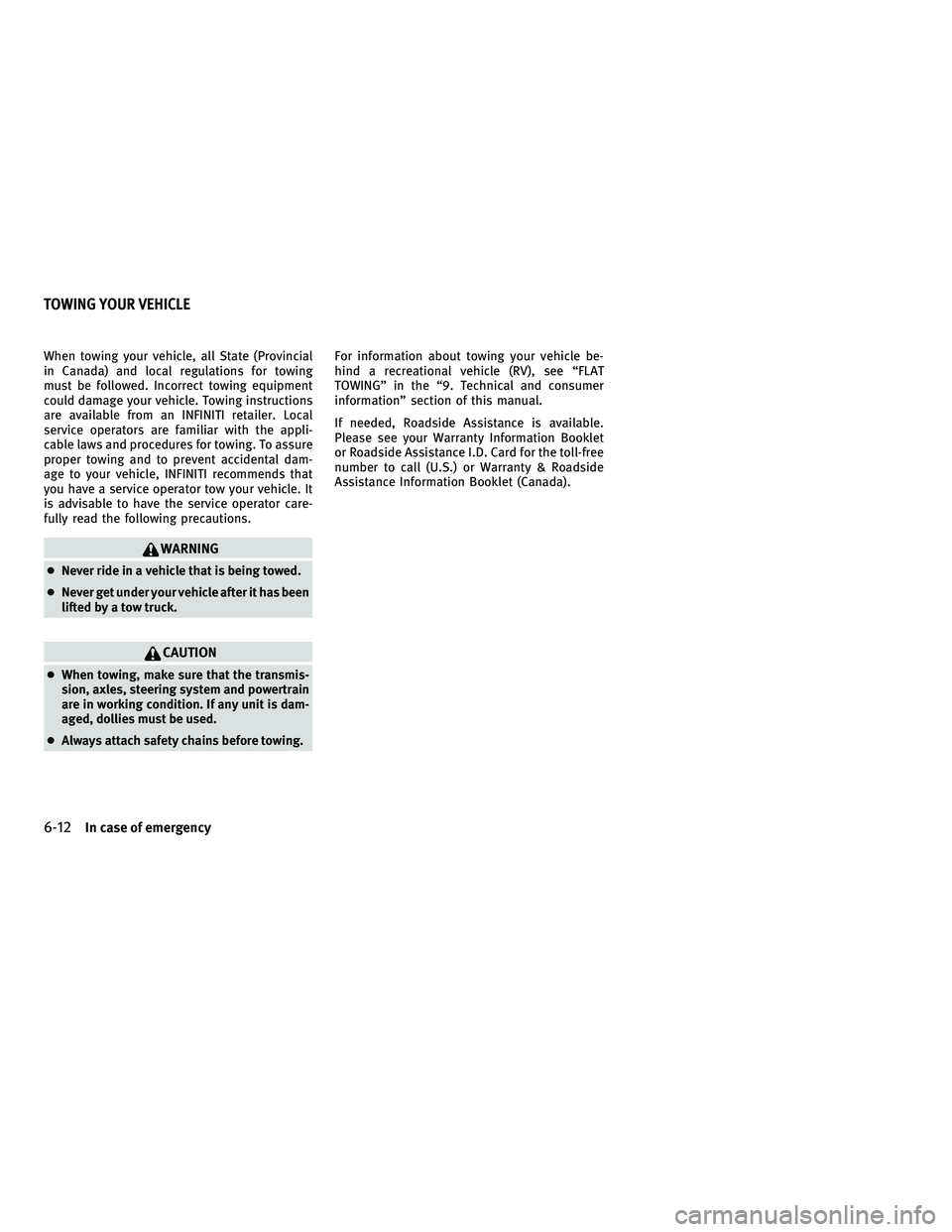

When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.
WARNING
●Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing. For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING YOUR VEHICLE
6-12In case of emergency
—
—
01/13/10—pattie

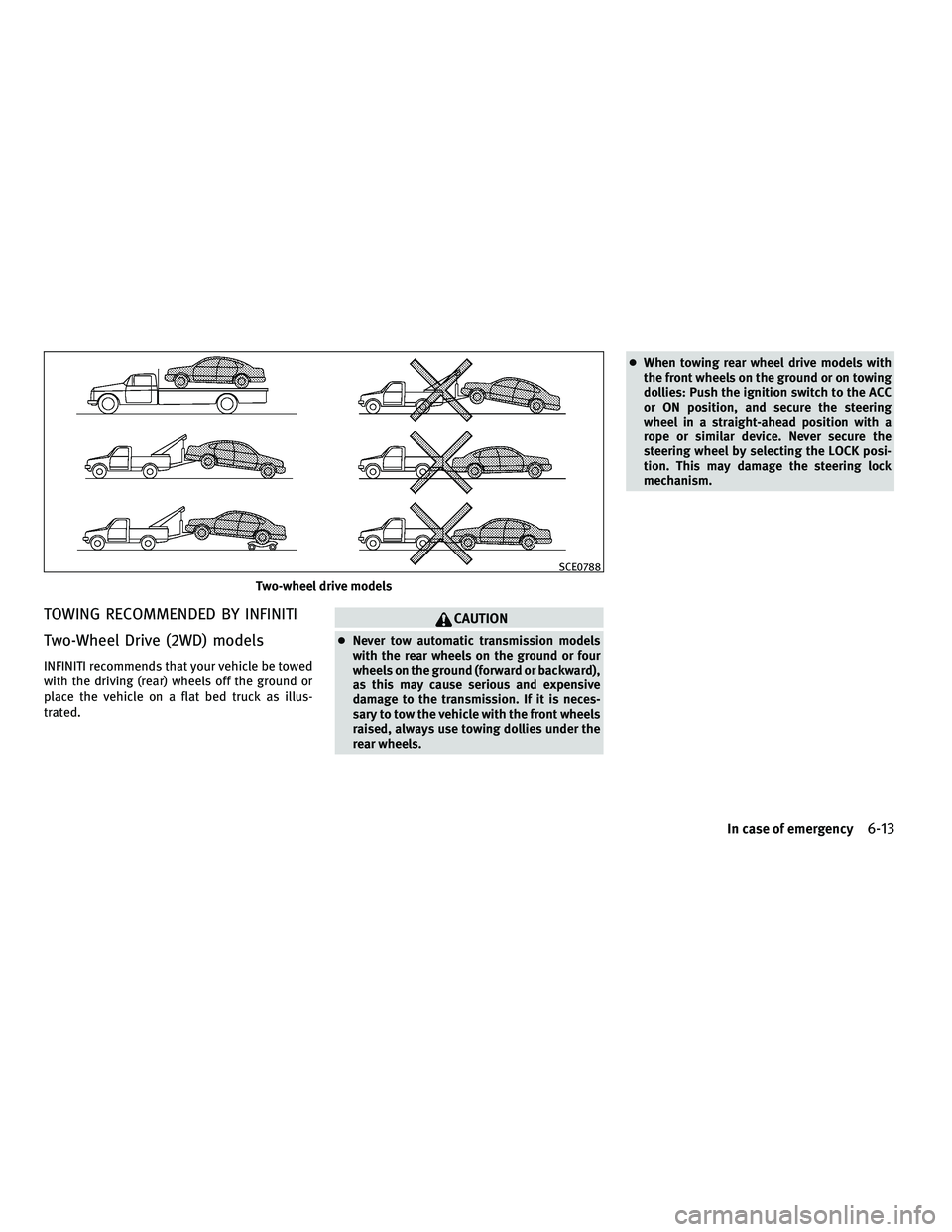

TOWING RECOMMENDED BY INFINITI
Two-Wheel Drive (2WD) models
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illus-
trated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive
damage to the transmission. If it is neces-
sary to tow the vehicle with the front wheels
raised, always use towing dollies under the
rear wheels. ●
When towing rear wheel drive models with
the front wheels on the ground or on towing
dollies: Push the ignition switch to the ACC
or ON position, and secure the steering
wheel in a straight-ahead position with a
rope or similar device. Never secure the
steering wheel by selecting the LOCK posi-
tion. This may damage the steering lock
mechanism.
Two-wheel drive models
SCE0788
In case of emergency6-13
—
—
01/13/10—pattie

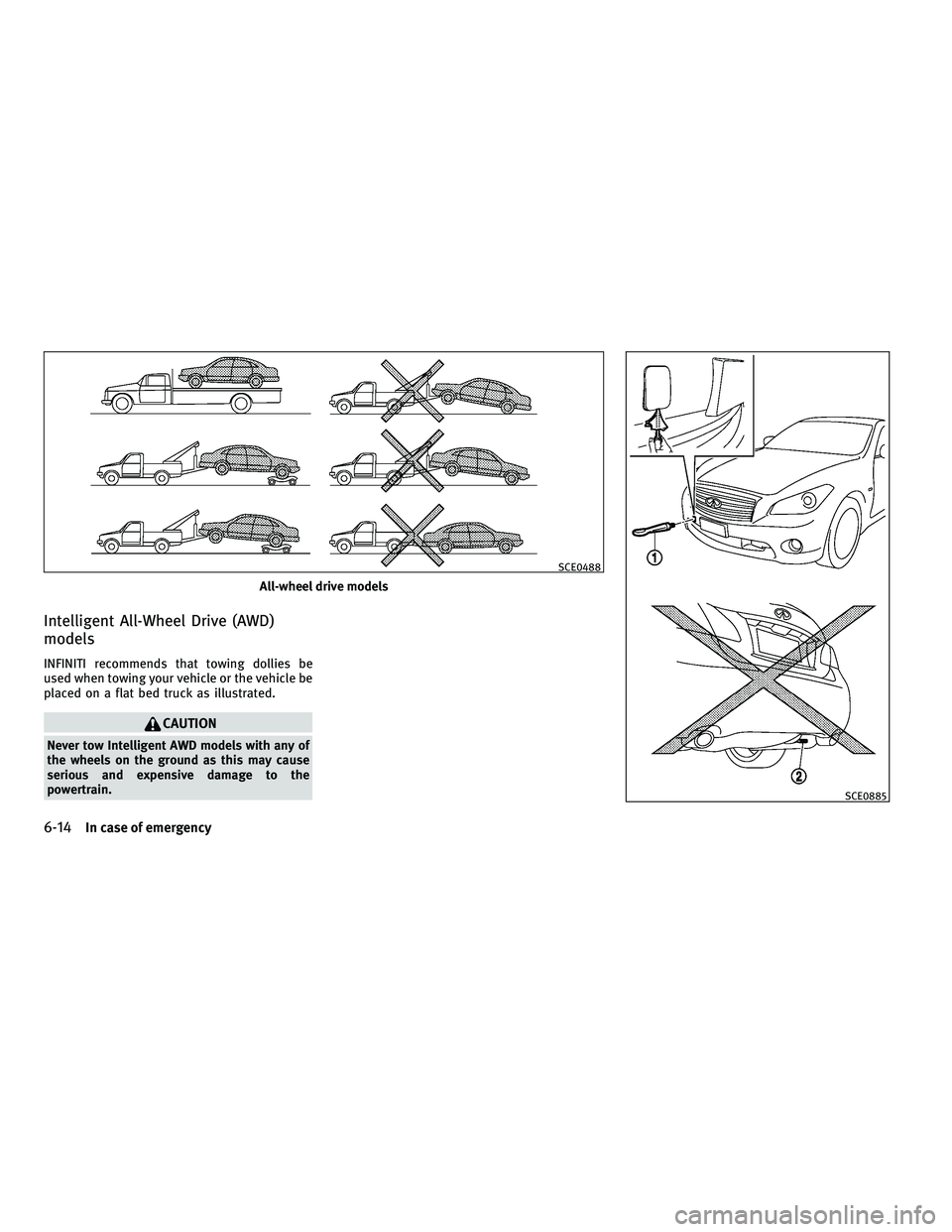

Intelligent All-Wheel Drive (AWD)
models
INFINITI recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow Intelligent AWD models with any of
the wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
All-wheel drive models
SCE0488
SCE0885
6-14In case of emergency
—
—
01/13/10—pattie


VEHICLE RECOVERY (freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
Front:
1. Remove the cover with a suitable tool.
2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Attach the tow strap to the recovery hook.
Make sure that the hook is properly secured
in the original place after use.
Rear :
Do not use the tie down hook
2for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks.
● Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions. 3. Turn the steering wheel right and left to
clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
●Shift back and forth between R (reverse)
and D (drive).
● Apply the accelerator as little as possible
to maintain the rocking motion.
● Release the accelerator pedal before
shifting between R and D.
● Do not spin the tires above 35 MPH
(55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
In case of emergency6-15
—
—
01/13/10—tbrooks

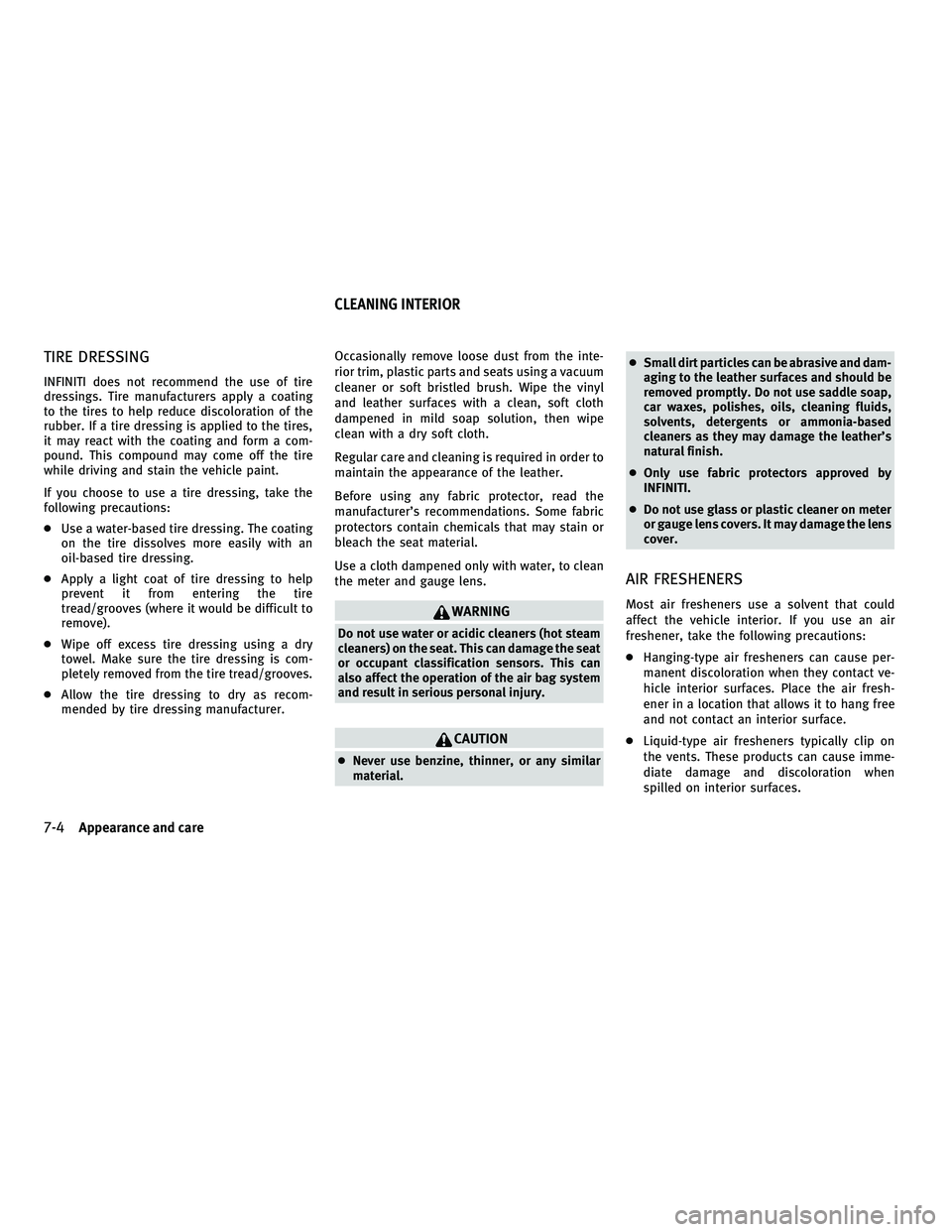

TIRE DRESSING
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
●Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.
● Apply a light coat of tire dressing to help
prevent it from entering the tire
tread/grooves (where it would be difficult to
remove).
● Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is com-
pletely removed from the tire tread/grooves.
● Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer. Occasionally remove loose dust from the inte-
rior trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl
and leather surfaces with a clean, soft cloth
dampened in mild soap solution, then wipe
clean with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot steam
cleaners) on the seat. This can damage the seat
or occupant classification sensors. This can
also affect the operation of the air bag system
and result in serious personal injury.
CAUTION
●
Never use benzine, thinner, or any similar
material. ●
Small dirt particles can be abrasive and dam-
aging to the leather surfaces and should be
removed promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning fluids,
solvents, detergents or ammonia-based
cleaners as they may damage the leather’s
natural finish.
● Only use fabric protectors approved by
INFINITI.
● Do not use glass or plastic cleaner on meter
or gauge lens covers. It may damage the lens
cover.
AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
● Hanging-type air fresheners can cause per-
manent discoloration when they contact ve-
hicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.
● Liquid-type air fresheners typically clip on
the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.
CLEANING INTERIOR
7-4Appearance and care
—
—
01/13/10—pattie


Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed with
the wheels off the vehicle. Spin balancing the
wheels on the vehicle could lead to mechanical
damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the
INFINITI Warranty Information Booklet.
Care of wheels
See “CLEANING EXTERIOR” in the “7. Appear-
ance and care” section for details about care of
the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
WARNING
●The T-type spare tire should be used for
emergency use. It should be replaced with
the standard tire at the first opportunity to
avoid possible tire or differential damage.
● Drive carefully while the TEMPORARY USE
ONLY spare tire is installed. Avoid sharp
turns and abrupt braking while driving.
● Periodically check spare tire inflation pres-
sure. Always keep the pressure of the TEM-
PORARY USE ONLY spare tire at 60 psi (420
kPa, 4.2 bar). Always keep the pressure of
the full size spare tire (if so equipped) at the
recommended pressure for standard tires,
as indicated on the Tire and Loading Infor-
mation label. For Tire and Loading Informa-
tion label location, see “Tire and Loading
Information label” in the index of this
manual.
● With the TEMPORARY USE ONLY spare tire
installed do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
● When driving on roads covered with snow or
ice, the TEMPORARY USE ONLY spare tire
should be used on the front wheels and origi-
nal tire used on the rear wheels (drive
wheels). Use tire chains only on the two rear
original tires. ●
Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than the
standard tire. Replace the spare tire as soon
as the tread wear indicators appear.
● Do not use the spare tire on other vehicles.
● Do not use more than one spare tire at the
same time.
● Do not tow a trailer when the TEMPORARY
USE ONLY spare tire is installed.
CAUTION
● Do not use tire chains on a TEMPORARY USE
ONLY spare tire. Tire chains will not fit prop-
erly and may cause damage to the vehicle.
● Because the TEMPORARY USE ONLY spare
tire is smaller than the original tire, ground
clearance is reduced. To avoid damage to the
vehicle, do not drive over obstacles. Also do
not drive the vehicle through an automatic
car wash since it may get caught.
8-40Maintenance and do-it-yourself
—
—
07/26/10—dmoore


9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-7
Specifications ..................................... 9-8
Engine ........................................ 9-8
Wheels and tires ............................... 9-9
Dimensions ................................... 9-10
When traveling or registering your vehicle in
another country .................................. 9-10
Vehicle identification .............................. 9-11
Vehicle Identification Number (VIN) plate .........9-11
Vehicle identification number (chassis
number) ....................................... 9-11
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label .........9-12
Emission control information label ..............9-12
Tire and loading information label ..............9-13
Air conditioner specification label ...............9-13Installing front license plate
.......................9-14
Vehicle loading information ........................9-15
Terms ......................................... 9-15
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-20
Treadwear .................................... 9-20
Traction AA, A, B and C ........................ 9-20
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-21
Reporting safety defects (US only) .................9-21
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................ 9-22
Event Data Recorders (EDR) .......................9-23
Owner’s Manual/Service Manual order
information ...................................... 9-23
In the event of a collision ......................9-24
—
—
07/15/10—tbrooks
