FUEL RECOMMENDATION
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration.
However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
● Using a fuel other than that specified could
adversely affect the emission control sys-
tem, and may also affect warranty coverage.
● Under no circumstances should a leaded
gasoline be used, because this will damage
the three-way catalyst. ●
Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
Gasoline specifications
INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifica-
tions where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission system and vehicle perfor-
mance. Ask your service station manager if the
gasoline meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated gaso-
line when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
INFINITI does not recommend the use of fuels of which the oxygenate content and the fuel com-
patibility for your INFINITI cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage of
such fuels may cause vehicle performance prob-
lems and/or fuel system damage.
●
The fuel should be unleaded and have an oc-
tane rating no lower than that recommended
for unleaded gasoline.
● If an oxygenate-blend, excepting a methanol
blend, is used, it should contain no more than
10% oxygenate. (MTBE may, however, be
added up to 15%.)
● If a methanol blend is used, it should contain
no more than 5% methanol (methyl alcohol,
wood alcohol). It should also contain a suit-
able amount of appropriate cosolvents and
corrosion inhibitors. If not properly formu-
lated with appropriate cosolvents and corro-
sion inhibitors, such methanol blends may
cause fuel system damage and/or vehicle
performance problems. At this time, suffi-
cient data is not available to ensure that all
methanol blends are suitable for use in
INFINITI vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
9-4Technical and consumer information
—
—
01/13/10—pattie

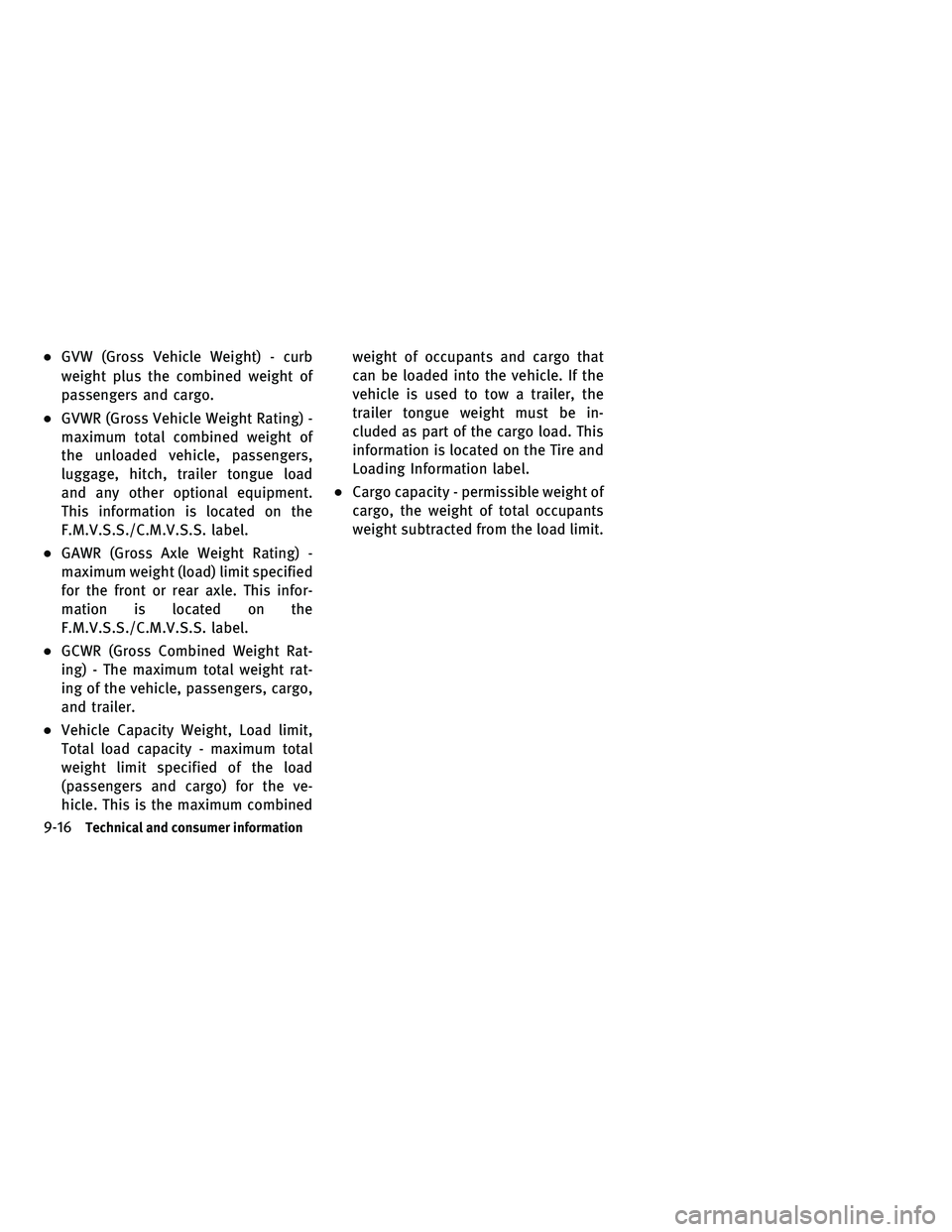

●GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
●GVWR (Gross Vehicle Weight Rating) -
maximum total combined weight of
the unloaded vehicle, passengers,
luggage, hitch, trailer tongue load
and any other optional equipment.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
●GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This infor-
mation is located on the
F.M.V.S.S./C.M.V.S.S. label.
●GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rat-
ing of the vehicle, passengers, cargo,
and trailer.
●Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.
●Cargo capacity - permissible weight of
cargo, the weight of total occupants
weight subtracted from the load limit.
9-16
Technical and consumer information
—
—
01/13/10—pattie

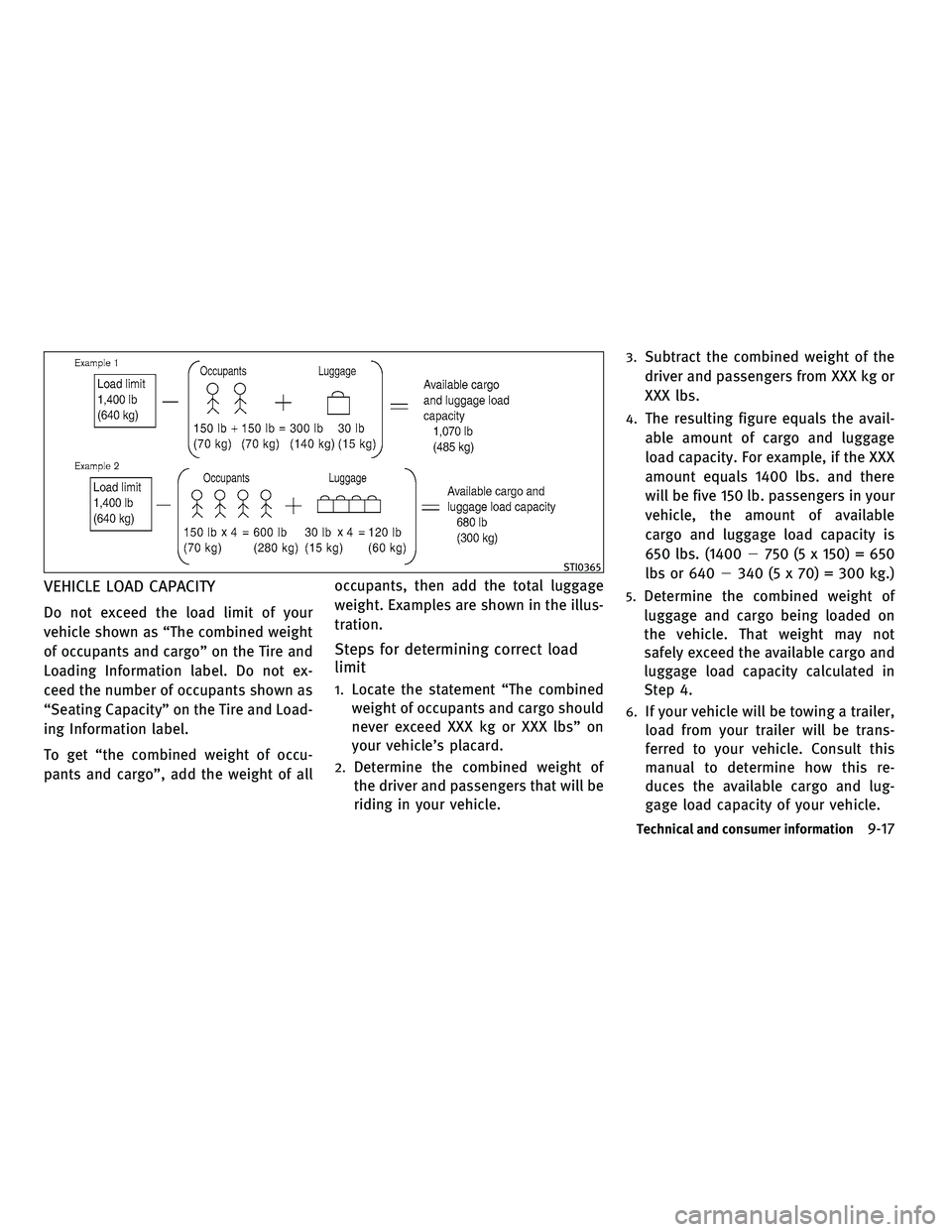

VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined weight
of occupants and cargo” on the Tire and
Loading Information label. Do not ex-
ceed the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of alloccupants, then add the total luggage
weight. Examples are shown in the illus-
tration.
Steps for determining correct load
limit
1.Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2.Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 750 (5 x 150) = 650
lbs or 640 340 (5 x 70) = 300 kg.)
5.Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6.If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.
STI0365
Technical and consumer information9-17
—
—
01/13/10—pattie

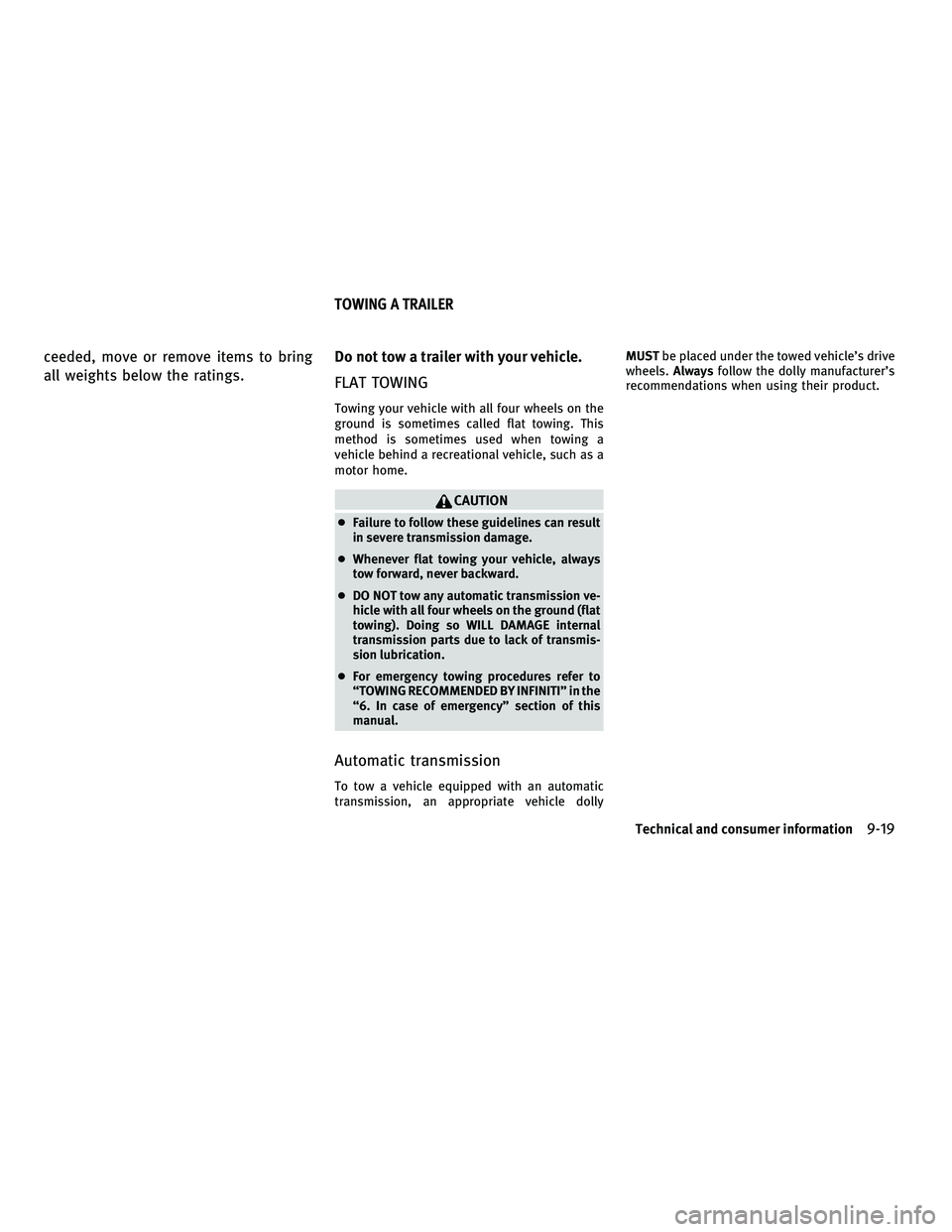

ceeded, move or remove items to bring
all weights below the ratings.Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
●
Failure to follow these guidelines can result
in severe transmission damage.
● Whenever flat towing your vehicle, always
tow forward, never backward.
● DO NOT tow any automatic transmission ve-
hicle with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE internal
transmission parts due to lack of transmis-
sion lubrication.
● For emergency towing procedures refer to
“TOWING RECOMMENDED BY INFINITI” in the
“6. In case of emergency” section of this
manual.
Automatic transmission
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Alwaysfollow the dolly manufacturer’s
recommendations when using their product.
TOWING A TRAILER
Technical and consumer information9-19
—
—
01/13/10—pattie
