display INFINITI M 2011 Owner's Guide

Vehicle information display
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informationon the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
●Where am I?
● Traffic Info
● Weather Info
● Map Update
● Navigation Version
*When the ignition switch is in the ON position,
the “Navigation Version” key is displayed after
selecting the “Others” key.
SAA2479
Models with navigation system
SAA2480
SAA2720
Models without navigation system
SAA2721
Monitor, climate, audio, phone and voice recognition systems4-9
—
—
01/12/10—pattie


Fuel Economy information
The distance to empty, average fuel economy
and current fuel economy will be displayed for
reference.
To reset the average fuel economy (Avg Fuel
Econ), select the “Reset Fuel Eco” or “Reset”
key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
The fuel economy information may differ from
the information displayed on the vehicle infor-
mation display. This is due to the timing differ-
ence in updating the information and does not
indicate a malfunction.
For models without the navigation system, the
information can be displayed by pushing the
ECON button on the control panel.
TIRE PRESSURE information
WARNING
●When a spare tire is mounted or a wheel is
replaced, tire pressure will not be indicated,
the TPMS will not function and the low tire
pressure warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. Contact your INFINITI retailer
as soon as possible for tire replacement
and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
The tire pressure will be displayed for refer-
ence.
The pressure indication “** kPa” or “** psi” on
the screen means that the pressure is being
measured. After a few driving trips, the pres-
sure for each tire will be displayed.
For models without navigation system, to
change the measurement units, select the “Se-
lect Units” key with the INFINITI controller and
push the ENTER button.
In case of low tire pressure, LOW PRESSURE
information will be displayed on the screen.
Check the pressure of all tires.
Models with navigation system
SAA3146
Models without navigation system
SAA3147
4-10Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie


Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
After tire rotation is performed, tire pressure
will not be displayed in the actual tire position.
Drive the vehicle at over 25 MPH (40 km/h) for
approximately 10 minutes to reset the display.
For more details about the Tire Pressure Moni-
toring System (TPMS), see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
*When the ignition switch is in the ACC posi-
tion, the “Tire Pressure” key is not displayed.
SAA2481
Models with navigation system
SAA2482
SAA2830
Models without navigation system
SAA3141
Monitor, climate, audio, phone and voice recognition systems4-11
—
—
01/12/10—pattie


Maintenance information
The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other remind-
ers.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance infor-
mation.
1. Set the interval (mileage) of the mainte-nance schedule. To determine the recom-
mended maintenance interval, refer to
your “INFINITI Service and Maintenance
Guide”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder” key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the “OK” key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
●Select the “Reset Distance” key.
● Deactivate the “Reminder”.
● Increase the “Interval” distance to be more
than the current distance being tracked.
Models with navigation system
SAA3003
Models without navigation system
SAA1611
4-12Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie

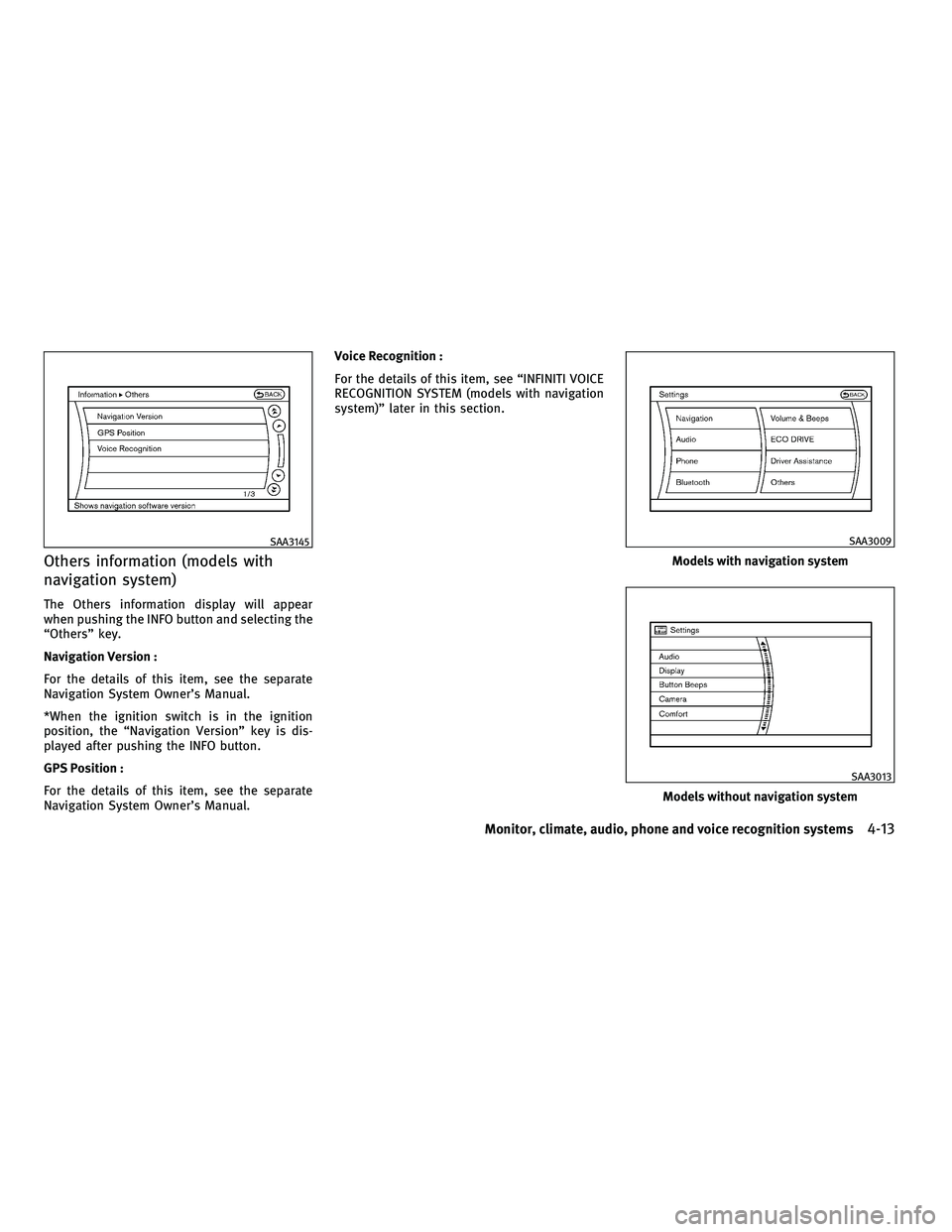

Others information (models with
navigation system)
The Others information display will appear
when pushing the INFO button and selecting the
“Others” key.
Navigation Version :
For the details of this item, see the separate
Navigation System Owner’s Manual.
*When the ignition switch is in the ignition
position, the “Navigation Version” key is dis-
played after pushing the INFO button.
GPS Position :
For the details of this item, see the separate
Navigation System Owner’s Manual.Voice Recognition :
For the details of this item, see “INFINITI VOICE
RECOGNITION SYSTEM (models with navigation
system)” later in this section.
SAA3145
Models with navigation system
SAA3009
Models without navigation system
SAA3013
Monitor, climate, audio, phone and voice recognition systems4-13
—
—
01/12/10—pattie

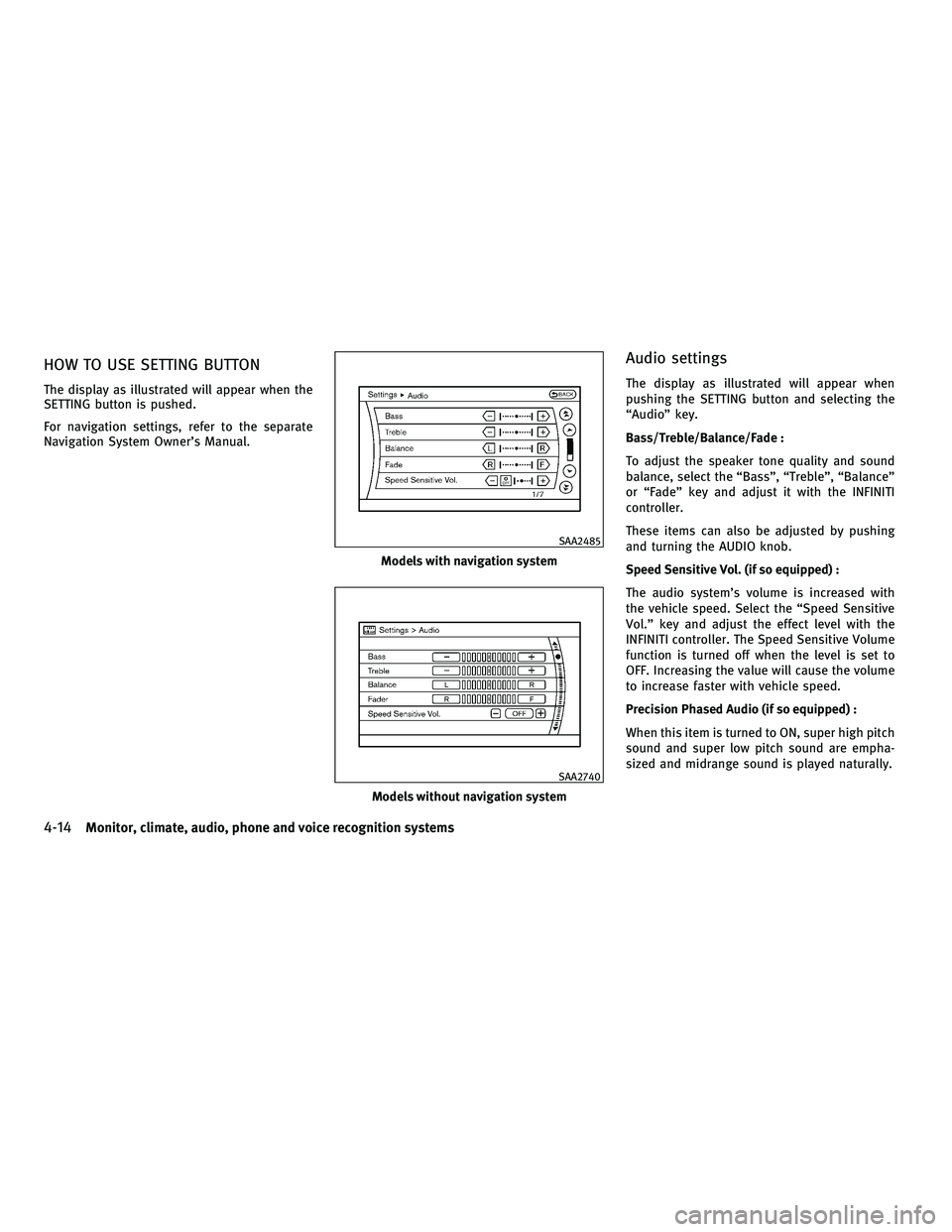

HOW TO USE SETTING BUTTON
The display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Audio settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade :
To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the INFINITI
controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol. (if so equipped) :
The audio system’s volume is increased with
the vehicle speed. Select the “Speed Sensitive
Vol.” key and adjust the effect level with the
INFINITI controller. The Speed Sensitive Volume
function is turned off when the level is set to
OFF. Increasing the value will cause the volume
to increase faster with vehicle speed.
Precision Phased Audio (if so equipped) :
When this item is turned to ON, super high pitch
sound and super low pitch sound are empha-
sized and midrange sound is played naturally.
Models with navigation system
SAA2485
Models without navigation system
SAA2740
4-14Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie


BOSECenterpoint (if so equipped) :
When this item is turned to ON, an exciting
surround sound effect is generated from a
traditional stereo recording.
BOSE AudioPilot (if so equipped) :
When this item is turned to ON, AudioPilot 2
Noise Compensation Technology monitors
noise in the passenger compartment with a
microphone and compensates for any unpleas-
ant noise.
Surround Effect (if so equipped) :
To adjust the surround sound volume, select
“Surround Effect” key and adjust it with the
INFINITI controller.
DivX Registration Code (models with naviga-
tion system) :
The registration code for a device that is used to
download DivX files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function
will not be activated.
Display Album Cover Art (models with naviga-
tion system) :
When this item is turned to ON, the album cover
image is displayed when playing iPod or MP3
music files through a CD, DVD or USB memory. When the image is not properly embedded in
the file or device, the image will not be dis-
played.
Phone settings (models with
navigation system)
For details of the “Phone” settings, see
“BLUETOOTH
HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Bluetooth settings (models with
navigation system)
For details of the “Bluetooth” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section or “BLUETOOTH STREAMING AUDIO
(models with navigation system)” later in this
section.Volume and Beeps settings (models
with navigation system)
The display as illustrated will appear when
pushing the SETTING button, selecting the “Vol-
ume & Beeps” key.
Audio Volume :
To increase or decrease the audio volume,
select the “Audio Volume” key and adjust it
with the INFINITI controller. You can also adjust
the audio volume by turning the VOLUME con-
trol knob.
SAA2554
Monitor, climate, audio, phone and voice recognition systems4-15
—
—
01/12/10—pattie


Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Camera
● Image Viewer Depending on the equipment, pushing SETTING
will display the following items.
●
Display
● Clock
Display settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Display”
key.
Display Adjustment :
To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings
are available.
●Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
SAA3008SAA2486
Monitor, climate, audio, phone and voice recognition systems4-17
—
—
01/12/10—pattie

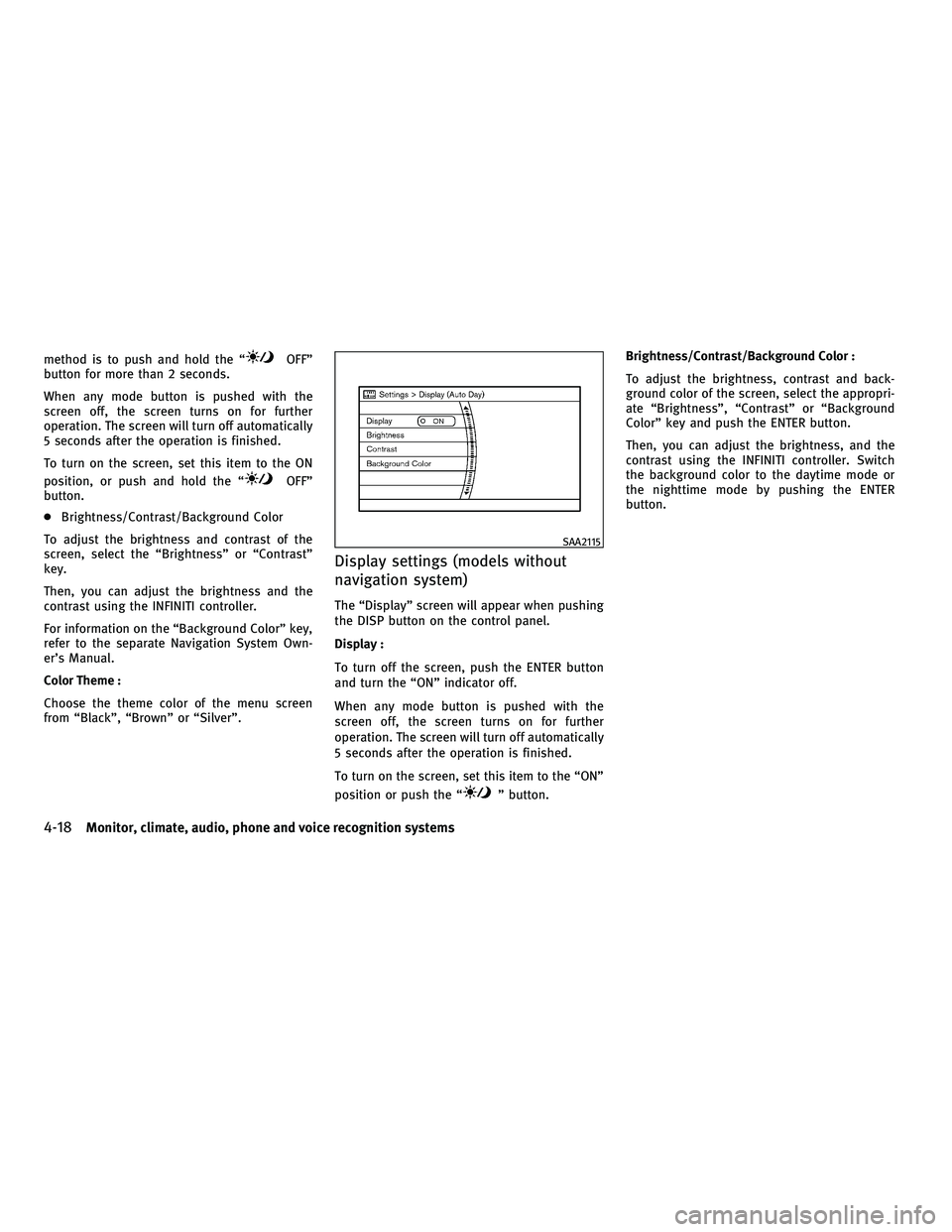

method is to push and hold the “OFF”
button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness and the
contrast using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Color Theme :
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
Display settings (models without
navigation system)
The “Display” screen will appear when pushing
the DISP button on the control panel.
Display :
To turn off the screen, push the ENTER button
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the “ON”
position or push the “
” button. Brightness/Contrast/Background Color :
To adjust the brightness, contrast and back-
ground color of the screen, select the appropri-
ate “Brightness”, “Contrast” or “Background
Color” key and push the ENTER button.
Then, you can adjust the brightness, and the
contrast using the INFINITI controller. Switch
the background color to the daytime mode or
the nighttime mode by pushing the ENTER
button.
SAA2115
4-18Monitor, climate, audio, phone and voice recognition systems
—
—
01/12/10—pattie

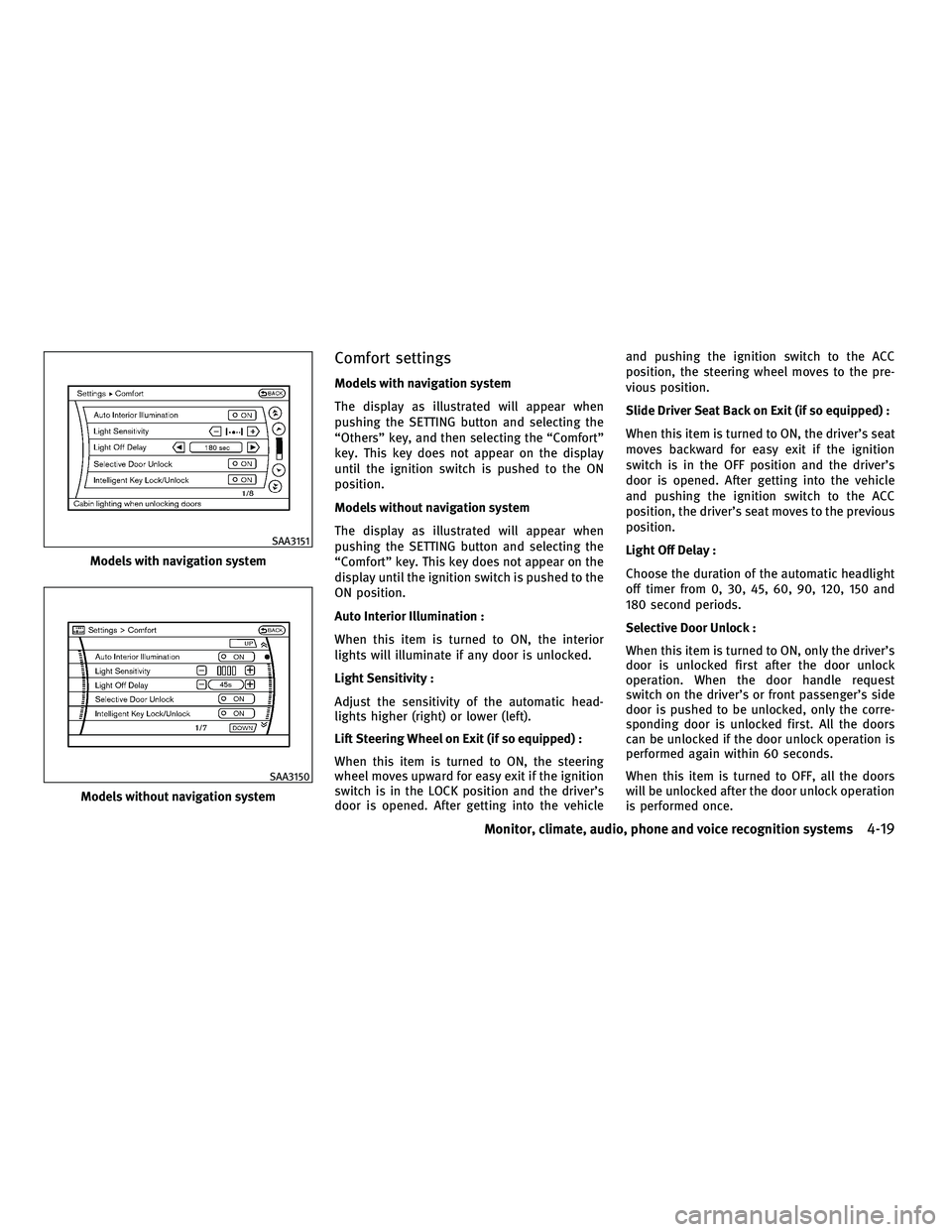

Comfort settings
Models with navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display
until the ignition switch is pushed to the ON
position.
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicleand pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Models with navigation system
SAA3151
Models without navigation system
SAA3150
Monitor, climate, audio, phone and voice recognition systems4-19
—
—
01/12/10—pattie
