If the IBA off indicator light illuminates after
following the procedures above, it may indicate
that the system or Active Trace Control (if so
equipped) is malfunctioning. Although the ve-
hicle is still driveable under normal conditions,
have the vehicle checked at an INFINITI retailer.
(See “INTELLIGENT BRAKE ASSIST (IBA) SYS-
TEM” in the “5. Starting and driving” section
and “VEHICLE DYNAMIC CONTROL (VDC) SYS-
TEM” in the “5. Starting and driving” section.)
Lane Departure Prevention
(LDP) ON indicator light
(green; if so equipped)
The light comes on in green when the Lane
Departure Prevention (LDP) system is turned on.
The light turns off when the system is turned
off.
NOTE:
This light is common with the lane departure
warning light (orange). (See “Lane departure
warning light” earlier in this section.)
For more details, see “LANE DEPARTURE WARN-
ING (LDW) SYSTEM/LANE DEPARTURE PREVEN-
TION (LDP) SYSTEM” in the “5. Starting and
driving” section.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come
on steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least
3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. (See “READINESS
FOR INSPECTION/MAINTENANCE (I/M) TEST (US
only)” in the “9. Technical and consumer infor-
mation” section.) Operation :
The malfunction indicator light will come on in
one of two ways:
●
Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap if the
LOOSE FUEL CAP warning (if so equipped)
appears in the dot matrix crystal display. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after
a few driving trips. If the
light does
not turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer. You
do not need to have your vehicle towed to
the retailer.
● Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
Instruments and controls2-17
—
—
07/15/10—tbrooks

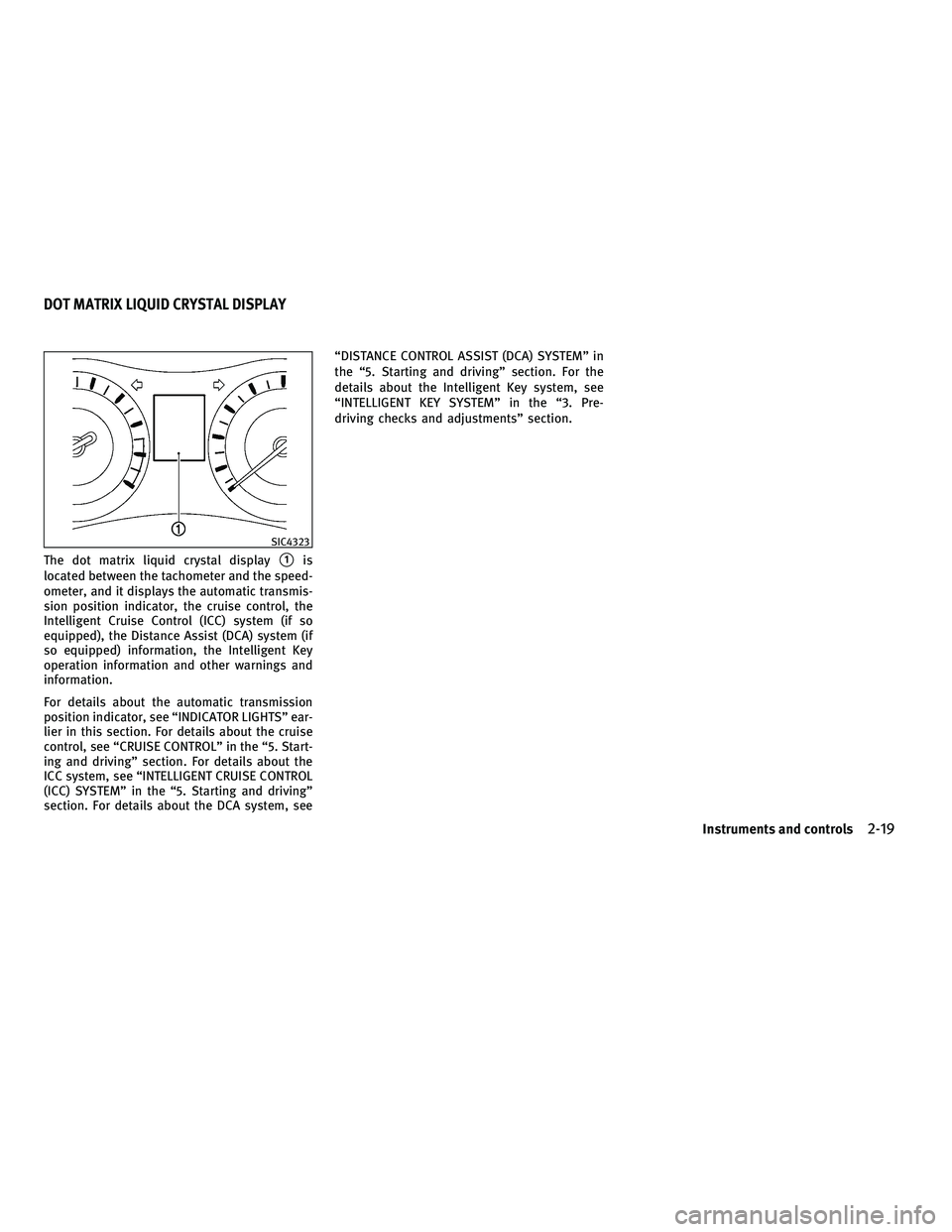

The dot matrix liquid crystal display1is
located between the tachometer and the speed-
ometer, and it displays the automatic transmis-
sion position indicator, the cruise control, the
Intelligent Cruise Control (ICC) system (if so
equipped), the Distance Assist (DCA) system (if
so equipped) information, the Intelligent Key
operation information and other warnings and
information.
For details about the automatic transmission
position indicator, see “INDICATOR LIGHTS” ear-
lier in this section. For details about the cruise
control, see “CRUISE CONTROL” in the “5. Start-
ing and driving” section. For details about the
ICC system, see “INTELLIGENT CRUISE CONTROL
(ICC) SYSTEM” in the “5. Starting and driving”
section. For details about the DCA system, see “DISTANCE CONTROL ASSIST (DCA) SYSTEM” in
the “5. Starting and driving” section. For the
details about the Intelligent Key system, see
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.
SIC4323
DOT MATRIX LIQUID CRYSTAL DISPLAY
Instruments and controls2-19
—
—
07/15/10—tbrooks


8. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
9. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (0)
position.
10. Low washer fluid warning
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “WINDOW WASHER FLUID” in the “8. Main-
tenance and do-it-yourself” section.)
11. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
12. Intelligent Key system warning
This warning appears if there is a malfunction in
the steering lock system or Intelligent Key system.
If this warning appears while the engine is
stopped, the steering lock cannot be released
or the engine cannot be started. If this warning
appears while the engine is running, the vehicle
can be driven. However, contact an INFINITI
retailer for repair as soon as possible.
13. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. (See “FUEL-FILLER CAP” in the “3. Pre-
driving checks and adjustments” section.)
14. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TMPS)” in the “5. Start-
ing and driving” section.)
15. “TIMER” indicator
This indicator appears when the set “TIMER” indi-
cator activates. You can set the time for up to 6
hours. (See “TRIP COMPUTER” later in this section.)
16. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
17. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise control
main switch is pushed. When the main switch is
pushed again, the indicator disappears. When
the cruise control main switch indicator is dis-
played, the cruise control system is operational.
Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
18. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
2-22Instruments and controls
—
—
07/15/10—tbrooks


the indicator disappears. While the main switch
indicator is displayed, the ICC system is opera-
tional. (See “INTELLIGENT CRUISE CONTROL (ICC)
SYSTEM” in the “5. Starting and driving” section.)
19. Distance Control Assist (DCA)
system switch indicator (if so equipped)
The indicator is displayed when the Distance
Control Assist (DCA) system switch is pushed
on. When the switch is pushed again, the
indicator disappears. While the indicator is
displayed, the DCA system is operational. (See
“DISTANCE CONTROL ASSIST (DCA) SYSTEM” in
the “5. Starting and driving” section.)
20. INFINITI Drive Mode Selector
indicator
When a driving mode is selected, the selected
mode indicator is displayed for approximately 2
seconds.
●STANDARD
● SPORT
● ECO
● SNOW
(See “INFINITI DRIVE MODE SELECTOR” in the
“5. Starting and driving” section.)

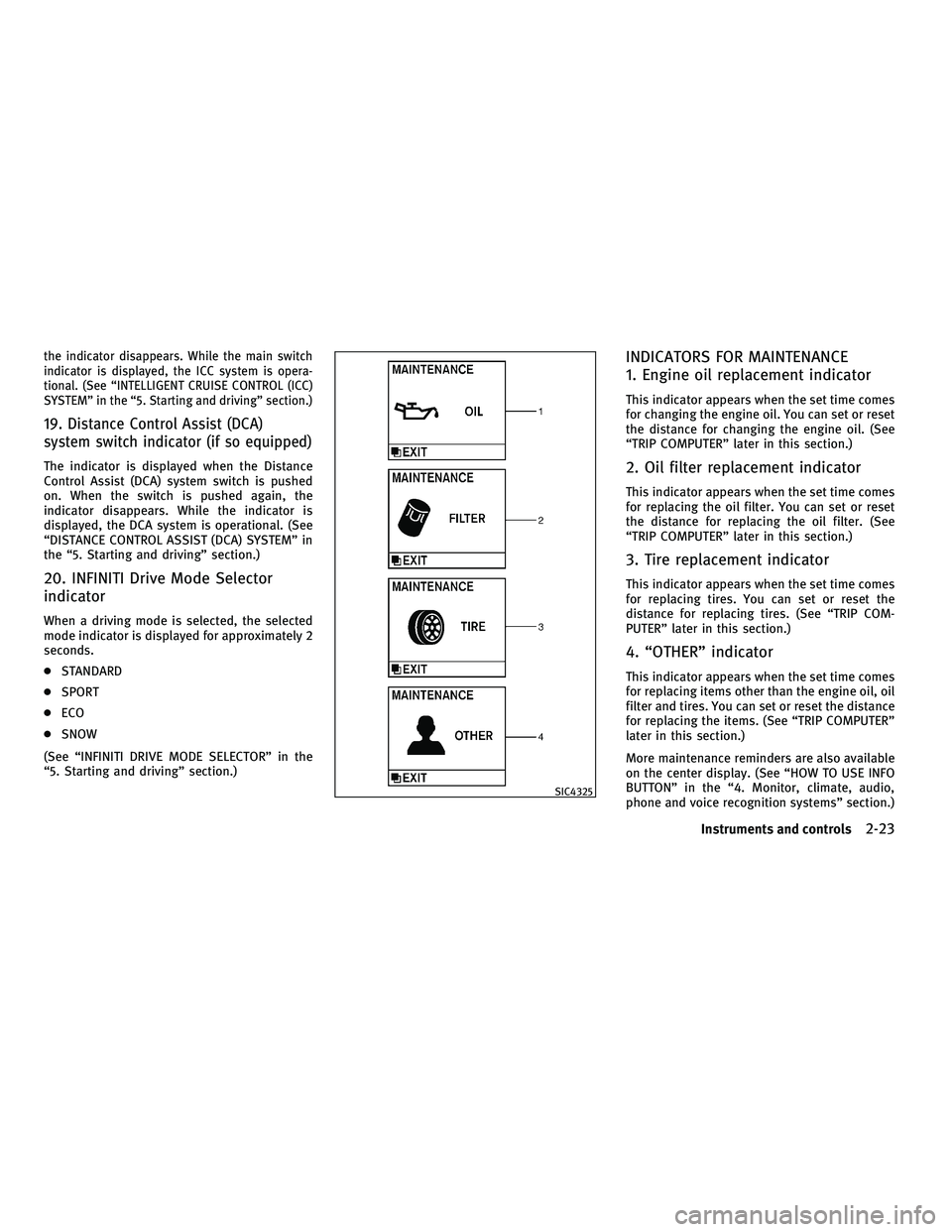

INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.)
SIC4325
Instruments and controls2-23
—
—
07/15/10—tbrooks


Each time theswitchAis pushed, the
display will change as follows:
Current fuel consumption →Average fuel con-
sumption and speed →Elapsed time and trip
odometer →Distance to empty (dte) →Outside
air temperature (ICY) →Setting →Warning
check
1. Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
2. Average fuel consumption (MPG or
l (liter)/100 km) and speed (MPH or
km/h)
Fuel consumption :
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch
Bfor longer than 1 second. (The average speed
is also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”. Speed :
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
switchBfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Elapsed time :
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switchBfor longer than
1 second. (The trip odometer is also reset at the
same time.)
Trip odometer :
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
4. Distance to empty (dte — mls or
km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel
in the fuel tank and the actual fuel consump-
tion.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C).
Instruments and controls2-25
—
—
07/15/10—tbrooks


The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus. ALERT :
There are 3 submenus under the alert menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● FILTER
Select this submenu to set or reset the
distance for replacing the oil filter. ●
TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
OPTIONS :
There are 4 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
miles, MPG, °F or km, l/100km, °C.
● EFFECTS
Select this menu to set the dial effects
described below to on or off.
– The indicator needles sweep in the me- ters when the engine is started.
2-26Instruments and controls
—
—
07/15/10—tbrooks

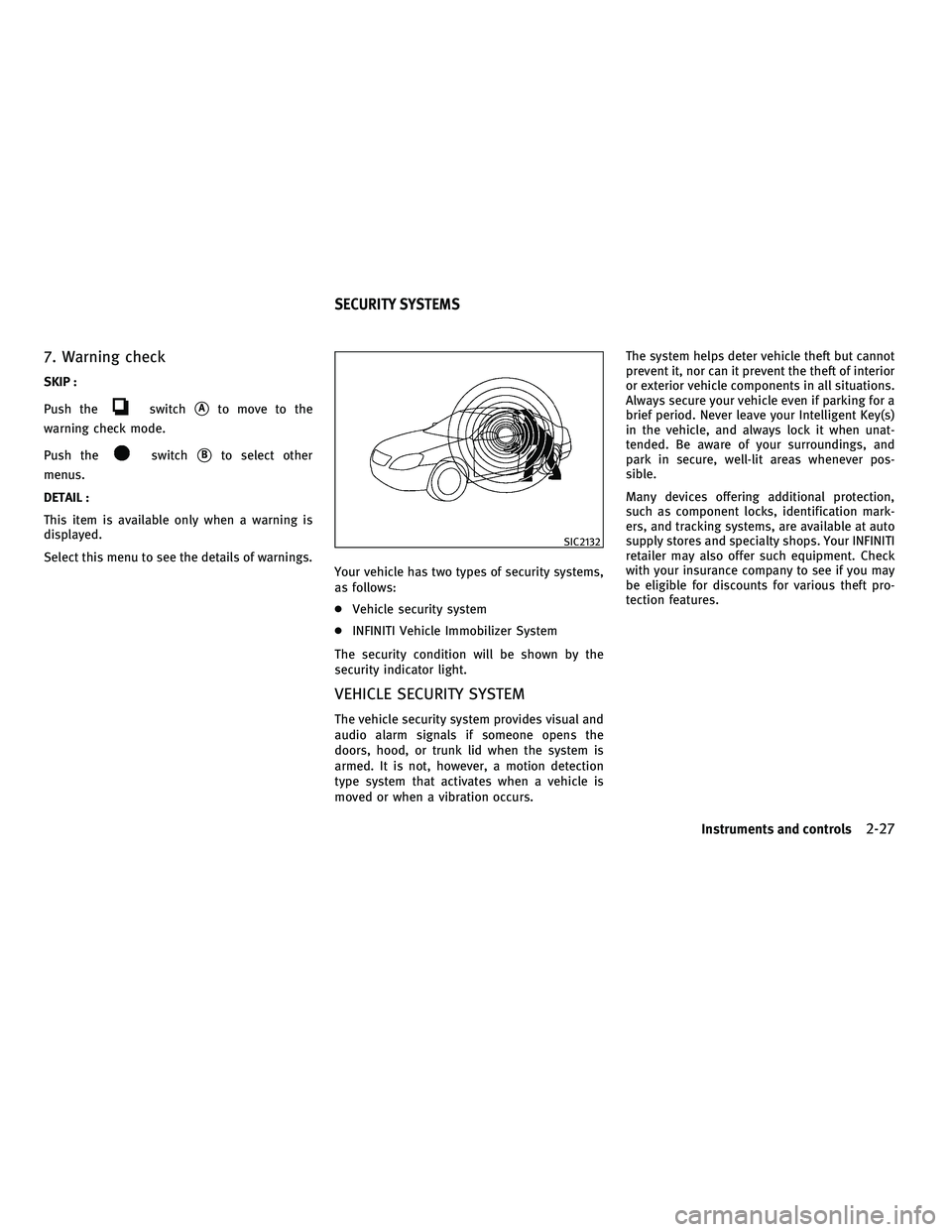

7. Warning check
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus.
DETAIL :
This item is available only when a warning is
displayed.
Select this menu to see the details of warnings. Your vehicle has two types of security systems,
as follows:
●Vehicle security system
● INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual and
audio alarm signals if someone opens the
doors, hood, or trunk lid when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when unat-
tended. Be aware of your surroundings, and
park in secure, well-lit areas whenever pos-
sible.
Many devices offering additional protection,
such as component locks, identification mark-
ers, and tracking systems, are available at auto
supply stores and specialty shops. Your INFINITI
retailer may also offer such equipment. Check
with your insurance company to see if you may
be eligible for discounts for various theft pro-
tection features.
SIC2132
SECURITY SYSTEMS
Instruments and controls2-27
—
—
07/15/10—tbrooks

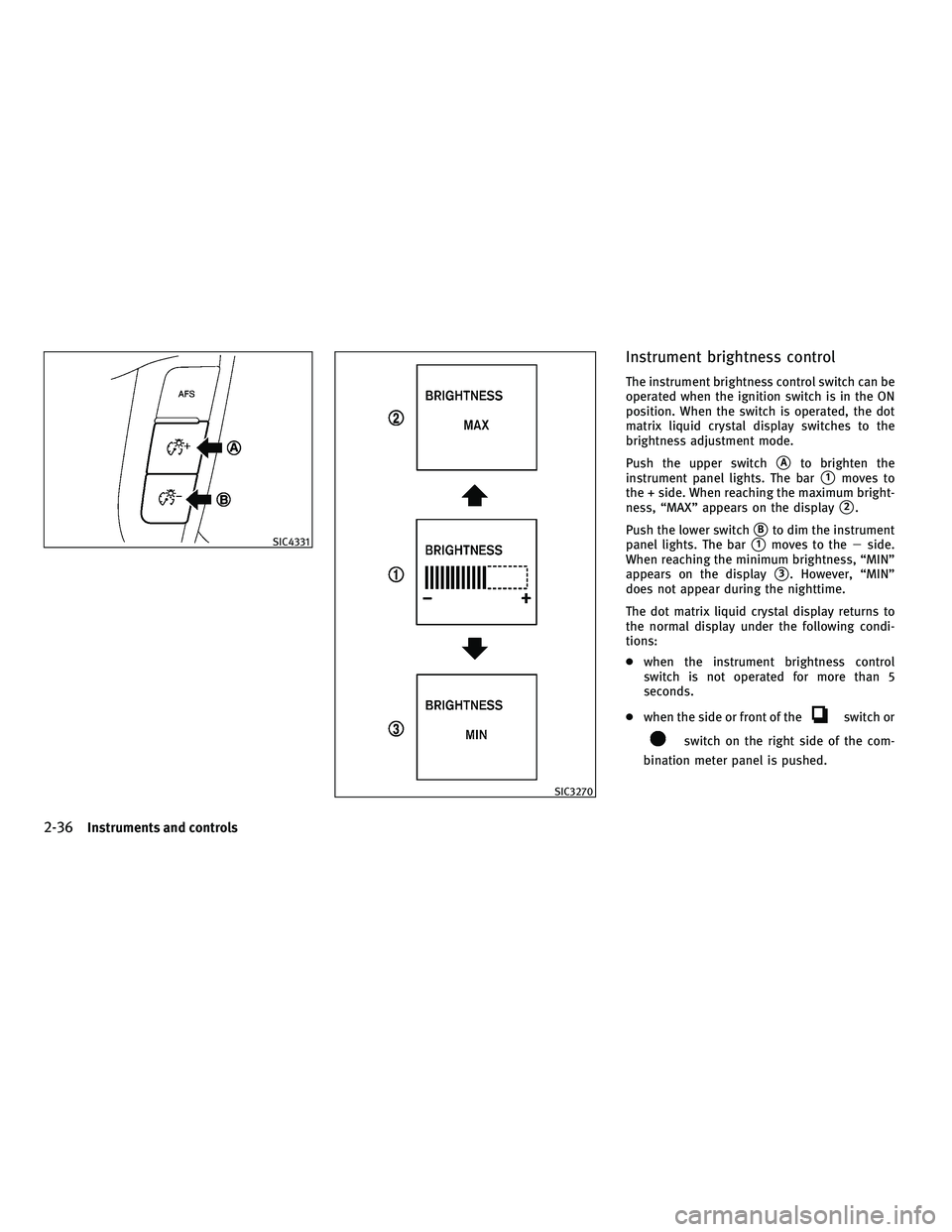

Instrument brightness control
The instrument brightness control switch can be
operated when the ignition switch is in the ON
position. When the switch is operated, the dot
matrix liquid crystal display switches to the
brightness adjustment mode.
Push the upper switch
Ato brighten the
instrument panel lights. The bar
1moves to
the + side. When reaching the maximum bright-
ness, “MAX” appears on the display
2.
Push the lower switch
Bto dim the instrument
panel lights. The bar
1moves to the side.
When reaching the minimum brightness, “MIN”
appears on the display
3. However, “MIN”
does not appear during the nighttime.
The dot matrix liquid crystal display returns to
the normal display under the following condi-
tions:
● when the instrument brightness control
switch is not operated for more than 5
seconds.
● when the side or front of the
switch or
switch on the right side of the com-
bination meter panel is pushed.
SIC4331
SIC3270
2-36Instruments and controls
—
—
07/15/10—tbrooks


See “INTELLIGENT BRAKE ASSIST (IBA) SYSTEM”
in the “5. Starting and driving” section.The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “VEHICLE
DYNAMIC CONTROL (VDC) SYSTEM” in the “5.
Starting and driving” section.) If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section.
SIC4336SIC4338
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK
Instruments and controls2-43
—
—
07/15/10—tbrooks

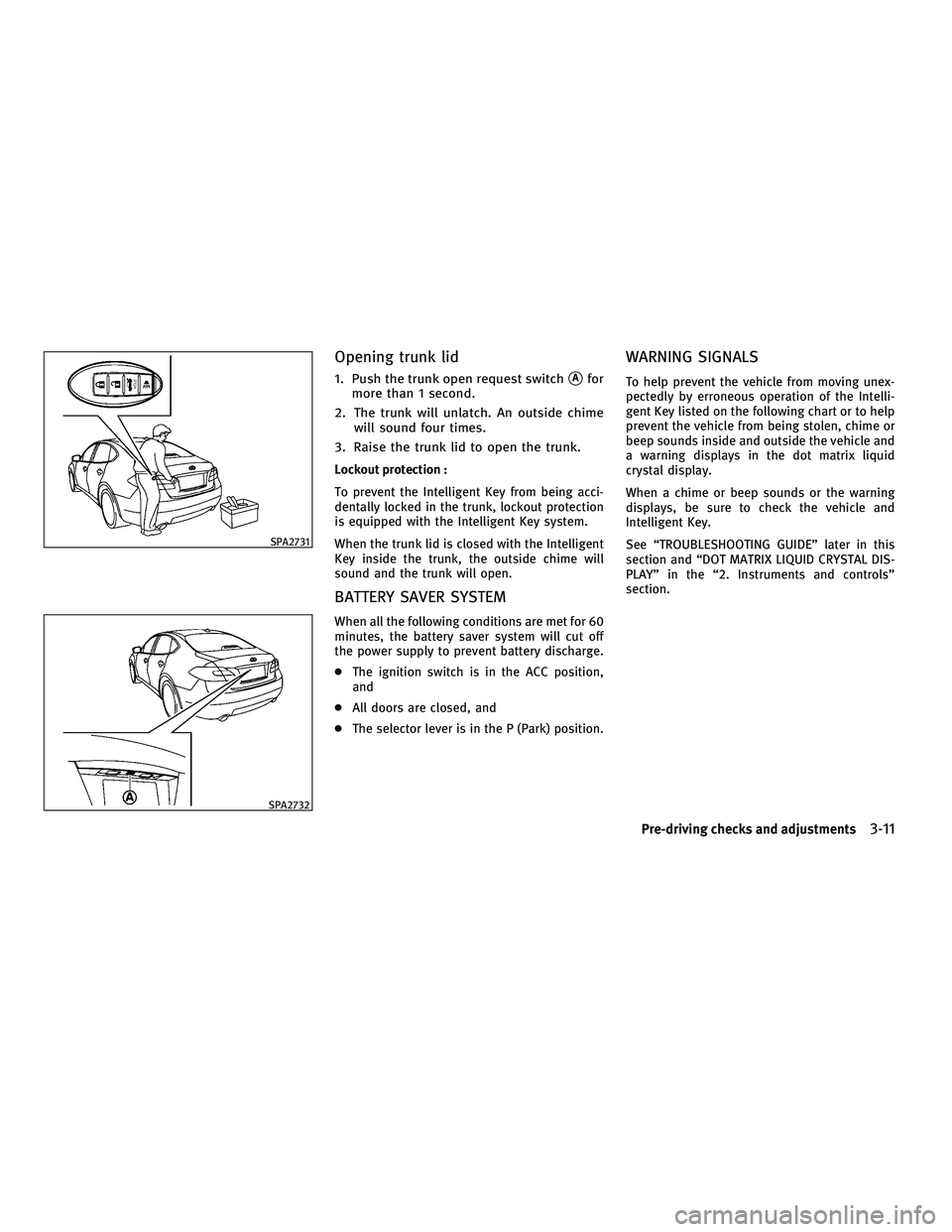

Opening trunk lid
1. Push the trunk open request switchAfor
more than 1 second.
2. The trunk will unlatch. An outside chime will sound four times.
3. Raise the trunk lid to open the trunk.
Lockout protection :
To prevent the Intelligent Key from being acci-
dentally locked in the trunk, lockout protection
is equipped with the Intelligent Key system.
When the trunk lid is closed with the Intelligent
Key inside the trunk, the outside chime will
sound and the trunk will open.
BATTERY SAVER SYSTEM
When all the following conditions are met for 60
minutes, the battery saver system will cut off
the power supply to prevent battery discharge.
● The ignition switch is in the ACC position,
and
● All doors are closed, and
● The selector lever is in the P (Park) position.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key listed on the following chart or to help
prevent the vehicle from being stolen, chime or
beep sounds inside and outside the vehicle and
a warning displays in the dot matrix liquid
crystal display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.
See “TROUBLESHOOTING GUIDE” later in this
section and “DOT MATRIX LIQUID CRYSTAL DIS-
PLAY” in the “2. Instruments and controls”
section.
SPA2731
SPA2732
Pre-driving checks and adjustments3-11
—
—
01/12/10—pattie
