INFINITI M 2011 Owners Manual

1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance, see “CA-
PACITIES AND RECOMMENDED FUEL/ LUBRI-
CANTS” earlier in this section. INFINITI
recommends the use of an energy conserving
oil in order to improve fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE viscos-
ity standard. These oils have the API certifica-
tion mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
based on the temperatures at which the vehicle
will be operated before the next oil change.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When replac-
ing, use the genuine oil filter or its equivalent
for the reason described in change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than
the specified quality, or oil and filter change
intervals longer than recommended could re-
duce engine life. Damage to engines caused by
improper maintenance or use of incorrect oil
and filter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have to
STI0505
9-6Technical and consumer information
—
—
01/13/10—tbrooks

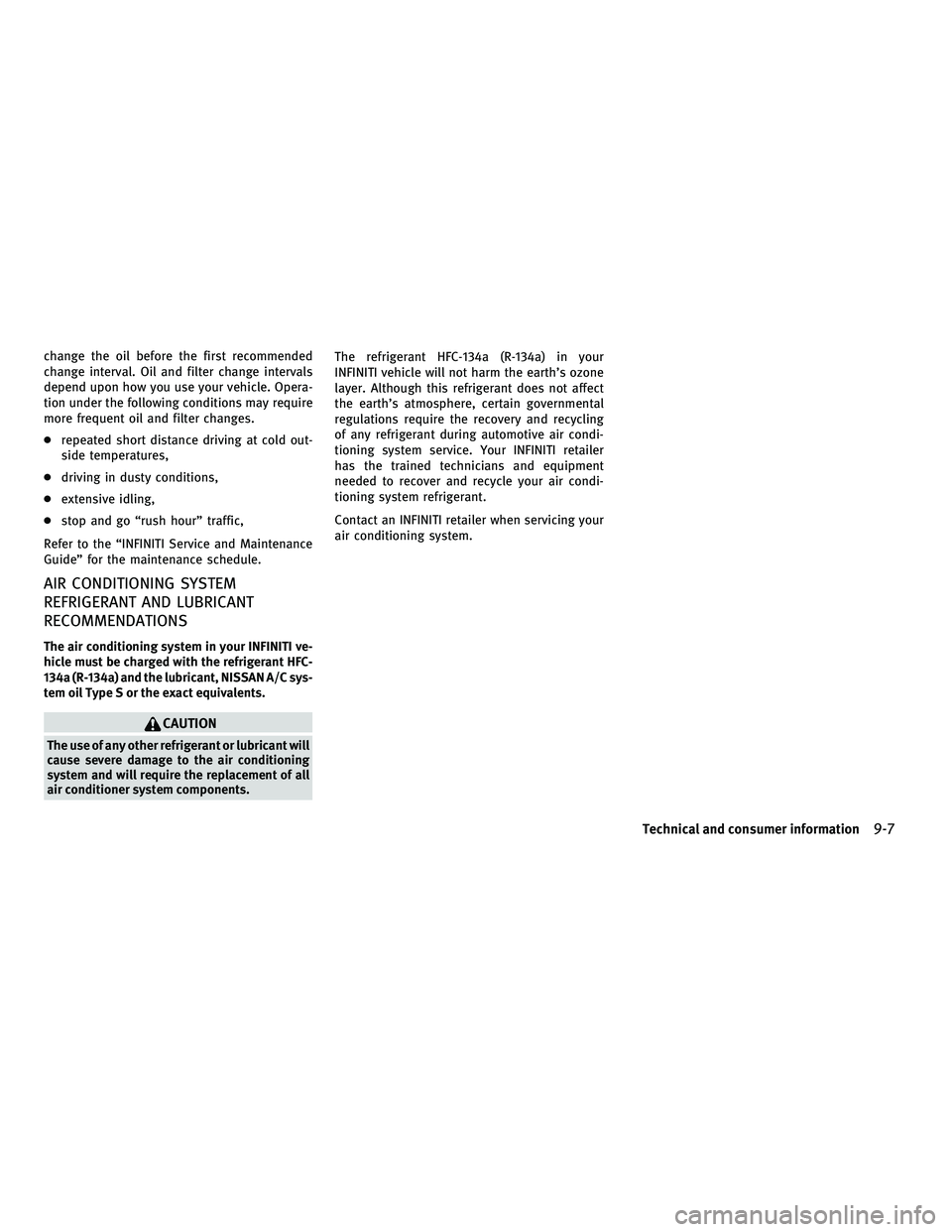

change the oil before the first recommended
change interval. Oil and filter change intervals
depend upon how you use your vehicle. Opera-
tion under the following conditions may require
more frequent oil and filter changes.
●repeated short distance driving at cold out-
side temperatures,
● driving in dusty conditions,
● extensive idling,
● stop and go “rush hour” traffic,
Refer to the “INFINITI Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI ve-
hicle must be charged with the refrigerant HFC-
134a (R-134a) and the lubricant, NISSAN A/C sys-
tem oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant will
cause severe damage to the air conditioning
system and will require the replacement of all
air conditioner system components. The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling
of any refrigerant during automotive air condi-
tioning system service. Your INFINITI retailer
has the trained technicians and equipment
needed to recover and recycle your air condi-
tioning system refrigerant.
Contact an INFINITI retailer when servicing your
air conditioning system.
Technical and consumer information9-7
—
—
01/13/10—tbrooks


ENGINE
ModelVK56VDVQ37VHR
Type Gasoline, 4-cycle Gasoline, 4-cycle
Cylinder arrangement 8-cylinder, V-slanted at
90° 6-cylinder, V-slanted at
60°
Bore × Stroke in (mm) 3.858 × 3.622
(98.0 × 92.0) 3.760 × 3.385
(95.5 × 86.0)
Displacement cu in (cm
3) 338.78 (5,552) 225.54 (3,696)
Firing order 1-8-7-3-6-5-4-21-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing
(B.T.D.C.) degree/rpm
Spark plug DILKAR7B11FXE24HR11
Spark plug gap
(Normal) in (mm)
0.043 (1.1) 0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
VK56VD engine
STI0397B
VQ37VHR engine
STI0425
SPECIFICATIONS
9-8Technical and consumer information
—
—
01/13/10—pattie

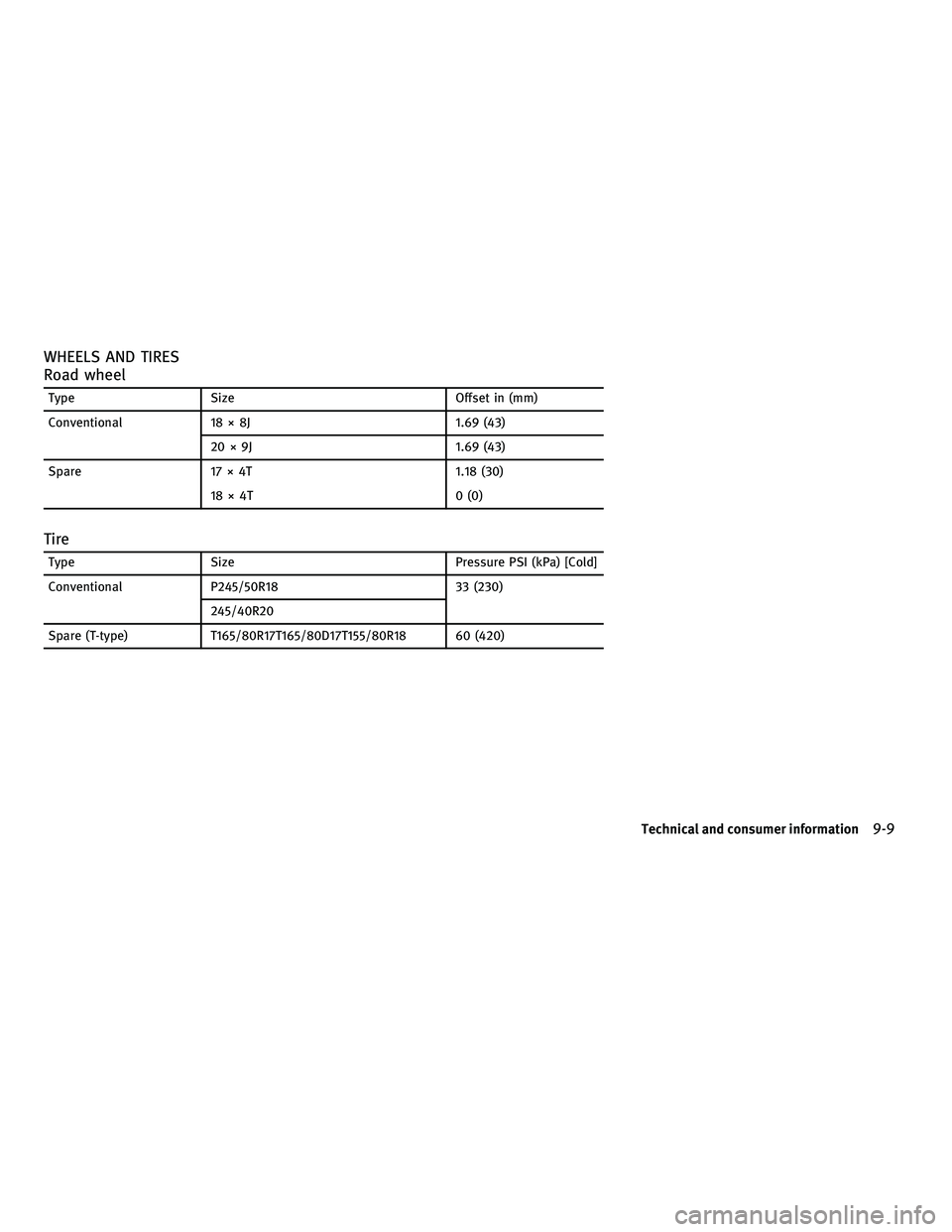

WHEELS AND TIRES
Road wheel
TypeSize Offset in (mm)
Conventional 18 × 8J 1.69 (43)
20 × 9J 1.69 (43)
Spare 17 × 4T 1.18 (30)
18 × 4T 0 (0)
Tire
TypeSize Pressure PSI (kPa) [Cold]
Conventional P245/50R18 33 (230)
245/40R20
Spare (T-type) T165/80R17T165/80D17T155/80R18 60 (420)
Technical and consumer information9-9
—
—
01/13/10—pattie


DIMENSIONS
IN (MM)
Overall length (with front license plate)194.7 (4,945)
Overall length (without front license plate) 194.5 (4,940)
Overall width 72.6 (1,845)
Overall height 59.1 (1,500)*1*2
59.6 (1,515)*3
Front tread 62.0 (1,575)
Rear tread 61.8 (1,570)*1*2
61.6 (1,565)*3
Wheelbase 114.2 (2,900)
*1: Two-Wheel Drive (2WD)/18-in tire models
*2: Two-Wheel Drive (2WD)/20-in tire models
*3: Intelligent All-Wheel Drive (AWD) models If you plan to travel in another country,
you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY
9-10Technical and consumer information
—
—
01/13/10—pattie


VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
STI0716STI0717
VK56VD engine
STI0584
VQ37VHR engine
STI0509
VEHICLE IDENTIFICATION
Technical and consumer information9-11
—
—
01/13/10—pattie


ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR), Gross Axle
Weight Rating (GAWR), month and year of
manufacture, Vehicle Identification Number
(VIN), etc. Review it carefully.
EMISSION CONTROL INFORMATION
LABEL
The emission control information label is at-
tached as shown.
STI0718STI0719
9-12Technical and consumer information
—
—
01/13/10—pattie

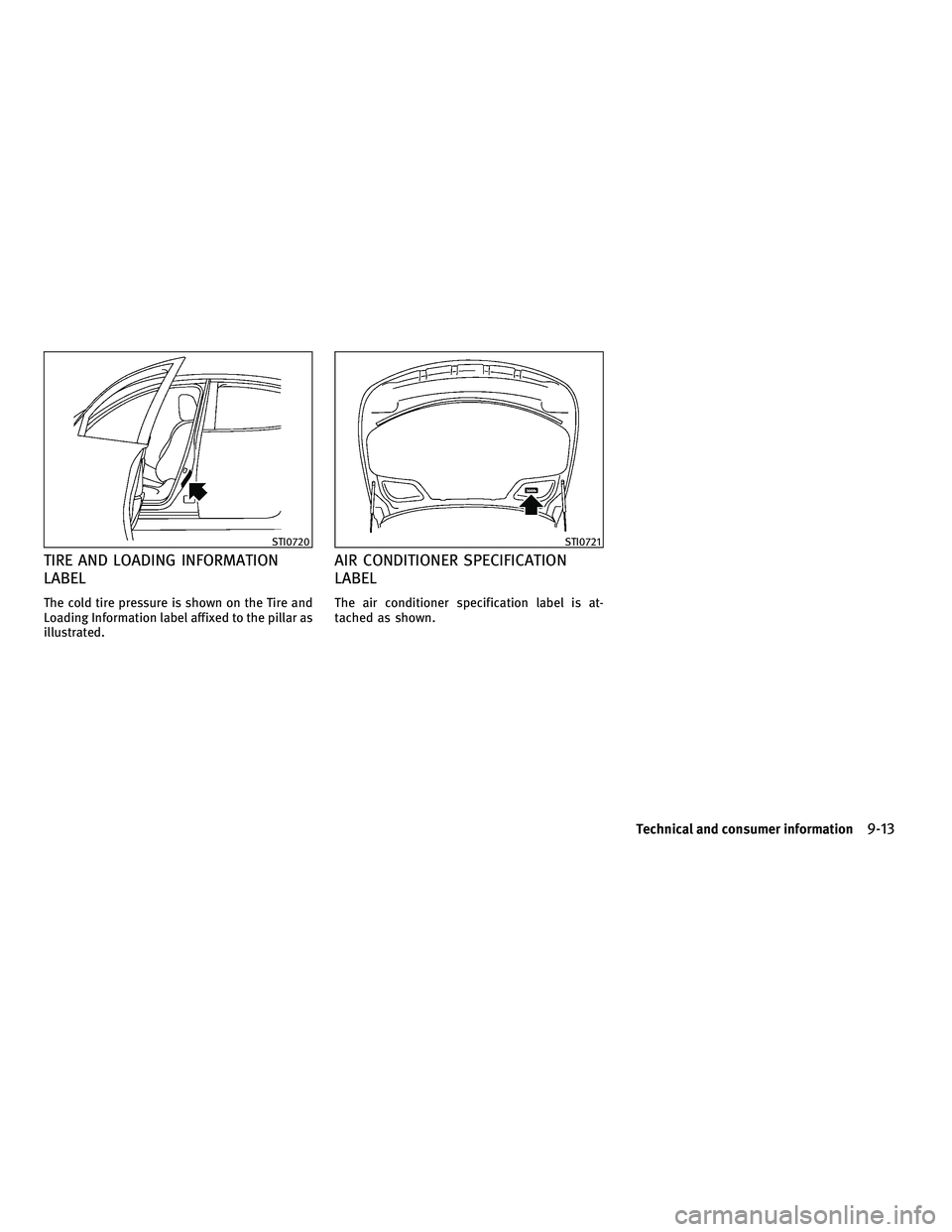

TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is at-
tached as shown.
STI0720STI0721
Technical and consumer information9-13
—
—
01/13/10—pattie

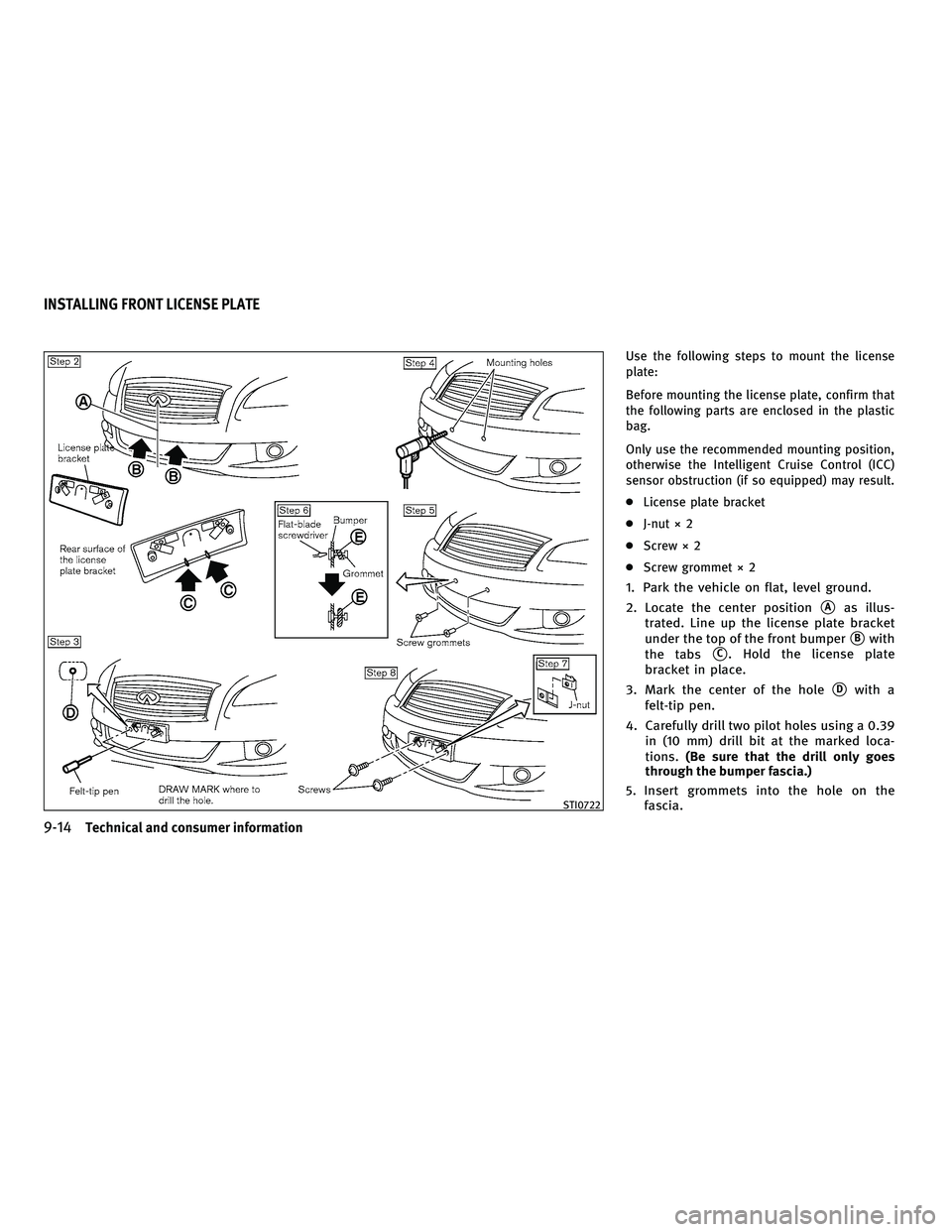

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
Only use the recommended mounting position,
otherwise the Intelligent Cruise Control (ICC)
sensor obstruction (if so equipped) may result.
●License plate bracket
● J-nut × 2
● Screw × 2
● Screw grommet × 2
1. Park the vehicle on flat, level ground.
2. Locate the center position
Aas illus-
trated. Line up the license plate bracket
under the top of the front bumper
Bwith
the tabs
C. Hold the license plate
bracket in place.
3. Mark the center of the hole
Dwith a
felt-tip pen.
4. Carefully drill two pilot holes using a 0.39 in (10 mm) drill bit at the marked loca-
tions. (Be sure that the drill only goes
through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
STI0722
INSTALLING FRONT LICENSE PLATE
9-14Technical and consumer information
—
—
01/13/10—pattie

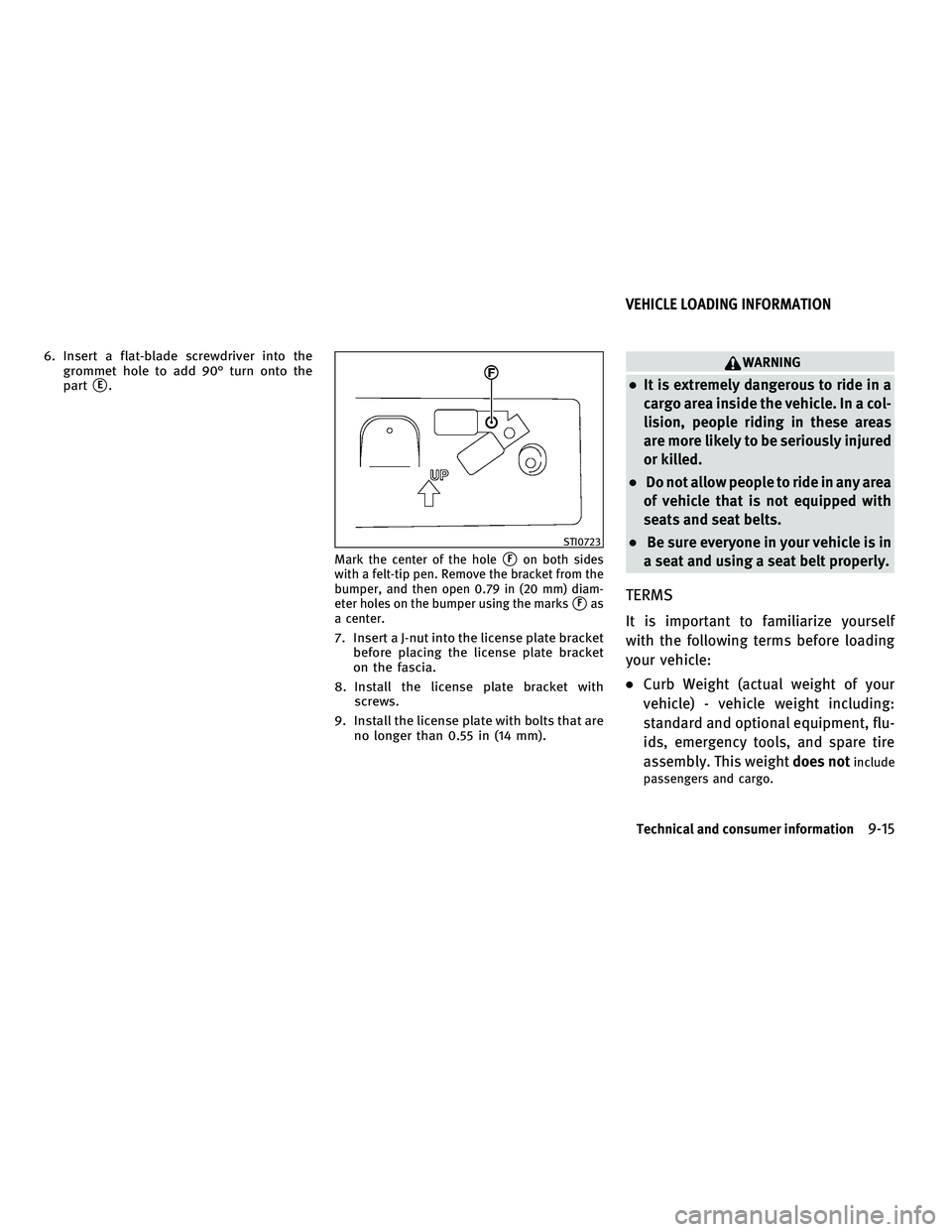

6. Insert a flat-blade screwdriver into thegrommet hole to add 90° turn onto the
part
E.
Mark the center of the holeFon both sides
with a felt-tip pen. Remove the bracket from the
bumper, and then open 0.79 in (20 mm) diam-
eter holes on the bumper using the marks
Fas
a center.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket
on the fascia.
8. Install the license plate bracket with screws.
9. Install the license plate with bolts that are no longer than 0.55 in (14 mm).
WARNING
●It is extremely dangerous to ride in a
cargo area inside the vehicle. In a col-
lision, people riding in these areas
are more likely to be seriously injured
or killed.
●Do not allow people to ride in any area
of vehicle that is not equipped with
seats and seat belts.
●Be sure everyone in your vehicle is in
a seat and using a seat belt properly.
TERMS
It is important to familiarize yourself
with the following terms before loading
your vehicle:
●Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment, flu-
ids, emergency tools, and spare tire
assembly. This weight does not
include
passengers and cargo.
STI0723
VEHICLE LOADING INFORMATION
