2. Insert a flat-blade screwdriverA
wrapped with a cloth into the slitBof
the corner and twist it to separate the
upper part from the lower part.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
● Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts, and then push them together until
it is securely closed.
5. Operate the buttons to check its opera- tion.
See an INFINITI retailer if you need any assis-
tance for replacement.
FCC Notice:
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, in-
cluding interference that may cause undesired
operation of this device.
SDI1889
8-26Maintenance and do-it-yourself
—
—
07/26/10—dmoore

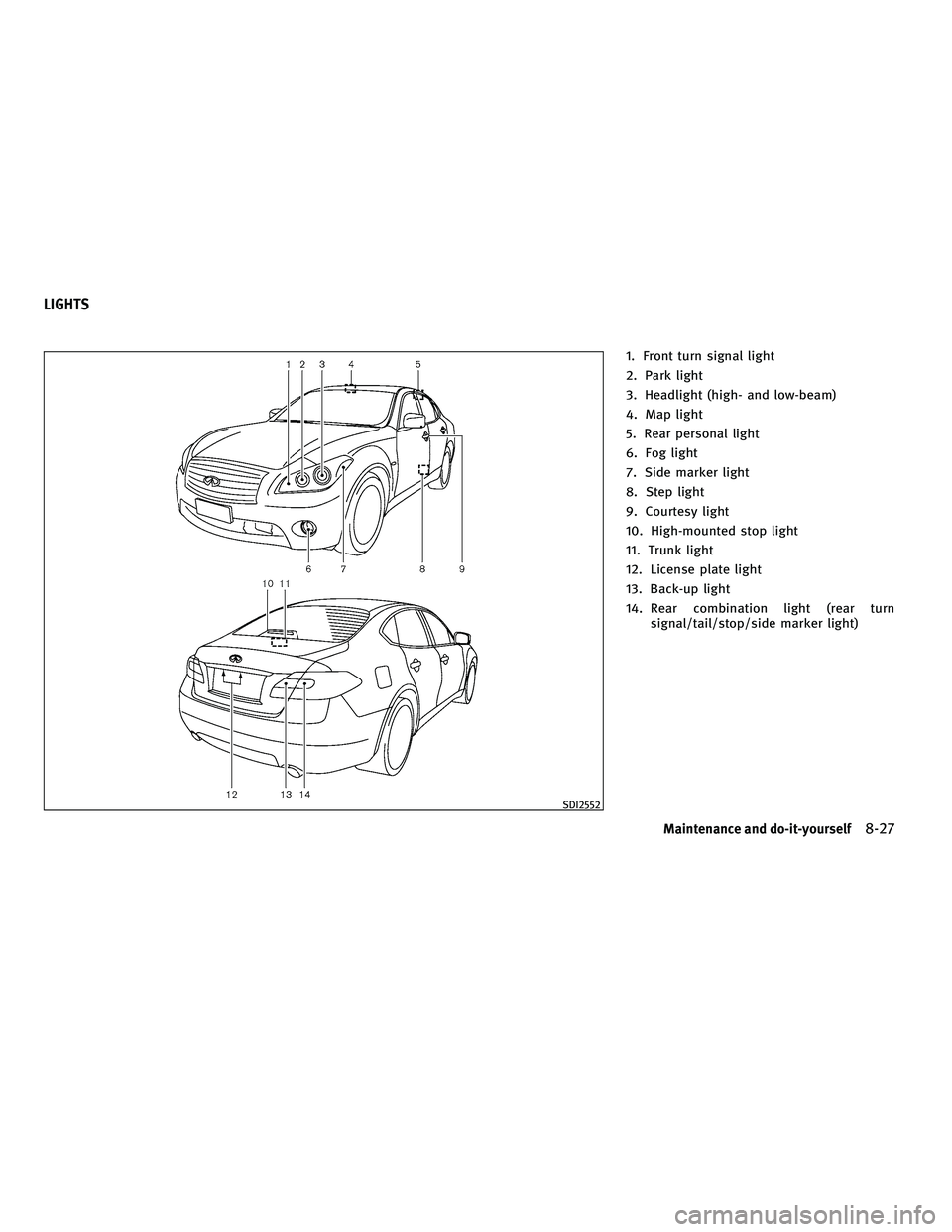

1. Front turn signal light
2. Park light
3. Headlight (high- and low-beam)
4. Map light
5. Rear personal light
6. Fog light
7. Side marker light
8. Step light
9. Courtesy light
10. High-mounted stop light
11. Trunk light
12. License plate light
13. Back-up light
14. Rear combination light (rear turnsignal/tail/stop/side marker light)
SDI2552
LIGHTS
Maintenance and do-it-yourself8-27
—
—
07/26/10—dmoore


HEADLIGHTS
Replacing
Xenon headlight bulb :
WARNING
HIGH VOLTAGE
When xenon headlights are on, they produce a
high voltage. To prevent an electric shock,
never attempt to modify or disassemble. Al-
ways have your xenon headlights replaced at
an INFINITI retailer. For additional information,
see “HEADLIGHT AND TURN SIGNAL SWITCH” in
the “2. Instruments and controls” section.
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see an INFINITI re-
tailer.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact an INFINITI retailer.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 35H8
Park light and front side marker light* 5W5W
Rear combination light* back-up 16W16W
turn signal 21WY21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Rear personal light 8—
Vanity mirror light 2—
Step light* 5—
Trunk light* 3.4—
Courtesy light LED—
High-mounted stop light* LED—
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest information about
parts.
8-28Maintenance and do-it-yourself
—
—
07/26/10—dmoore

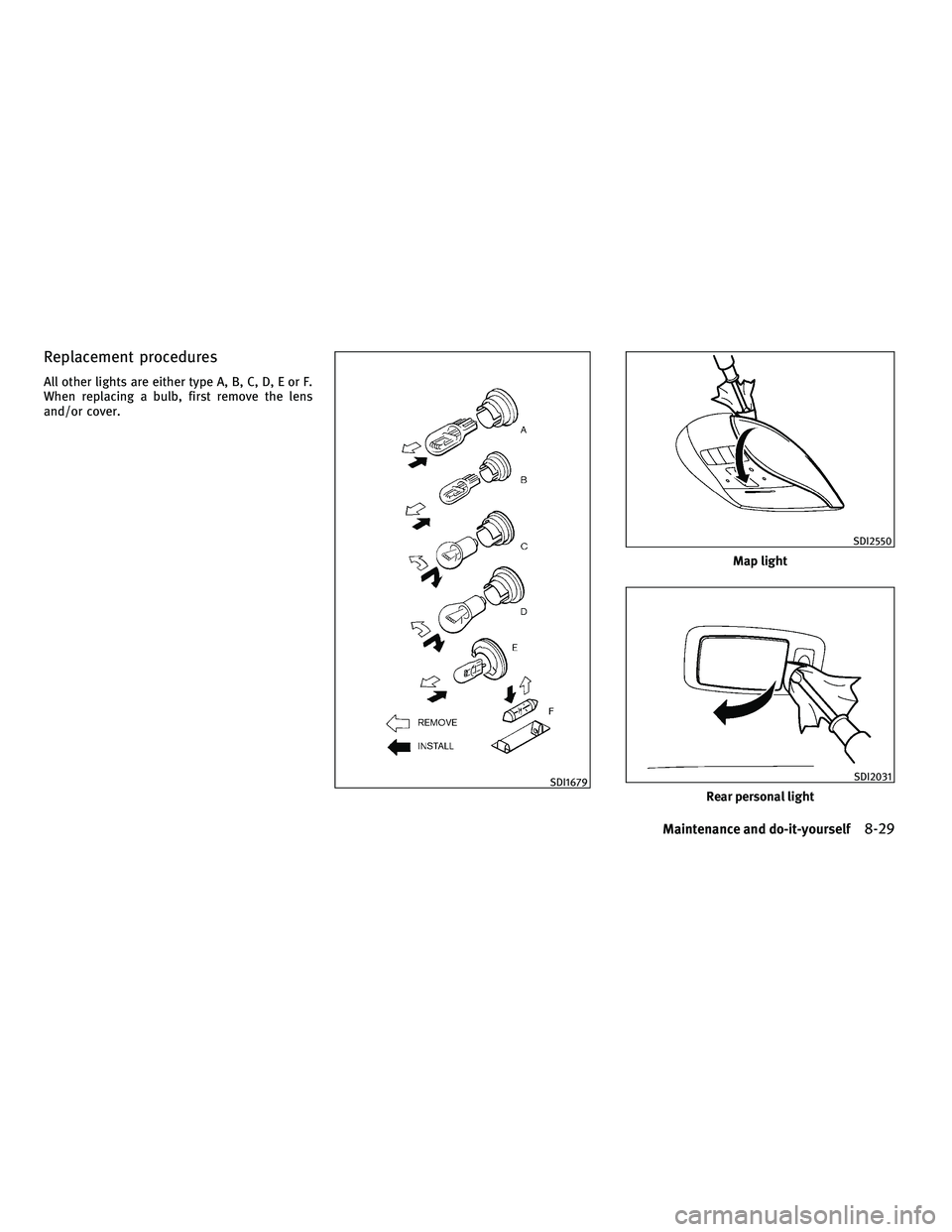

Replacement procedures
All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
Map light
SDI2550
Rear personal light
SDI2031
Maintenance and do-it-yourself8-29
—
—
07/26/10—dmoore


If you have a flat tire, see “FLAT TIRE” in the “6. In
case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit and the CHECK
TIRE PRESSURE warning (if so equipped) appears
in the dot matrix liquid crystal display, one or
more of your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, see “Low tire pressure warning
light” in the “2. Instruments and controls” sec-
tion, “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “5. Starting and driving” section
and “TIRE PRESSURE MONITORING SYSTEM
(TPMS)” in the “6. In case of emergency” section.
Tire inflation pressure
Check the pressure of the tires (includ-
ing the spare) often and always prior to
long distance trips. The recommendedtire pressure specifications are shown
on the Tire and Loading Information
label under the “Cold Tire Pressure”
heading. The Tire and Loading Informa-
tion label is affixed to the driver side
center pillar. Tire pressures should be
checked regularly because:
●Most tires naturally lose air over time.
●Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
Incorrect tire pressure, including under
inflation, may adversely affect tire life
and vehicle handling.
Vanity mirror light
SDI1839
WHEELS AND TIRES
8-30Maintenance and do-it-yourself
—
—
07/26/10—dmoore

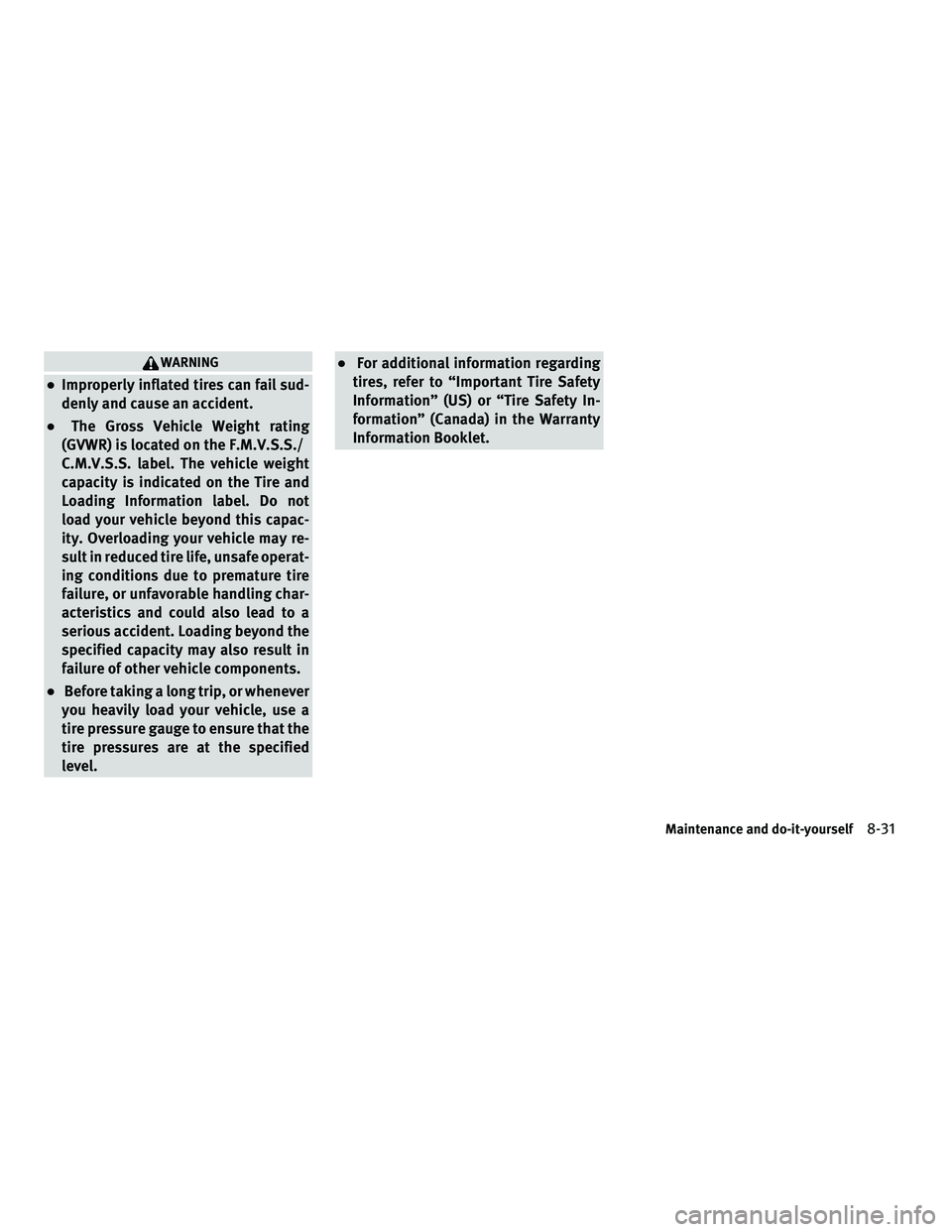

WARNING
●Improperly inflated tires can fail sud-
denly and cause an accident.
●The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.S./
C.M.V.S.S. label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this capac-
ity. Overloading your vehicle may re-
sult in reduced tire life, unsafe operat-
ing conditions due to premature tire
failure, or unfavorable handling char-
acteristics and could also lead to a
serious accident. Loading beyond the
specified capacity may also result in
failure of other vehicle components.
●Before taking a long trip, or whenever
you heavily load your vehicle, use a
tire pressure gauge to ensure that the
tire pressures are at the specified
level.
●For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Maintenance and do-it-yourself8-31
—
—
07/26/10—dmoore


Tire and Loading Information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Vehicle load limit: See “VEHICLE
LOADING INFORMATION” in the “9.
Technical and consumer informa-
tion” section.
3Original size: The size of the tires
originally installed on the vehicle
at the factory.
4Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked
for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance of
tire wear, vehicle handling, drive-
ability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see “TIRE LABELING”
later in this section.
6Spare tire size or compact spare
tire size (if so equipped)SDI2567
8-32Maintenance and do-it-yourself
—
—
07/26/10—dmoore

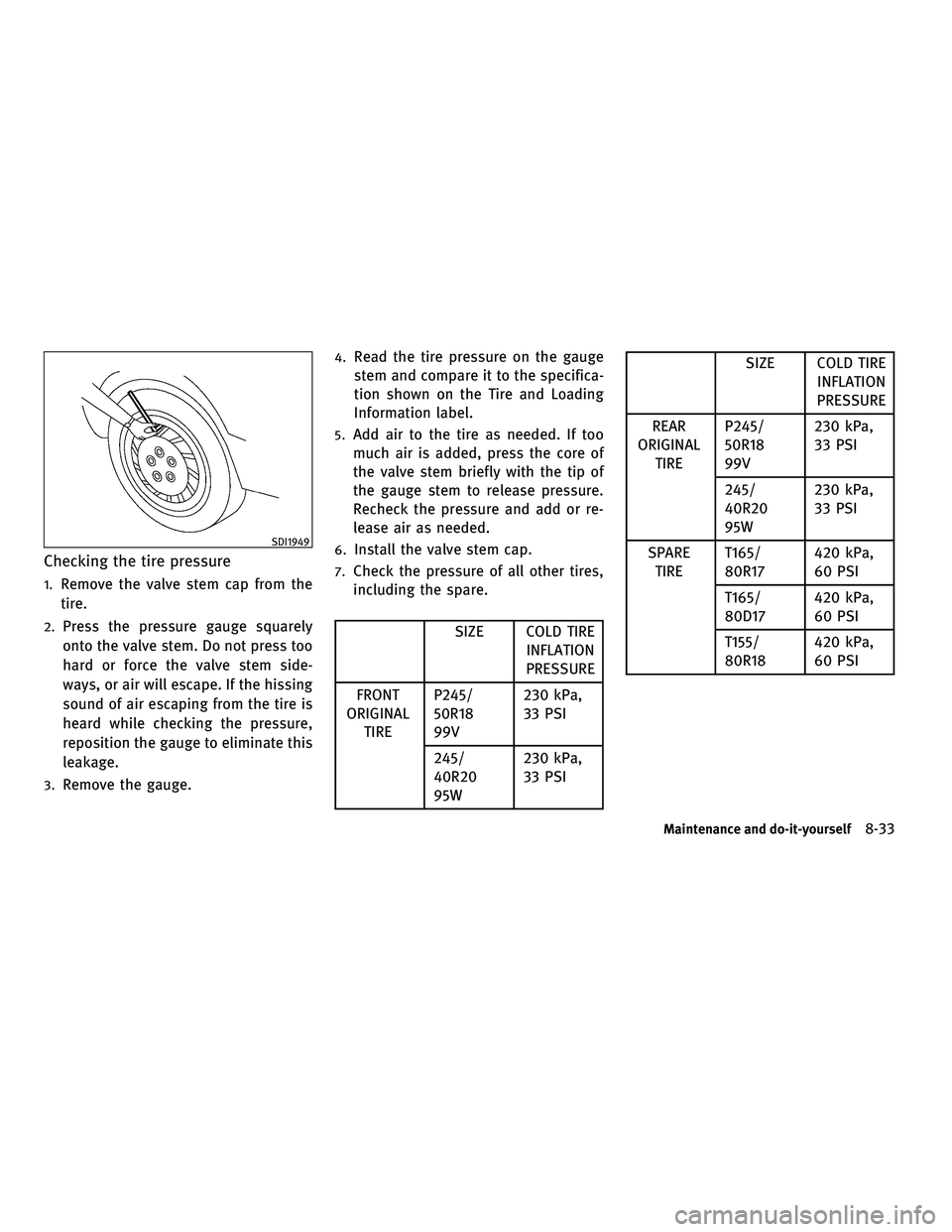

Checking the tire pressure
1.Remove the valve stem cap from the
tire.
2.Press the pressure gauge squarely
onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or re-
lease air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires,
including the spare.
SIZE COLD TIRE INFLATION
PRESSURE
FRONT
ORIGINAL TIRE P245/
50R18
99V 230 kPa,
33 PSI
245/
40R20
95W 230 kPa,
33 PSI
SIZE COLD TIRE
INFLATION
PRESSURE
REAR
ORIGINAL TIRE P245/
50R18
99V 230 kPa,
33 PSI
245/
40R20
95W 230 kPa,
33 PSI
SPARE TIRE T165/
80R17 420 kPa,
60 PSI
T165/
80D17 420 kPa,
60 PSI
T155/
80R18 420 kPa,
60 PSI
SDI1949
Maintenance and do-it-yourself8-33
—
—
07/26/10—dmoore


TIRE LABELING
Federal law requires tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamen-
tal characteristics of the tire and also
provides the tire identification number
(TIN) for safety standard certification.
The TIN can be used to identify the tire in
case of a recall.1Tire size (example: P215/60R16 94H)
1.P: The “P” indicates the tire is de-
signed for passenger vehicles. (Not all
tires have this information.)
2.Three-digit number (215): This num-
ber gives the width in millimeters of
the tire from sidewall edge to side-
wall edge.
3.Two-digit number (60): This number,
known as the aspect ratio, gives the
tire’s ratio of height to width.
4.R: The “R” stands for radial.
5.Two-digit number (16): This number is
the wheel or rim diameter in inches.
6.Two- or three-digit number (94): This
number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires be-
cause it is not required by law.
7.H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.
Example
SDI1575
Example
SDI1606
8-34Maintenance and do-it-yourself
—
—
07/26/10—dmoore

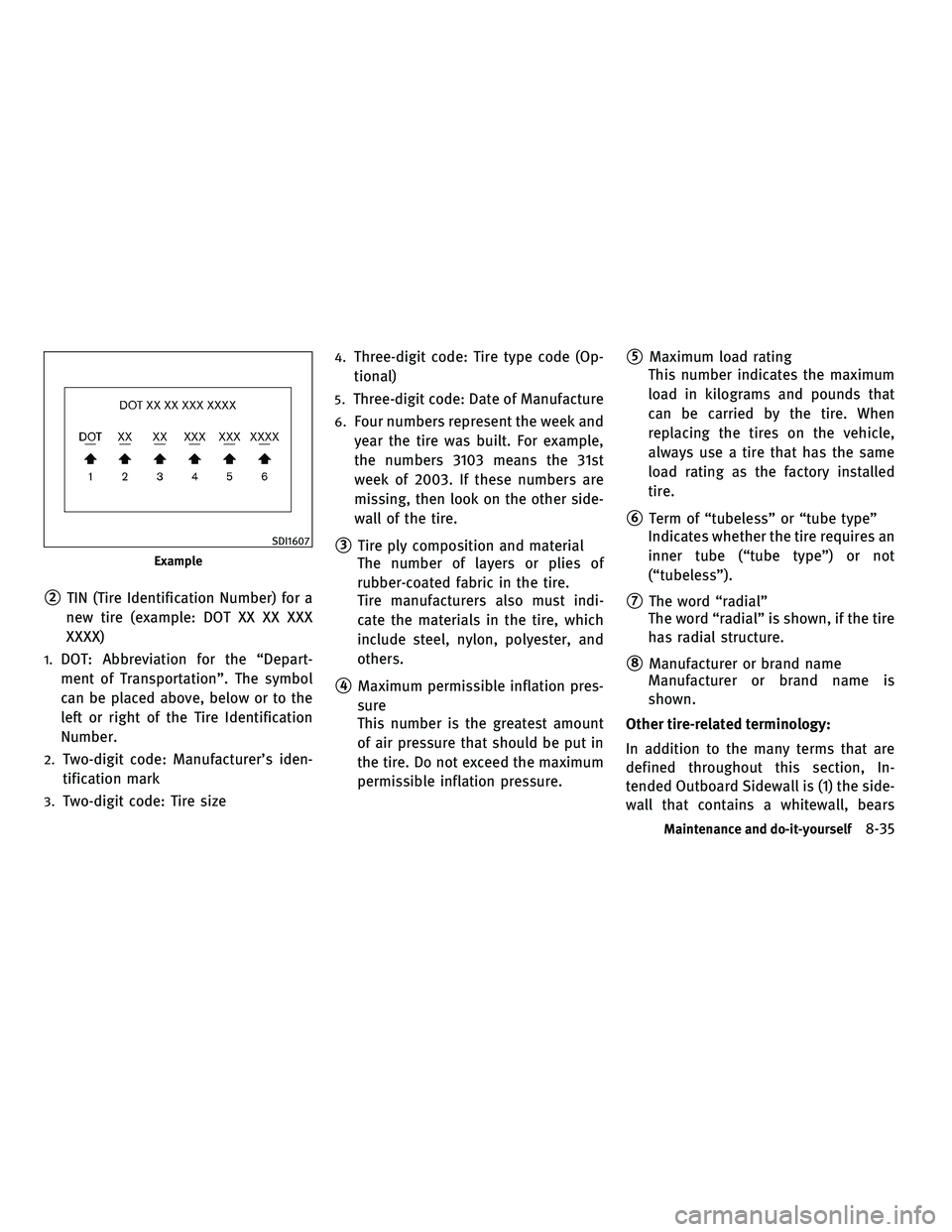

2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation”. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.
2.Two-digit code: Manufacturer’s iden-
tification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code (Op-
tional)
5.Three-digit code: Date of Manufacture
6.Four numbers represent the week and
year the tire was built. For example,
the numbers 3103 means the 31st
week of 2003. If these numbers are
missing, then look on the other side-
wall of the tire.
3Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must indi-
cate the materials in the tire, which
include steel, nylon, polyester, and
others.
4Maximum permissible inflation pres-
sure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.
5Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.
6Term of “tubeless” or “tube type”
Indicates whether the tire requires an
inner tube (“tube type”) or not
(“tubeless”).
7The word “radial”
The word “radial” is shown, if the tire
has radial structure.
8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the side-
wall that contains a whitewall, bears
Example
SDI1607
Maintenance and do-it-yourself8-35
—
—
07/26/10—dmoore
