The LDP system is turned on if you push the
dynamic driver assistance switch on the steer-
ing wheel after starting the engine. The LDP ON
indicator light (green) on the instrument panel
will illuminate. Push the dynamic driver assis-
tance switch again to turn off the LDP system.
The LDP ON indicator light will turn off.Changing the dynamic driver assistance switch
settings :
The dynamic driver assistance switch will turn
on and off the LDP, BSI and DCA systems at the
same time when each system is enabled using
the settings menu on the center display.
1. Push the SETTING1button and highlight
the “Driver Assistance” key on the display
using the INFINITI controller. Then push
the ENTER
2button.
2. Highlight the “Dynamic Assistance set- tings” key, and push the ENTER
2but-
ton.
Dynamic driver assistance switch
SSD0938
With navigation system
SSD0939
SSD1001
Starting and driving5-25
—
—
01/12/10—pattie


The brightness of the BSW/BSI indicator lights
is adjusted automatically depending on the
brightness of the ambient light.
A chime sounds if the radar sensors have
already detected vehicles when the driver acti-
vates the turn signal. If a vehicle comes into the
detection zone after the driver activates the turn
signal, then only the BSW/BSI indicator light
flashes and no chime sounds. (See “BSW/BSI
DRIVING SITUATIONS” later in this section)
The BSW system is automatically turned on
when the engine is started and the warning
systems ON indicator
1illuminates on the
switch. You can turn the BSW system off by
pushing the warning systems switch on the
instrumental panel. This switch will turn on and
off the LDW, BSW and FCW systems at the same
time.
NOTE:
If you continue to push the warning systems
switch from off to on for over 4 seconds, a chime
will sound. This will change the default status of
the LDW, BSW and FCW systems to OFF so that
these systems will not automatically turn on
when the engine is started. If this procedure is
repeated, the default status will return to ON.
BSI SYSTEM OPERATION
If the BSW/BSI indicator light is illuminated
while your vehicle is approaching a lane
marker, the BSW/BSI indicator light flashes and
an audible warning will sound three times. Then
the system applies the brakes on one side of
the vehicle for a short period of time to help
return the vehicle back to the center of the lane.
BSI operates regardless of turn signal usage.
NOTE:
● Warning and brake control will only be acti-
vated if the BSW/BSI indicator light is al-
ready illuminated when your vehicle ap-
proaches a lane marker. If another vehicle
comes into the detection zone after your ve-
hicle has crossed a lane marker, no warning
or brake control will be activated. (See
“BSW/BSI DRIVING SITUATIONS” later in this
section.)
● The BSI system is typically activated earlier
than the LDP system when your vehicle is
approaching a lane marker.
The BSI system is turned on if you push the
dynamic driver assistance switch on the steer-
ing wheel after starting the engine. The BSI ON
indicator light (green) on the instrument panel
will illuminate. Push the dynamic driver assis-
BSI ON indicator light (green)
SSD1029
Dynamic driver assistance switch
SSD0938
5-30Starting and driving
—
—
03/02/10—pattie


–When the hazard warning flashers are op-
erated.
– When driving on a curve at a high speed.
BSW/BSI temporarily not available
● Under the following conditions, the BSI sys-
tem will be turned off automatically, a beep
will sound and the BSI ON indicator light
(green) will blink. The BSW system is still
available, but the BSI system will not be
available until the conditions no longer ex-
ist.
– When the VDC system (except TCS func- tion) or ABS operates.
– When the VDC system is turned off.
– When the drive mode select switch is turned to the SNOW mode.
Action to take:
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
● Under the following conditions, the BSW and
BSI systems will be turned off automatically,
a beep will sound and the BSW/BSI system
warning light (orange) will blink. The BSW
and BSI systems are not available until the
conditions no longer exist. – When the camera detects that the interior
temperature is high (over approximately
104°F (40°C)).
– When radar blockage is detected.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be
caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above conditions no longer exist, the
BSW system will resume automatically. For the
BSI system, turn it off and turn it on again. If the
BSW/BSI warning light (orange) continues to
blink even after the BSI system is turned on
again, stop the vehicle in a safe location and
turn the engine off. Check for and remove
objects obscuring the radar sensors on the rear
bumper, and restart the engine.
If the warning light (orange) continues to blink,
have the BSW/BSI systems checked by an
INFINITI retailer.
BSW/BSI MALFUNCTION
When the BSW/BSI systems malfunction, they
will be turned off automatically, a beep will
sound and the BSW/BSI system warning light
(orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine.
If the warning light (orange) continues to illu-
minate, have the BSW/BSI systems checked by
an INFINITI retailer.
5-38Starting and driving
—
—
01/12/10—pattie


SYSTEM MAINTENANCE
●The two radar sensor units1for the BSW
and BSI systems are located near the rear
bumper. Always keep the area near the radar
sensors clean. Do not attach stickers (includ-
ing transparent material), install accessories
or apply additional paint near the radar
sensors. Do not strike or damage the area
around the radar sensors. Consult an
INFINITI retailer if the area around the radar
sensors is damaged due to a collision.
● The BSI system uses the same camera
2
that is used by the LDW/LDP system located
in front of the inside mirror. For maintenance of the camera, see “LANE
DEPARTURE WARNING (LDW) SYSTEM/LANE DE-
PARTURE PREVENTION (LDP) SYSTEM” earlier in
this section.
Radio frequency statement
This device complies with part 15 of the FCC
Rules and RSS-310 of Industry Canada.
Operation is subject to the following two con-
ditions:
1. This device may not cause harmful inter-
ference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Frequency of operation: 24.05GHz — 24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m
The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modifications to this equipment. Such modifi-
cations could void the user’s authority to oper-
ate the equipment.
PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
● when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
SSD1027
CRUISE CONTROL
Starting and driving5-39
—
—
01/12/10—pattie


5) Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
6) Intelligent Cruise Control system warning light (orange):
The light comes on if there is a malfunc-
tion in the ICC system.
When the ignition switch is pushed to the ON
position, the indicators come on as illustrated
to check for a burned-out bulb, and it turns off
when the engine is started.Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push and
release the MAIN switch
Aon. The MAIN
switch indicator, set distance indicator and set
vehicle speed indicator come on and in a
standby state for setting.
SSD0979SSD0980
Starting and driving5-49
—
—
01/12/10—pattie

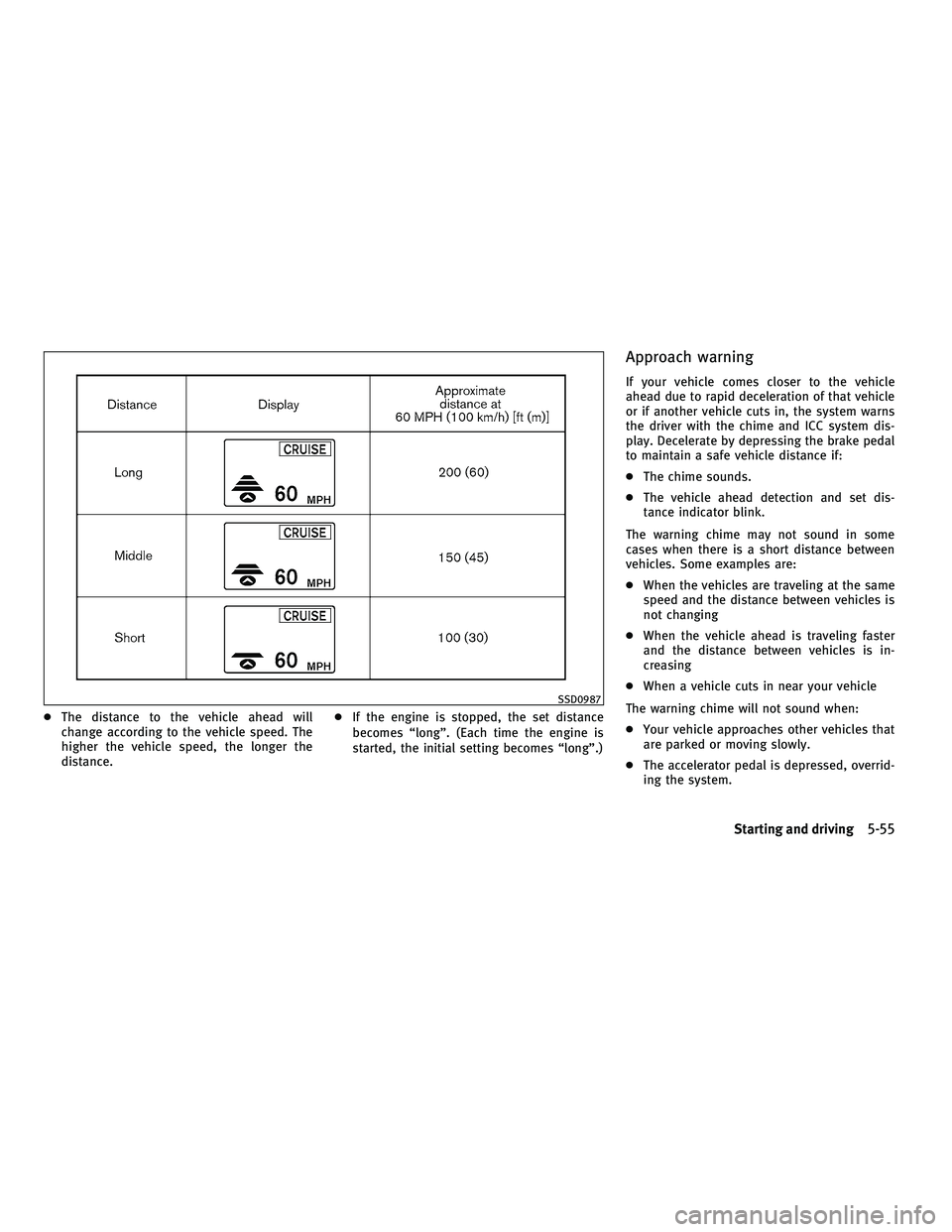

●The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the
distance. ●
If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and ICC system dis-
play. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection and set dis-
tance indicator blink.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when:
● Your vehicle approaches other vehicles that
are parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system.
SSD0987
Starting and driving5-55
—
—
01/12/10—pattie


Warning light and display
Condition A :
Under the following conditions, the Intelligent
Cruise Control system is automatically can-
celed. The chime will sound and the system will
not be able to be set.
●When the VDC is turned off
● When the ABS or VDC (including the traction
control system) operates
● When a tire slips
● When the drive mode select switch is turned
to the SNOW mode
● When strong light (sunlight, etc.) is directly
shining on the front of the vehicle Action to take :
When the conditions listed above are no longer
present, turn the system off using the Intelli-
gent Cruise Control MAIN Switch. Turn the ICC
system back on to use the system.
Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime sounds and the ICC system warning
light (orange) will come on and the “CLEAN
SENSOR” indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.
SSD0988SSD0989
Starting and driving5-57
—
—
01/12/10—pattie


Condition C :
When the ICC system is not operating properly,
the chime sounds and the ICC system warning
light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the ICC
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.Sensor maintenance
The sensor for the ICC systemAis located
below the front bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer. ●
Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE
This mode allows driving at a speed between 25
to 90 MPH (40 to 144 km/h) without keeping
your foot on the accelerator pedal.
WARNING
● In the conventional (fixed speed) cruise con-
trol mode, a warning chime does not sound
to warn you if you are too close to the vehicle
ahead, as neither the presence of the vehicle
ahead nor the vehicle-to-vehicle distance is
detected.
● Pay special attention to the distance be-
tween your vehicle and the vehicle ahead of
you or a collision could occur.
● Always confirm the setting in the Intelligent
Cruise Control system display.
● Do not use the conventional (fixed speed)
cruise control mode when driving under the
following conditions:
– when it is not possible to keep the vehicle at a set speedSSD0979SSD0943
5-58Starting and driving
—
—
01/12/10—pattie


b) Tap the brake pedal. The SET indicatorwill go out.
c) Turn the MAIN switch off. Both the CRUISE indicator and SET indicator will go out.
To reset at a faster cruising speed, use one of
the following three methods:
a) Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET/COAST switch.
b) Push and hold the RESUME/ACCELERATE set switch. When the vehicle attains the
speed you desire, release the switch.
c) Push, then quickly release the RESUME/ACCELERATE switch. Each time
you do this, the set speed will increase by
about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one of
the following three methods:
a) Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET/COAST switch and release it.
b) Push and hold the SET/COAST switch. Release the switch when the vehicle
slows down to the desired speed.
c) Push, then quickly release the SET/COAST switch. Each time you do this, the set
speed will decrease by about 1 MPH (1.6
km/h).
To resume the preset speed, push and release
the RESUME/ACCELERATE switch. The vehicle
will resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
● When the vehicle slows down more than 8
MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is not in the D (Drive)
or manual shift mode
● When the parking brake is applied.
● When the VDC operates (including the trac-
tion control system)
● When a tire slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light
(orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and then perform the
setting again.
If it is not possible to set or the indicator stays
on, it may indicate that the system is malfunc-
tioning. Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
SSD0979
Starting and driving5-61
—
—
01/12/10—pattie

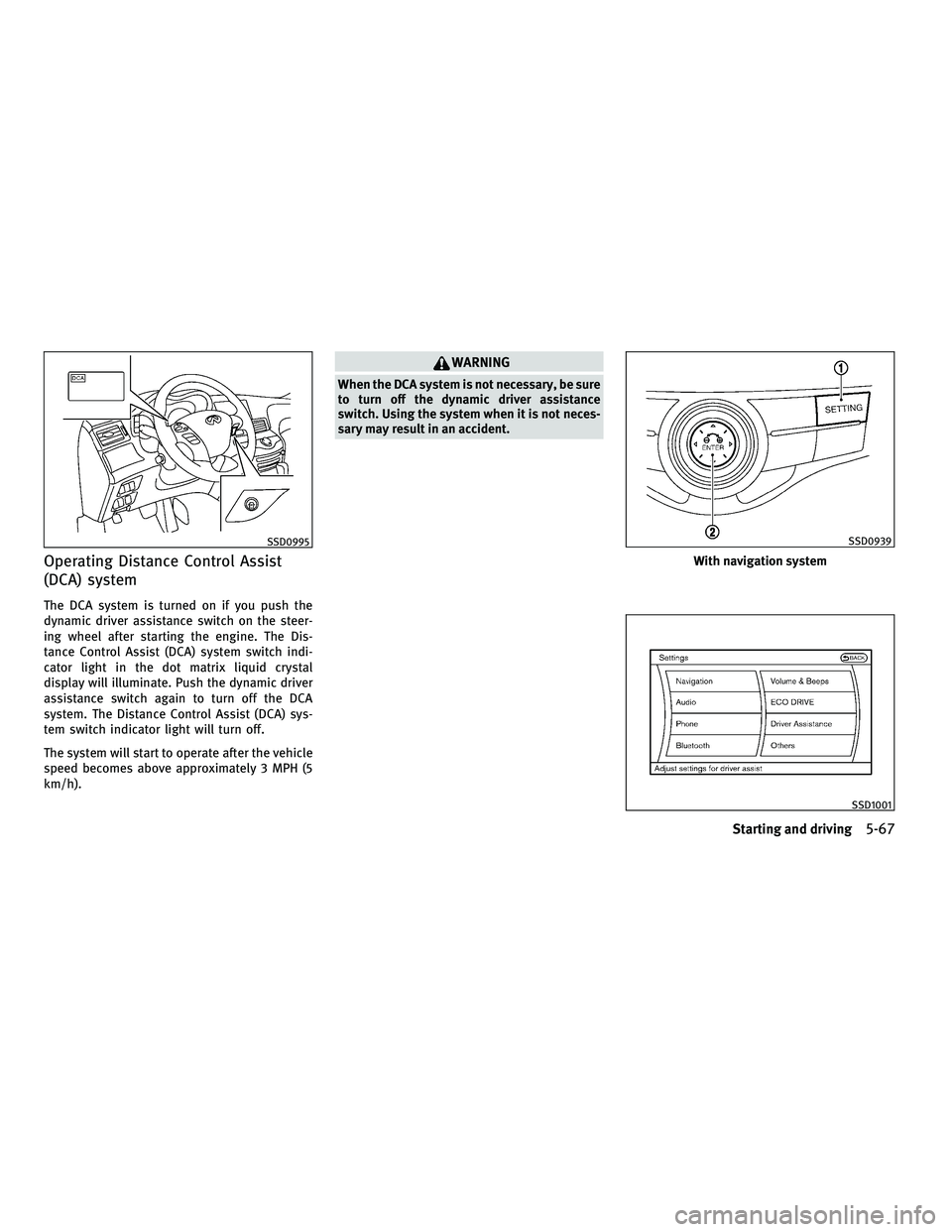

Operating Distance Control Assist
(DCA) system
The DCA system is turned on if you push the
dynamic driver assistance switch on the steer-
ing wheel after starting the engine. The Dis-
tance Control Assist (DCA) system switch indi-
cator light in the dot matrix liquid crystal
display will illuminate. Push the dynamic driver
assistance switch again to turn off the DCA
system. The Distance Control Assist (DCA) sys-
tem switch indicator light will turn off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH (5
km/h).
WARNING
When the DCA system is not necessary, be sure
to turn off the dynamic driver assistance
switch. Using the system when it is not neces-
sary may result in an accident.
SSD0995
With navigation system
SSD0939
SSD1001
Starting and driving5-67
—
—
01/12/10—pattie
