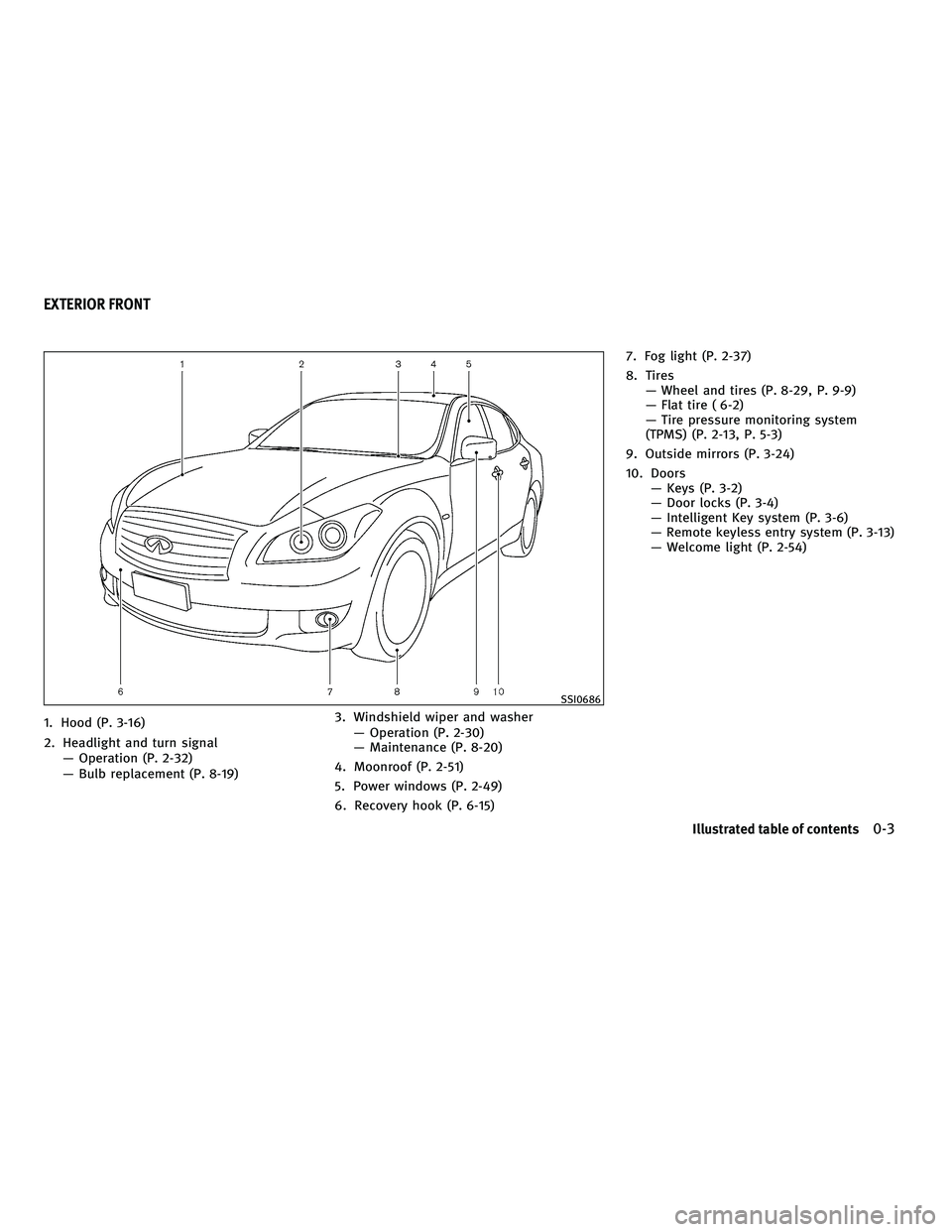

keyless INFINITI M 2011 Owners Manual

1. Hood (P. 3-16)
2. Headlight and turn signal— Operation (P. 2-32)
— Bulb replacement (P. 8-19) 3. Windshield wiper and washer
— Operation (P. 2-30)
— Maintenance (P. 8-20)
4. Moonroof (P. 2-51)
5. Power windows (P. 2-49)
6. Recovery hook (P. 6-15) 7. Fog light (P. 2-37)
8. Tires
— Wheel and tires (P. 8-29, P. 9-9)
— Flat tire ( 6-2)
— Tire pressure monitoring system
(TPMS) (P. 2-13, P. 5-3)
9. Outside mirrors (P. 3-24)
10. Doors — Keys (P. 3-2)
— Door locks (P. 3-4)
— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-13)
— Welcome light (P. 2-54)
SSI0686
EXTERIOR FRONT
Illustrated table of contents0-3
—
—
07/15/10—tbrooks

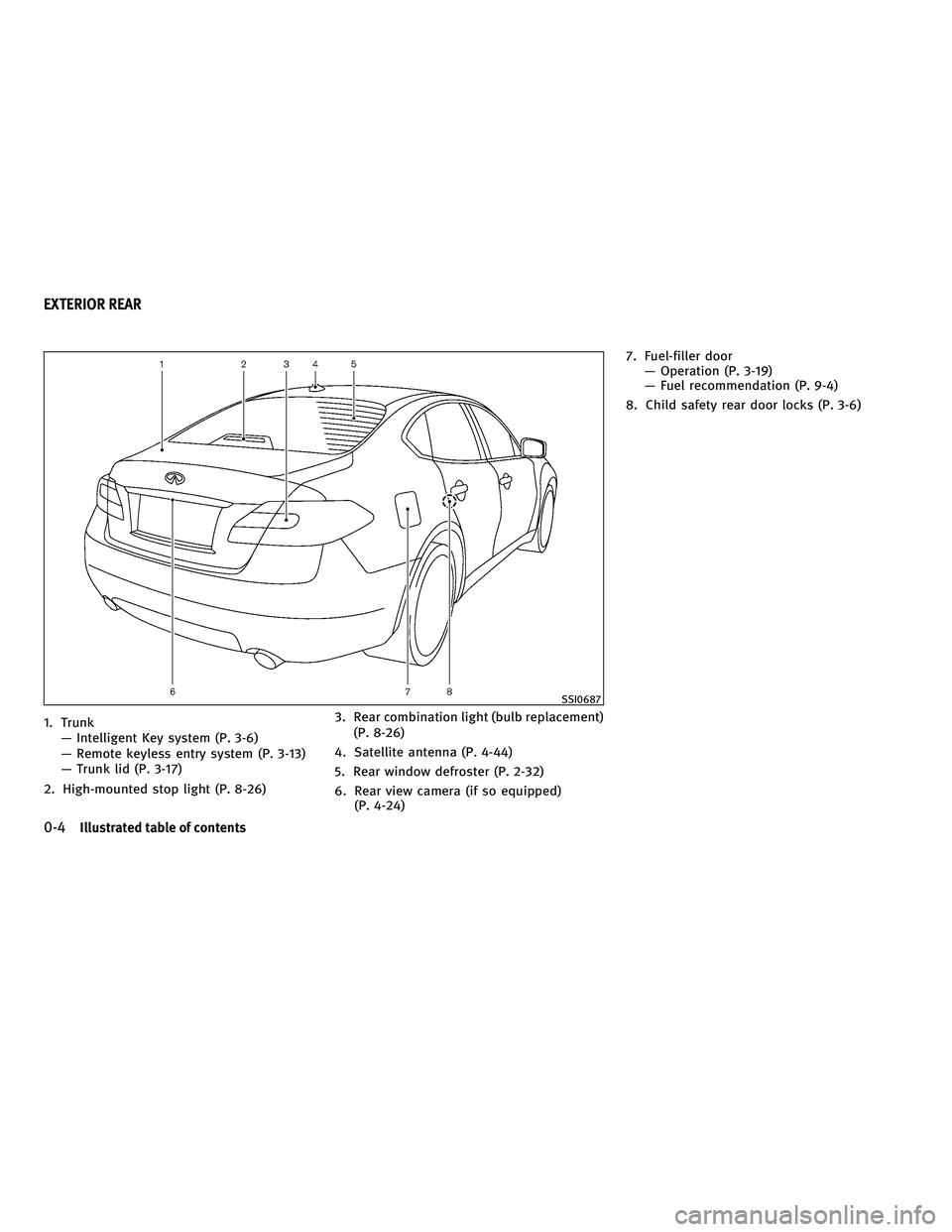

1. Trunk— Intelligent Key system (P. 3-6)
— Remote keyless entry system (P. 3-13)
— Trunk lid (P. 3-17)
2. High-mounted stop light (P. 8-26) 3. Rear combination light (bulb replacement)
(P. 8-26)
4. Satellite antenna (P. 4-44)
5. Rear window defroster (P. 2-32)
6. Rear view camera (if so equipped) (P. 4-24) 7. Fuel-filler door
— Operation (P. 3-19)
— Fuel recommendation (P. 9-4)
8. Child safety rear door locks (P. 3-6)
SSI0687
EXTERIOR REAR
0-4Illustrated table of contents
—
—
07/15/10—tbrooks

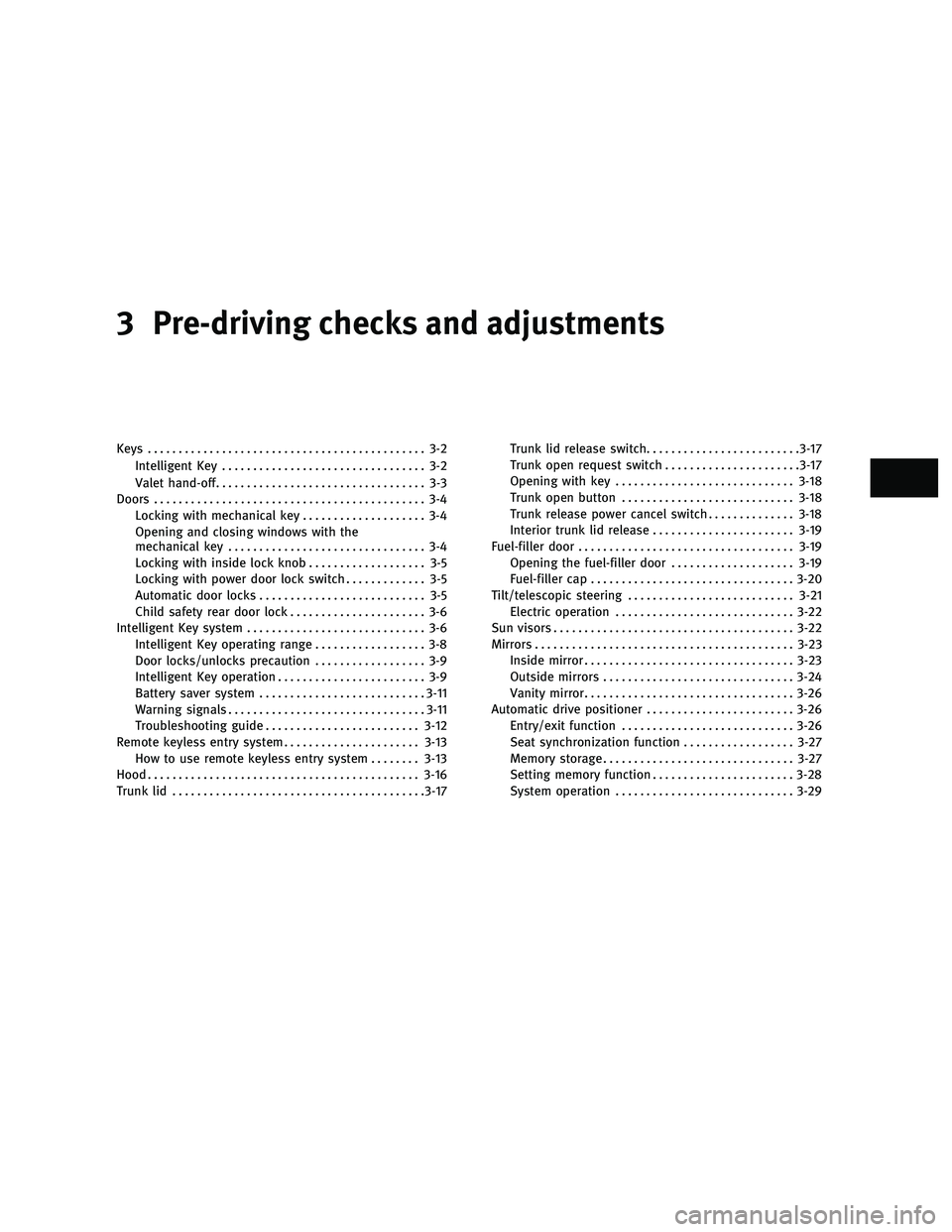

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Child safety rear door lock ...................... 3-6
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-13
How to use remote keyless entry system ........3-13
Hood ............................................ 3-16
Trunk lid ......................................... 3-17Trunk lid release switch
......................... 3-17
Trunk open request switch ......................3-17
Opening with key ............................. 3-18
Trunk open button ............................ 3-18
Trunk release power cancel switch ..............3-18
Interior trunk lid release ....................... 3-19
Fuel-filler door ................................... 3-19
Opening the fuel-filler door ....................3-19
Fuel-filler cap ................................. 3-20
Tilt/telescopic steering ........................... 3-21
Electric operation ............................. 3-22
Sun visors ....................................... 3-22
Mirrors .......................................... 3-23
Inside mirror .................................. 3-23
Outside mirrors ............................... 3-24
Vanity mirror .................................. 3-26
Automatic drive positioner ........................3-26
Entry/exit function ............................ 3-26
Seat
synchronization function ..................3-27
Memory storage ............................... 3-27
Setting memory function ....................... 3-28
System operation ............................. 3-29
—
—
07/15/10—tbrooks

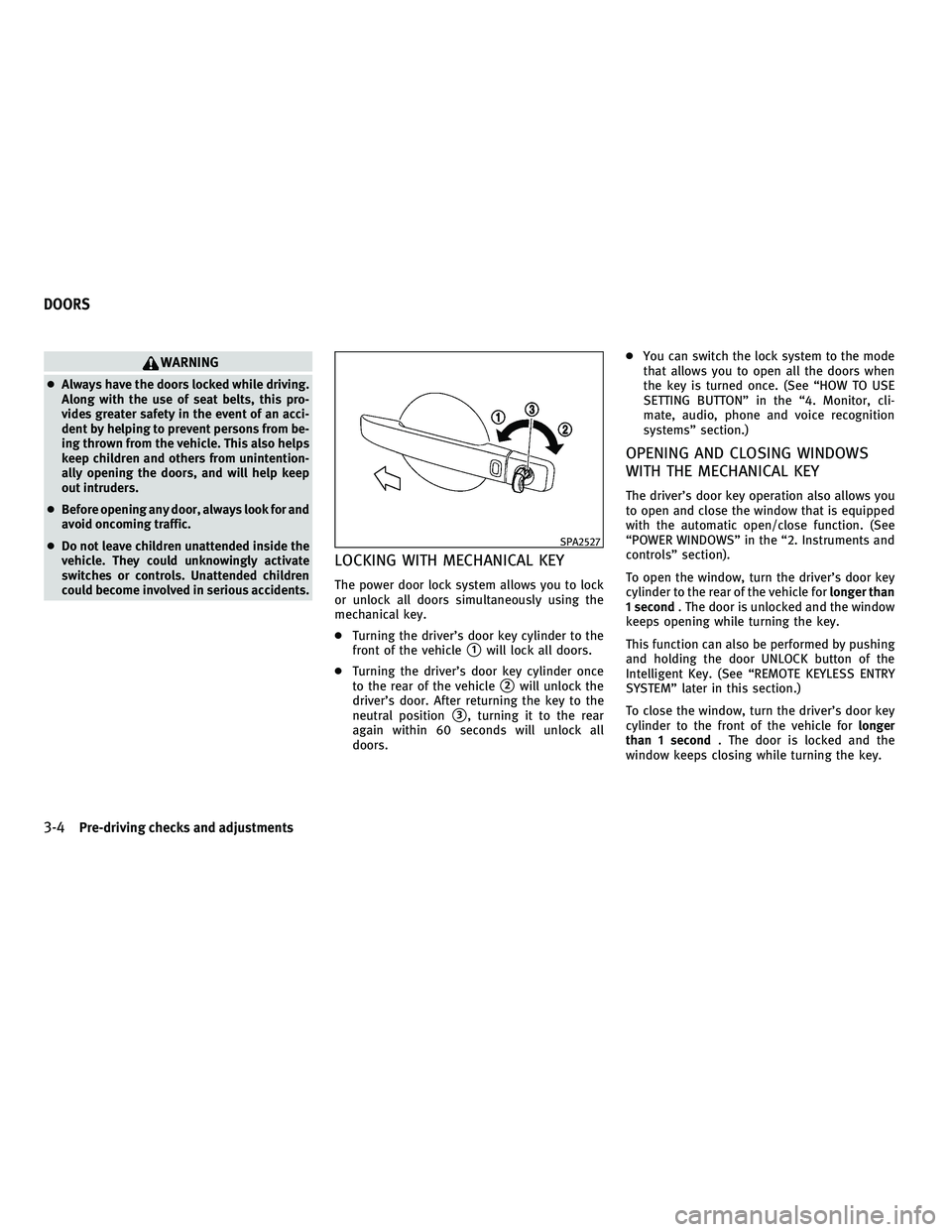

WARNING
●Always have the doors locked while driving.
Along with the use of seat belts, this pro-
vides greater safety in the event of an acci-
dent by helping to prevent persons from be-
ing thrown from the vehicle. This also helps
keep children and others from unintention-
ally opening the doors, and will help keep
out intruders.
● Before opening any door, always look for and
avoid oncoming traffic.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
LOCKING WITH MECHANICAL KEY
The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
● Turning the driver’s door key cylinder to the
front of the vehicle
1will lock all doors.
● Turning the driver’s door key cylinder once
to the rear of the vehicle
2will unlock the
driver’s door. After returning the key to the
neutral position
3, turning it to the rear
again within 60 seconds will unlock all
doors. ●
You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, cli-
mate, audio, phone and voice recognition
systems” section.)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
The driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for longer than
1 second . The door is unlocked and the window
keeps opening while turning the key.
This function can also be performed by pushing
and holding the door UNLOCK button of the
Intelligent Key. (See “REMOTE KEYLESS ENTRY
SYSTEM” later in this section.)
To close the window, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second . The door is locked and the
window keeps closing while turning the key.
SPA2527
DOORS
3-4Pre-driving checks and adjustments
—
—
01/13/10—tbrooks


WARNING
The Intelligent Key transmits radio waves when
the buttons are pushed. The FAA advises that
the radio waves may affect aircraft navigation
and communication systems. Do not operate
the Intelligent Key while on an airplane. Make
sure the buttons are not operated unintention-
ally when the unit is stored during a flight.
It is possible to lock/unlock all doors, fuel-filler
door, activate the panic alarm and open the
windows by pushing the buttons on the Intelli-
gent Key from outside the vehicle.
Before locking the doors, make sure the Intelli-
gent Key is not left in the vehicle.
The LOCK/UNLOCK button on the Intelligent Key
can operate at a distance of approximately 33 ft
(10 m) from the vehicle. (The effective distance
depends upon the conditions around the ve-
hicle.)
As many as 4 Intelligent Keys can be used with
one vehicle. For information concerning the
purchase and use of additional Intelligent Keys,
contact an INFINITI retailer. The lock and unlock buttons on the Intelligent
Key will not operate when:
●
the distance between the Intelligent Key and
the vehicle is over 33 ft (10 m).
● the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.
The LOCK/UNLOCK operating range varies de-
pending on the environment. To securely oper-
ate the lock and unlock buttons, approach the
vehicle to about 3 ft (1 m) from the door.
1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
HOW TO USE REMOTE KEYLESS ENTRY
SYSTEM
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
SPA2100
REMOTE KEYLESS ENTRY SYSTEM
Pre-driving checks and adjustments3-13
—
—
01/12/10—pattie


●Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
button2is
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button
is pushed, neither the hazard indicator nor the
horn operates. Hazard indicator and horn mode :
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system (Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
twice HAZARD -
once
OUTSIDE CHIME -
once HAZARD - none
OUTSIDE CHIME -
4 times
Remote keyless entry system (Using
,or
button) HAZARD -
twice
HORN - once HAZARD -
once
HORN - none HAZARD - none
HORN - none
Hazard indicator mode :
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system (Using door handle or trunk request switch) HAZARD -
twice
OUTSIDE CHIME -
none HAZARD - none
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
none
Remote keyless entry system (Using
,or
button) HAZARD -
twice
HORN - none HAZARD - none
HORN - noneHAZARD - none
HORN - none
Pre-driving checks and adjustments3-15
—
—
01/12/10—pattie

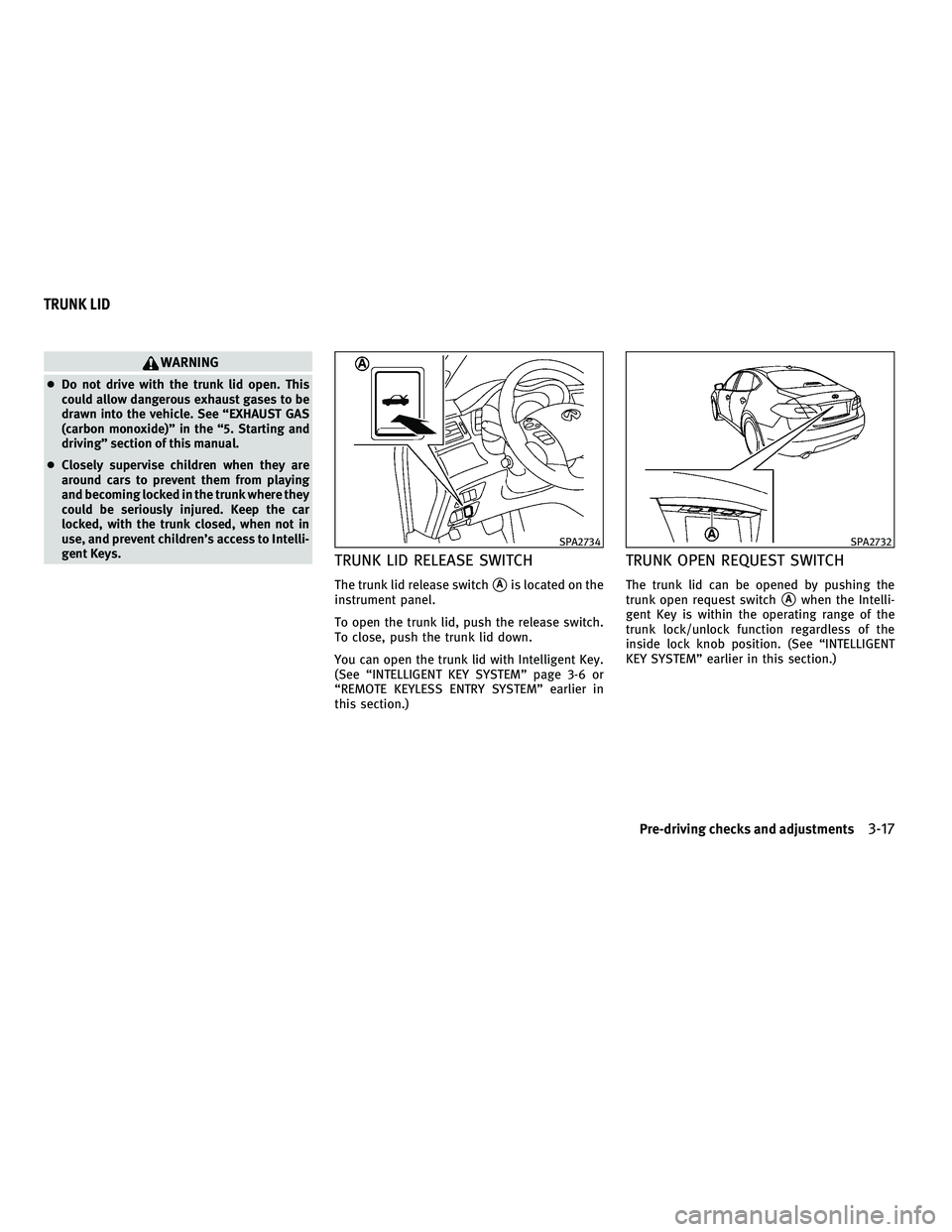

WARNING
●Do not drive with the trunk lid open. This
could allow dangerous exhaust gases to be
drawn into the vehicle. See “EXHAUST GAS
(carbon monoxide)” in the “5. Starting and
driving” section of this manual.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the trunk closed, when not in
use, and prevent children’s access to Intelli-
gent Keys.
TRUNK LID RELEASE SWITCH
The trunk lid release switchAis located on the
instrument panel.
To open the trunk lid, push the release switch.
To close, push the trunk lid down.
You can open the trunk lid with Intelligent Key.
(See “INTELLIGENT KEY SYSTEM” page 3-6 or
“REMOTE KEYLESS ENTRY SYSTEM” earlier in
this section.)
TRUNK OPEN REQUEST SWITCH
The trunk lid can be opened by pushing the
trunk open request switch
Awhen the Intelli-
gent Key is within the operating range of the
trunk lock/unlock function regardless of the
inside lock knob position. (See “INTELLIGENT
KEY SYSTEM” earlier in this section.)
SPA2734SPA2732
TRUNK LID
Pre-driving checks and adjustments3-17
—
—
01/12/10—pattie

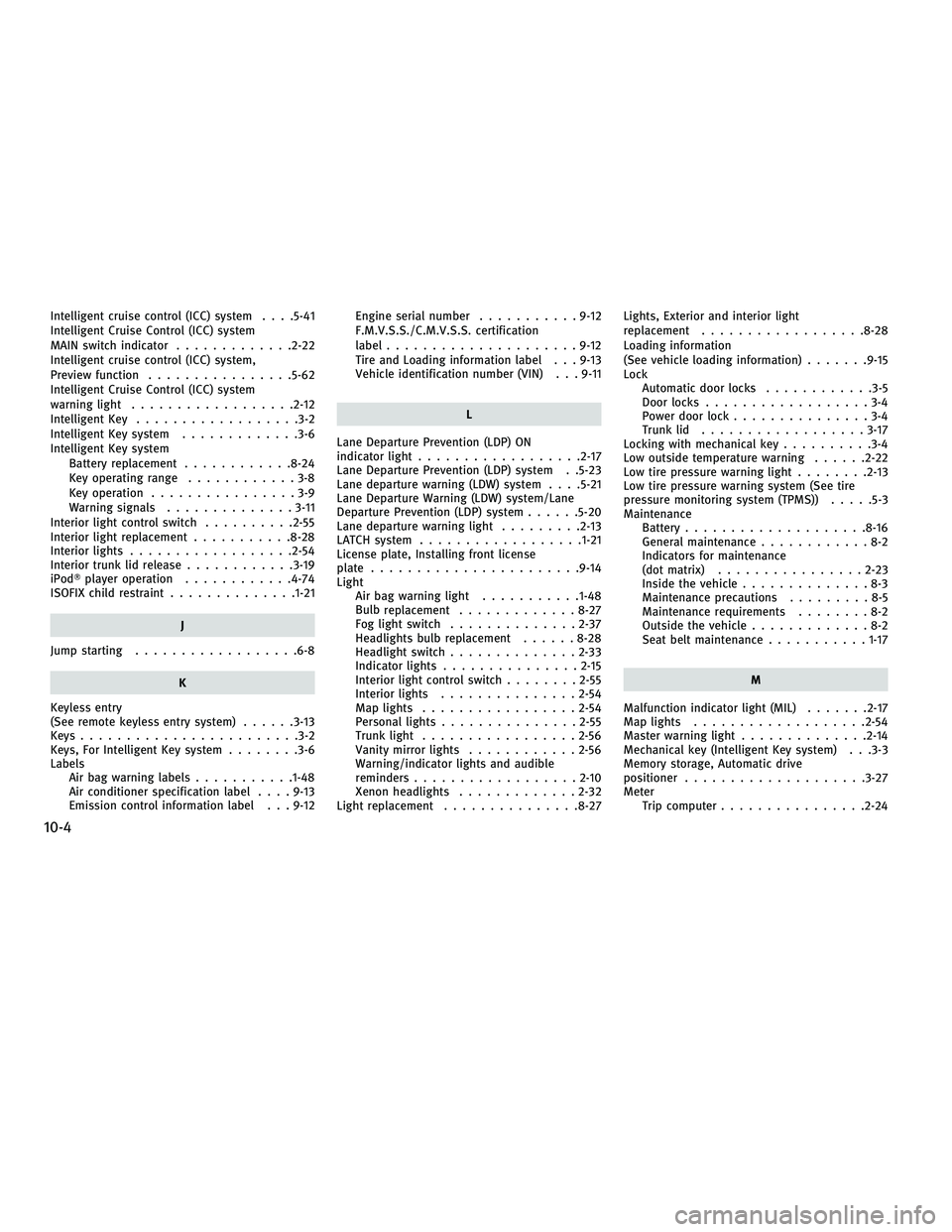

Intelligent cruise control (ICC) system . . . .5-41
Intelligent Cruise Control (ICC) system
MAIN switch indicator.............2-22
Intelligent cruise control (ICC) system,
Preview function ............... .5-62
Intelligent Cruise Control (ICC) system
warning light ................. .2-12
Intelligent Key ................. .3-2
Intelligent Key system .............3-6
Intelligent Key system Battery replacement ............8-24
Key operating range ............3-8
Key operation ................3-9
Warning signals .............. 3-11
Interior light control switch ..........2-55
Interior light replacement ...........8-28
Interior lights ................. .2-54
Interior trunk lid release ............3-19
iPod player operation ............4-74
ISOFIX child restraint ............. .1-21
J
Jump starting ................. .6-8
K
Keyless entry
(See remote keyless entry system) ......3-13
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-6
Labels Air bag warning labels ...........1-48
Air conditioner specification label ....9-13
Emission control information label . . . 9-12 Engine serial number
...........9-12
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-12
Tire and Loading information label . . . 9-13
Vehicle identification number (VIN) . . . 9-11
L
Lane Departure Prevention (LDP) ON
indicator light ................. .2-17
Lane Departure Prevention (LDP) system . .5-23
Lane departure warning (LDW) system . . . .5-21
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ......5-20
Lane departure warning light .........2-13
LATCH system ................. .1-21
License plate, Installing front license
plate ...................... .9-14
Light Air bag warning light ...........1-48
Bulb

replacement ............. 8-27
Fog light switch .............. 2-37
Headlights bulb replacement ......8-28
Headlight switch .............. 2-33
Indicator lights ............... 2-15
Interior light control switch ........2-55
Interior lights ............... 2-54
Map lights ................. 2-54
Personal lights ............... 2-55
Trunk light ................. 2-56
Vanity mirror lights ............2-56
Warning/indicator lights and audible
reminders .................. 2-10
Xenon headlights ............. 2-32
Light replacement .............. .8-27Lights, Exterior and interior light
replacement
................. .8-28
Loading information
(See vehicle loading information) .......9-15
Lock Automatic door locks ............3-5
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-17
Locking with mechanical key ..........3-4
Low outside temperature warning ......2-22
Low tire pressure warning light ........2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Maintenance Battery ................... .8-16
General maintenance ............8-2
Indicators for maintenance
(dot matrix) ................ 2-23
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ...........1-17
M
Malfunction indicator light (MIL) . . . . . . .2-17
Map lights .................. .2-54
Master warning light ............. .2-14
Mechanical key (Intelligent Key system) . . .3-3
Memory
storage, Automatic drive
positioner ................... .3-27
Meter Trip computer ............... .2-24
10-4
—
—
07/26/10—dmoore

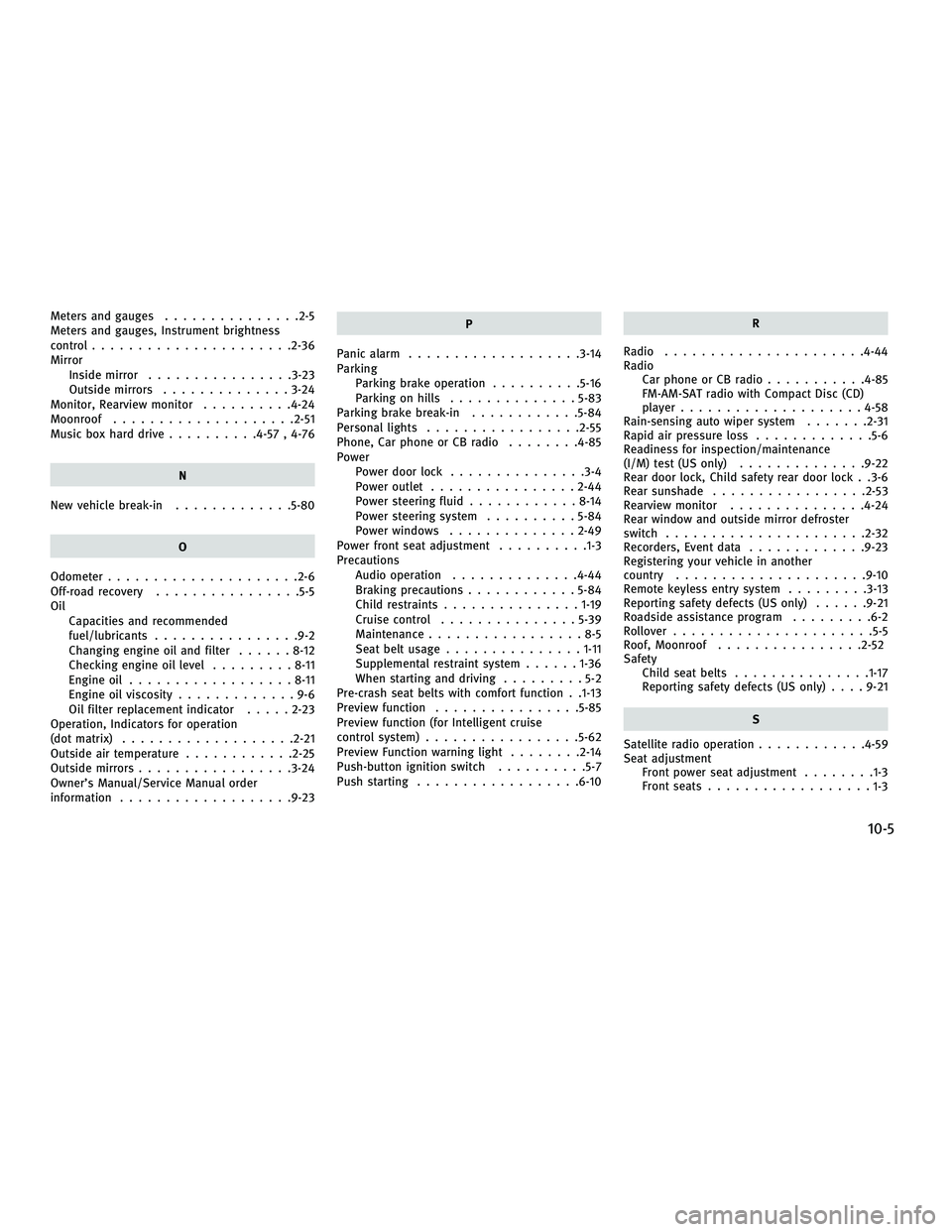

Meters and gauges.............. .2-5
Meters and gauges, Instrument brightness
control ..................... .2-36
Mirror Inside mirror ............... .3-23
Outside mirrors .............. 3-24
Monitor, Rearview monitor ..........4-24
Moonroof ................... .2-51
Music box hard drive ..........4-57 , 4-76
N
New vehicle break-in .............5-80
O
Odometer .................... .2-6
Off-road recovery ............... .5-5
Oil Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine oil and filter ......8-12
Checking engine oil level .........8-11
Engine oil .................. 8-11
Engine oil viscosity .............9-6
Oil filter replacement indicator .....2-23
Operation, Indicators for operation
(dot matrix) .................. .2-21
Outside air temperature ............2-25
Outside mirrors ................ .3-24
Owner’s Manual/Service Manual order
information .................. .9-23 P
Panic alarm .................. .3-14
Parking Parking brake operation ..........5-16
Parking on hills .............. 5-83
Parking brake break-in ............5-84
Personal lights ................ .2-55
Phone, Car phone or CB radio ........4-85
Power Power door lock .............. .3-4
Power outlet ................ 2-44
Power steering fluid ............8-14
Power steering system ..........5-84
Power windows .............. 2-49
Power front seat adjustment ..........1-3
Precautions Audio

operation ............. .4-44
Braking precautions ............5-84
Child restraints ............... 1-19
Cruise control ............... 5-39
Maintenance .................8-5
Seat belt usage ............... 1-11
Supplemental restraint system ......1-36
When starting and driving .........5-2
Pre-crash seat belts with comfort function . .1-13
Preview function ............... .5-85
Preview function (for Intelligent cruise
control system) ................ .5-62
Preview Function warning light ........2-14
Push-button ignition switch ..........5-7
Push starting ................. .6-10 R
Radio ..................... .4-44
Radio Car phone or CB radio ...........4-85
FM-AM-SAT radio with Compact Disc (CD)
player .................... 4-58
Rain-sensing auto wiper system . . . . . . .2-31
Rapid air pressure loss .............5-6
Readiness for inspection/maintenance
(I/M) test (US only) ............. .9-22
Rear door lock, Child safety rear door lock . .3-6
Rear sunshade ................ .2-53
Rearview monitor .............. .4-24
Rear window and outside mirror defroster
switch ..................... .2-32
Recorders, Event data .............9-23
Registering your vehicle in another
country .................... .9-10
Remote keyless entry system .........3-13
Reporting safety defects (US only) ......9-21
Roadside assistance program .........6-2
Rollover ..................... .5-5
Roof, Moonroof ............... .2-52
Safety Child seat belts .............. .1-17
Reporting safety defects (US only) ....9-21
S
Satellite radio operation ............4-59
Seat adjustment Front power seat adjustment ........1-3
Front seats ..................
1-3
10-5
—
—
07/15/10—tbrooks


Touch screen system..............4-4
Towing Flat towing ................ .9-19
Towing a trailer .............. 9-19
Tow truck towing ............. 6-12
TPMS, Tire pressure monitoring system . . . .5-3
TPMS, Tire pressure warning system .....6-2
Trailer towing ................. .9-19
Transceiver, HomeLink Universal
Transceiver .................. .2-57
Transmission Automatic transmission fluid (ATF) . . . .8-14
Driving with automatic transmission . . . 5-12
Transmission selector lever lock
release ................... 5-15
Transmitter
(See remote keyless entry system) ......3-13
Traveling or registering your vehicle in
another country ................ .9-10
Trip computer ................. .2-24
Trip odometer ................. .2-25
Trunk Interior trunk lid release ..........3-19
Trunk lid .................. 3-17
Trunk lid release switch ..........3-17
Trunk open request switch ........3-17
Trunk release power cancel switch . . . 3-18
Trunk light .................. .2-56
Trunk pass-through .............. .1-10
Turn signal switch .............. .2-37
U
Underbody cleaning .............. .7-3
Uniform tire quality grading .........9-20 V
Vanity mirror ................. .3-26
Vanity mirror lights ............. .2-56
Variable voltage control system .......8-18
Vehicle Dimensions ................ .9-10
Recovery (freeing a stuck vehicle) ....6-15
Vehicle dynamic control (VDC) off
switch ................... 2-43
Vehicle dynamic control (VDC) system . . 5-89Vehicle information and settings (display) . . 4-8Vehicle identification number (VIN) ......9-11
Vehicle loading information ..........9-15
Vehicle security system ............2-27
Ventilators .................. .4-30
Voice command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Voice recognition, Alternate command
mode ..................... .4-122
Voice recognition system ..........4-109
Warning Dot matrix display .............2-19
Hazard warning flasher switch ......2-37
Lane departure warning (LDW) system . . 5-21
Tire pressure monitoring system (TPMS) . . 5-3Warning/indicator lights and audible
reminders ..................2-9
W
Warning labels, Air bag warning labels . . .1-48
Warning light Air bag warning light ...........1-48 Anti-lock braking system (ABS) warning
light
..................... 2-10
Brake warning light ............2-11
Lane departure warning light .......2-13
Low tire pressure warning light . . . . . 2-13
Seat belt warning light and chime ....2-14
Warning lights ................ .2-10
Warranty, Emission control system
warranty .................... .9-21
Washer switch, Windshield wiper and
washer switch ................ .2-30
Washing .................... .7-2
Waxing ..................... .7-2
Welcome light ................ .2-54
Wheels and tires ............... .8-30
Wheels and tires Care of wheels ............... .7-3
Cleaning aluminum alloy wheels . . . . . 7-3
Wheel/tire size ................ .9-9
Window(s) Cleaning .................. .7-3
Power windows .............. 2-49
Window washer fluid ............. .8-15
Windshield wiper and washer switch . . . .2-30
Wiper Rain-sensing auto wiper system .....2-31
Windshield wiper and washer switch . . 2-30
Wiper blades ................ 8-20
X
Xenon headlights ............... .2-32
10-7
—
—
07/26/10—dmoore
