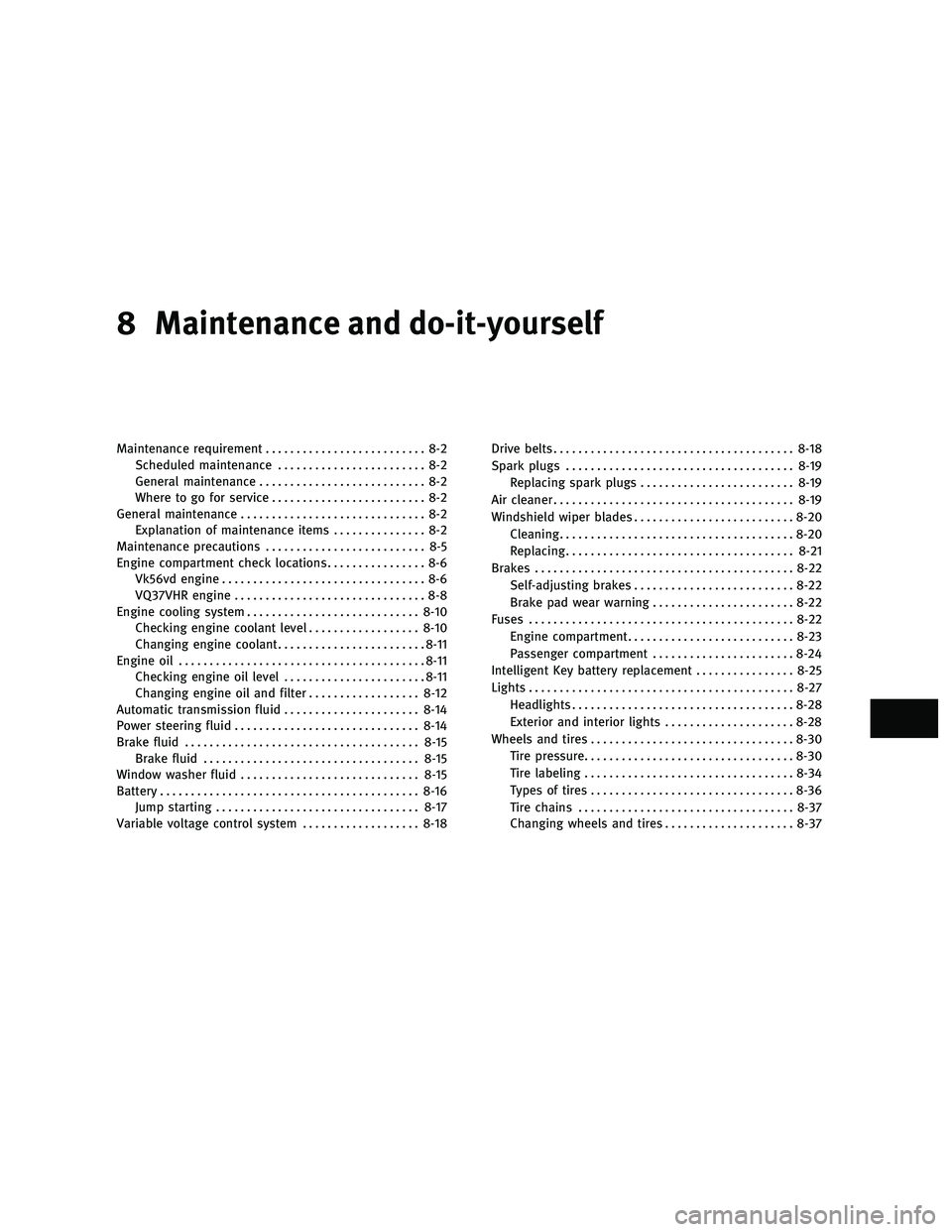

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
Vk56vd engine ................................. 8-6
VQ37VHR engine ............................... 8-8
Engine cooling system ............................ 8-10
Checking engine coolant level ..................8-10
Changing engine coolant ........................ 8-11
Engine oil ........................................ 8-11
Checking engine oil level .......................8-11
Changing engine oil and filter ..................8-12
Automatic transmission fluid ......................8-14
Power steering fluid .............................. 8-14
Brake fluid ...................................... 8-15
Brake fluid ................................... 8-15
Window washer fluid ............................. 8-15
Battery .......................................... 8-16
Jump starting ................................. 8-17
Variable voltage control system ...................8-18Drive belts
....................................... 8-18
Spark plugs ..................................... 8-19
Replacing spark plugs ......................... 8-19
Air cleaner ....................................... 8-19
Windshield wiper blades .......................... 8-20
Cleaning ...................................... 8-20
Replacing ..................................... 8-21
Brakes .......................................... 8-22
Self-adjusting brakes .......................... 8-22
Brake pad wear warning ....................... 8-22
Fuses ........................................... 8-22
Engine compartment ........................... 8-23
Passenger compartment ....................... 8-24
Intelligent Key battery replacement ................8-25
Lights ........................................... 8-27
Headlights .................................... 8-28
Exterior

and interior lights ..................... 8-28
Wheels and tires ................................. 8-30
Tire pressure .................................. 8-30
Tire labeling .................................. 8-34
Types of tires ................................. 8-36
Tire chains ................................... 8-37
Changing wheels and tires..................... 8-37
—
—
07/26/10—dmoore

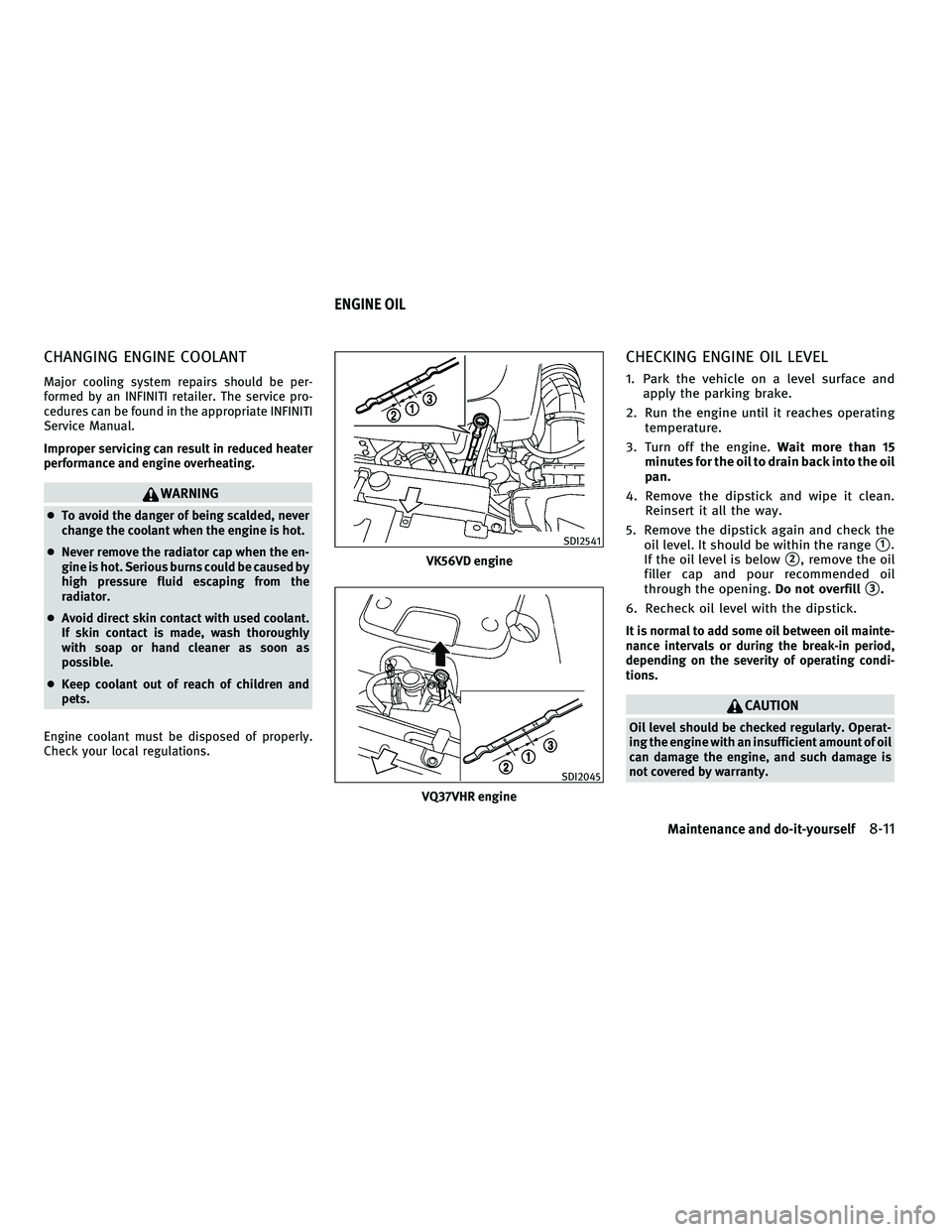

CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
●To avoid the danger of being scalded, never
change the coolant when the engine is hot.
● Never remove the radiator cap when the en-
gine is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
● Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep coolant out of reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil mainte-
nance intervals or during the break-in period,
depending on the severity of operating condi-
tions.
CAUTION
Oil level should be checked regularly. Operat-
ing the engine with an insufficient amount of oil
can damage the engine, and such damage is
not covered by warranty.
VK56VD engine
SDI2541
VQ37VHR engine
SDI2045
ENGINE OIL
Maintenance and do-it-yourself8-11
—
—
01/13/10—pattie

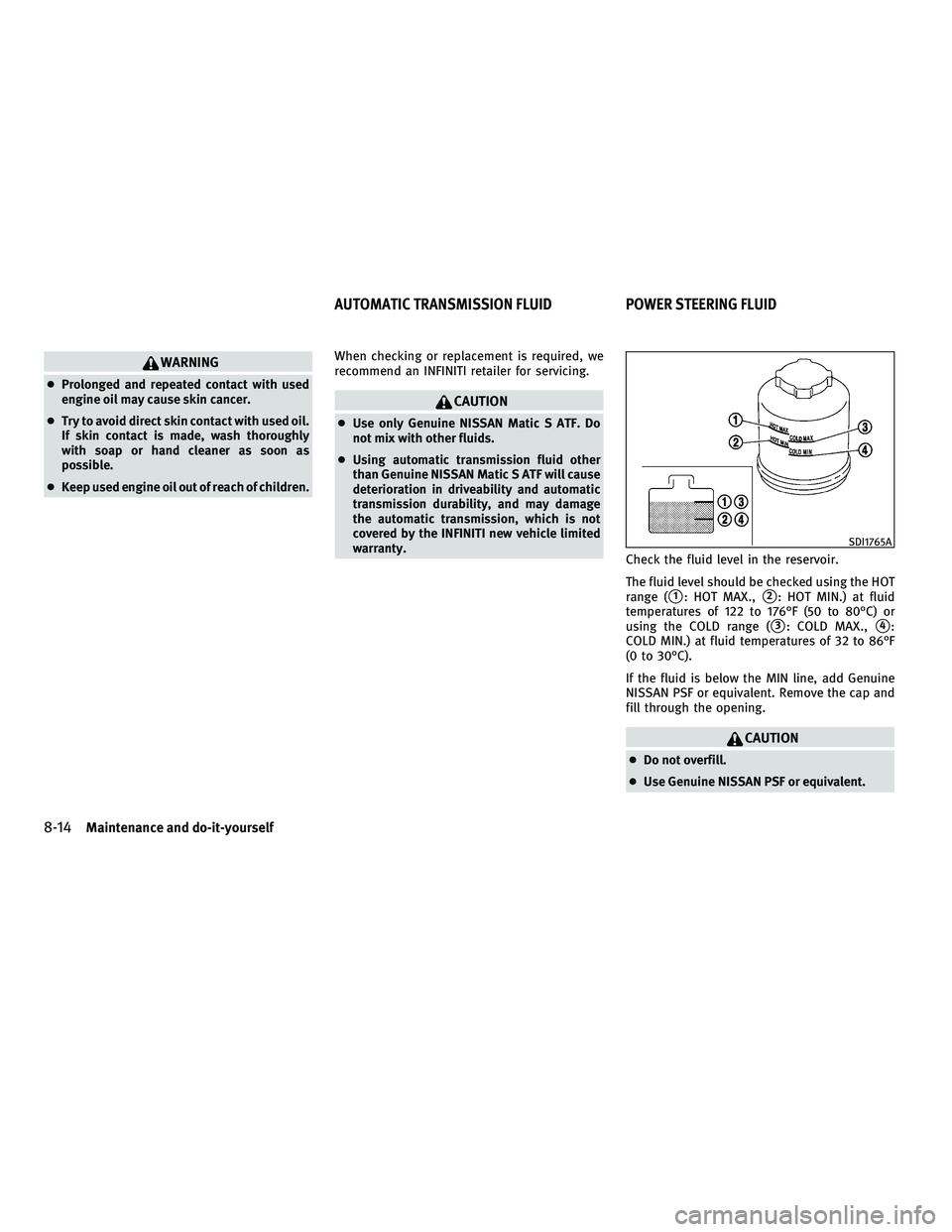

WARNING
●Prolonged and repeated contact with used
engine oil may cause skin cancer.
● Try to avoid direct skin contact with used oil.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible.
● Keep used engine oil out of reach of children. When checking or replacement is required, we
recommend an INFINITI retailer for servicing.
CAUTION
●
Use only Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
● Using automatic transmission fluid other
than Genuine NISSAN Matic S ATF will cause
deterioration in driveability and automatic
transmission durability, and may damage
the automatic transmission, which is not
covered by the INFINITI new vehicle limited
warranty. Check the fluid level in the reservoir.
The fluid level should be checked using the HOT
range (
1: HOT MAX.,2: HOT MIN.) at fluid
temperatures of 122 to 176°F (50 to 80°C) or
using the COLD range (
3: COLD MAX.,4:
COLD MIN.) at fluid temperatures of 32 to 86°F
(0 to 30°C).
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap and
fill through the opening.
CAUTION
● Do not overfill.
● Use Genuine NISSAN PSF or equivalent.
SDI1765A
AUTOMATIC TRANSMISSION FLUID POWER STEERING FLUID
8-14Maintenance and do-it-yourself
—
—
01/13/10—pattie
