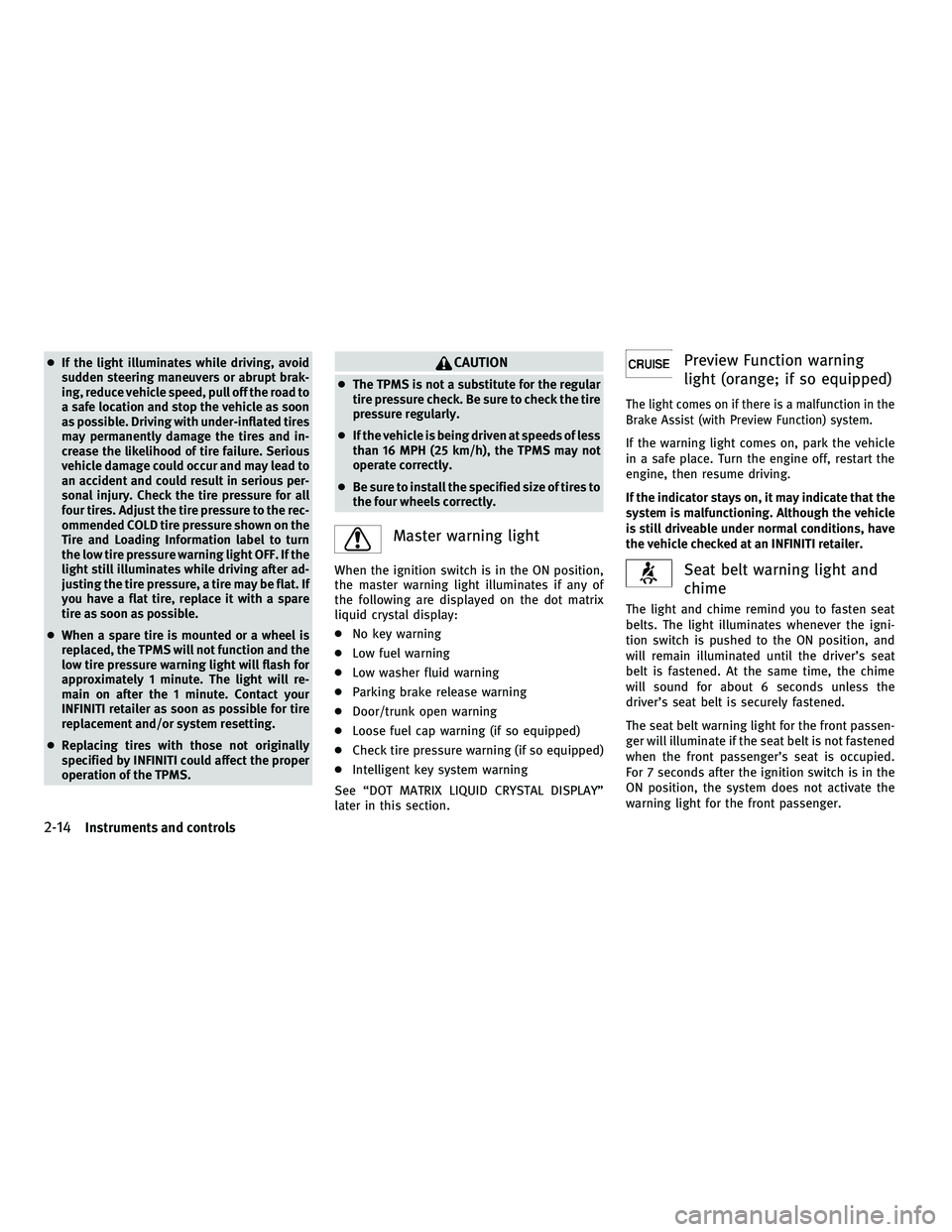

●If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning (if so equipped)
● Check tire pressure warning (if so equipped)
● Intelligent key system warning
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in the
Brake Assist (with Preview Function) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, then resume driving.
If the indicator stays on, it may indicate that the
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For 7 seconds after the ignition switch is in the
ON position, the system does not activate the
warning light for the front passenger.
2-14Instruments and controls
—
—
07/15/10—tbrooks

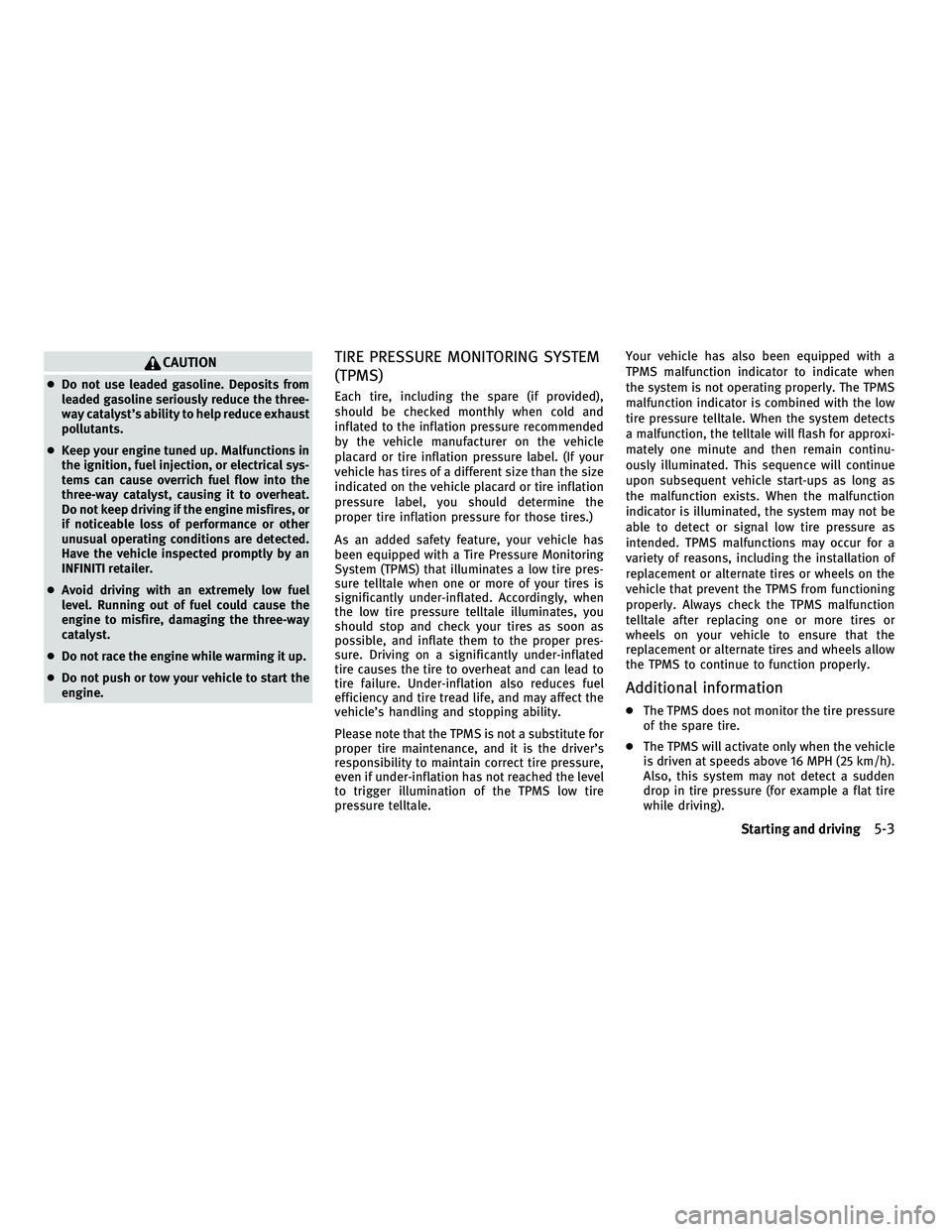

CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale. Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Additional information
●
The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
Starting and driving5-3
—
—
07/15/10—tbrooks

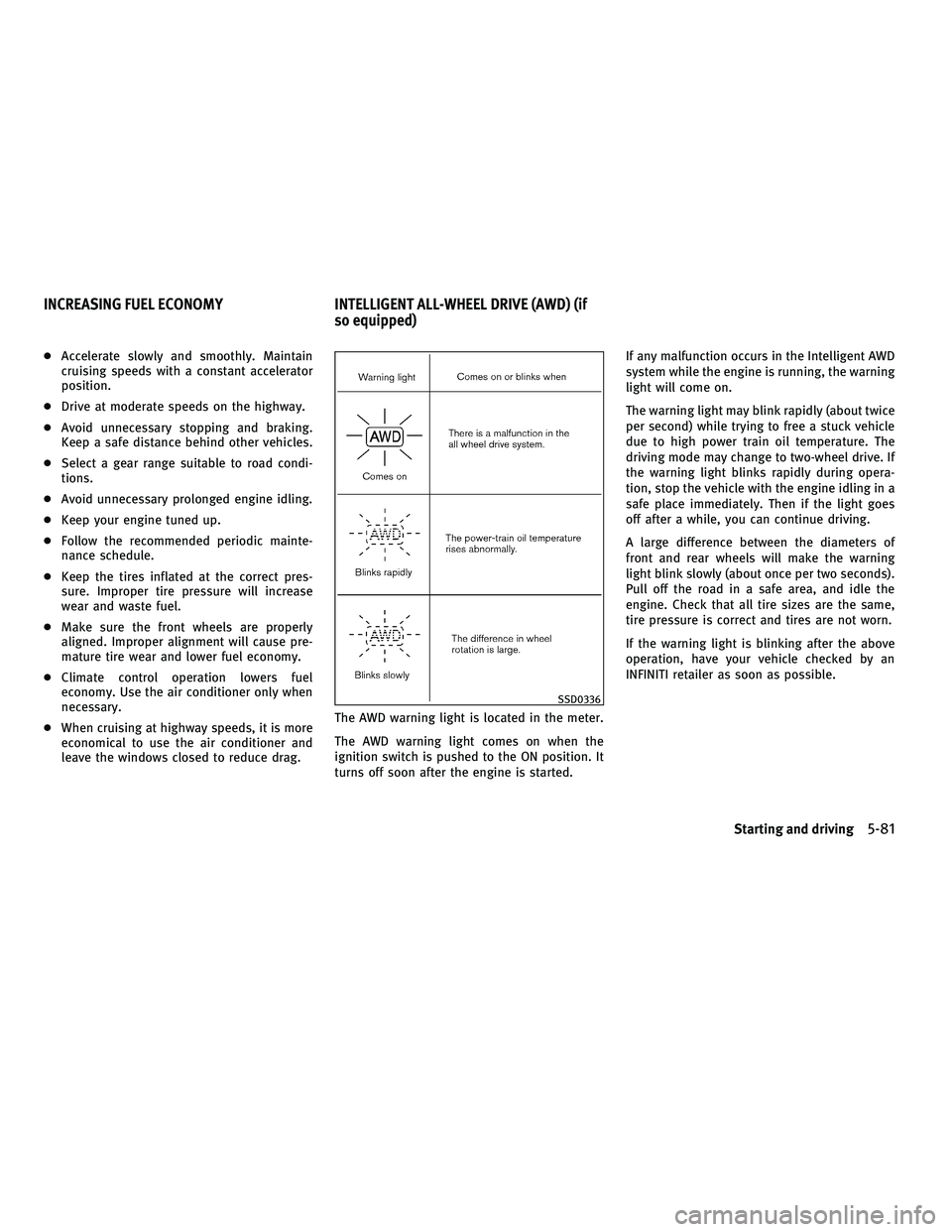

●Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag. The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started. If any malfunction occurs in the Intelligent AWD
system while the engine is running, the warning
light will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
SSD0336
INCREASING FUEL ECONOMY
INTELLIGENT ALL-WHEEL DRIVE (AWD) (if
so equipped)
Starting and driving5-81
—
—
01/12/10—pattie

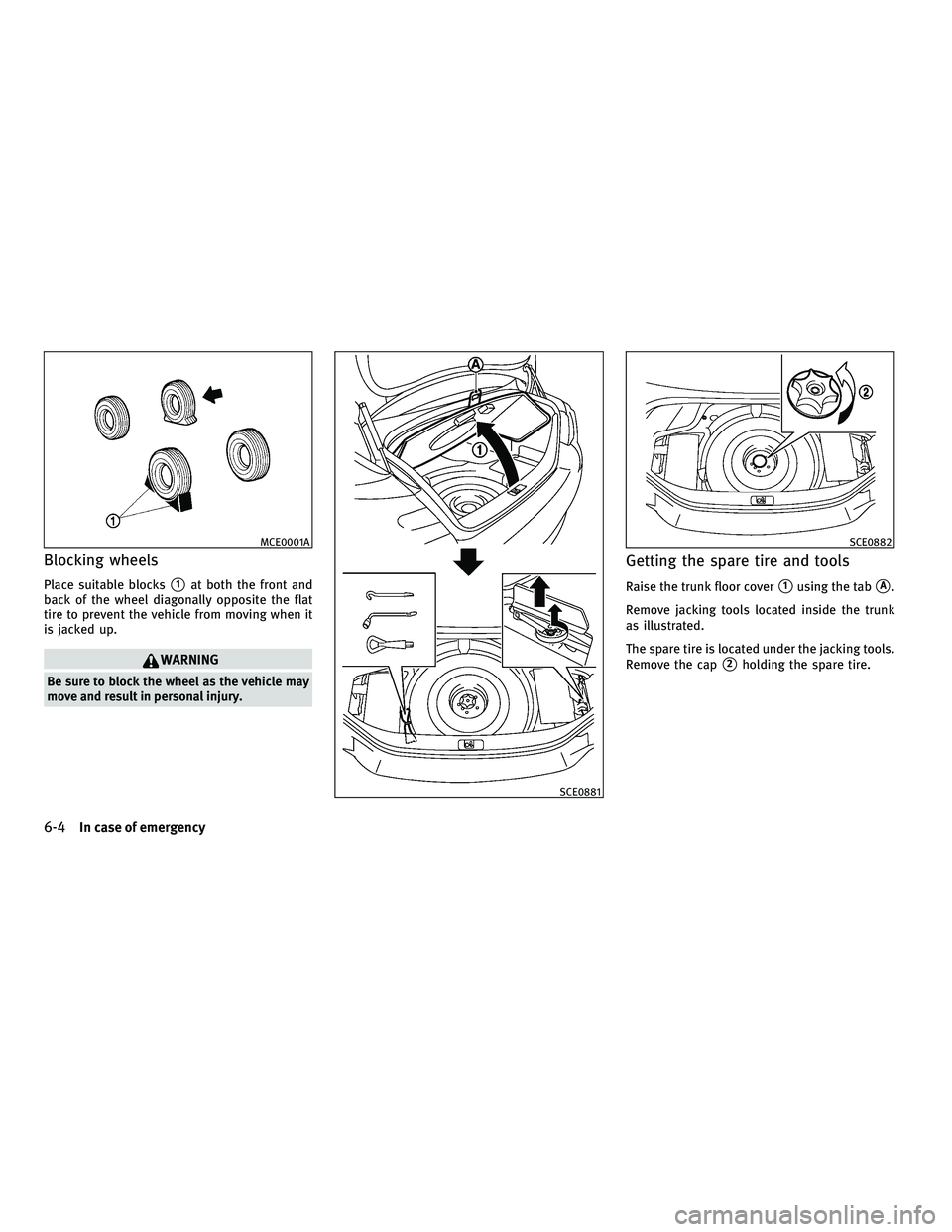

Blocking wheels
Place suitable blocks1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the vehicle may
move and result in personal injury.
Getting the spare tire and tools
Raise the trunk floor cover1using the tabA.
Remove jacking tools located inside the trunk
as illustrated.
The spare tire is located under the jacking tools.
Remove the cap
2holding the spare tire.
MCE0001A
SCE0881
SCE0882
6-4In case of emergency
—
—
01/12/10—pattie

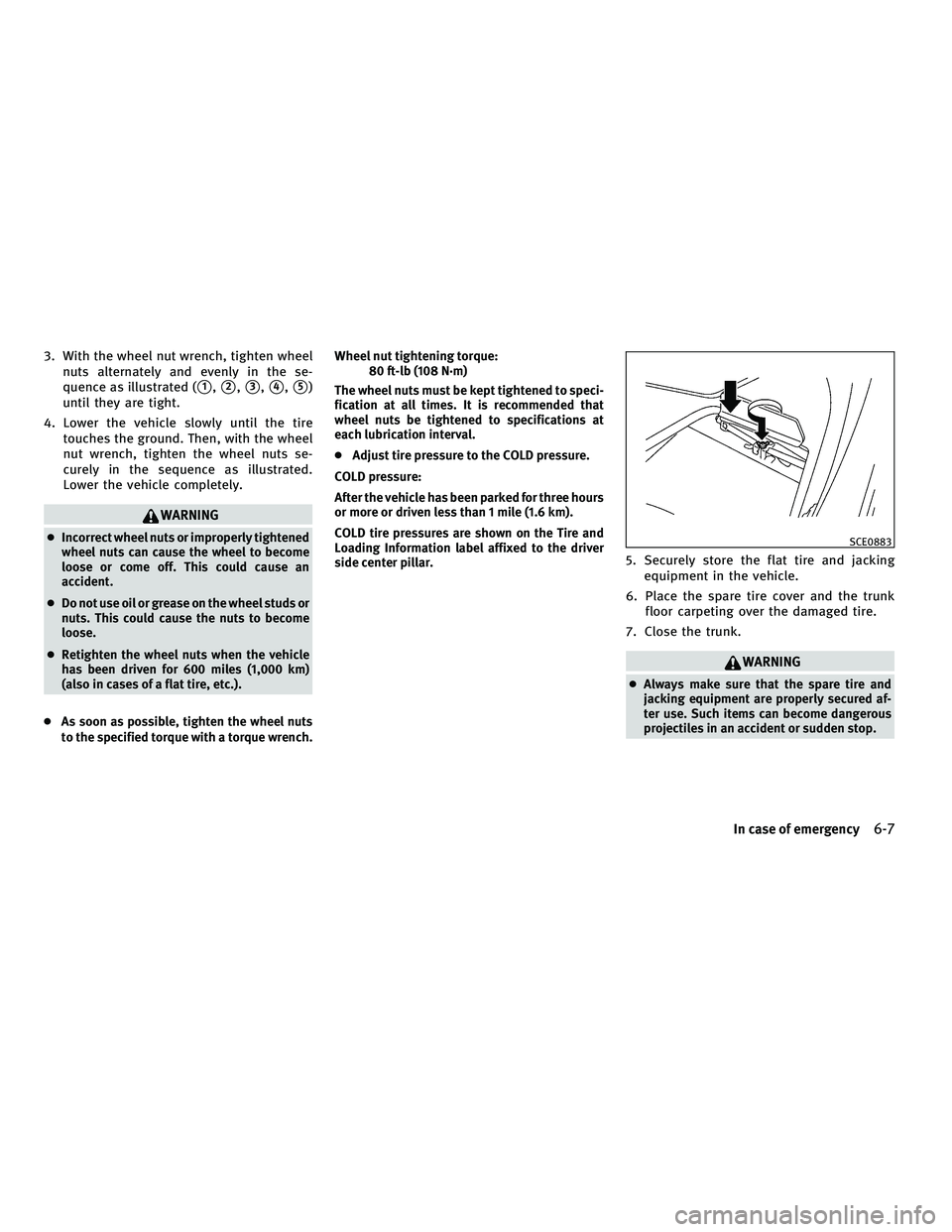

3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
● As soon as possible, tighten the wheel nuts
to the specified torque with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to speci-
fication at all times. It is recommended that
wheel nuts be tightened to specifications at
each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for three hours
or more or driven less than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire and
Loading Information label affixed to the driver
side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the spare tire cover and the trunk floor carpeting over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
SCE0883
In case of emergency6-7
—
—
01/12/10—pattie


Touch screen system..............4-4
Towing Flat towing ................ .9-19
Towing a trailer .............. 9-19
Tow truck towing ............. 6-12
TPMS, Tire pressure monitoring system . . . .5-3
TPMS, Tire pressure warning system .....6-2
Trailer towing ................. .9-19
Transceiver, HomeLink Universal
Transceiver .................. .2-57
Transmission Automatic transmission fluid (ATF) . . . .8-14
Driving with automatic transmission . . . 5-12
Transmission selector lever lock
release ................... 5-15
Transmitter
(See remote keyless entry system) ......3-13
Traveling or registering your vehicle in
another country ................ .9-10
Trip computer ................. .2-24
Trip odometer ................. .2-25
Trunk Interior trunk lid release ..........3-19
Trunk lid .................. 3-17
Trunk lid release switch ..........3-17
Trunk open request switch ........3-17
Trunk release power cancel switch . . . 3-18
Trunk light .................. .2-56
Trunk pass-through .............. .1-10
Turn signal switch .............. .2-37
U
Underbody cleaning .............. .7-3
Uniform tire quality grading .........9-20 V
Vanity mirror ................. .3-26
Vanity mirror lights ............. .2-56
Variable voltage control system .......8-18
Vehicle Dimensions ................ .9-10
Recovery (freeing a stuck vehicle) ....6-15
Vehicle dynamic control (VDC) off
switch ................... 2-43
Vehicle dynamic control (VDC) system . . 5-89Vehicle information and settings (display) . . 4-8Vehicle identification number (VIN) ......9-11
Vehicle loading information ..........9-15
Vehicle security system ............2-27
Ventilators .................. .4-30
Voice command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Voice recognition, Alternate command
mode ..................... .4-122
Voice recognition system ..........4-109
Warning Dot matrix display .............2-19
Hazard warning flasher switch ......2-37
Lane departure warning (LDW) system . . 5-21
Tire pressure monitoring system (TPMS) . . 5-3Warning/indicator lights and audible
reminders ..................2-9
W
Warning labels, Air bag warning labels . . .1-48
Warning light Air bag warning light ...........1-48 Anti-lock braking system (ABS) warning
light
..................... 2-10
Brake warning light ............2-11
Lane departure warning light .......2-13
Low tire pressure warning light . . . . . 2-13
Seat belt warning light and chime ....2-14
Warning lights ................ .2-10
Warranty, Emission control system
warranty .................... .9-21
Washer switch, Windshield wiper and
washer switch ................ .2-30
Washing .................... .7-2
Waxing ..................... .7-2
Welcome light ................ .2-54
Wheels and tires ............... .8-30
Wheels and tires Care of wheels ............... .7-3
Cleaning aluminum alloy wheels . . . . . 7-3
Wheel/tire size ................ .9-9
Window(s) Cleaning .................. .7-3
Power windows .............. 2-49
Window washer fluid ............. .8-15
Windshield wiper and washer switch . . . .2-30
Wiper Rain-sensing auto wiper system .....2-31
Windshield wiper and washer switch . . 2-30
Wiper blades ................ 8-20
X
Xenon headlights ............... .2-32
10-7
—
—
07/26/10—dmoore
