technical data INFINITI M 2011 Owners Manual

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-7
Specifications ..................................... 9-8
Engine ........................................ 9-8
Wheels and tires ............................... 9-9
Dimensions ................................... 9-10
When traveling or registering your vehicle in
another country .................................. 9-10
Vehicle identification .............................. 9-11
Vehicle Identification Number (VIN) plate .........9-11
Vehicle identification number (chassis
number) ....................................... 9-11
Engine serial number .......................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label .........9-12
Emission control information label ..............9-12
Tire and loading information label ..............9-13
Air conditioner specification label ...............9-13Installing front license plate
.......................9-14
Vehicle loading information ........................9-15
Terms ......................................... 9-15
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-20
Treadwear .................................... 9-20
Traction AA, A, B and C ........................ 9-20
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-21
Reporting safety defects (US only) .................9-21
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................ 9-22
Event Data Recorders (EDR) .......................9-23
Owner’s Manual/Service Manual order
information ...................................... 9-23
In the event of a collision ......................9-24
—
—
07/15/10—tbrooks


FUEL RECOMMENDATION
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96).
If premium gasoline is not available, unleaded
regular gasoline with an octane rating of 87 AKI
number (Research octane number 91) may be
temporarily used, but only under the following
precautions:
●Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as pos-
sible.
● Avoid full throttle driving and abrupt accel-
eration.
However, for maximum vehicle performance, the
use of unleaded premium gasoline is recom-
mended.
CAUTION
● Using a fuel other than that specified could
adversely affect the emission control sys-
tem, and may also affect warranty coverage.
● Under no circumstances should a leaded
gasoline be used, because this will damage
the three-way catalyst. ●
Do not use E-85 fuel in your vehicle. Your
vehicle is not designed to run on E-85 fuel.
Using E-85 fuel can damage the fuel system
components and is not covered by the
INFINITI vehicle limited warranty.
Gasoline specifications
INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifica-
tions where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission system and vehicle perfor-
mance. Ask your service station manager if the
gasoline meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated gaso-
line when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
INFINITI does not recommend the use of fuels of which the oxygenate content and the fuel com-
patibility for your INFINITI cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage of
such fuels may cause vehicle performance prob-
lems and/or fuel system damage.
●
The fuel should be unleaded and have an oc-
tane rating no lower than that recommended
for unleaded gasoline.
● If an oxygenate-blend, excepting a methanol
blend, is used, it should contain no more than
10% oxygenate. (MTBE may, however, be
added up to 15%.)
● If a methanol blend is used, it should contain
no more than 5% methanol (methyl alcohol,
wood alcohol). It should also contain a suit-
able amount of appropriate cosolvents and
corrosion inhibitors. If not properly formu-
lated with appropriate cosolvents and corro-
sion inhibitors, such methanol blends may
cause fuel system damage and/or vehicle
performance problems. At this time, suffi-
cient data is not available to ensure that all
methanol blends are suitable for use in
INFINITI vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
9-4Technical and consumer information
—
—
01/13/10—pattie

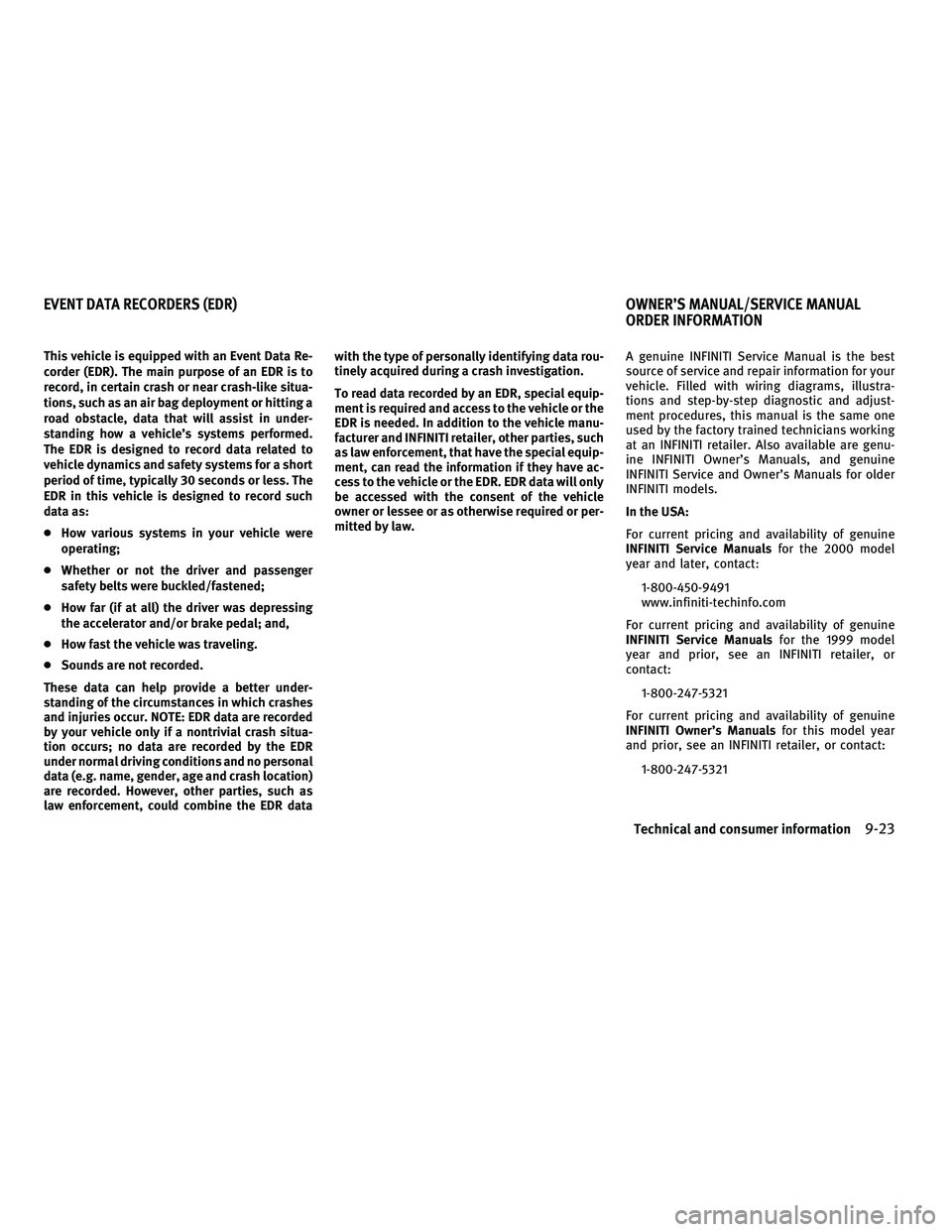

This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
●How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data with the type of personally identifying data rou-
tinely acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
A genuine INFINITI Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustra-
tions and step-by-step diagnostic and adjust-
ment procedures, this manual is the same one
used by the factory trained technicians working
at an INFINITI retailer. Also available are genu-
ine INFINITI Owner’s Manuals, and genuine
INFINITI Service and Owner’s Manuals for older
INFINITI models.
In the USA:
For current pricing and availability of genuine
INFINITI Service Manuals
for the 2000 model
year and later, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genuine
INFINITI Service Manuals for the 1999 model
year and prior, see an INFINITI retailer, or
contact:
1-800-247-5321
For current pricing and availability of genuine
INFINITI Owner’s Manuals for this model year
and prior, see an INFINITI retailer, or contact:
1-800-247-5321
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION
Technical and consumer information9-23
—
—
