clock INFINITI M 2013 Owner's Manual

0-8Illustrated table of contents
JVC0291X
1. Side ventilator (P.4-34)
2. Paddle shifter (if so equipped) (P.5-16)
3. Meters and gauges (P.2-6)
4. Hazard warning flasher switch (P.2-40)
5. Rear window and outside mirrordefroster switch (P.2-34) 6. Center display (P.4-4)/Navigation sys-
tem* (if so equipped)
7. Clock (P.2-46)
8. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Audio system (P.4-49)
9. Automatic climate control system (P.4-34)/Forest Air
®system* (P.4-34)
10. Center ventilator (P.4-34)
11. Audio system (P.4-49)
12. Front passenger supplemental air bag (P.1-39)
13. Hood release handle (P.3-18)
14. Fuse box cover (P.8-26)
15. Parking brake —Parking (P.5-19)
16. Push-button ignition switch (P.5-9)
17. Front passenger air bag status light (P.1-46)
18. Climate controlled seat switch (if so equipped) (P.2-43) or Seat heater
switch (if so equipped) (P.2-42)
19. Drive mode select switch (P.5-20)
20. Cigarette lighter and ashtray (P.2-47)
21. Glove box lid release handle (P.2-50)
22. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner’s Manual.
INSTRUMENT PANEL

2 Instruments and controls
Cockpit................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6
Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Warning/indicator lights and
audible reminders ............................................. 2-10 Checking bulbs.............................................. 2-10
Warning lights ............................................... 2-11
Indicator lights .............................................. 2-16
Audible reminders ......................................... 2-19
Dot matrix liquid crystal display ........................ 2-20 Indicators for operation ................................. 2-22
Indicators for maintenance ............................ 2-25
Trip computer ................................................ 2-26
Security systems ............................................... 2-29 Vehicle Security System ................................ 2-29
INFINITI Vehicle Immobilizer System .............. 2-30
Windshield wiper and washer switch ................. 2-32 Rain-sensing auto wiper system .................... 2-33
Rear window and outside mirror
defroster switch ................................................. 2-34
Headlight and turn signal switch ....................... 2-34 Xenon headlights......................................... 2-34
Headlight switch .......................................... 2-35
Turn signal switch........................................ 2-39
Fog light switch ........................................... 2-40
Hazard warning flasher switch .......................... 2-40
Heated steering wheel (if so equipped) ............. 2-41
Horn ................................................................. 2-41
Heated seats..................................................... 2-42
Climate controlled seats (if so equipped) .......... 2-43
Warning systems switch (if so equipped) .......... 2-44
Intelligent Brake Assist (IBA) OFF switch (if
so equipped)..................................................... 2-45
Vehicle Dynamic Control (VDC) OFF switch ......... 2-45
Clock................................................................. 2-46 Adjusting the time ....................................... 2-46
Power outlet ..................................................... 2-47
Cigarette lighter and ashtrays ........................... 2-47 Front............................................................ 2-47
Rear............................................................. 2-48
Storage ............................................................. 2-48
Cup holders ................................................. 2-48
Sunglasses holder ....................................... 2-49
Glove box .................................................... 2-50
Console box................................................. 2-51
Card holder.................................................. 2-51>

JVC0291X
1. Side ventilator (P.4-34)
2. Paddle shifter (if so equipped) (P.5-16)
3. Meters and gauges (P.2-6)
4. Hazard warning flasher switch (P.2-40)
5. Rear window and outside mirrordefroster switch (P.2-34) 6. Center display (P.4-4)/Navigation sys-
tem* (if so equipped)
7. Clock (P.2-46)
8. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Audio system (P.4-49)
9. Automatic climate control system (P.4-34)/Forest Air
®system (P.4-34)
10. Center ventilator (P.4-34)
11. Audio system (P.4-49)
12. Front passenger supplemental air bag (P.1-39)
13. Hood release handle (P.3-18)
14. Fuse box cover (P.8-26)
15. Parking brake —Parking (P.5-19)
16. Push-button ignition switch (P.5-9)
17. Front passenger air bag status light (P.1-46)
18. Climate controlled seat switch (if so equipped) (P.2-43) or Seat heater
switch (if so equipped) (P.2-42)
19. Drive mode select switch (P.5-20)
20. Cigarette lighter and ashtray (P.2-47)
21. Glove box lid release handle (P.2-50)
22. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System
Owner’s Manual.
Instruments and controls2-5
INSTRUMENT PANEL

2-46Instruments and controls
“Vehicle Dynamic Control (VDC) system”in
the “5. Starting and driving” section.)
SIC4338
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push the
button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button” in the“4. Monitor, climate, audio, phone and voice recognition systems”
section.
CLOCK

damage.

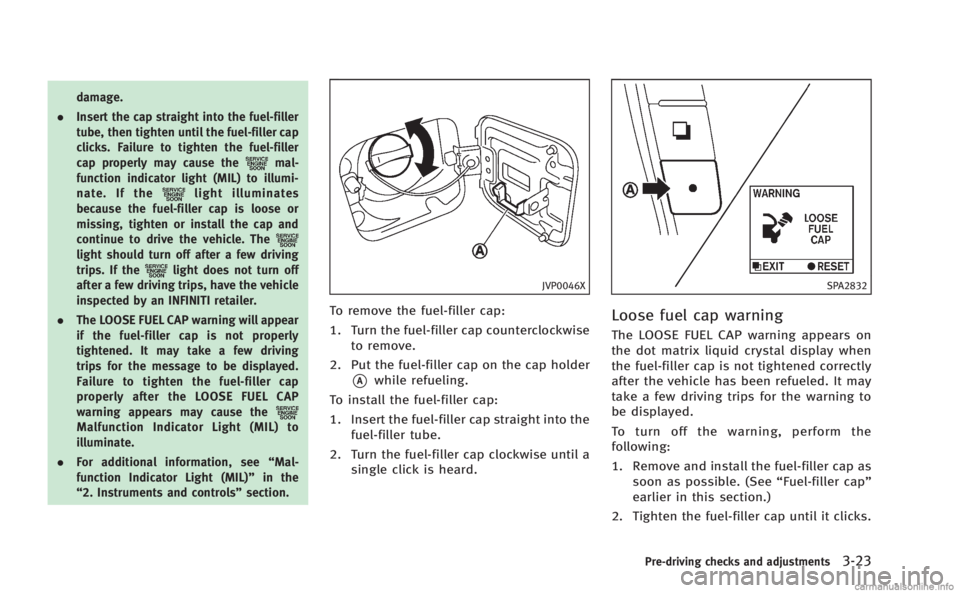

. Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler
cap properly may cause the
mal-
function indicator light (MIL) to illumi-
nate. If the
light illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If thelight does not turn off
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. The LOOSE FUEL CAP warning will appear
if the fuel-filler cap is not properly
tightened. It may take a few driving
trips for the message to be displayed.
Failure to tighten the fuel-filler cap
properly after the LOOSE FUEL CAP
warning appears may cause the
Malfunction Indicator Light (MIL) to
illuminate.
. For additional information, see “Mal-
function Indicator Light (MIL)” in the
“2. Instruments and controls” section.
JVP0046X
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise
to remove.
2. Put the fuel-filler cap on the cap holder
*Awhile refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
SPA2832
Loose fuel cap warning
The LOOSE FUEL CAP warning appears on
the dot matrix liquid crystal display when
the fuel-filler cap is not tightened correctly
after the vehicle has been refueled. It may
take a few driving trips for the warning to
be displayed.
To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap assoon as possible. (See “Fuel-filler cap”
earlier in this section.)
2. Tighten the fuel-filler cap until it clicks.
Pre-driving checks and adjustments3-23

4-20Monitor, climate, audio, phone and voice recognition systems
.Image Viewer
Depending on the vehicle equipment,
pushing SETTING button will display the
following items.
. Display
. Clock
SAA2486
Display settings (models with na-
vigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Others” key, and then selecting the
“Display” key.
Also, the “Display” screen will display
when the DISP button on the control panel
is pushed.
Display Adjustment:
To adjust the display settings, select the
“Display Adjustment” key. The following
settings are available. .
Display
To turn off the screen, push the ENTER
button and turn the “Display”indicator off.
The other method is to push and hold the
“
OFF” button for more than 2 seconds.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the “
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness” or
“Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color”
key, refer to the separate Navigation
System Owner’s Manual.
Color Theme:
Choose the theme color of the menu screen
from “Black”, “Brown” or“Silver”.

SAA2487
Clock settings (models with navi-
gation system)
The display as illustrated will appear when
pushing the SETTING button and selecting
the“Others” key, and then selecting the
“Clock” key.
The clock settings display cannot be
operated while driving. Stop the vehicle
in a safe place and apply the parking brake
before setting the clock.
On-screen Clock:
When this item is turned to ON, a clock is
always displayed in the upper right corner
of the screen. This clock will indicate the time almost
exactly because it is always adjusted by
the GPS system.
Clock Format (24h):
When this item is turned to ON, the 24-
hour clock is displayed. When this item is
not turned to ON, the 12-hour clock is
displayed.
Offset (hour)/(min):
Adjust the time by increasing or decreasing
per hour or per minute.
Daylight Saving Time:
Turn this item to ON for daylight saving
time application.
Time Zone:
Choose the time zone from the following
. Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
SAA3007
Models with navigation system
JVH0252X
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-23

6-6In case of emergency
SCE0504

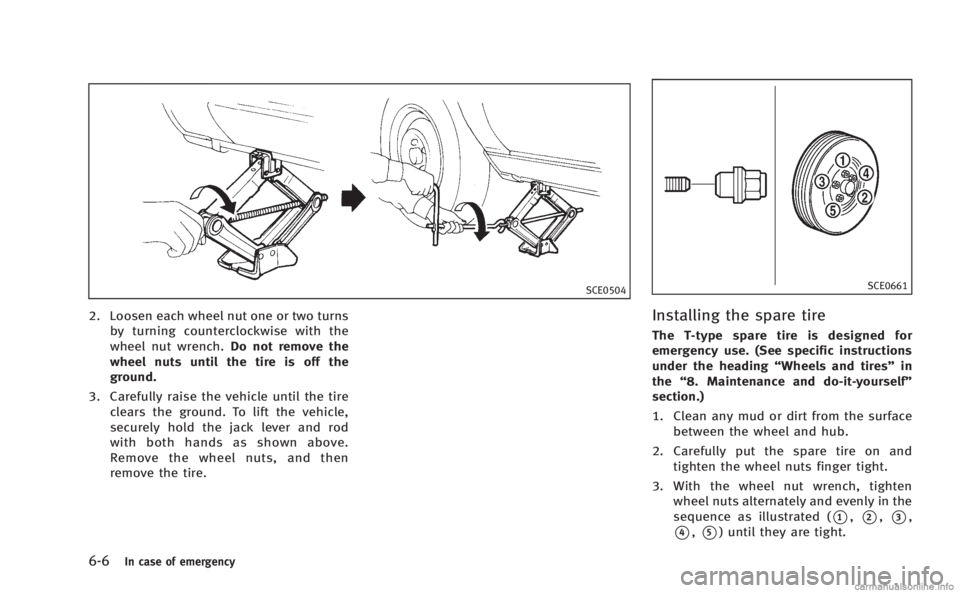

2. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod
with both hands as shown above.
Remove the wheel nuts, and then
remove the tire.
SCE0661
Installing the spare tire
The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires” in
the “8. Maintenance and do-it-yourself”
section.)
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel nuts alternately and evenly in the
sequence as illustrated (
*1,*2,*3,
*4,*5) until they are tight.

Engine oil and filter
1. Place a large drain pan under the drainplug.
2. Remove the oil filler cap.
3. Remove the drain plug
*1with a
wrench and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
.Waste oil must be disposed of
properly.
.Check your local regulations.
4. (Perform steps 4 to 7 only when the engine oil filter change is needed.)
Loosen the oil filter
*2with an oil filter
wrench. Remove the oil filter by turning
it by hand.
5. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old rubber gasket
remaining on the mounting surface of the engine. Failure to do so could lead to engine
damage.
6. Coat the gasket on the new filter with
clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the
drain plug with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and install the oil filler cap securely.
CAUTION
The dipstick must be inserted in place to
prevent oil spillage from the dipstick hole
while filling the engine with oil.
See “Capacities and recommended
fuel/lubricants” in the“9. Technical
and consumer information” section for
drain and refill capacity. The drain and
refill capacity depends on the oil
temperature and drain time. Use these
specifications for reference only. Al-
ways use the dipstick to determine the
proper amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation
1. Install the engine undercover intoposition as the following steps.
a. Pull the center of the small plasticclip out.
b. Hold the engine undercover into position.
c. Insert the clip through the under- cover into the hole in the frame, then
push the center of the clip in to lock
the clip in place.
Maintenance and do-it-yourself8-15

10-2
Catalytic converterThree way catalyst ......................................... 5-4
CD/CF/USB memory care and cleaning ............. 4-83
Center multi-function control panel ..................... 4-4
Check tire pressure warning .............................. 2-23
Child restraints ................................................. 1-21 LATCH system .............................................. 1-23
Precautions on child restraints ..................... 1-21
Child safety ...................................................... 1-19
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-19
Seat belt warning light and chime ............... 2-15
Cigarette lighter and ashtrays ........................... 2-47
Circuit breaker Fusible link .................................................. 8-27
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control Automatic climate control ............................ 4-34
Clock ................................................................ 2-46
Coat hooks ....................................................... 2-52
Cockpit ........................................................ 0-6, 2-3
Cold weather driving ....................................... 5-103
Compact Disc (CD) player (See audio system) ... 4-67
Compact spare tire ........................................... 8-44
Console box ...................................................... 2-51
Controller Center multi-function control panel ................ 4-6
Controls Control panel button ...................................... 4-4
INFINITI Controller .......................................... 4-6 Coolant
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-12
Checking engine coolant level ...................... 8-12
Corrosion protection ........................................... 7-7
Cruise control ................................................... 5-46
Fixed speed cruise control (on ICC system) ... 5-66
Intelligent cruise control (ICC) system .......... 5-48
Cruise indicator ................................................ 2-23
Cup holders ...................................................... 2-48
Current fuel consumption .................................. 2-27
D
Daytime running light system ........................... 2-37
Defroster switch Rear window and outside mirror
defroster switch ........................................... 2-34
Dimensions ....................................................... 9-10
Display cleaning ................................................. 4-8
Display controls (See center multi-function
control panel) ..................................................... 4-4
Distance Control Assist (DCA) system ................ 5-70
Distance Control Assist (DCA) system
switch indicator ................................................ 2-24
Distance Control Assist (DCA) system
warning light .................................................... 2-12
Distance to empty ............................................. 2-27
Dot matrix liquid crystal display ....................... 2-20
Drive belts ........................................................ 8-21
Drive positioner ................................................ 3-28 Driving
Cold weather driving .................................. 5-103
Driving with automatic transmission ............ 5-14
Precautions when starting and driving ........... 5-3
DVD player operation ........................................ 4-68
E
ECO drive indicator light ................................... 2-17
ECO mode ......................................................... 5-21
ECO pedal system ............................................. 5-21
Economy
Fuel ............................................................. 5-90
Elapsed time ..................................................... 2-27
Elapsed time and trip odometer ........................ 2-27
Emission control information label .................... 9-13
Emission control system warranty ..................... 9-20
Engine Before starting the engine ........................... 5-13
Break-in schedule ........................................ 5-90
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-12
Changing engine oil and filter ...................... 8-13
Checking engine coolant level ...................... 8-12
Checking engine oil level ............................. 8-13
Coolant temperature gauge ............................ 2-8
Emergency engine shut off ........................... 5-12
Engine block heater ................................... 5-105
Engine compartment check locations ............. 8-7
Engine cooling system ................................. 8-11
Engine oil .................................................... 8-13
