Hybrid System-4Hybrid System Overview
The emergency shut-off system is activated
and the high-voltage system automatically
turns off in the following conditions:
.Front and side collisions in which the
air bags are deployed.
. Certain rear collisions.
. Certain INFINITI Direct Response Hy-
brid
TMSystem malfunctions
For the above collisions and the certain
hybrid system malfunctions, the READY to
drive indicator light will turn off. See
“Warning/indicator lights and audible re-
minders” in the“2. Instruments and
controls”.
The emergency shut-off activates for the
above collisions to minimize risk of an
event that could cause injury or an
accident. If the emergency shut-off system
activates, the hybrid system may not
switched to READY to drive position,
contact an INFINITI retailer. Even if the
ignition switch is switched to READY to
drive position, the system may shut-off
suddenly. Therefore, drive cautiously to the
nearest INFINITI retailer or contact an
INFINITI retailer as soon as possible. Depress the brake pedal and place the
ignition switch in the ON position when the
transmission is in the P (Park) position or N
(Neutral) position (P is recommended) to
start the INFINITI Direct Response Hybrid
TM
System.
The READY to drive indicator light
flashes until hybrid system becomes the
ready to drive mode.
When the READY to drive indicator light
illuminates, the vehicle can be
driven, even if the gasoline engine is not
running.
NOTE:
The gasoline engine starts and stops
automatically. It may stop during low
speed driving, deceleration or when the
vehicle is stopped.
The gasoline engine may automatically
run in the following conditions:
. The level of remaining charge in the
Lithium ion (Li-ion) battery is low. The
engine runs to charge the Li-ion
battery and to provide power to the
drive the vehicle.
. The temperature of the engine coolant
is low. .
Based on driving conditions.
. The selector lever is shifted to the P
(Park) position, the driver’s seat belt is
released and the driver’s side door is
then opened.
The hybrid system operates as follows
based on driving conditions and the Li-ion
battery charge.STARTING AND SLOW SPEED DRIV-
ING
The vehicle is driven by the electric motor
depending on the available Li-ion battery
charge.
MEDIUM OR HIGH SPEED DRIVING
The system automatically controls the
gasoline engine and electric motor in order
to obtain the optimum fuel mileage and
performance, depending on the driving
situation and available Li-ion battery
charge.
When the remaining battery level is low,
the Li-ion battery is charged by the electric
motor that is driven to generate electric
power while the vehicle is driving.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM

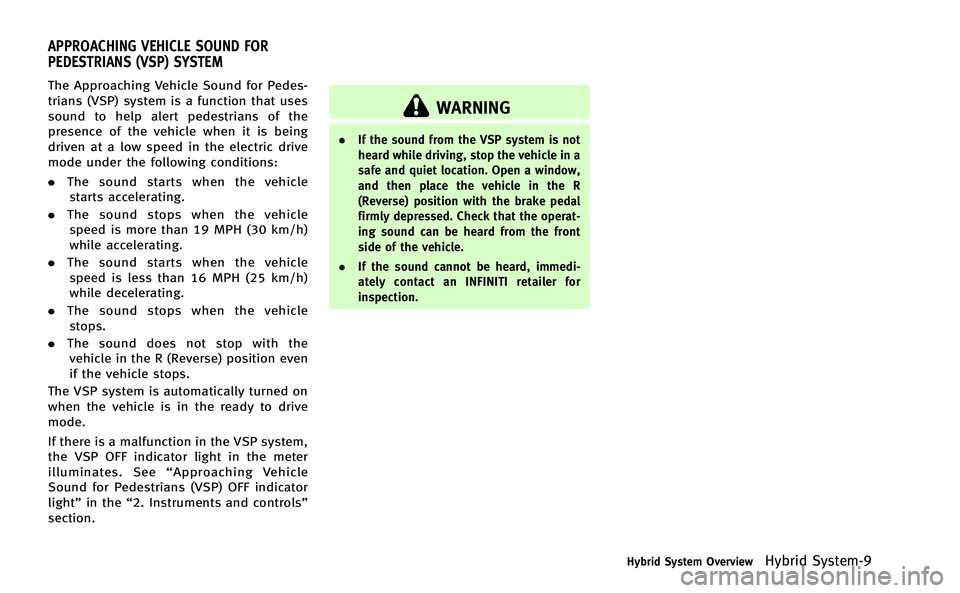

The Approaching Vehicle Sound for Pedes-
trians (VSP) system is a function that uses
sound to help alert pedestrians of the
presence of the vehicle when it is being
driven at a low speed in the electric drive
mode under the following conditions:
.The sound starts when the vehicle
starts accelerating.
. The sound stops when the vehicle
speed is more than 19 MPH (30 km/h)
while accelerating.
. The sound starts when the vehicle
speed is less than 16 MPH (25 km/h)
while decelerating.
. The sound stops when the vehicle
stops.
. The sound does not stop with the
vehicle in the R (Reverse) position even
if the vehicle stops.
The VSP system is automatically turned on
when the vehicle is in the ready to drive
mode.
If there is a malfunction in the VSP system,
the VSP OFF indicator light in the meter
illuminates. See “Approaching Vehicle
Sound for Pedestrians (VSP) OFF indicator
light” in the “2. Instruments and controls”
section.
WARNING
. If the sound from the VSP system is not
heard while driving, stop the vehicle in a
safe and quiet location. Open a window,
and then place the vehicle in the R
(Reverse) position with the brake pedal
firmly depressed. Check that the operat-
ing sound can be heard from the front
side of the vehicle.
. If the sound cannot be heard, immedi-
ately contact an INFINITI retailer for
inspection.
Hybrid System OverviewHybrid System-9
APPROACHING VEHICLE SOUND FOR
PEDESTRIANS (VSP) SYSTEM

tion. High voltage harnesses are orange.
The system can be hot while and after
starting. Be careful of both the high voltage
and the high temperature.
HYBRID VEHICLE CHARACTERISTICS
WARNING
.When you leave your vehicle, be sure to
place the ignition switch in the OFF
position.
. Be sure to put the transmission in the P
(Park) position because the vehicle can
move when the READY to drive indicator
light is on even if the gasoline engine is
not running. When the READY to drive
indicator light is on, do not leave your
vehicle in a shift position other than the
P (Park) position. The vehicle will creep
and start abruptly if the accelerator
pedal is depressed by mistake. This
may cause serious injury or death.
CAUTION
If the vehicle is parked for a long period of
time, the battery discharges gradually. To avoid this occurrence, drive the vehicle for
approximately 30 minutes at least once
every two to three months. Otherwise, the
Lithium ion (Li-ion) battery may be da-
maged. If the Li-ion battery is completely
discharged and the hybrid system cannot be
activated, contact an INFINITI retailer.
High voltage parts and harnesses on the
hybrid vehicles emit approximately the
same amount of electromagnetic waves
as the conventional gasoline-powered ve-
hicles or home electronic appliances de-
spite of their electromagnetic shieldings.
Unwanted noise may occur in the reception
of a mobile two-way radio.
Charging the Li-ion battery while driving is
important. The vehicle cannot run if the Li-
ion battery is discharged. In the N (Neutral)
position, the Li-ion battery does not
recharge. Leaving the transmission in the
N (Neutral) position for an extended period
of time may discharge the Li-ion battery.
The Li-ion battery recharges when the shift
selector is in any position other than N
(Neutral).
JVO0019X
An air vent*Ais located on the rear parcel
shelf to cool the Li-ion battery. If the vent is
covered, the battery will overheat resulting
in reduced output performance of the
hybrid system. See “Lithium-ion (Li-ion)
battery air vent” in the“7. Appearance and
care ”section.
Hybrid System OverviewHybrid System-11

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)....................................................... 0-2
Exterior front ....................................................... 0-4
Exterior rear......................................................... 0-4
Passenger compartment ...................................... 0-5
Cockpit ................................................................ 0-6 Instrument panel................................................. 0-8
Meters and gauges ............................................. 0-9
Engine compartment ......................................... 0-10
VQ35HR engine ........................................... 0-10
Warning and indicator lights ............................. 0-11

0-6Illustrated table of contents
JVC0259X
1. Instrument brightness control switch(P.2-44)
2. AFS switch (if so equipped) (P.2-42)
3. Headlight, fog light and turn signal switch (P.2-39)
4. Trip computer switch (P.2-29) 5. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
6. Windshield wiper and washer switch (P.2-36)
7. Selector lever (P.5-14) 8. Vehicle Dynamic Control (VDC) OFF
switch (P.5-98)
9. Rear sunshade switch (if so equipped) (P.2-62)
10. Steering heater switch (if so equipped) (P.2-45)
11. Trunk lid release switch (P.3-19)
12. Sonar system off switch (if so equipped) (P.5-93)
13. Warning systems switch (if so equipped) (P.5-22, P.5-31, P.5-81)
14. Intelligent Brake Assist (IBA) OFF switch (if so equipped) (P.5-85)
15. Electric tilting/telescopic steering wheel lever (P.3-24)
16. Steering-wheel-mounted controls (left side)
—Menu control switch (models with
navigation system)/Audio tuning
switch (models without navigation
system) (P.4-85)
— Hands-Free Phone System switch
(P.4-100, P.4-90)
17. Steering wheel —Horn (P.2-46)
— Driver supplemental air bag
(P.1-38)
COCKPIT

0-8Illustrated table of contents
JVC0290X
1. Side ventilator (P.4-34)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.2-45)
4. Rear window and outside mirrordefroster switch (P.2-39)
5. Center display (P.4-4)/Navigation sys- tem* (if so equipped)
6. Clock (P.2-51)
7. Center multi-function control panel —Navigation system* (if so
equipped) —
Vehicle information and setting
buttons (P.4-10)
— Bluetooth
®Hands-Free Phone Sys-
tem (P.4-88, P.4-98)
— Audio system (P.4-49)
8. Automatic climate control system (P.4-34)/Forest Air
®system* (P.4-34)
9. Center ventilator (P.4-34)
10. Audio system (P.4-49)
11. Front passenger supplemental air bag (P.1-38)
12. Hood release handle (P.3-18)
13. Fuse box cover (P.8-24)
14. Parking brake —Parking (P.5-18)
15. Push-button ignition switch (P.5-9)
16. Front passenger air bag status light (P.1-45)
17. Climate controlled seat switch (if so equipped) (P.2-48)/Seat heater switch
(if so equipped) (P.2-46)
18. Drive mode select switch (P.5-19)
19. Cigarette lighter and ashtray (P.2-52)
20. Glove box lid release handle (P.2-55)
21. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Navigation System Owner’s Manual.
INSTRUMENT PANEL

JVI0200X
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-10)
3. Speedometer (P.2-7)
4. Assist charge gauge (P.2-8)
5. Dot matrix liquid crystal display/Odometer/twin trip odometer (P.2-21)
6. Fuel gauge (P.2-8)
Illustrated table of contents0-9
METERS AND GAUGES

Warninglight Name
Page
12-volt batteryCharge warning
light 2-11
Anti-lock Braking System (ABS)
warning light2-11
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (orange)*2-11
Brake system warning light
(yellow)
2-12
Brake warning light (red) 2-12
Direct Response HybridTMSys-
tem warning light 2-13
Distance Control Assist (DCA)
system warning light (orange)*
2-13
Engine oil pressure warning
light2-13
High temperature warning light 2-14
Hybrid EPS (Electrical Power
Steering) warning light2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-14
Lane departure warning light
(orange)*
2-14
Low tire pressure warning light 2-15 Warning
light Name
Page
Master warning light 2-16
Preview Function warning light
(orange)* 2-16
Seat belt warning light and
chime2-16
Supplemental air bag warning
light
2-17
Vehicle Dynamic Control (VDC)
warning light2-17
Indicator light Name
Page
Adaptive Front lighting System
(AFS) off indicator light* 2-17
Approaching Vehicle Sound for
Pedestrians (VSP) OFF indicator
light2-18
Automatic Transmission (AT)
position indicator light
2-18
Blind Spot Intervention (BSI)
indicator light
(green)*2-18
ECO drive indicator light 2-18
EV indicator light
2-18
Exterior light indicator2-18
Front fog light indicator light 2-18 Indicator
light Name
Page
Front passenger air bag status
light 2-18
High beam indicator light 2-19
Intelligent Brake Assist (IBA) off
indicator light*2-19
Lane Departure Prevention
(LDP) ON indicator light (green)*
2-19
Malfunction Indicator Light
(MIL)2-19
READY to drive indicator light 2-20
Security indicator light 2-20
Turn signal/hazard indicator
lights2-20
Vehicle Dynamic Control (VDC)
off indicator light2-20
*: if so equipped
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS

1 Safety—Seats, seat belts and supplemental
restraint system
Seats ................................................................... 1-2
Front seats ...................................................... 1-3
Head restraints................................................ 1-4
Adjustable headrests....................................... 1-8
Armrest ......................................................... 1-10
Seat belts .......................................................... 1-11
Precautions on seat belt usage ..................... 1-11
Pregnant women ........................................... 1-13
Injured persons ............................................. 1-13
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ......................... 1-13
Three-point type seat belt ............................. 1-14
Seat belt extenders ....................................... 1-17
Seat belt maintenance................................... 1-17
Child safety ....................................................... 1-18 Infants........................................................... 1-19
Small children ............................................... 1-19
Larger children .............................................. 1-19
Child restraints .................................................. 1-20
Precautions on child restraints ...................... 1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................. 1-22 Rear-facing child restraint installation
using LATCH................................................. 1-24
Rear-facing child restraint installation using
the seat belts .............................................. 1-26
Forward-facing child restraint installation
using LATCH................................................. 1-28
Forward-facing child restraint installation
using the seat belts ..................................... 1-30
Installing top tether strap ............................ 1-34
Booster seats .............................................. 1-35
Supplemental restraint system .......................... 1-38 Precautions on supplemental
restraint system........................................... 1-38
INFINITI Advanced Air Bag System
(front seats) ................................................. 1-43
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ..................... 1-48
Seat belts with pretensioners (front seats).... 1-50
Supplemental air bag warning labels ........... 1-51
Supplemental air bag warning light ............. 1-51
Repair and replacement procedure............... 1-52

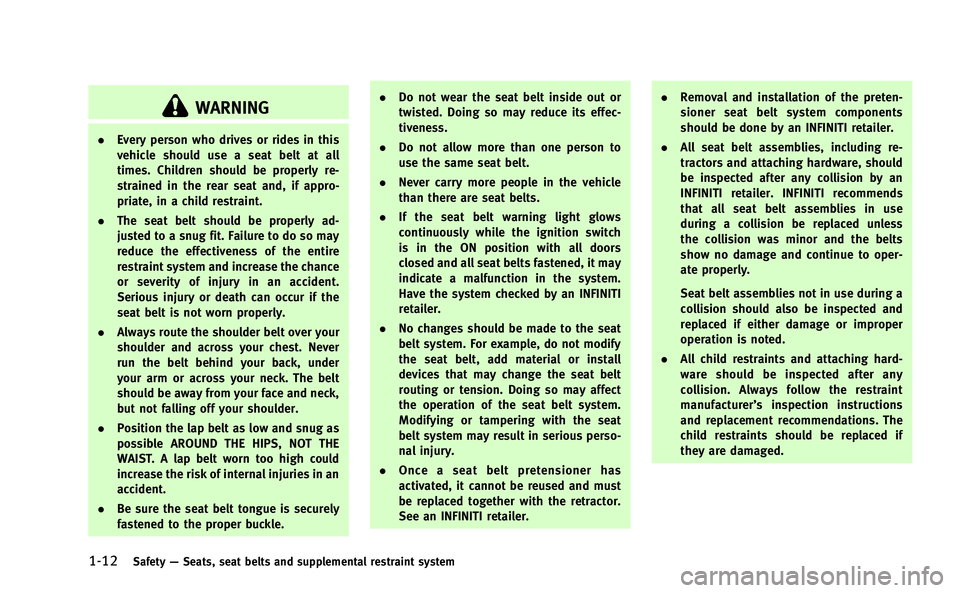

1-12Safety—Seats, seat belts and supplemental restraint system
WARNING
. Every person who drives or rides in this
vehicle should use a seat belt at all
times. Children should be properly re-
strained in the rear seat and, if appro-
priate, in a child restraint.
. The seat belt should be properly ad-
justed to a snug fit. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the chance
or severity of injury in an accident.
Serious injury or death can occur if the
seat belt is not worn properly.
. Always route the shoulder belt over your
shoulder and across your chest. Never
run the belt behind your back, under
your arm or across your neck. The belt
should be away from your face and neck,
but not falling off your shoulder.
. Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in an
accident.
. Be sure the seat belt tongue is securely
fastened to the proper buckle. .
Do not wear the seat belt inside out or
twisted. Doing so may reduce its effec-
tiveness.
. Do not allow more than one person to
use the same seat belt.
. Never carry more people in the vehicle
than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition switch
is in the ON position with all doors
closed and all seat belts fastened, it may
indicate a malfunction in the system.
Have the system checked by an INFINITI
retailer.
. No changes should be made to the seat
belt system. For example, do not modify
the seat belt, add material or install
devices that may change the seat belt
routing or tension. Doing so may affect
the operation of the seat belt system.
Modifying or tampering with the seat
belt system may result in serious perso-
nal injury.
. Once a seat belt pretensioner has
activated, it cannot be reused and must
be replaced together with the retractor.
See an INFINITI retailer. .
Removal and installation of the preten-
sioner seat belt system components
should be done by an INFINITI retailer.
. All seat belt assemblies, including re-
tractors and attaching hardware, should
be inspected after any collision by an
INFINITI retailer. INFINITI recommends
that all seat belt assemblies in use
during a collision be replaced unless
the collision was minor and the belts
show no damage and continue to oper-
ate properly.
Seat belt assemblies not in use during a
collision should also be inspected and
replaced if either damage or improper
operation is noted.
. All child restraints and attaching hard-
ware should be inspected after any
collision. Always follow the restraint
manufacturer’ s inspection instructions
and replacement recommendations. The
child restraints should be replaced if
they are damaged.
