(Push the ignition switch?ignition
switch position is turned to ON) ?
PUSH warning ?(Push the ignition
switch ?ignition switch position is
turned to OFF)
6. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the
battery with a new one. (See “Intelligent
Key battery replacement” in the“8. Main-
tenance and do-it-yourself” section.)
7. Intelligent Key ignition indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and
vehicle are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while
depressing the brake pedal. (See “Intelli-
gent Key battery discharge” in the“5.
Starting and driving” section.)
8. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the parking brake is applied.
9. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
10. Low washer fluid warning
This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See
“Window washer fluid”
in the “8. Maintenance and do-it-yourself”
section.)
11. Door/trunk open warning (igni-
tion switch is in the ON position)
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
12. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the steering lock system or Intelli-
gent Key system. If this warning appears while the hybrid
system is stopped, the steering lock (if so
equipped) cannot be released or the hybrid
system cannot be started. If this warning
appears while the hybrid system is run-
ning, the vehicle can be driven. However,
contact an INFINITI retailer for repair as
soon as possible.
13. Loose fuel cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See
“Fuel-filler
cap ”in the “3. Pre-driving checks and
adjustments” section.)
14. Check tire pressure warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the pressure to the recommended
COLD tire pressure shown on the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” earlier in
this section and “Tire Pressure Monitoring
System (TPMS) ”in the “5. Starting and
driving” section.)
Instruments and controls2-25

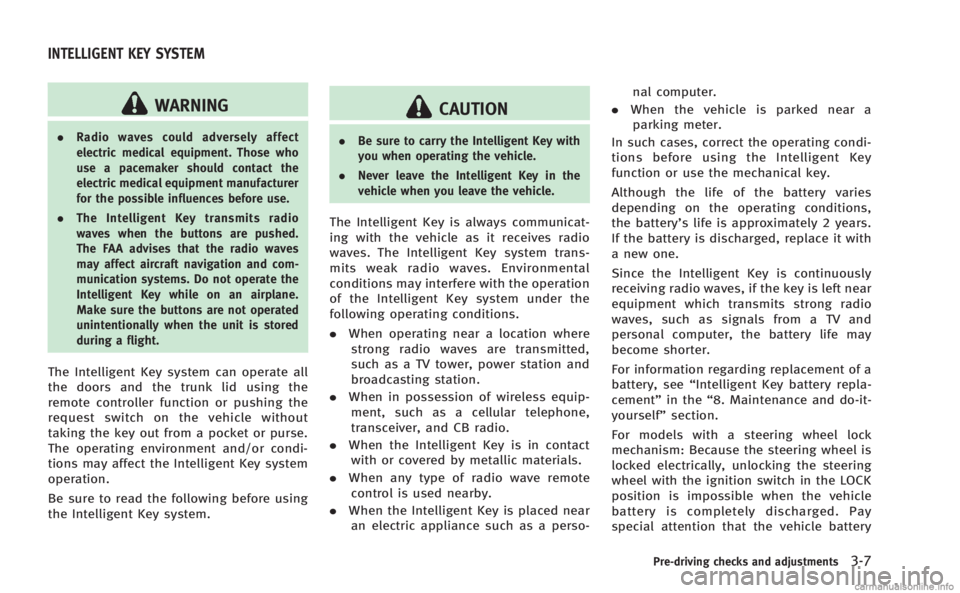

WARNING
.Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.
. The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
The Intelligent Key system can operate all
the doors and the trunk lid using the
remote controller function or pushing the
request switch on the vehicle without
taking the key out from a pocket or purse.
The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using
the Intelligent Key system.
CAUTION
.Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.
.When operating near a location where
strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
. When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
. When the Intelligent Key is in contact
with or covered by metallic materials.
. When any type of radio wave remote
control is used nearby.
. When the Intelligent Key is placed near
an electric appliance such as a perso- nal computer.
. When the vehicle is parked near a
parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery repla-
cement” in the“8. Maintenance and do-it-
yourself” section.
For models with a steering wheel lock
mechanism: Because the steering wheel is
locked electrically, unlocking the steering
wheel with the ignition switch in the LOCK
position is impossible when the vehicle
battery is completely discharged. Pay
special attention that the vehicle battery
Pre-driving checks and adjustments3-7
INTELLIGENT KEY SYSTEM

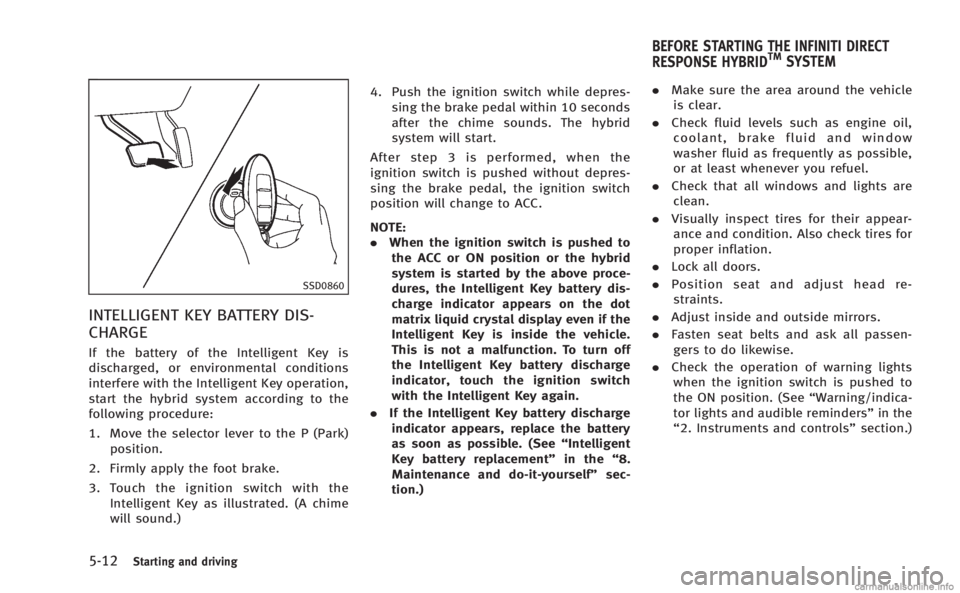

5-12Starting and driving
SSD0860
INTELLIGENT KEY BATTERY DIS-
CHARGE
If the battery of the Intelligent Key is
discharged, or environmental conditions
interfere with the Intelligent Key operation,
start the hybrid system according to the
following procedure:
1. Move the selector lever to the P (Park)position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent Key as illustrated. (A chime
will sound.) 4. Push the ignition switch while depres-
sing the brake pedal within 10 seconds
after the chime sounds. The hybrid
system will start.
After step 3 is performed, when the
ignition switch is pushed without depres-
sing the brake pedal, the ignition switch
position will change to ACC.
NOTE:
. When the ignition switch is pushed to
the ACC or ON position or the hybrid
system is started by the above proce-
dures, the Intelligent Key battery dis-
charge indicator appears on the dot
matrix liquid crystal display even if the
Intelligent Key is inside the vehicle.
This is not a malfunction. To turn off
the Intelligent Key battery discharge
indicator, touch the ignition switch
with the Intelligent Key again.
. If the Intelligent Key battery discharge
indicator appears, replace the battery
as soon as possible. (See “Intelligent
Key battery replacement” in the“8.
Maintenance and do-it-yourself” sec-
tion.) .
Make sure the area around the vehicle
is clear.
. Check fluid levels such as engine oil,
coolant, brake fluid and window
washer fluid as frequently as possible,
or at least whenever you refuel.
. Check that all windows and lights are
clean.
. Visually inspect tires for their appear-
ance and condition. Also check tires for
proper inflation.
. Lock all doors.
. Position seat and adjust head re-
straints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passen-
gers to do likewise.
. Check the operation of warning lights
when the ignition switch is pushed to
the ON position. (See “Warning/indica-
tor lights and audible reminders” in the
“2. Instruments and controls” section.)
BEFORE STARTING THE INFINITI DIRECT
RESPONSE HYBRIDTMSYSTEM

8 Maintenance and do-it-yourself
Maintenance requirement.................................... 8-2
Scheduled maintenance .................................. 8-2
General maintenance....................................... 8-2
Where to go for service ................................... 8-2
General maintenance ........................................... 8-3 Explanation of maintenance items ................... 8-3
Maintenance precautions ..................................... 8-5
Engine compartment check locations ................... 8-7 VQ35HR engine ............................................... 8-7
Engine cooling system ......................................... 8-9
Checking engine coolant level ....................... 8-10
Changing engine coolant ............................... 8-10
Inverter cooling system...................................... 8-11
Checking inverter coolant level ...................... 8-12
Changing inverter coolant.............................. 8-12
Engine oil .......................................................... 8-12
Checking engine oil level............................... 8-12
Changing engine oil and filter ....................... 8-13
Automatic transmission fluid ............................. 8-15
Power steering fluid........................................... 8-15
Brake fluid......................................................... 8-16 Brake fluid .................................................... 8-16
Window washer fluid ......................................... 8-17
12-volt battery ................................................... 8-18 Checking battery fluid level ........................... 8-19 Jump starting ............................................... 8-19
Spark plugs ...................................................... 8-19 Replacing spark plugs ................................. 8-20
Air cleaner ........................................................ 8-20
Windshield wiper blades ................................... 8-21 Cleaning ...................................................... 8-21
Replacing..................................................... 8-22
Brakes .............................................................. 8-23 Self-adjusting brakes ................................... 8-23
Brake pad wear warning .............................. 8-23
Fuses ................................................................ 8-24 Engine compartment or trunk room.............. 8-24
Passenger compartment............................... 8-25
Intelligent Key battery replacement ................... 8-26
Lights................................................................ 8-29 Headlights ................................................... 8-29
Exterior and interior lights ........................... 8-30
Wheels and tires ............................................... 8-32 Tire pressure ............................................... 8-32
Tire labeling ................................................ 8-36
Types of tires............................................... 8-38
Tire chains ................................................... 8-39
Changing wheels and tires........................... 8-39

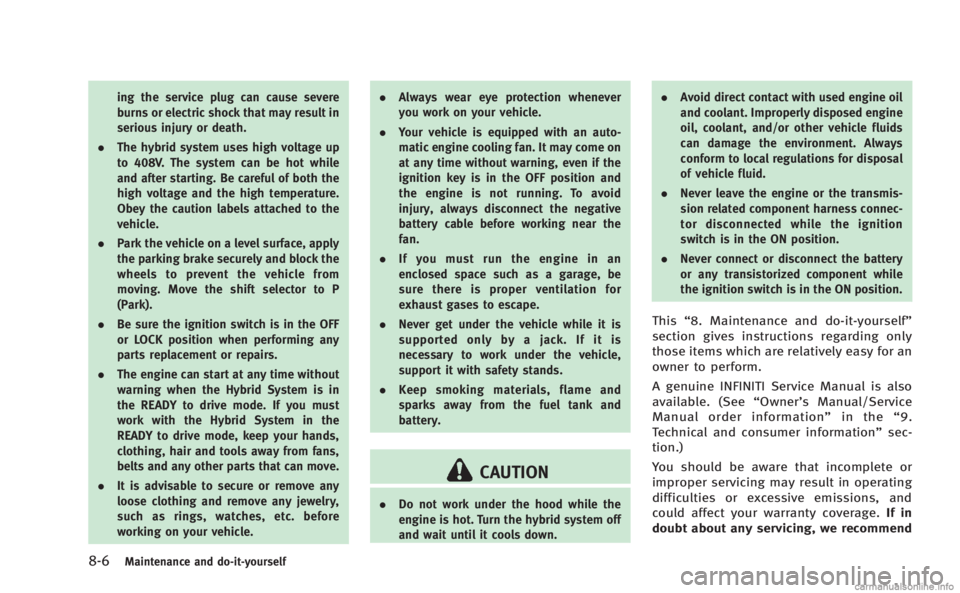

8-6Maintenance and do-it-yourself
ing the service plug can cause severe
burns or electric shock that may result in
serious injury or death.
. The hybrid system uses high voltage up
to 408V. The system can be hot while
and after starting. Be careful of both the
high voltage and the high temperature.
Obey the caution labels attached to the
vehicle.
. Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from
moving. Move the shift selector to P
(Park).
. Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs.
. The engine can start at any time without
warning when the Hybrid System is in
the READY to drive mode. If you must
work with the Hybrid System in the
READY to drive mode, keep your hands,
clothing, hair and tools away from fans,
belts and any other parts that can move.
. It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle. .
Always wear eye protection whenever
you work on your vehicle.
. Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition key is in the OFF position and
the engine is not running. To avoid
injury, always disconnect the negative
battery cable before working near the
fan.
. If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it is
supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from the fuel tank and
battery.
CAUTION
.Do not work under the hood while the
engine is hot. Turn the hybrid system off
and wait until it cools down. .
Avoid direct contact with used engine oil
and coolant. Improperly disposed engine
oil, coolant, and/or other vehicle fluids
can damage the environment. Always
conform to local regulations for disposal
of vehicle fluid.
. Never leave the engine or the transmis-
sion related component harness connec-
tor disconnected while the ignition
switch is in the ON position.
. Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
This “8. Maintenance and do-it-yourself”
section gives instructions regarding only
those items which are relatively easy for an
owner to perform.
A genuine INFINITI Service Manual is also
available. (See “Owner’s Manual/Service
Manual order information” in the“9.
Technical and consumer information” sec-
tion.)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and
could affect your warranty coverage. If in
doubt about any servicing, we recommend

8-26Maintenance and do-it-yourself

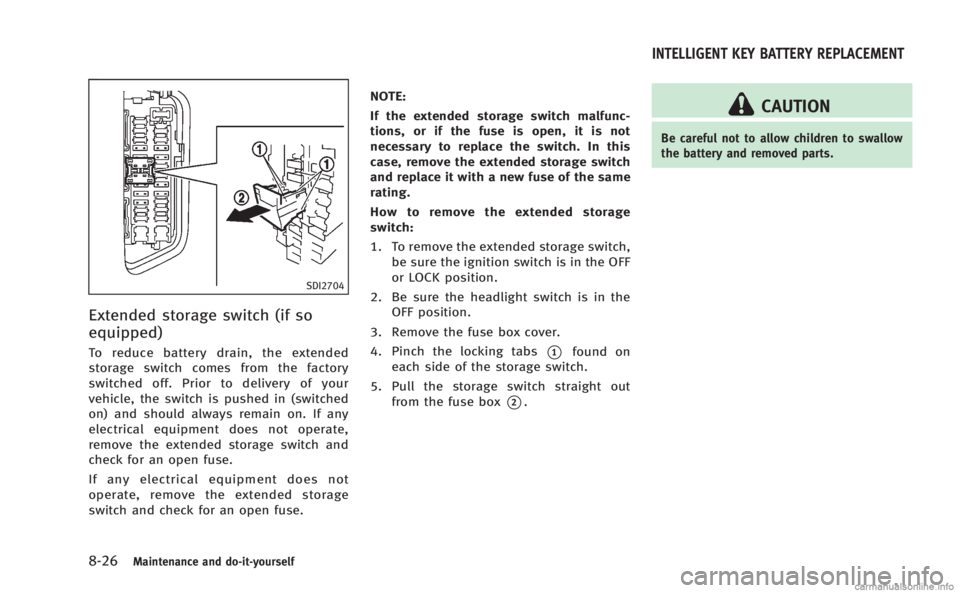

SDI2704
Extended storage switch (if so
equipped)
To reduce battery drain, the extended
storage switch comes from the factory
switched off. Prior to delivery of your
vehicle, the switch is pushed in (switched
on) and should always remain on. If any
electrical equipment does not operate,
remove the extended storage switch and
check for an open fuse.
If any electrical equipment does not
operate, remove the extended storage
switch and check for an open fuse.NOTE:
If the extended storage switch malfunc-
tions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage switch
and replace it with a new fuse of the same
rating.
How to remove the extended storage
switch:
1. To remove the extended storage switch,
be sure the ignition switch is in the OFF
or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs*1found on
each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
*2.
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.

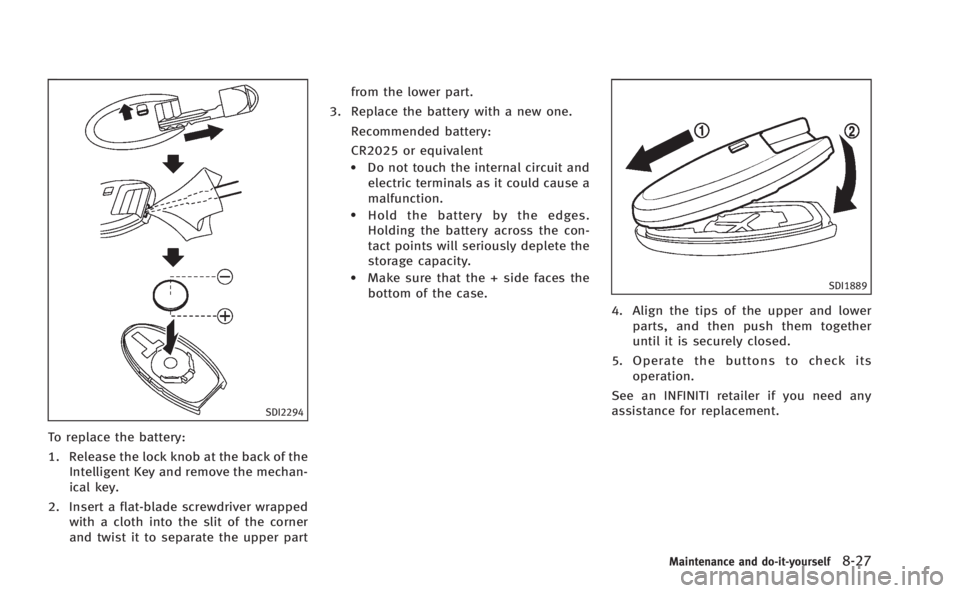

INTELLIGENT KEY BATTERY REPLACEMENT

SDI2294
To replace the battery:
1. Release the lock knob at the back of theIntelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver wrapped with a cloth into the slit of the corner
and twist it to separate the upper part from the lower part.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as it could cause a
malfunction.
.Hold the battery by the edges.
Holding the battery across the con-
tact points will seriously deplete the
storage capacity.
.Make sure that the + side faces thebottom of the case.SDI1889
4. Align the tips of the upper and lower
parts, and then push them together
until it is securely closed.
5. Operate the buttons to check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
Maintenance and do-it-yourself8-27

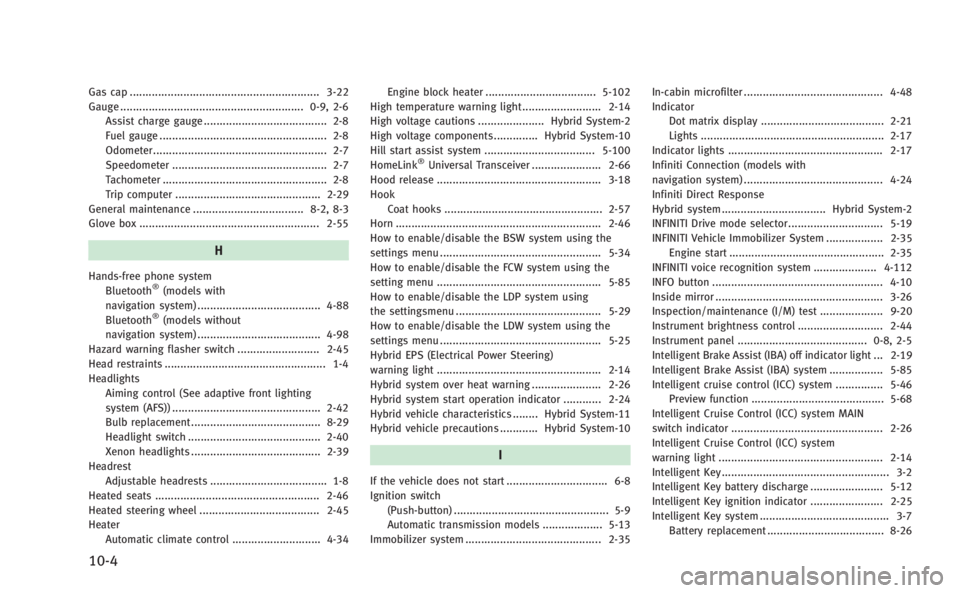

10 Index
Number
12-volt battery charge warning light ................. 2-11
A
ABS (Anti-lock Braking System) ......................... 5-97
Accelerator downshift - In D (Drive) position - ... 5-16
Active noise control ........................................ 5-103
Active trace control ........................................... 5-99
Adaptive front lighting system (AFS) .................. 2-42
Adjustable headrests .......................................... 1-8
Advanced air bag system .................................. 1-43
Aiming control, Adaptive front lighting
system (AFS) ..................................................... 2-42
Air bag system
Advanced air bag system ............................. 1-43
Front passenger air bag and status light ...... 1-45
Front-seat mounted side-impact
supplemental air bag system ....................... 1-48
Roof-mounted curtain side-impact
supplemental air bag system ....................... 1-48
Air bag warning labels ...................................... 1-51
Air bag warning light ............................... 1-51, 2-17
Air cleaner housing filter ................................... 8-20
Air conditioner Air conditioner service ................................. 4-48
Air conditioner specification label ................ 9-11
Air conditioning system refrigerant and
lubricant recommendations .................. 4-48, 9-7
Automatic climate control ............................ 4-34 In-cabin microfilter ....................................... 4-48
Operation (See automatic climate control) .... 4-34
Air filter In-cabin microfilter ....................................... 4-48
Air vent ............................................................... 7-5
Alarm How to stop alarm (see vehicle
security system) ........................................... 2-35
Alcohol, drugs and driving .................................. 5-8
Antenna ............................................................ 4-87
Anti-lock Braking System (ABS) ......................... 5-97
Anti-lock braking system (ABS) warning light .... 2-11
Appearance care Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-4
Approaching Vehicle Sound for Pedestrians
(VSP) system .................................. Hybrid System-9
Armrest ............................................................. 1-10
Ashtrays (See cigarette lighter and ashtrays) .... 2-52
Assist charge gauge ................. Hybrid System-5, 2-8
Audible reminders ............................................ 2-20
Audio operation precautions ............................. 4-49
Audio system .................................................... 4-49
Steering wheel audio controls ...................... 4-85
Auto closure ..................................................... 3-20
Autolight system ............................................... 2-40
Automatic Automatic climate control .................. 4-37, 4-41
Automatic transmission fluid (ATF) ............... 8-15
Climate control ............................................ 4-34 Door locks ..................................................... 3-6
Drive positioner ........................................... 3-28
Driving with automatic transmission ............ 5-13
Seat positioner ............................................ 3-28
Automatic moonroof.......................................... 2-60
Average fuel consumption and speed ................ 2-31
Avoiding collision and rollover ............................ 5-7
B
Battery .............................................................. 8-18
Battery replacement, Intelligent Key ............... 3-2
Battery saver system ................................... 2-41
Intelligent Key .............................................. 8-26
Before starting the INFINITI Direct Response
Hybrid
TMSystem ............................................... 5-12
Blind Spot Intervention (BSI) ON
indicator light ................................................... 2-18
Blind Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system ............................... 5-31
Blind Spot Warning (BSW)/Blind Spot
Intervention (BSI) system warning light ............. 2-11
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-88
Bluetooth
®hands-free phone system
(models without navigation system) .................. 4-98
Booster seats .................................................... 1-35
Brake Anti-lock Braking System (ABS) .................... 5-97
Brake fluid ................................................... 8-16

10-2
Brake force distribution ............................... 5-99
Brake system ............................................... 5-94
Brake system warning light (yellow) ............. 2-12
Brake warning light (red) ............................. 2-12
Parking brake operation ............................... 5-18
Brake assist ...................................................... 5-95
Break-in schedule ............................................. 5-89
Brightness control Display ON/OFF button ................................ 4-10
Instrument panel ......................................... 2-44
BSI system operation ........................................ 5-35
BSW system operation ...................................... 5-33
Bulb check/instrument panel ............................ 2-11
Bulb replacement .............................................. 8-29
C
Cabin air filter ................................................... 4-48
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-87
Card holder ....................................................... 2-56
Catalytic converter Three way catalyst ......................................... 5-4
CD/CF/USB memory care and cleaning ............. 4-84
Center multi-function control panel ..................... 4-4
Changing inverter coolant ................................. 8-12
Check tire pressure warning .............................. 2-25
Checking battery fluid level ............................... 8-19
Checking inverter coolant level ......................... 8-12
Child restraints ................................................. 1-20 Booster seats ............................................... 1-35
LATCH system .............................................. 1-22 Precautions on child restraints ..................... 1-20
Child safety ...................................................... 1-18
Child safety rear door lock .................................. 3-6
Chimes
Audible reminders ....................................... 2-20
Seat belt warning light and chime ............... 2-16
Cigarette lighter and ashtrays ........................... 2-52
Circuit breaker Fusible link .................................................. 8-24
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control Automatic climate control ............................ 4-34
Clock ................................................................ 2-51
Coat hooks ....................................................... 2-57
Cockpit ........................................................ 0-6, 2-3
Cold weather driving ....................................... 5-101
Compact Disc (CD) player (See audio system) ... 4-68
Compact spare tire ........................................... 8-41
Console box ...................................................... 2-55
Controller Center multi-function control panel ................ 4-6
Controls
Control panel button ...................................... 4-4
INFINITI Controller .......................................... 4-6
Coolant
Capacities and recommended
fuel/ lubricants .............................................. 9-2
Changing engine coolant ............................. 8-10
Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-7
Cruise control ................................................... 5-44 Fixed speed cruise control (on ICC system) ... 5-65
Intelligent cruise control (ICC) system .......... 5-46
Cruise indicator ................................................ 2-26 Cup holders ...................................................... 2-53
Current fuel consumption .................................. 2-31
D
Daytime running light system ........................... 2-42
Defroster switch
Rear window and outside mirror
defroster switch ........................................... 2-39
Dimensions ......................................................... 9-9
Direct Response Hybrid
TMSystem warning
light ................................................................ 2-13
Display cleaning ................................................. 4-8
Display controls (See center multi-function
control panel) ..................................................... 4-4
Distance Control Assist (DCA) system ................ 5-68
Distance Control Assist (DCA) system
switch indicator ................................................ 2-27
Distance Control Assist (DCA) system
warning light .................................................... 2-13
Distance to empty ............................................. 2-31
Dot matrix liquid crystal display ....................... 2-21
Drive positioner ................................................ 3-28
Driving Cold weather driving .................................. 5-101
Driving with automatic transmission ............ 5-13
Precautions when starting and driving ........... 5-3
Driving the vehicle ............................................ 5-13
DVD player operation ........................................ 4-69

10-4
Gas cap ............................................................ 3-22
Gauge .......................................................... 0-9, 2-6Assist charge gauge ....................................... 2-8
Fuel gauge ..................................................... 2-8
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-29
General maintenance ................................... 8-2, 8-3
Glove box ......................................................... 2-55
H
Hands-free phone system Bluetooth®(models with
navigation system) ....................................... 4-88
Bluetooth
®(models without
navigation system) ....................................... 4-98
Hazard warning flasher switch .......................... 2-45
Head restraints ................................................... 1-4
Headlights
Aiming control (See adaptive front lighting
system (AFS)) ............................................... 2-42
Bulb replacement ......................................... 8-29
Headlight switch .......................................... 2-40
Xenon headlights ......................................... 2-39
Headrest
Adjustable headrests ..................................... 1-8
Heated seats .................................................... 2-46
Heated steering wheel ...................................... 2-45
Heater Automatic climate control ............................ 4-34 Engine block heater ................................... 5-102
High temperature warning light ......................... 2-14
High voltage cautions ..................... Hybrid System-2
High voltage components .............. Hybrid System-10
Hill start assist system ................................... 5-100
HomeLink
®Universal Transceiver ...................... 2-66
Hood release .................................................... 3-18
Hook Coat hooks .................................................. 2-57
Horn ................................................................. 2-46
How to enable/disable the BSW system using the
settings menu ................................................... 5-34
How to enable/disable the FCW system using the
setting menu .................................................... 5-85
How to enable/disable the LDP system using
the settingsmenu .............................................. 5-29
How to enable/disable the LDW system using the
settings menu ................................................... 5-25
Hybrid EPS (Electrical Power Steering)
warning light .................................................... 2-14
Hybrid system over heat warning ...................... 2-26
Hybrid system start operation indicator ............ 2-24
Hybrid vehicle characteristics ........ Hybrid System-11
Hybrid vehicle precautions ............ Hybrid System-10
I
If the vehicle does not start ................................ 6-8
Ignition switch (Push-button) ................................................. 5-9
Automatic transmission models ................... 5-13
Immobilizer system ........................................... 2-35 In-cabin microfilter ............................................ 4-48
Indicator
Dot matrix display ....................................... 2-21
Lights .......................................................... 2-17
Indicator lights ................................................. 2-17
Infiniti Connection (models with
navigation system) ............................................ 4-24
Infiniti Direct Response
Hybrid system ................................. Hybrid System-2
INFINITI Drive mode selector.............................. 5-19
INFINITI Vehicle Immobilizer System .................. 2-35 Engine start ................................................. 2-35
INFINITI voice recognition system .................... 4-112
INFO button ...................................................... 4-10
Inside mirror ..................................................... 3-26
Inspection/maintenance (I/M) test .................... 9-20
Instrument brightness control ........................... 2-44
Instrument panel ......................................... 0-8, 2-5
Intelligent Brake Assist (IBA) off indicator light ... 2-19
Intelligent Brake Assist (IBA) system ................. 5-85
Intelligent cruise control (ICC) system ............... 5-46 Preview function .......................................... 5-68
Intelligent Cruise Control (ICC) system MAIN
switch indicator ................................................ 2-26
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-14
Intelligent Key ..................................................... 3-2
Intelligent Key battery discharge ....................... 5-12
Intelligent Key ignition indicator ....................... 2-25
Intelligent Key system ......................................... 3-7 Battery replacement ..................................... 8-26
