INFINITI M35 2006 Factory Service Manual
Page 4244 of 5621
CAN SYSTEM (TYPE 12)
LAN-575
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

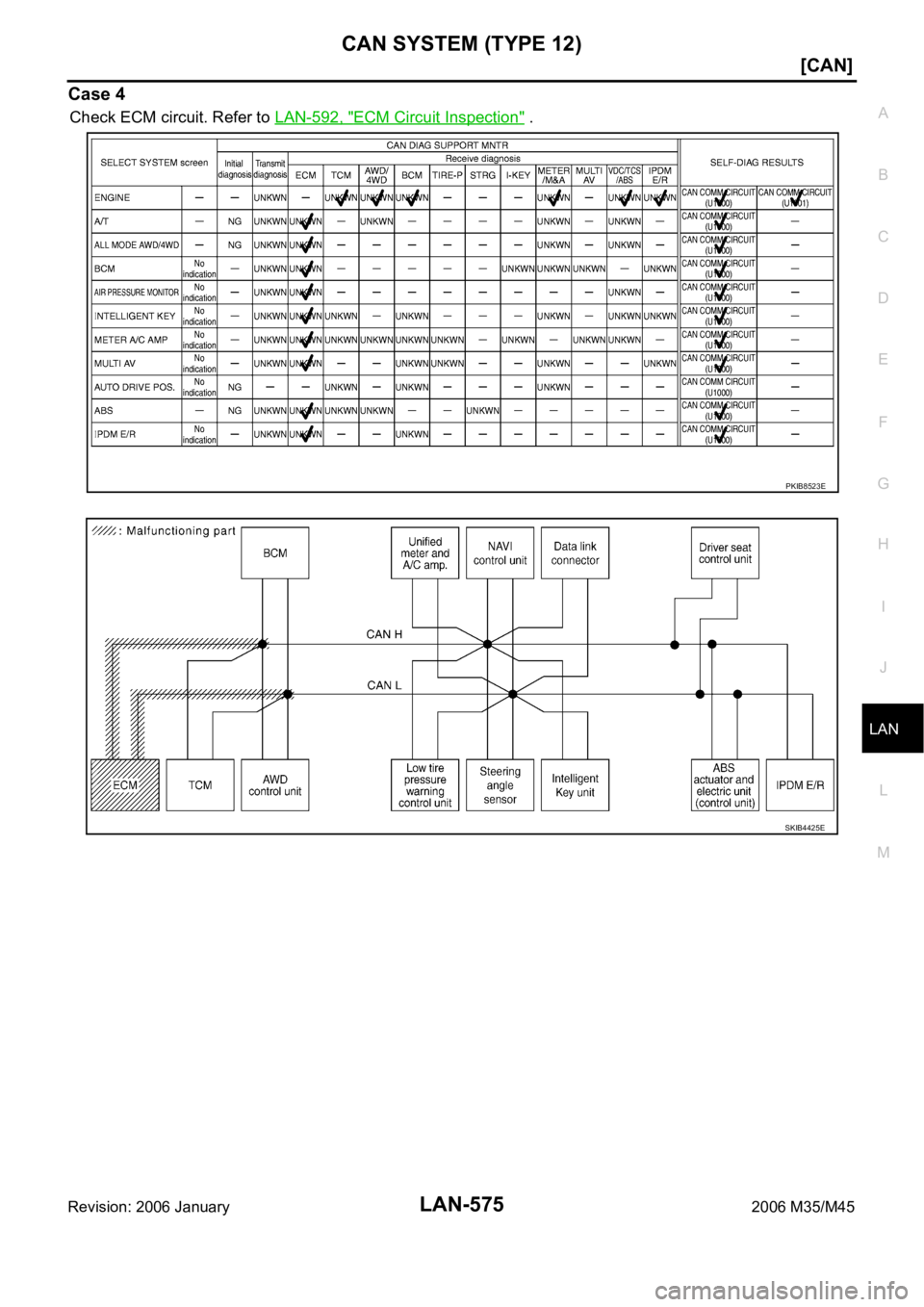

Case 4
Check ECM circuit. Refer to LAN-592, "ECM Circuit Inspection" .
PKIB8523E
SKIB4425E
Page 4245 of 5621
LAN-576
[CAN]
CAN SYSTEM (TYPE 12)
Revision: 2006 January2006 M35/M45

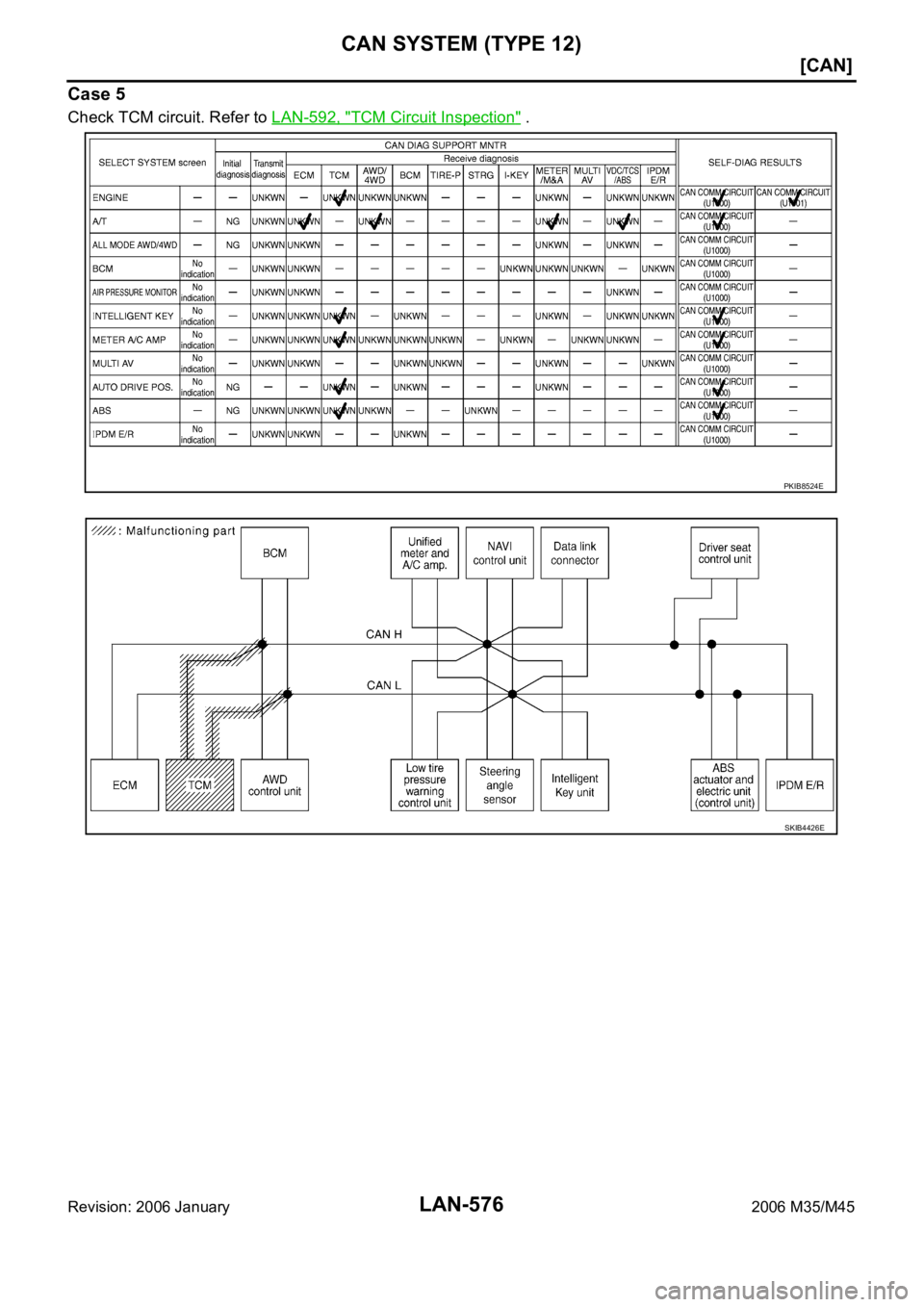

Case 5
Check TCM circuit. Refer to LAN-592, "TCM Circuit Inspection" .
PKIB8524E
SKIB4426E
Page 4246 of 5621
CAN SYSTEM (TYPE 12)
LAN-577
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

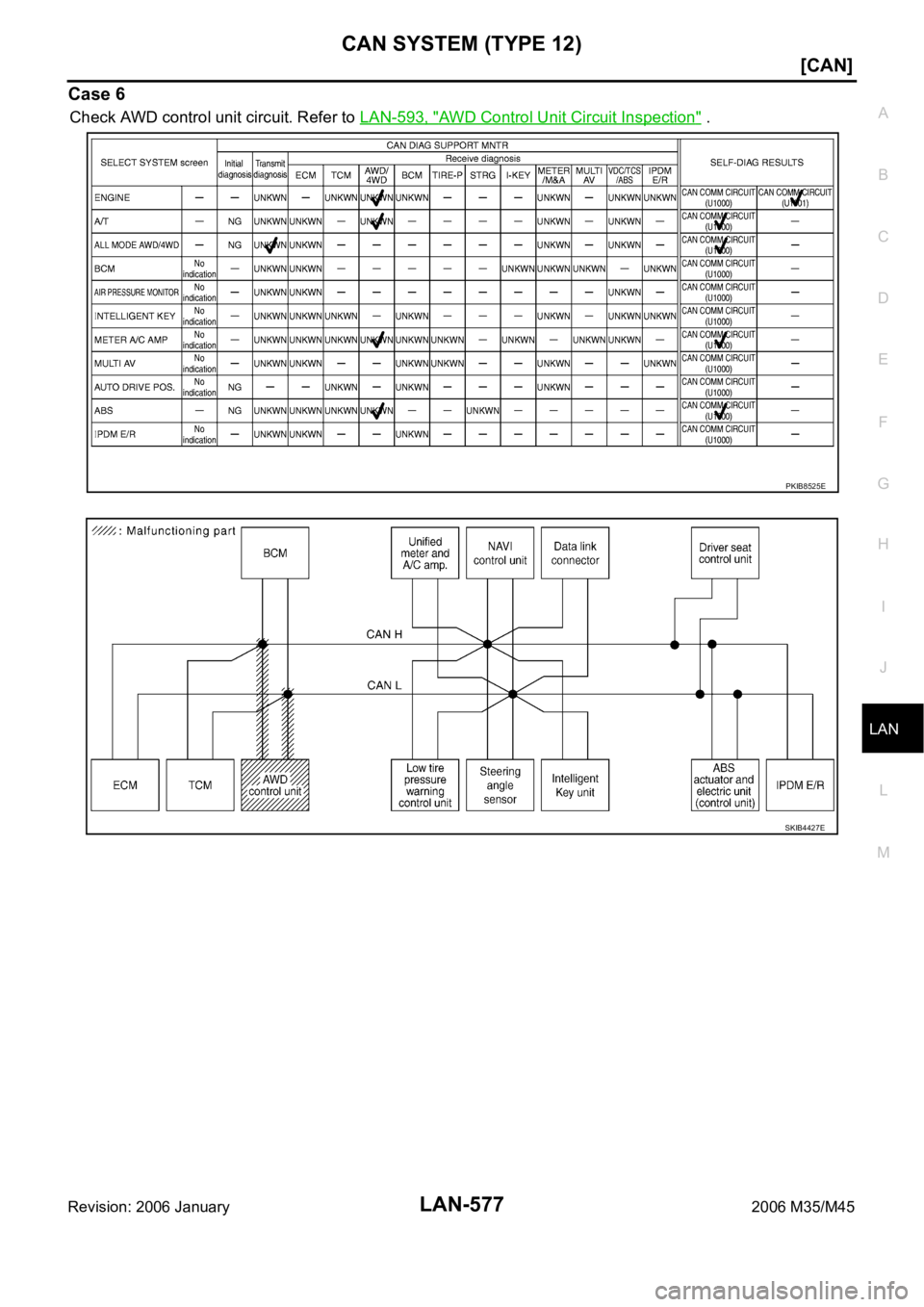

Case 6
Check AWD control unit circuit. Refer to LAN-593, "AWD Control Unit Circuit Inspection" .
PKIB8525E
SKIB4427E
Page 4247 of 5621
LAN-578
[CAN]
CAN SYSTEM (TYPE 12)
Revision: 2006 January2006 M35/M45

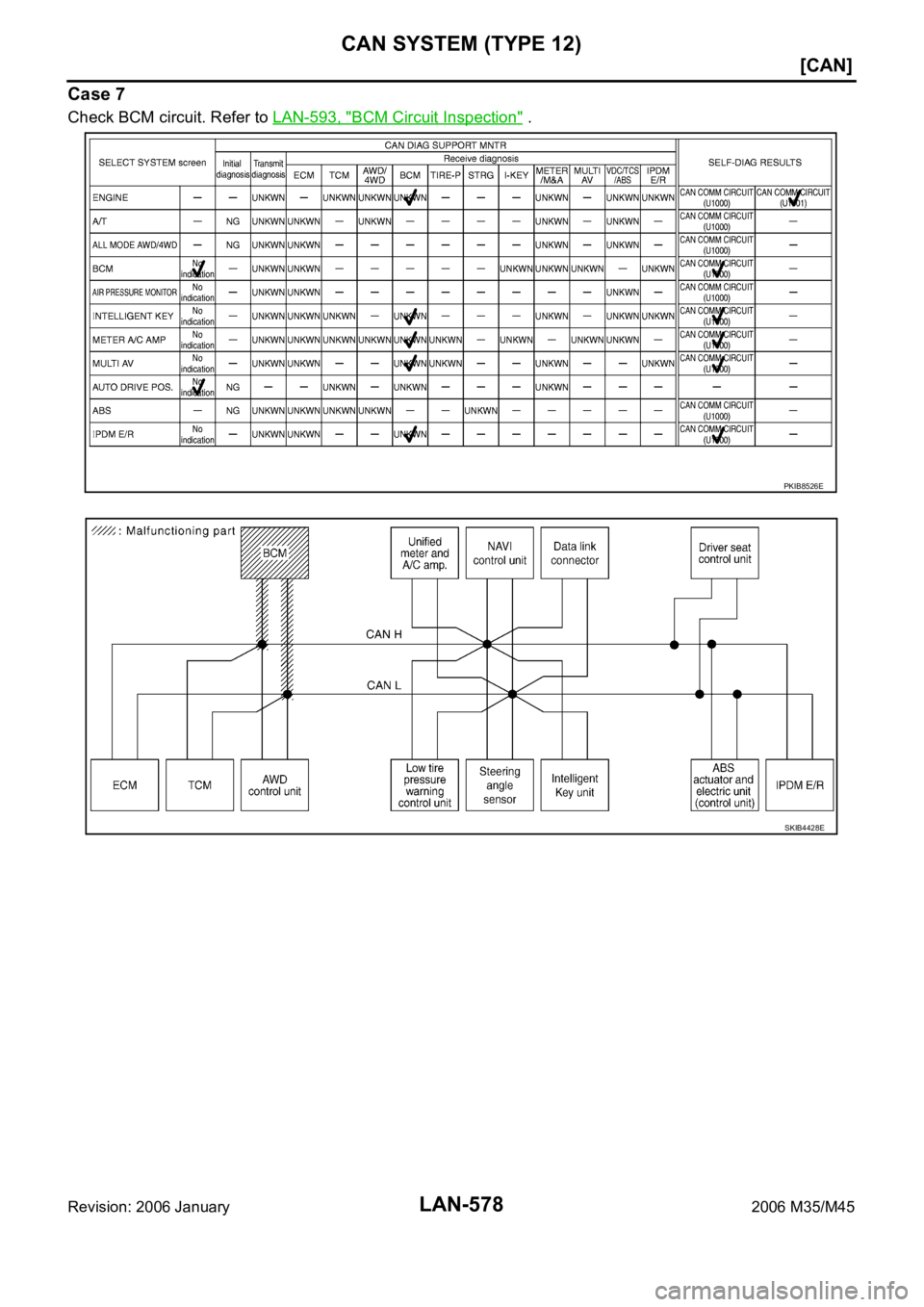

Case 7
Check BCM circuit. Refer to LAN-593, "BCM Circuit Inspection" .
PKIB8526E
SKIB4428E
Page 4248 of 5621
CAN SYSTEM (TYPE 12)
LAN-579
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 8
Check low tire pressure warning control unit circuit. Refer to LAN-594, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8527E
SKIB4429E
Page 4249 of 5621
LAN-580
[CAN]
CAN SYSTEM (TYPE 12)
Revision: 2006 January2006 M35/M45
Case 9
Check steering angle sensor circuit. Refer to LAN-594, "Steering Angle Sensor Circuit Inspection" .
PKIB8528E
SKIB4430E
Page 4250 of 5621
CAN SYSTEM (TYPE 12)
LAN-581
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 10
Check Intelligent Key unit circuit. Refer to LAN-595, "Intelligent Key Unit Circuit Inspection" .
PKIB8529E
PKIB9420E
Page 4251 of 5621
LAN-582
[CAN]
CAN SYSTEM (TYPE 12)
Revision: 2006 January2006 M35/M45

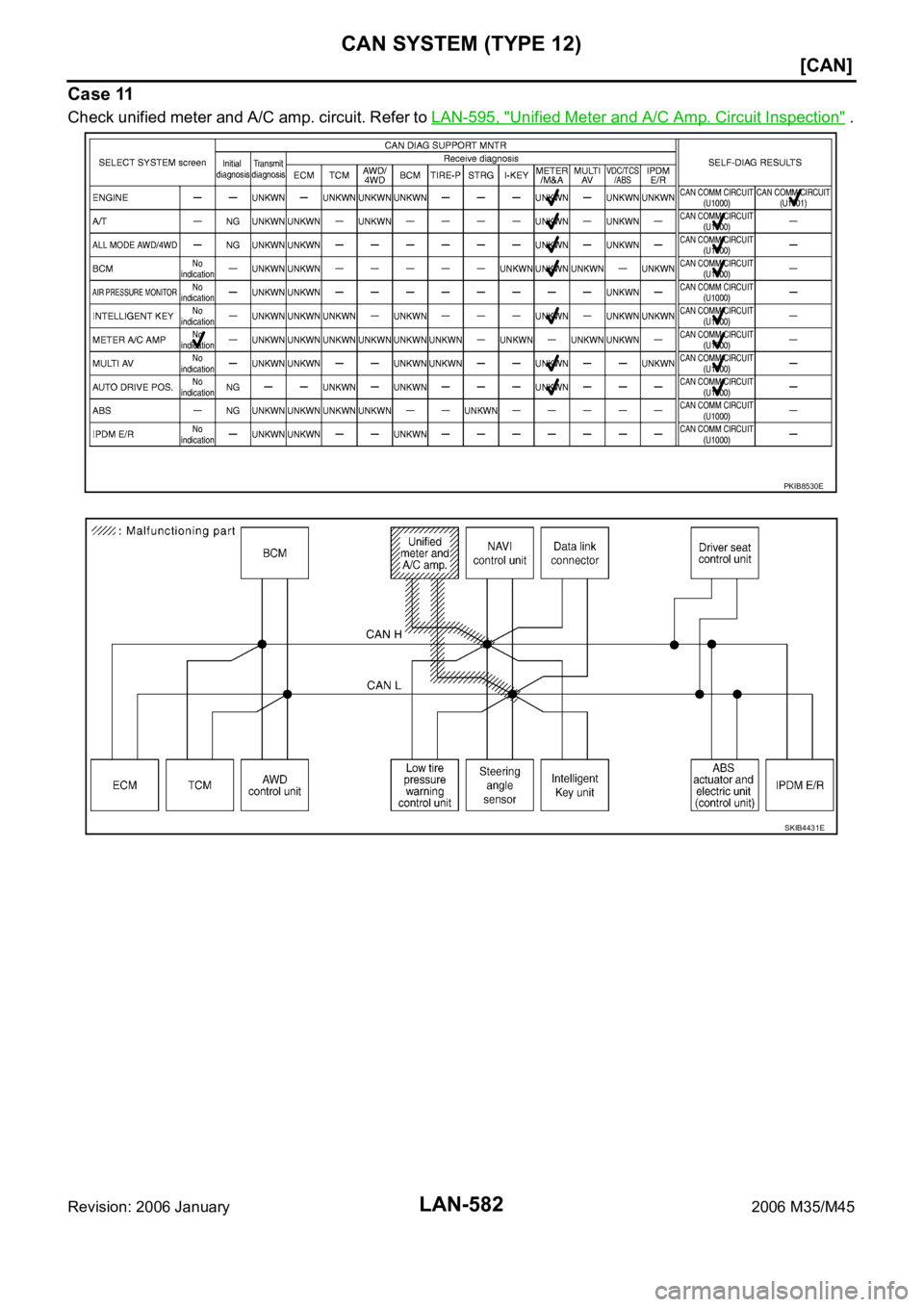

Case 11
Check unified meter and A/C amp. circuit. Refer to LAN-595, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8530E
SKIB4431E
Page 4252 of 5621
CAN SYSTEM (TYPE 12)
LAN-583
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

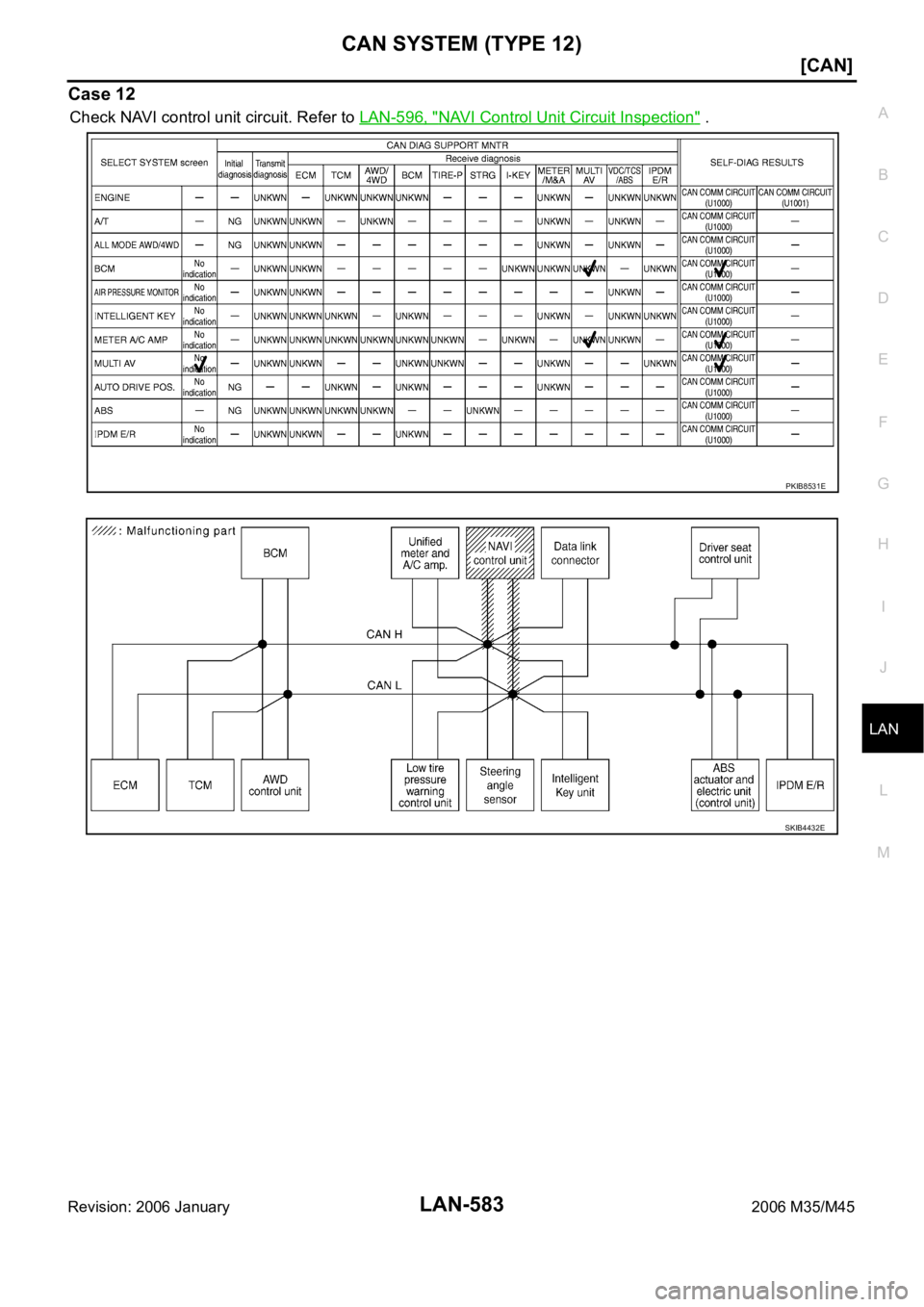

Case 12
Check NAVI control unit circuit. Refer to LAN-596, "NAVI Control Unit Circuit Inspection" .
PKIB8531E
SKIB4432E
Page 4253 of 5621
LAN-584
[CAN]
CAN SYSTEM (TYPE 12)
Revision: 2006 January2006 M35/M45

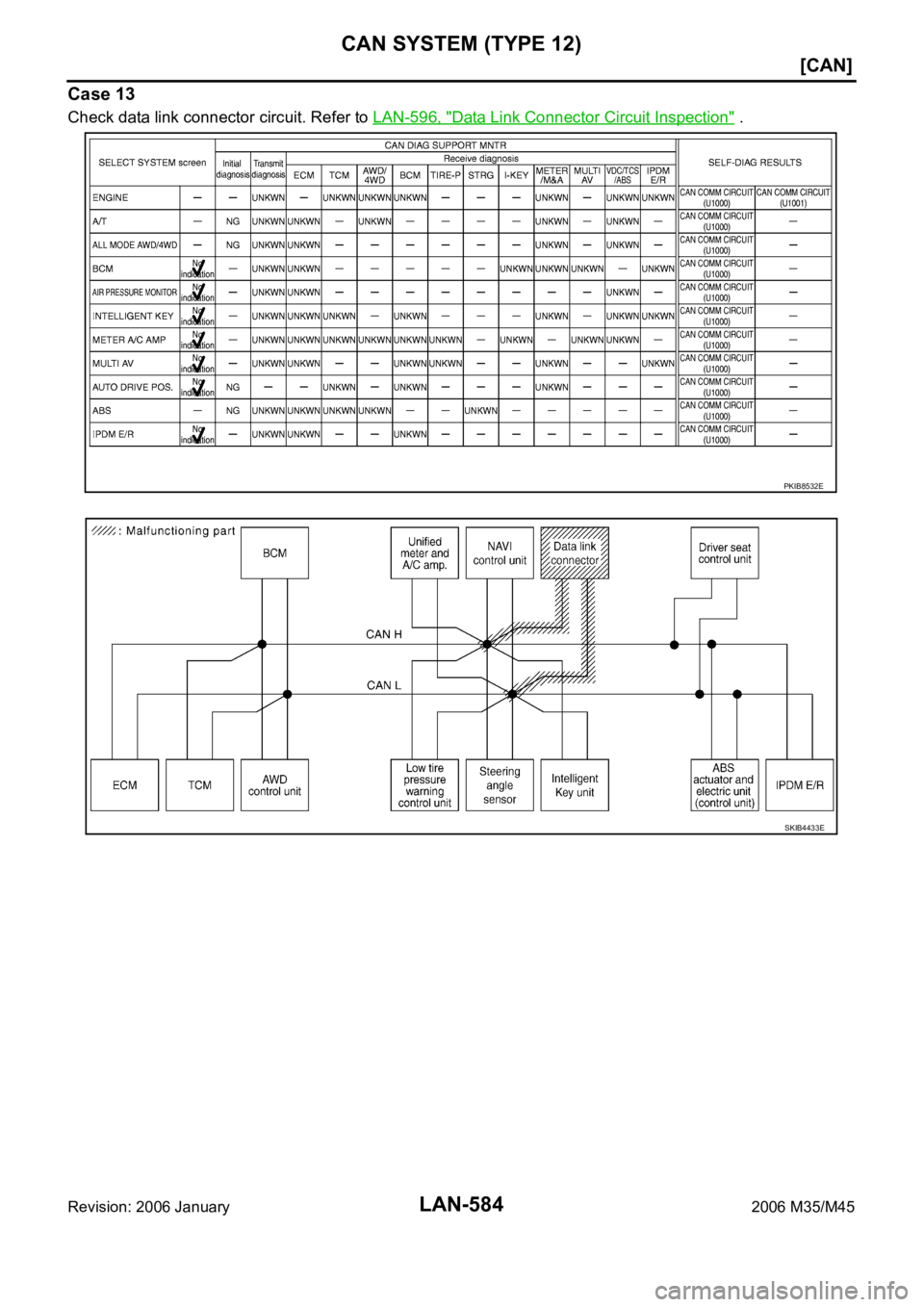

Case 13
Check data link connector circuit. Refer to LAN-596, "Data Link Connector Circuit Inspection" .
PKIB8532E
SKIB4433E
