INFINITI M35 2006 Factory Service Manual

A
B
C
D
E
F
G
H
I
J
K
M
L
QUICK REFERENCE INDEX
AGENERAL INFORMATIONGIGeneral Information
BENGINEEMEngine Mechanical
LUEngine Lubrication System
COEngine Cooling System
ECEngine Control System
FLFuel System
EXExhaust System
ACCAccelerator Control System
CTRANSMISSION/
TRANSAXLEATAutomatic Transmission
DDRIVELINE/AXLETFTransfer
PRPropeller Shaft
FFDFront Final Drive
RFDRear Final Drive
FAXFront Axle
RAXRear Axle
ESUSPENSIONFSUFront Suspension
RSURear Suspension
WTRoad Wheels & Tires
FBRAKESBRBrake System
PBParking Brake System
BRCBrake Control System
GSTEERINGPSPower Steering System
STCSteering Control System
HRESTRAINTSSBSeat Belts
SRSSupplemental Restraint System
(SRS)
IBODYBLBody, Lock & Security System
GWGlasses, Window System & Mir-
rors
RFRoof
EIExterior & Interior
IPInstrument Panel
SESeat
JAIR CONDITIONERATCAutomatic Air Conditioner
KELECTRICALSCStarting & Charging System
LTLighting System
DIDriver Information System
WWWiper, Washer & Horn
BCSBody Control System
LANLAN System
AVAudio-Visual System
ACSAuto Cruise Control System
PGPower Supply, Ground & Circuit Ele-
ments
LMAINTENANCEMAMaintenance
MINDEXIDXAlphabetical Index
Edition: January 2005
Revision: January 2006

QUICK REFERENCE CHART M35/M45
QUICK REFERENCE CHART M35/M45PFP:00000
ENGINE TUNE-UP DATA (VQ35DE)ELS0003W
Engine modelVQ35DE
Firing order1-2-3-4-5-6
Idle speed
A/T (In “P” or “N” position)rpm
650 ± 50
Ignition timing (BTDC at idle speed)
A/T (In “P” or “N” position)15
± 5
CO% at idle 0.7 - 9.9% and engine runs smoothly
Drive BeltDeflection adjustment Unit: mm (in) Tension adjustment Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and power
steering oil pump belt7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)294 (30, 66)730 - 818
(74.5 - 83.5,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208)
A/C compresor belt 12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31 - 0.35)196 (20, 44)348 - 436
( 35.5 - 44.5,
78 - 98)470 - 559
( 4 8 - 5 7 ,
106 - 126)
Applied pushing force 98N (10kg, 22lb) —
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Cooling system leakage testing pres-
surekPa (kg/cm
2 , psi)157 (1.6, 23)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
Standard 1,275 (13.0, 185) /300
Minimum 981 (10.0, 142) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
2006

QUICK REFERENCE CHART M35/M45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650
50
Ignition timing
(BTDC at idle speed)12
5
CO% at idle 0.7 - 9.9% and engine runs smoothly
Tensions of drive belts Auto adjustment by auto tensioner
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
7 8 - 98 (0.8 - 1.0 , 11 - 14) Standard
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157 (1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
1,320 (13.5, 191) /300 Standard
Minimum 1,130 (11.5, 164) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Axle2WD AWD
Tire P245/45R18 245/40R19 245/45R18
Camber
Degree minute (Decimal degree)Minimum – 1
00 (– 1.00)
Nominal – 0
15 (– 0.25)
Maximum 0
30 (0.50)
Left and right difference 33
(0.55) or less
Caster
Degree minute (Decimal degree)Minimum 3
45 ( 3.75 ) 3 50 (3.83)3 05 ( 3.08 )
Nominal 4
30 ( 4.50 ) 4 35 (4.58)3 50 ( 3.83 )
Maximum 5
15 ( 5.25 ) 5 20 (5.33)4 35 ( 4.58 )
Left and right difference 39
(0.65) or less
Kingpin inclination
Degree minute (Decimal degree)Minimum 6
30 (6.50)
Nominal 7
15 (7.25)
Maximum 8
00 (8.00)
Total toe-inDistance (A – B)Minimum 0 mm (0 in)
Nominal 1 mm (0.04 in)
Maximum 2 mm (0.08 in)
Angle (left plus right)
Degree minute
(Degree)Minimum 0
(0)
Nominal 3
(0.05)
Maximum 6
(0.10)
2006

QUICK REFERENCE CHART M35/M45
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
REAR WHEEL ALIGNMENT (Unladen*)ELS0003Y
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
BRAKEELS0003Z
* : Under force of 490 N ( 50 kg, 110 lb ) with engine running.
REFILL CAPACITIESELS00040
Wheel turning
angle (Full turn)Inside
Degree minute
(Decimal degree)Minimum 36
20 (36.3)3945 (39.8)
Nominal 39
20 (39.3)4245 (42.8)
Maximum 40
20 (40.3)4345 (43.8)
Outside
Degree minute
(Decimal degree)Nominal 33
25 (33.4)33 20 (33.3)32 30 (32.5) Axle2WD AWD
Tire P245/45R18 245/40R19 245/45R18
Axle2WD AWD
Tire P245/45R18 245/40R19 245/45R18
Camber
Degree minute (Decimal degree)Minimum – 1
10 (– 1.17)– 1 20 (– 1.33)– 1 40 (– 0.67)
Nominal – 0
40 (– 0.67)– 0 50 (– 0.83)– 0 10 (– 0.17)
Maximum – 0
10 (– 0.17)– 0 20 (– 0.33) 0 20 (0.33 )
Total toe-inDistance ( A – B )Minimum 0.1 mm (0.004 in)
Nominal 2.8 mm (0.110 in)
Maximum 5.5 mm (0.217 in)
Angle (left plus right )
Degree minute
(Decimal degree)Minimum 0
(0)
Nominal 7
(0.12)
Maximum 14
(0.23)
Front brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 26.0 mm (1.024 in)
Rear brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 14.0 mm (0.551 in)
Pedal free height 157 - 167 mm (6.18 - 6.57 in)
Pedal depressed height* 90 mm (3.54 in) or more
UNITLiter US measure
Fuel tank76 20 gal
Coolant ( With reservoir tank )VQ35DE 8.9 9 - 3/8 qt
VK45DE 10.4 11 qt
Engine (VQ35DE)Drain and refill
With oil filter change 4.7 5 qt
Without oil filter change 4.4 4 - 5/8 qt
Dry engine (Overhaul) 5.4 5 - 3/4 qt
Engine (VK45DE)Drain and refill
With oil filter change 5.5 5 - 3/4 qt
Without oil filter change 4.9 5 - 1/8 qt
Dry engine (Overhaul) 6.7 7 - 1/8 qt
2006

QUICK REFERENCE CHART M35/M45
Transmission A/T 10.3 10 - 7/8 qt
Transfer1.25 2 - 5/8 pt
Differential carrierFront 0.65 1 - 3/8 pt
Rear 1.4 3 pt
Power steering system 1.0 1 - 1/8 qt
Air conditioning systemCompressor oil 0.15 5.03 fl oz
Refrigerant 0.55 kg 1.21 lb UNITLiter US measure
2006

ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
Revision: 2006 January2006 M35/M45
ACCELERATOR CONTROL SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
ACCELERATOR CONTROL SYSTEM ...................... 3Components ............................................................. 3
Removal and Installation .......................................... 3
REMOVAL ........................................................
..... 3
INSTALLATION ..................................................... 4
INSPECTION AFTER INSTALLATION .................. 4

ACC-2
PRECAUTIONS
Revision: 2006 January2006 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS005RO
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NING :
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

ACCELERATOR CONTROL SYSTEM
ACC-3
C
D
E
F
G
H
I
J
K
L
MA
ACC
Revision: 2006 January2006 M35/M45

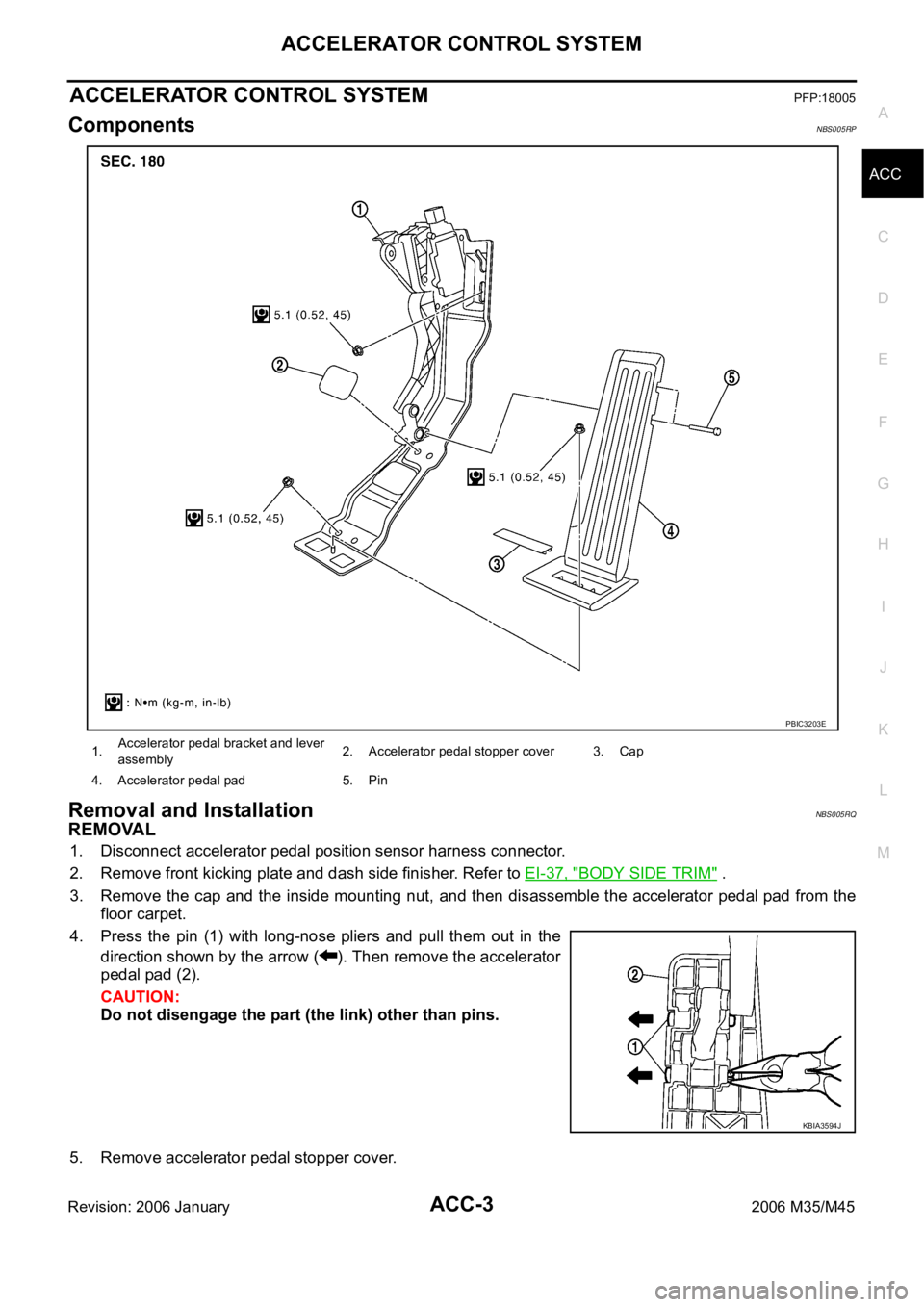

ACCELERATOR CONTROL SYSTEMPFP:18005
ComponentsNBS005RP
Removal and InstallationNBS005RQ
REMOVAL
1. Disconnect accelerator pedal position sensor harness connector.
2. Remove front kicking plate and dash side finisher. Refer to EI-37, "
BODY SIDE TRIM" .
3. Remove the cap and the inside mounting nut, and then disassemble the accelerator pedal pad from the
floor carpet.
4. Press the pin (1) with long-nose pliers and pull them out in the
direction shown by the arrow ( ). Then remove the accelerator
pedal pad (2).
CAUTION:
Do not disengage the part (the link) other than pins.
5. Remove accelerator pedal stopper cover.
1.Accelerator pedal bracket and lever
assembly2. Accelerator pedal stopper cover 3. Cap
4. Accelerator pedal pad 5. Pin
PBIC3203E
KBIA3594J

ACC-4
ACCELERATOR CONTROL SYSTEM
Revision: 2006 January2006 M35/M45
6. Pull up the floor carpet.
7. Remove mounting nuts of accelerator pedal bracket.
8. Remove accelerator pedal bracket and lever assembly.
CAUTION:
Do not disassemble accelerator lever. Do not remove accelerator pedal position sensor from
accelerator lever.
Avoid impact from dropping etc. during handling.
Be careful to keep accelerator lever away from water.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Make sure accelerator pedal moves smoothly within the whole operation range when it is fully depressed
and released.
Make sure accelerator pedal securely returns to the fully released position.
For the electrical inspection of accelerator pedal position sensor, refer to the following.
–VQ35DE
EC-626, "
DTC P2122, P2123 APP SENSOR".
–VK45DE
EC-1358, "
DTC P2122, P2123 APP SENSOR".
CAUTION:
When harness connector of accelerator pedal position sensor is disconnected, perform “Acceler-
ator Pedal Released Position Learning”. Refer to EC-95, "
Accelerator Pedal Released Position
Learning" (VQ35DE) or EC-806, "Accelerator Pedal Released Position Learning" (VK45DE).

ACS-1
AUTO CRUISE CONTROL SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION ACS
A
B
ACS
Revision: 2006 January2006 M35/M45
AUTO CRUISE CONTROL SYSTEM
ASCD
AUTOMATIC SPEED CONTROL DEVICE (ASCD) ..... 3
Description ............................................................... 3
ICC
PRECAUTIONS .......................................................... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions for ICC System Service ........................ 4
PREPARATION ........................................................... 5
Special Service Tools ............................................... 5
DESCRIPTION ............................................................ 6
Outline ...................................................................... 6
VEHICLE-TO-VEHICLE DISTANCE CONTROL
MODE ................................................................... 6
CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE ................................................. 6
BRAKE ASSIST (WITH PREVIEW FUNCTION) ..... 6
System Diagram ....................................................... 6
Components Description .......................................... 7
CAN Communication ................................................ 7
CAN COMMUNICATION UNIT ............................. 7
Switch Operation ...................................................... 8
IN VEHICLE-TO-VEHICLE DISTANCE CON-
TROL MODE ......................................................... 8
IN CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE ................................................. 8
ICC System Display ................................................. 9
IN VEHICLE-TO-VEHICLE DISTANCE CON-
TROL MODE ......................................................... 9
IN CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE ................................................. 9
ACTION TEST .......................................................... 10
ICC System Running Test ...................................... 10
VEHICLE-TO-VEHICLE DISTANCE CONTROL
MODE ................................................................. 10
CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE ................................................ 11LASER BEAM AIMING ADJUSTMENT ................... 13
Outline .................................................................... 13
Preparation ............................................................. 13
Outline of Adjustment Procedure ............................ 13
Setting the ICC Target Board .................................. 13
ADJUSTING HEIGHT OF THE TARGET ............ 13
ADJUSTING THE RIGHT-LEFT POSITION OF
THE TARGET ...................................................... 14
SETTING THE TARGET ..................................... 14
Aiming Adjustment .................................................. 16
CHECK AFTER THE ADJUSTMENT .................. 18
ELECTRICAL UNITS LOCATION ............................ 19
Component Parts and Harness Connector Location ... 19
WIRING DIAGRAM ................................................... 20
Schematic ............................................................... 20
Wiring Diagram — ICC — ...................................... 21
TERMINALS AND REFERENCE VALUE ................. 26
Terminals and Reference Value for ICC Sensor Inte-
grated Unit .............................................................. 26
TROUBLE DIAGNOSIS - GENERAL DESCRIP-
TION .......................................................................
... 27
Fail-Safe Function .................................................. 27
Work Flow ............................................................... 27
CONSULT-II Function (ICC) ................................... 28
DESCRIPTION .................................................... 28
CONSULT-II BASIC OPERATION ....................... 28
WORK SUPPORT ............................................... 29
SELF-DIAGNOSTIC RESULTS ........................... 30
DATA MONITOR ................................................. 30
ACTIVE TEST ..................................................... 33
Self-Diagnostic Function ......................................... 34
WITH CONSULT-II .............................................. 34
WITHOUT CONSULT-II ....................................... 34
SELF-DIAGNOSIS BY DOT MATRIX LCD WILL
NOT RUN ............................................................ 36
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ........................................................................ 39
Diagnostic Trouble Code (DTC) Chart ................... 39
DTC 0 CONTROL UNIT ......................................... 41
DTC 1 POWER SUPPLY CIR, DTC 2 POWER SUP-
