TROUBLE DIAGNOSIS
EC-863
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
HEATER FAN SWEngine: After warming up, idle
the engineHeater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 7
- 17 BTDC
2,000 rpm 25
- 45 BTDC
CAL/LD VALUE
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 2.0 - 6.0 gꞏm/s
2,500 rpm 7.0 - 20.0 gꞏm/s
PURG VOL C/V
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
(Accelerator pedal: Not depressed even
slightly, after engine starting.)0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
5 - 5CA
2,000 rpm Approx. 0
- 20CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 0% - 2%
2,000 rpm Approx. 25% - 50%
VIAS S/V
Selector lever: P or N
ON
Engine speed: More than 5,000 rpm
Selector lever: Except P or N
Engine speed: Less than 5,000 rpmOFF
AIR COND RLY
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON
FUEL PUMP RLY
For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF
FPCM
Engine: Cranking HI
Engine: Idle
Engine coolant temperature: More than 10C (50F)LOW
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON MONITOR ITEM CONDITION SPECIFICATION

EC-864
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed: Below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no loadON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH)Almost the same speed as
the tachometer indication
VEHICLE SPEED
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as
the speedometer indication
TRVL AFTER MIL
Ignition switch: ONVehicle has traveled after MIL has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication.Almost the same speed as
the speedometer indication
SET VHCL SPD
Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW
Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ICC/ASCD brake
switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
CRUISE LAMP
Ignition switch: ONMAIN switch: Pressed at the 1st time
at the 2nd timeON OFF
SET LAMP
MAIN switch: ON
When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH)ASCD: Operating ON
ASCD: Not operating OFF
FA N DU T Y
Engine: Running 0 - 100%
ALT DUTY
Engine: Idle 0 - 80%
BAT CUR SEN
Engine speed: Idle
Battery: Fully charged*2
Selector lever: P or N
Air conditioner switch: OFF
No loadApprox. 2,600 - 3,500mV MONITOR ITEM CONDITION SPECIFICATION

EC-866
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45

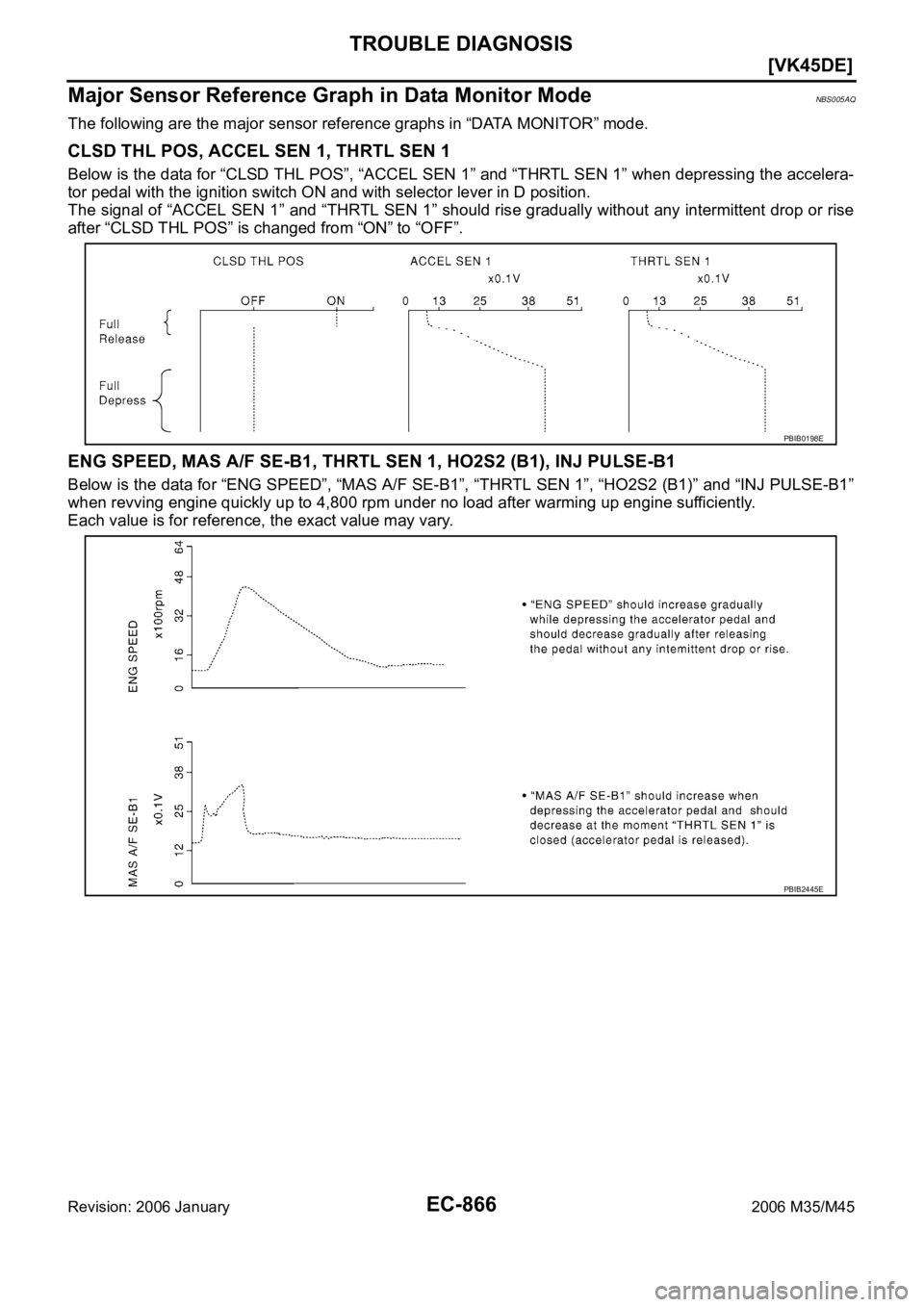

Major Sensor Reference Graph in Data Monitor ModeNBS005AQ
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with selector lever in D position.
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.
ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1
Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)” and “INJ PULSE-B1”
when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.
PBIB0198E
PBIB2445E

EC-868
[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 January2006 M35/M45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionNBS005AR
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNBS005AS
Vehicle driven distance: More than 5,000 km (3,107 miles)
Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30C (68 - 86F)
Engine coolant temperature: 75 - 95C (167 - 203F)
Transmission: Warmed-up*1
Electrical load: Not applied*2
Engine speed: Idle
*1: After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP SE 1” (A/T
fluid temperature sensor signal) indicates more than 60
C (140F).
*2: Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Inspection ProcedureNBS005AT
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-788, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2”
and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-869, "
Diagnostic Procedure" .
SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-871
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DETAILED PROCEDURE
1. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Confirm that the testing conditions are met. Refer to EC-868, "
Testing Condition" .
3. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR
(SPEC)” mode, and make sure that the each indication is within
the SP value.
NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1
minute because they may fluctuate. It is NG if the indication is
out of the SP value even a little.
OK or NG
OK >> GO TO 17.
NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.
2. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 4.
NG (More than the SP value)>>GO TO 19.
3. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 6.
NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.
4. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
PBIB2369E
PBIB2332E
PBIB2332E

EC-872
[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 January2006 M35/M45
5. CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
dition.
>>INSPECTION END
6. CHECK FUEL PRESSURE
Check fuel pressure. (Refer to EC-809, "
FUEL PRESSURE CHECK" .)
OK or NG
OK >> GO TO 9.
NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to EC-809, "
FUEL PRESSURE
CHECK" . GO TO 8.
NG (Fuel pressure is too low)>>GO TO 7.
7. DETECT MALFUNCTIONING PART
1. Check the following.
–Clogged and bent fuel hose and fuel tube
–Clogged fuel filter
–Fuel pump and its circuit (Refer to EC-1427, "FUEL PUMP" .)
2. If NG, repair or replace the malfunctioning part. (Refer to EC-809, "
FUEL PRESSURE CHECK" .)
If OK, replace fuel pressure regulator.
>> GO TO 8.
8. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9. PERFORM POWER BALANCE TEST
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode.
2. Make sure that the each cylinder produces a momentary engine
speed drop.
OK or NG
OK >> GO TO 12.
NG >> GO TO 10.
PBIB0133E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-873
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
10. DETECT MALFUNCTIONING PART
1. Check the following.
–Ignition coil and its circuit (Refer to EC-1407, "IGNITION SIGNAL" .)
–Fuel injector and its circuit (Refer to EC-1420, "FUEL INJECTOR" .)
–Intake air leakage
–Low compression pressure (Refer to EM-233, "CHECKING COMPRESSION PRESSURE" .)
2. If NG, repair or replace the malfunctioning part.
If OK, replace fuel injector. (It may be caused by leakage from fuel injector or clogging.)
>> GO TO 11.
11 . CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
12. CHECK A/F SENSOR 1 FUNCTION
Perform all DTC Confirmation Procedure related with A/F sensor 1.
For DTC P0130, P0150, refer to EC-969, "DTC Confirmation Procedure" .
For DTC P0131, P0151, refer to EC-979, "DTC Confirmation Procedure" .
For DTC P0132, P0152, refer to EC-988, "DTC Confirmation Procedure" .
For DTC P0133, P0153, refer to EC-998, "DTC Confirmation Procedure" .
For DTC P2A00, P2A03, refer to EC-1387, "DTC Confirmation Procedure" .
OK or NG
OK >> GO TO 15.
NG >> GO TO 13.
13. CHECK A/F SENSOR 1 CIRCUIT
Perform Diagnostic Procedure according to corresponding DTC.
>> GO TO 14.
14. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG >> GO TO 15.
15. DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect ECM harness connector. Check pin terminal and connector for damage, and then reconnect it.
>> GO TO 16.

EC-874
[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 January2006 M35/M45
16. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG >> Detect malfunctioning part according to EC-820, "
Symptom Matrix Chart" .
17. CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG (More than the SP value)>>GO TO 18.
NG (Less than the SP value)>>GO TO 25.
18. DETECT MALFUNCTIONING PART
1. Check for the cause of large engine friction. Refer to the following.
–Engine oil level is too high
–Engine oil viscosity
–Belt tension of power steering, alternator, A/C compressor, etc. is excessive
–Noise from engine
–Noise from transmission, etc.
2. Check for the cause of insufficient combustion. Refer to the following.
–Valve clearance malfunction
–Intake valve timing control function malfunction
–Camshaft sprocket installation malfunction, etc.
>> Repair or replace malfunctioning part, and then GO TO 30.
19. CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
Crushed air ducts
Malfunctioning seal of air cleaner element
Uneven dirt of air cleaner element
Improper specification of intake air system
OK or NG
OK >> GO TO 21.
NG >> Repair or replace malfunctioning part, and then GO TO 20.
PBIB2332E

TROUBLE DIAGNOSIS - SPECIFICATION VALUE
EC-875
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
20. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1”, “A/F ALPHA-B2”, and “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the each indication is within the SP value.
OK or NG
OK >>INSPECTION END
NG (“B/FUEL SCHDL” is more, “A/F ALPHA-B1”, “A/F ALPHA-B2” are less than the SP value)>>GO TO 21.
21. DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and
then reconnect it again.
>> GO TO 22.
22. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> 1. Detect malfunctioning part of mass air flow sensor circuit and repair it. Refer to EC-936, "DTC
P0102, P0103 MAF SENSOR" .
2. GO TO 29.
NG >> GO TO 23.
23. CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 24.
NG (More than the SP value)>>Replace mass air flow sensor, and
then GO TO 29.
24. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to
BL-252, "
ECM Re-Communicating Function" .
3. Perform EC-806, "
VIN Registration" .
4. Perform EC-806, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-806, "
Throttle Valve Closed Position Learning" .
6. Perform EC-807, "
Idle Air Volume Learning" .
>> GO TO 29.
PBIB2370E

EC-880
[VK45DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005AY
1. INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Yes >> GO TO 8.
No >> GO TO 2.
2. CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. Check voltage between ECM terminal 109 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 B ECM ground[Engine is running]
Idle speedBody ground
109 L Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
111 S BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF0 - 1.5V
[Ignition switch: OFF]
More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 5
11 6B
BECM ground[Engine is running]
Idle speedBody ground
11 9
120R
RPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0015E
