DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNCS001LK
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON.

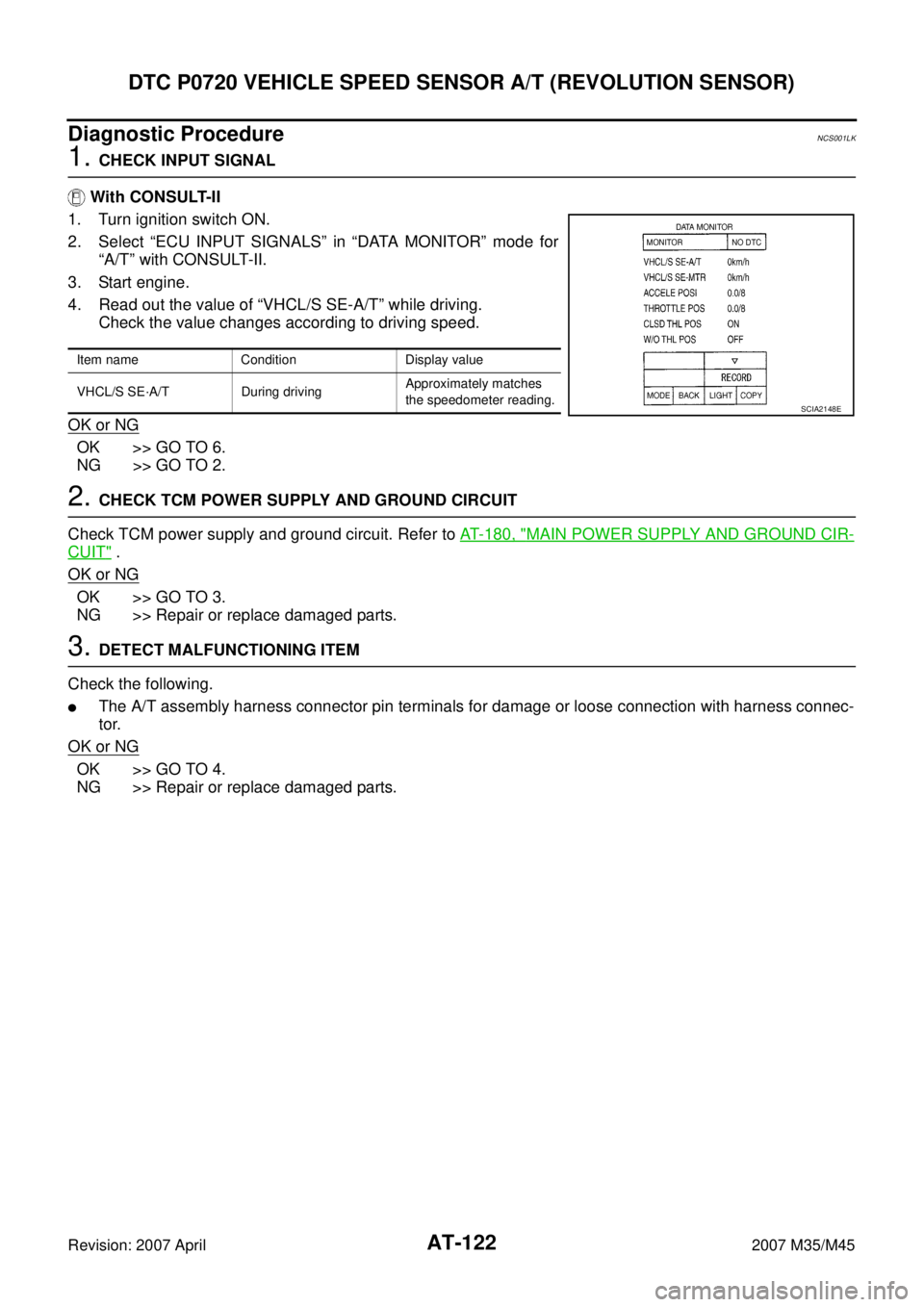

2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Start engine.
4. Read out the value of “VHCL/S SE-A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value
VHCL/S SE·A/T During drivingApproximately matches
the speedometer reading.
SCIA2148E

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-123
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
4. CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer to AT- 2 3 6 , "
Control Valve With TCM and A/T Fluid Temperature
Sensor 2" .

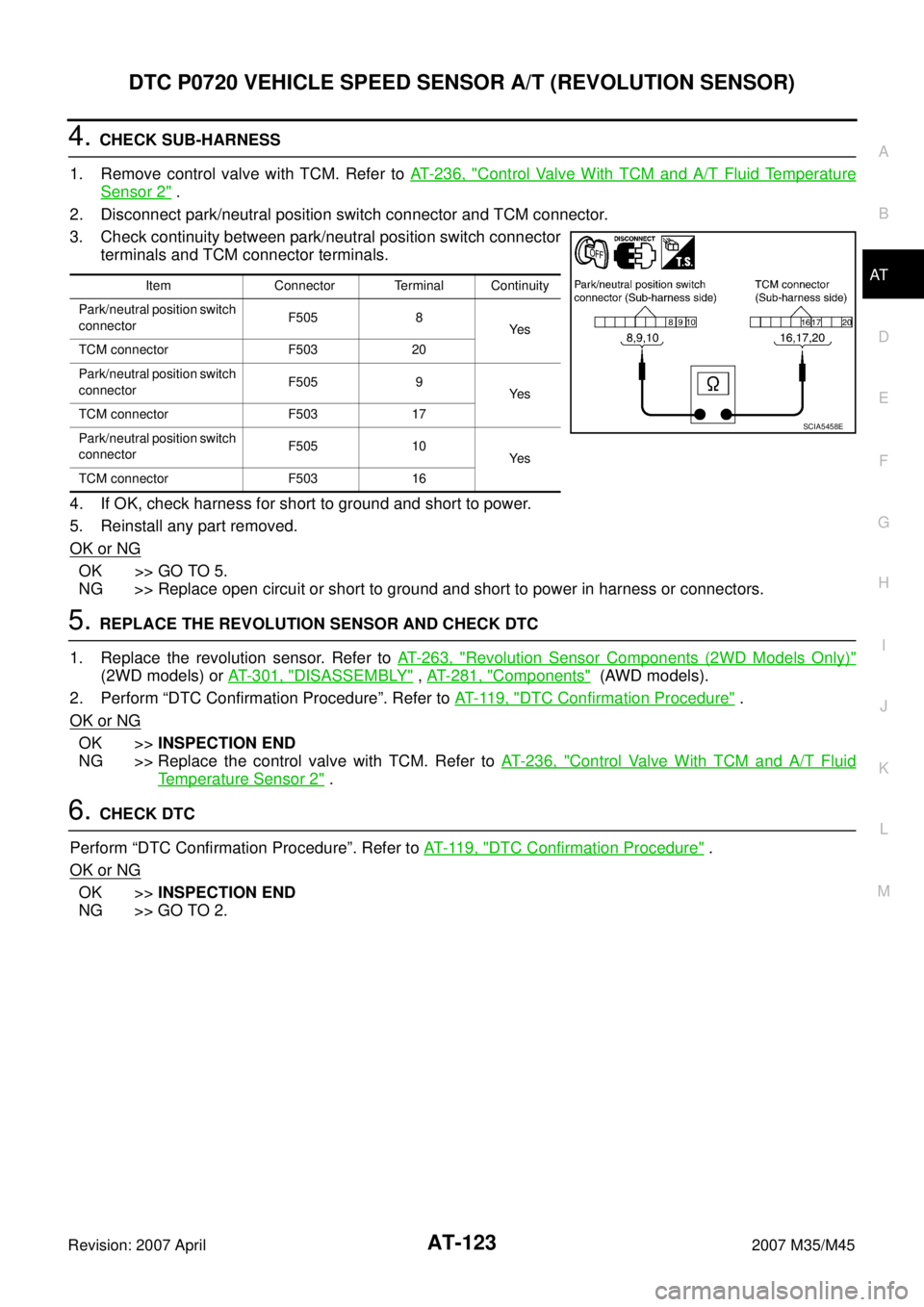

2. Disconnect park/neutral position switch connector and TCM connector.
3. Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
5. REPLACE THE REVOLUTION SENSOR AND CHECK DTC
1. Replace the revolution sensor. Refer to AT- 2 6 3 , "
Revolution Sensor Components (2WD Models Only)"
(2WD models) or AT- 3 0 1 , "DISASSEMBLY" , AT- 2 8 1 , "Components" (AWD models).
2. Perform “DTC Confirmation Procedure”. Refer to AT- 11 9 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "
Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
6. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to AT- 11 9 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item Connector Terminal Continuity
Park/neutral position switch
connectorF505 8
Ye s
TCM connector F503 20
Park/neutral position switch
connectorF505 9
Ye s
TCM connector F503 17
Park/neutral position switch
connectorF505 10
Ye s
TCM connector F503 16
SCIA5458E

AT-124
DTC P0725 ENGINE SPEED SIGNAL
Revision: 2007 April2007 M35/M45
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionNCS001LL
The engine speed signal is sent from the ECM to the TCM.
CONSULT-II Reference ValueNCS001LM
On Board Diagnosis LogicNCS001LN

This is an OBD-II self-diagnostic item. (For VQ35DE engine)

Diagnostic trouble code “P0725 ENGINE SPEED SIG” with CONSULT-II or 16th judgement flicker without
CONSULT-II is detected when TCM does not receive the ignition signal from ECM during engine cranking
or running.
Possible CauseNCS001LO
Harness or connectors
(ECM to TCM circuit is open or shorted.)
DTC Confirmation ProcedureNCS001LP
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ACCELE POSI” and “SLCT LVR POSI ”.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VHCL/S SE-A/T: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
5. If DTC is detected, go to AT- 1 2 5 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
ENGINE SPEED Engine running Closely matches the tachometer reading.
BCIA0030E

DTC P0725 ENGINE SPEED SIGNAL
AT-125
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNCS001LQ
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "Diagnostic Pro-
cedure without CONSULT-II" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. While monitoring engine speed, check for engine speed change
corresponding to wide-open throttle position signal.
OK or NG
OK >> GO TO 3.
NG >> Check the ignition signal circuit. Refer to EC-691, "
IGNITION SIGNAL" (for VQ35DE engine), EC-
1411, "IGNITION SIGNAL" (for VK45DE engine).
3. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to AT- 1 2 4 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
Item name Condition Display value
ENGINE SPEED Engine runningClosely matches the
tachometer reading.
PCIA0041E

AT-126
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision: 2007 April2007 M35/M45
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionNCS001LR

The torque converter clutch solenoid valve is activated, with the gear in D3 , D4 , D5 , M4 and M5 by the
TCM in response to signals sent from the vehicle speed sensor and accelerator pedal position sensor
(throttle position sensor). Torque converter clutch piston operation will then be controlled.

Lock-up operation, however, is prohibited when A/T fluid temperature is too low.

When the accelerator pedal is depressed (less than 1/8) in lock-up condition, the engine speed should not
change abruptly. If there is a big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueNCS001LS
On Board Diagnosis LogicNCS001LT

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0740 TCC SOLENOID/CIRC” with CONSULT-II or 3rd judgement flicker with-
out CONSULT-II is detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseNCS001LU

Torque converter clutch solenoid valve

Harness or connectors
(Solenoid circuit is open or shorted.)
DTC Confirmation ProcedureNCS001LV
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ACCELE POSI” and “SLCT LVR POSI ”. .
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL/S SE-A/T: 80 km/h (50 MPH) or more
ACCELE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
5. If DTC is detected go to AT- 1 2 7 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
TCC SOLENOID Lock-up is active 0.4 - 0.6 A
BCIA0030E

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-127
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNCS001LW
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start engine.
4. Read out the value of “TCC SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to AT- 1 2 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
TCC SOLENOID Lock-up is active 0.4 - 0.6 A
SCIA4793E

AT-128
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
Revision: 2007 April2007 M35/M45
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)PFP:31940
DescriptionNCS001LX
This malfunction is detected when the A/T does not shift into 5th gear position or the torque converter clutch
does not lock-up as instructed by the TCM. This is not only caused by electrical malfunction (circuits open or
shorted) but also by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
etc.
CONSULT-II Reference ValueNCS001LY
On Board Diagnosis LogicNCS001LZ

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0744 A/T TCC S/V FNCTN” with CONSULT-II or 3rd judgement flicker without
CONSULT-II is detected under the following conditions.
–When A/T cannot perform lock-up even if electrical circuit is good.
–When TCM detects as irregular by comparing difference value with slip rotation.
Possible CauseNCS001M0

Harness or connectors
(Solenoid circuit is open or shorted.)

Torque converter clutch solenoid valve

Hydraulic control circuit
DTC Confirmation ProcedureNCS001M1
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and Select “TCC SOL FUNCTN CHECK” of “DTC
WORK SUPPORT” mode for “A/T” with CONSULT-II and touch
“START”.
2. Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following condition continuously until “TESTING” has turned
to “COMPLETE”. (It will take approximately 30 seconds after
“TESTING” shows.)
ACCELE POSI: More than 1.0/8 (at all times during step 4)
TCC SOLENOID: 0.4 - 0.6A
SLCT LVR POSI: “D” position
[Reference speed: Constant speed of more than 80 km/h (50
MPH)]
–Make sure “GEAR” shows “5”.
–For shift schedule, refer to AT- 3 7 1 , "Vehicle Speed at Which Lock-Up Occurs/Releases" .
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0744 is shown, refer to applicable “TROUBLE DIAGNOSIS FOR
DTC”.
3. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 2 9 , "
Diagnostic Procedure" .
Refer to shift schedule, AT- 3 7 1 , "
Vehicle Speed at Which Lock-Up Occurs/Releases" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
TCC SOLENOID Lock-up is active 0.4 - 0.6 A
BCIA0030E

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
AT-129
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNCS001M2
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start engine.
4. Read out the value of “TCC SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to AT- 1 2 8 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
TCC SOLENOID Lock-up is active 0.4 - 0.6 A
SCIA4793E

AT-130
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision: 2007 April2007 M35/M45
DTC P0745 LINE PRESSURE SOLENOID VALVEPFP:31940
DescriptionNCS001M3
The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in
response to a signal sent from the TCM.
CONSULT-II Reference ValueNCS001M4
On Board Diagnosis LogicNCS001M5

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0745 L/PRESS SOL/CIRC” with CONSULT-II or 4th judgement flicker without
CONSULT-II is detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseNCS001M6

Harness or connectors
(Solenoid circuit is open or shorted.)

Line pressure solenoid valve
DTC Confirmation ProcedureNCS001M7
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Touch “START”.
4. Engine start and wait for at least 5 seconds.
5. If DTC is detected, go to AT- 1 3 1 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
LINE PRES SOL During driving 0.2 - 0.6 A
BCIA0030E

DTC P0745 LINE PRESSURE SOLENOID VALVE
AT-131
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
Diagnostic ProcedureNCS001M8
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start engine.
4. Read out the value of “LINE PRES SOL” during driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 8 0 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT- 2 3 6 , "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to AT- 1 3 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
LINE PRES SOL During driving 0.2 - 0.6 A
SCIA4793E
