6. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Adjust bolt hole of bracket to bolt hole of control valve with
TCM.
7. Install control valve with TCM in transmission case.
CAUTION:

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

Assemble it so that manual valve cutout is engaged with
manual plate projection.
8. Install bolts A, B and C in control valve with TCM.
SCIA5301E
SCIA5034E
SCIA5142E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA5139E

ON-VEHICLE SERVICE
AT-243
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45

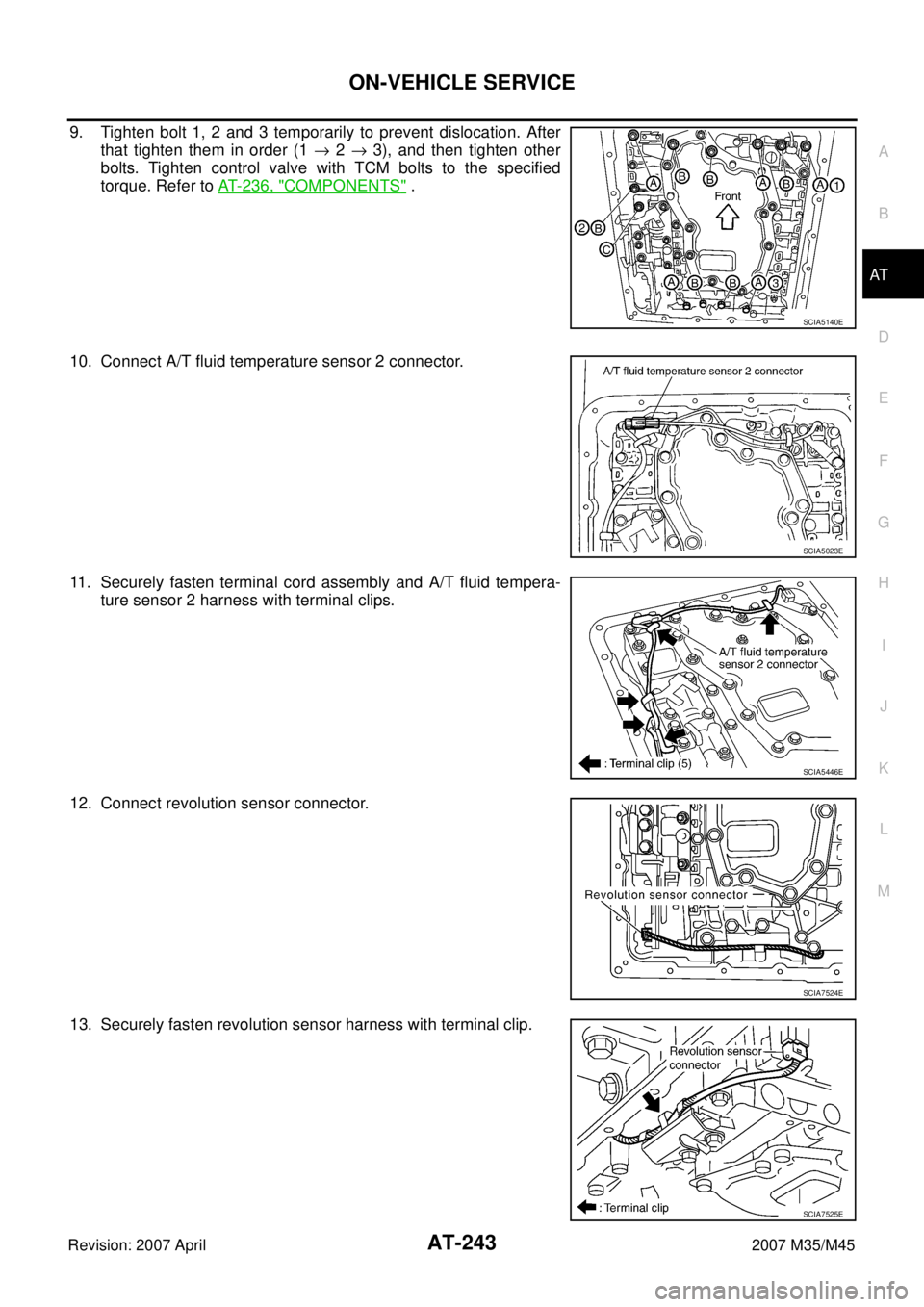

9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1 → 2 → 3), and then tighten other
bolts. Tighten control valve with TCM bolts to the specified
torque. Refer to AT- 2 3 6 , "
COMPONENTS" .
10. Connect A/T fluid temperature sensor 2 connector.
11. Securely fasten terminal cord assembly and A/T fluid tempera-
ture sensor 2 harness with terminal clips.
12. Connect revolution sensor connector.
13. Securely fasten revolution sensor harness with terminal clip.
SCIA5140E
SCIA5023E
SCIA5446E
SCIA7524E
SCIA7525E

AT-244
ON-VEHICLE SERVICE
Revision: 2007 April2007 M35/M45
14. Install magnets in oil pan.
15. Install oil pan, oil pan gasket and clips (VQ35DE models) or oil pan, oil pan gasket, brackets and clips
(VK45DE models) according to the following procedures.
a. VQ35DE models
i. Install oil pan gasket to oil pan.
CAUTION:

Do not reuse oil pan gasket.

Install it in the direction to align hole positions.

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
ii. Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-
sion case.
: Front
: Bolt (22)
CAUTION:

Install it so that drain plug comes to the position as
shown in the figure.

Be careful not to pinch harnesses.

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.
iii. Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to
AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
b. VK45DE models
i. Install oil pan gasket to oil pan.
CAUTION:

Do not reuse oil pan gasket.

Install it in the direction to align hole positions.

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
SCIA5200E
SCIA8039E
SCIA4113E

ON-VEHICLE SERVICE
AT-245
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
ii. Install oil pan (3) (with oil pan gasket), clips (1) and brackets (2)
to transmission case.
: Front
: Bolt (22)
CAUTION:

Install it so that drain plug comes to the position as
shown in the figure.

Be careful not to pinch harnesses.

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

Be careful with installation direction of brackets (2).
iii. Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to
AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
16. Install drain plug to oil pan. Tighten drain plug to the specified
torque. Refer to AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse drain plug gasket.
17. Pull up A/T assembly harness connector.
CAUTION:
Be careful not to damage connector.
18. Install snap ring to A/T assembly harness connector.
19. Connect A/T assembly harness connector.
20. Connect heated oxygen sensor 2 harness connector.
21. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T
Fluid" .
22. Connect the battery cable to the negative terminal.
SCIA8035E
SCIA4113E
SCIA5038E
SCIA5039E

AT-246
ON-VEHICLE SERVICE
Revision: 2007 April2007 M35/M45
A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION
Removal
1. Disconnect the battery cable from the negative terminal.
2. Drain ATF through drain plug.
3. Disconnect heated oxygen sensor 2 harness connector.
4. Remove oil pan, oil pan gasket and clips (VQ35DE models) or oil pan, oil pan gasket, brackets and clips
(VK45DE models) according to the following procedures.
a. VQ35DE models
i. Remove clips (1).
ii. Remove oil pan (2) and oil pan gasket.
: Front
: Bolt (22)
b. VK45DE models
i. Remove clips (1) and brackets (2).
ii. Remove oil pan (3) and oil pan gasket.
: Front
: Bolt (22)
5. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT- 1 4 , "
A/T Fluid Cooler Cleaning" .
6. Disconnect A/T fluid temperature sensor 2 connector.
CAUTION:
Be careful not to damage connector.
SCIA8039E
SCIA8035E
SCIA5199E
SCIA5023E

ON-VEHICLE SERVICE
AT-247
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
7. Straighten terminal clip to free A/T fluid temperature sensor 2
harness.
8. Remove A/T fluid temperature sensor 2 with bracket from con-
trol valve with TCM.
9. Remove bracket from A/T fluid temperature sensor 2.
Installation
CAUTION:
After completing installation, check for A/T fluid leakage and A/T fluid level. Refer to AT- 1 3 , "
Checking
A/T Fluid" .
1. Install A/T fluid temperature sensor 2 to bracket.
SCIA5146E
SCIA5253E
SCIA5264E
SCIA5264E

AT-248
ON-VEHICLE SERVICE
Revision: 2007 April2007 M35/M45
2. Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolts to
the specified torque. Refer to AT- 2 3 6 , "
COMPONENTS" .
3. Connect A/T fluid temperature sensor 2 connector.
4. Securely fasten A/T fluid temperature sensor 2 harness with ter-
minal clip.
5. Install oil pan, oil pan gasket and clips (VQ35DE models) or oil pan, oil pan gasket, brackets and clips
(VK45DE models) according to the following procedures.
a. VQ35DE models
i. Install oil pan gasket to oil pan.
CAUTION:

Do not reuse oil pan gasket.

Install it in the direction to align hole positions.

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
ii. Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-
sion case.
: Front
: Bolt (22)
CAUTION:

Install it so that drain plug comes to the position as
shown in the figure.

Be careful not to pinch harnesses.

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.
SCIA5253E
SCIA5023E
SCIA5146E
SCIA8039E

ON-VEHICLE SERVICE
AT-249
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
iii. Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to
AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
b. VK45DE models
i. Install oil pan gasket to oil pan.
CAUTION:

Do not reuse oil pan gasket.

Install it in the direction to align hole positions.

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
ii. Install oil pan (3) (with oil pan gasket), clips (1) and brackets (2)
to transmission case.
: Front
: Bolt (22)
CAUTION:

Install it so that drain plug comes to the position as
shown in the figure.

Be careful not to pinch harnesses.

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

Be careful with installation direction of brackets (2).
iii. Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to
AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
6. Install drain plug to oil pan. Tighten drain plug to the specified
torque. Refer to AT- 2 3 6 , "
COMPONENTS" .
CAUTION:
Do not reuse drain plug gasket.
7. Connect heated oxygen sensor 2 harness connector.
8. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T Fluid" .
9. Connect the battery cable to the negative terminal.
SCIA4113E
SCIA8035E
SCIA4113E

AT-250
ON-VEHICLE SERVICE
Revision: 2007 April2007 M35/M45
Parking Components (2WD Models Only)NCS001QU
REMOVAL AND INSTALLATION (VQ35DE MODELS)
Components
Removal
1. Drain ATF through drain plug.
2. Remove exhaust front tube and center muffler with power tool. Refer to EX-5, "
Removal and Installation" .
3. Remove rear propeller shaft. Refer to PR-8, "
Removal and Installation" .
4. Remove control rod. Refer to AT- 2 2 6 , "
Control Rod Removal and Installation" .
5. Support A/T assembly with a transmission jack.
CAUTION:
When setting transmission jack, be careful not to allow it to collide against the drain plug.
6. Remove rear engine mounting member with power tool. Refer to AT- 2 7 4 , "
Removal and Installation (2WD
Models)" .
7. Remove engine mounting insulator (rear). Refer to AT- 2 7 4 , "
Removal and Installation (2WD Models)" .
1. Rear oil seal 2. Rear extension 3. Parking actuator support
4. Return spring 5. Parking pawl 6. Pawl shaft
7. Self-sealing bolt 8. Seal ring 9. Parking gear
10. Output shaft 11. Bearing race 12. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
*:Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-47, "Recommended Chemical Products and Sealants"
.
SCIA7030E

ON-VEHICLE SERVICE
AT-251
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2007 April2007 M35/M45
8. Remove tightening bolts for rear extension assembly and trans-
mission case.
9. Tap rear extension assembly with a soft hammer.
10. Remove rear extension assembly from transmission case. (With
needle bearing.)
11. Remove bearing race from output shaft.
12. Remove output shaft from transmission case by rotating left/
right.
SCIA6941E
SCIA3432E
SCIA3431E
SCIA5245E
SCIA5246E
