PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45
4. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp, license plate lamp and rear combination lamp connectors.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “TAIL LAMP” on “SELECT TEST ITEM” screen.
5. Touch “ON” screen.
6. When tail lamp relay is operating, check voltage between front combination lamp, license plate lamp, rear
combination lamp harness connector and ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp, license plate lamp and rear combination lamp connectors.
3. Start auto active test. Refer to PG-23, "
Auto Active Test" .
4. When tail lamp relay is operating, check voltage between front combination lamp, license plate lamp, rear
combination lamp harness connector and ground.
Terminal
Voltage
(Approx.) (+)
(-)
Front combination lamp
(parking) connectorTerminal
RH E47
5 Ground Battery voltage
LH E54
SKIB4832E
Terminal
Voltage
(Approx.) (+)
(-)
Front combination lamp
(side marker) connectorTerminal
RH E47
7 Ground Battery voltage
LH E54
SKIB4833E
Terminal
Voltage
(Approx.) (+)
(-)
Rear combination lamp
(tail) connectorTe r m i n a l
RH B130
1 Ground Battery voltage
LH B135
SKIB4834E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-261
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
Terminal
Voltage
(Approx.) (+)
(-)
License plate lamp
connectorTe r m i n a l
RH T105
1 Ground Battery voltage
LH T108
PKIB7987E

LT-262
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45

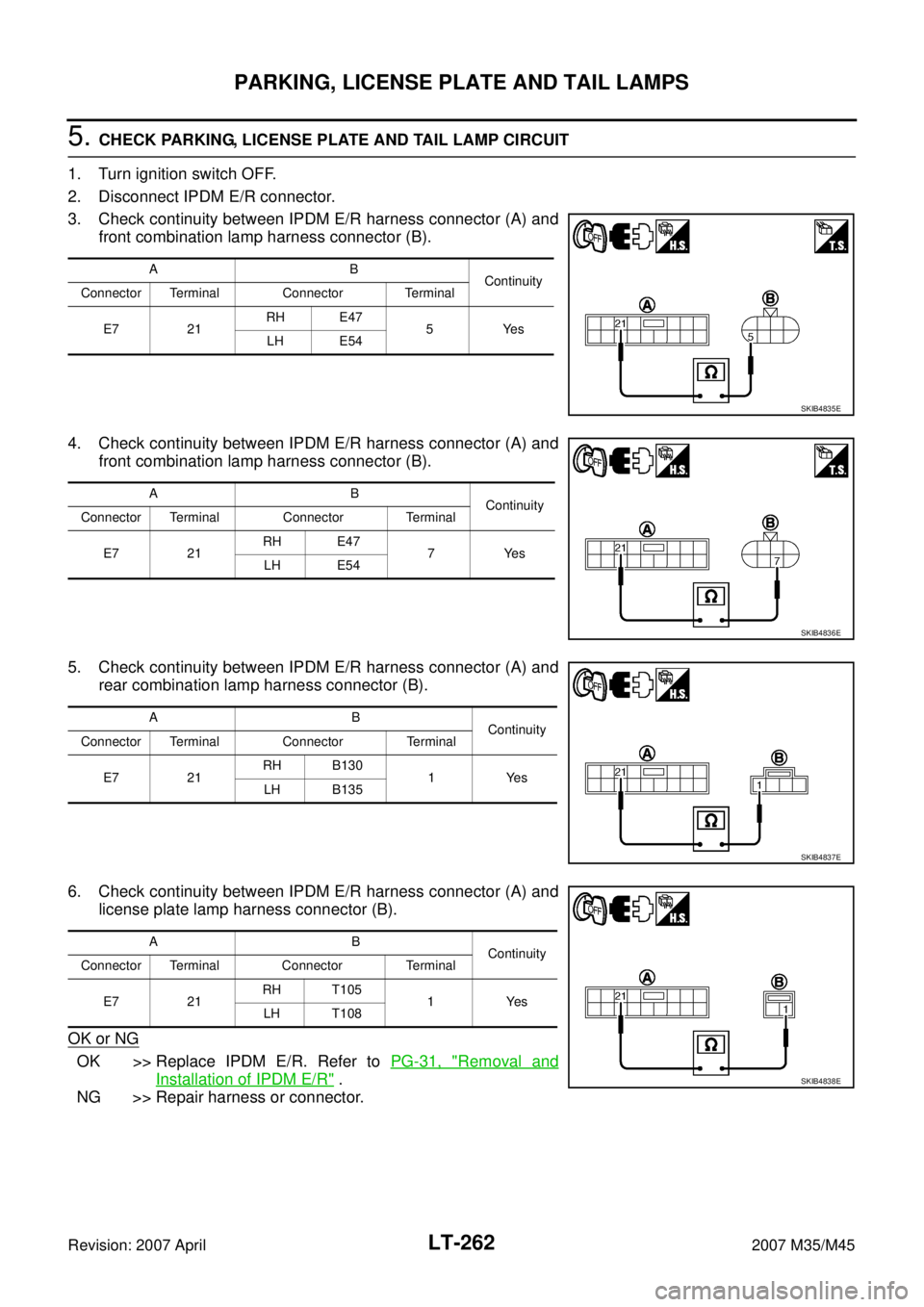

5. CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector (A) and
front combination lamp harness connector (B).
4. Check continuity between IPDM E/R harness connector (A) and
front combination lamp harness connector (B).
5. Check continuity between IPDM E/R harness connector (A) and
rear combination lamp harness connector (B).
6. Check continuity between IPDM E/R harness connector (A) and
license plate lamp harness connector (B).
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
AB
Continuity
Connector Terminal Connector Terminal
E7 21RH E47
5Yes
LH E54
SKIB4835E
AB
Continuity
Connector Terminal Connector Terminal
E7 21RH E47
7Yes
LH E54
SKIB4836E
AB
Continuity
Connector Terminal Connector Terminal
E7 21RH B130
1Yes
LH B135
SKIB4837E
AB
Continuity
Connector Terminal Connector Terminal
E7 21RH T105
1Yes
LH T108
SKIB4838E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-263
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
6. CHECK PARKING, LICENSE PLATE AND TAIL LAMPS GROUND CIRCUIT
1. Check continuity between front combination lamp harness con-
nector and ground.
2. Check continuity between rear combination lamp harness con-
nector and ground.
3. Check continuity between license plate lamp harness connector
and ground.
OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
Parking, License Plate and Tail Lamps Do Not Turn OFF (After Approx. 10 Min-
utes)
NKS003SU

This symptom indicates the malfunction of ignition relay in IPDM E/R. Refer to PG-19, "Function of
Detecting Ignition Relay Malfunction" .

Select “BCM” on CONSULT-II. Select “HEADLAMP” on “SELECT TEST ITEM” screen and select “DATA
MONITOR” on “SELECT DIAG MODE” screen. If “LIGHT SW 1ST” is OFF when lighting switch is OFF,
replace IPDM E/R.
Front combination lamp
(parking and side marker)
connectorTerminal
GroundContinuity
RH E47
1Yes
LH E54
SKIB4839E
Rear combination lamp
(tail and side marker)
connectorTerminal
GroundContinuity
RH B130
4 Yes
LH B135
SKIB4840E
License plate lamp
connectorTerminal
GroundContinuity
RH T105
2 Yes
LH T108
PKIB7990E

LT-264
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45
License Plate LampNKS003SV
BULB REPLACEMENT
1. Remove trunk lid finisher inner. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Turn bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2) from its socket.
Removal and InstallationNKS003SW
REMOVAL
1. Remove trunk lid finisher inner. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. From the trunk room inside, push a lamp to outside while push-
ing a resin clip (A).
3. Disconnect connector and remove license plate lamp (1).
INSTALLATION
Installation is the reverse order of removal.
Front Parking (Clearance) LampNKS003SX
BULB REPLACEMENT
Refer to LT- 3 8 , "Bulb Replacement" in “HEAD LAMP - CONVENTIONAL TYPE-”.
Refer to LT- 7 3 , "
Bulb Replacement" in “HEAD LAMP - XENON TYPE-”.
REMOVAL AND INSTALLATION
Refer to LT- 4 0 , "Removal and Installation" . License plate lamp : 12V - 5W
SKIB4191E
SKIB4192E

REAR COMBINATION LAMP
LT-265
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementNKS003SY
REAR TURN SIGNAL LAMP BULB, STOP/TAIL LAMP BULB
1. Remove trunk side finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Turn rear turn signal lamp bulb socket (1) counterclockwise and
unlock it.
3. Remove bulb (2).
Removal and InstallationNKS003SZ
REMOVAL
Rear Fender Side
1. Remove trunk side finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting nuts (A).
4. Pull the rear combination lamp (2) toward rear of the vehicle and
remove from the vehicle.
5. Remove seal packing (1) from the vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Seal packing cannot be reused.Rear turn signal lamp : 12V - 21W (amber bulb)
Stop tail lamp : LED
SKIB4193E
: N·m (kg-m, in-lb)
: Always replace after every disassembly
SKIB4194E

LT-266
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
INTERIOR ROOM LAMPPFP:26410
Component Parts and Harness Connector LocationNKS003T0
System DescriptionNKS003T1
BCM (body control module) controls interior lamp, room lamp timer and interior lamp battery saver.
The following signals are input to BCM:

Door lock/unlock trunk open request signal from the Intelligent Key unit via CAN communication

Key cylinder switch status signal from power window main switch via power window serial link

Door switch signal from door switches (driver side, passenger side, rear LH and RH)

IGN power supply (signal) from PDU (power distribution unit)

ACC power supply (signal) from PDU
ROOM LAMP TIMER BASIC OPERATION
Applicable lamps

Room lamp system: map lamp, foot lamp (driver side and passenger side) and personal lamp (rear LH
and rear RH).
1. When getting on the vehicle

Lamps illuminate by timer operation when driver side door or passenger side door is unlocked.*

Lamps illuminate by timer operation after any door is open and then all doors are closed.*

Timer operation stops and lamps are OFF, when driver side door is locked or the push-button ignition
switch (push switch) is turned to ACC or ON from OFF.
*: This setting can be changed by CONSULT-II. Refer to LT- 2 8 3 , "
WORK SUPPORT (INT LAMP)" .
PKID0478E

INTERIOR ROOM LAMP
LT-267
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
2. When getting off the vehicle

Lamps illuminate by timer operation when the push-button ignition switch (push switch) is turned OFF.*

Lamps illuminate by timer operation after any door is open and then all doors are closed.*

Timer operation stops and lamps are OFF, when driver side door is locked.
*: This setting can be changed by CONSULT-II. Refer to LT- 2 8 3 , "
WORK SUPPORT (INT LAMP)" .
POWER SUPPLY AND GROUND
Power is supplied at all times

through 50A fusible link (letter F, located in fuse and fusible link block)

to BCM terminal 55,

through 10A fuse [No. 21, located in fuse block (J/B)]

to BCM (body control module) terminal 42,

through 10A fuse [No. 22, located in fuse block (J/B)]

to key slot terminal 1.
With the ignition switch in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M16 and M70.
When the driver side door is opened, ground is supplied

to BCM terminal 62

through front door switch driver side terminal 2

through case ground of front door switch driver side.
When the passenger side door is opened, ground is supplied

to BCM terminal 12

through front door switch passenger side terminal 2

through case ground of front door switch passenger side.
When the rear door LH is opened, ground is supplied

to BCM terminal 63

through rear door switch LH terminal 2

through case ground of rear door switch LH.
When the rear door RH is opened, ground is supplied

to BCM terminal 13

through rear door switch RH terminal 2

through case ground of rear door switch RH.
When driver side door is unlocked by door lock and unlock switch, BCM receives a ground signal

to BCM terminal 22

through power window main switch (door lock and unlock switch) terminal 14 or power window sub-switch
(front passenger side) (door lock and unlock switch) terminal 16

through power window main switch (door lock and unlock switch) terminal 17 or power window sub-switch
(front passenger side) (door lock and unlock switch) terminal 11

through grounds M16 and M70.
When the driver side door is unlocked by the front door lock assembly (driver side) (key cylinder switch), BCM
receives a ground signal

to BCM terminal 22

through power window main switch (door lock and unlock switch) terminals 14 and 6

LT-268
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45

through front door lock assembly (driver side) (key cylinder switch) terminals 5 and 4

through grounds M16 and M70.
When a signal, or combination of door open signals is received by BCM, ground is supplied

to foot lamp driver side and passenger side terminals 2

to personal lamp LH and RH terminals 1

to map lamp terminal 2 and 5

through BCM terminal 48,

to step lamp (driver side, passenger side, rear LH and RH) terminals 2

to kicking plate illumination (driver side and passenger side) terminals 2

through BCM terminal 47.
With power and ground supplied, the interior lamps illuminate.
SWITCH OPERATION
When any front door switch is ON (door is opened), ground is supplied

to step lamp (driver side, passenger side, rear LH and RH) terminals 2

to kicking plate illumination (driver side and passenger side) terminals 2

through BCM terminal 47.
And power is supplied

through BCM terminal 41

to step lamp (driver side, passenger side, rear LH and RH) terminals 1

to kicking plate illumination (driver side and passenger side) terminals 1.
When any door switch is ON (door is opened) and personal lamp and map lamp is DOOR position, ground is
supplied

to personal lamp LH and RH terminal 1

to map lamp terminals 2 and 5

through BCM terminal 48.
And power is supplied

through BCM terminal 41

to personal lamp LH and RH terminals 3

to map lamp terminal 3.
When map lamp switch is ON, ground is supplied

to map lamp terminal 1

through grounds M16 and M70.
And power is supplied

through BCM terminal 41

to map lamp terminal 3.
When personal lamp LH and RH switch is ON, ground is supplied

to personal lamp LH and RH terminals 2

through grounds M16 and M70.
And power is supplied

through BCM terminal 41

to personal lamp LH and RH terminals 3.
When trunk lid lock assembly (trunk room lamp switch) is ON, ground is supplied

to trunk room lamp (upper and lower) terminals 2

through trunk lid lock assembly (trunk room lamp switch) terminals 1 and 2

through grounds B405 and B475.
And power is supplied

through BCM terminal 41

to trunk room lamp (upper and lower) terminals 1.
When vanity mirror lamp LH and RH switch is ON, ground is supplied

INTERIOR ROOM LAMP
LT-269
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

to vanity mirror lamp LH and RH terminals 2

through grounds M16 and M70.
And power is supplied

through BCM terminal 41

to vanity mirror lamp (LH and RH) terminals 1.
ROOM LAMP TIMER OPERATION
BCM controls applicable lamps to illuminate for 15 seconds (can be set maximum 30 seconds) by timer oper-
ation under following conditions. BCM also controls applicable lamps to brighten for 1 second (can be set max-
imum 5 seconds) when turned ON, or to dim for 3 seconds (can be set maximum 5 seconds) when turned
OFF. (Timer operating time and dimming/brightening time can be changed with CONSULT-II. Refer to LT- 2 8 3 ,
"WORK SUPPORT (INT LAMP)" .) This control operates as follows.
Applicable lamps

Room lamp system: map lamp, foot lamp (driver side and passenger side) and personal lamp (rear LH
and rear RH).
BCM controls room lamp timer operation under following condition.

Condition 1: Door lock state changes.*
BCM judges as the door lock is unlocked under either case below.
–The Intelligent Key unit sends door lock/unlock trunk open request signal (driver side unlock or passenger
side unlock) to BCM through CAN communication line by unlock operation of intelligent key, outside key
antenna and front door request switch (driver side) or outside key antenna and front door request switch
(passenger side).
–Key cylinder switch state (unlock) signal is sent to BCM through power window serial link when front door
lock assembly (driver side) (key cylinder switch) is unlocked (ON) by power window main switch unlock
operation.
And fulfills all the conditions below.
–The engine switch (push switch) is OFF.
–All the doors are closed.
*: This setting can be changed by CONSULT-II. Refer to LT- 2 8 3 , "
WORK SUPPORT (INT LAMP)" .

Condition 2: Any door switch state changes.*
The BCM terminal value of operated door switch is changed when any door is opened and then closed.
From that BCM judges as the door is opened and then closed.
And fulfills all the conditions below.
–The engine switch (push switch) is OFF.
–All the doors are closed.
*: This setting can be changed by CONSULT-II. Refer to LT- 2 8 3 , "
WORK SUPPORT (INT LAMP)" .

Condition 3: Engine switch (push switch) state changes.*
The Intelligent Key unit judges as the engine switch (push switch) is OFF and sends push-button ignition
switch (push switch) signal to PDU (power distribution unit) when push-button ignition switch (push
switch) turned OFF. Then PDU (power distribution unit) turns OFF, IGN power supply and ACC power
supply.
And fulfills the conditions below.
–All the doors are closed.
*:This setting can be changed by CONSULT-II. Refer to LT- 2 8 3 , "
WORK SUPPORT (INT LAMP)" .
NOTE:
When timer operation signal is input during former timer operation, BCM goes for latter timer operation.
