INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
Foot Lamp (Driver Side)NKS003TB
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Use a clip driver or similar tool and remove foot lamp (driver
side) (1).
2. Disconnect connector.
Installation
Installation is the reverse order of removal.Foot lamp (Driver side) : 12V - 3.4W
SKIB4202E
SKIB4203E

INTERIOR ROOM LAMP
LT-291
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Foot Lamp (Passenger Side)NKS003TC
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Use a clip driver or similar tool and remove foot lamp (passenger
side) (1).
2. Disconnect connector.
Installation
Installation is the reverse order of removal.
Vanity Mirror LampNKS003TD
BULB REPLACEMENT
1. Insert a thin screwdriver in the lens end and remove lens (1).
2. Remove bulb (2).Foot lamp (Passenger side) : 12V - 3.4W
SKIB4204E
SKIB4205E
Vanity mirror lamp : 12V - 1.8 W
SKIB4197E

LT-292
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
Step LampNKS003TE
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb.
REMOVAL AND INSTALLATION
Remove step lamp integral with door trim. Refer toEI-37, "Removal and Installation" .
Kicking Plate IlluminationNKS003TF
BULB REPLACEMENT
Replacement integral with front kicking plate inner.
REMOVAL AND INSTALLATION
Remove integral with front kicking plate inner. Refer to EI-37, "Removal and Installation" .
Trunk Room Lamp (Upper/Lower)NKS003TG
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Insert a screwdriver or similar tool and remove trunk room lamp
(1).
2. Disconnect connector.
Installation
Installation is the reverse order of removal. Step lamp : 12V - 5W
SKIB4188E
Trunk room lamp (upper/lower) : 12V - 5W
SKIB4198E
SKIB4199E

ILLUMINATION
LT-293
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
ILLUMINATIONPFP:27545
System DescriptionNKS003TH
Control of the illumination lamps operation is dependent upon the position of the lighting switch (combination
switch). When the lighting switch is placed in the 1ST or 2ND position (or if the auto light system is activated)
the BCM (body control module) receives input signal requesting the illumination lamps to illuminate. This input
signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN
communication lines. The CPU (central processing unit) located in the IPDM E/R controls the tail lamp relay
coil. This relay, when energized, directs power to the illumination lamps, which then illuminate.
OUTLINE
Power is supplied at all times

through 15A fuse (No. 71, located in IPDM E/R)

to tail lamp relay, located in IPDM E/R, and

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 50A fusible link (letter F, located in fuse, fusible link and relay block)

to BCM terminal 55,

through 10A fuse [No. 21, located in fuse block (J/B)]

to BCM terminal 42 and

to combination meter terminal 23,

through 10A fuse [No. 19, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 54,

through 10A fuse [No. 22, located in fuse block (J/B)]

to intelligent key unit terminals 1, 41 and 57.
With the ignition switch in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 12,

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 53 and

to rear sunshade cancel relay terminal 1.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11

to unified meter and A/C amp. terminal 41 and

to combination meter terminal 2.
Ground is supplied

to BCM terminal 52

to unified meter and A/C amp. terminals 55 and 71

to combination meter terminals 9, 10, and 11

to Intelligent Key unit terminals 20, 40, 56 and 72, and

to illumination control switch terminal 3

through grounds M16 and M70,

to IPDM E/R terminals 38 and 51

through grounds E22 and E43.

LT-294
ILLUMINATION
Revision: 2007 April2007 M35/M45
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the illumination lamps to illuminate. This input signal is communicated to the IPDM E/R
across the CAN communication lines. The CPU located in the IPDM E/R controls the tail lamp relay coil,
which, when energized, directs power

through IPDM E/R terminal 21

to combination meter terminal 13

to LDW switch (illumination) terminal 5 (with lane departure warning)

to VDC off switch (illumination) terminal 3

to trunk lid opener switch (illumination) terminal 3

to combination switch (spiral cable) terminal 24

to door mirror remote control switch (illumination) terminal 16

to AFS switch (illumination) terminal 5 (with AFS)

to rear sunshade front switch (illumination) terminal 5 (with rear control switch)

to A/T illumination terminal 1

to snow mode switch (illumination) terminal 5 (AWD models)

to rear control cancel switch (illumination) terminal 4 (with rear control switch)

to clock terminal 3

to multifunction switch terminal 3

to audio unit terminal 9

to DVD player terminal 18 (with DVD player)

to NAVI control unit terminal 61 (with navigation system)

to AV control unit terminal 61 (without navigation system)

to climate controlled seat switch driver side (illumination) terminal 7 (with climate controlled seat)

to climate controlled seat switch passenger side (illumination) terminal 7 (with climate controlled seat)

to ashtray illumination (rear LH) terminal 1

to ashtray illumination (rear RH) terminal 1

to illumination control switch terminal 1

to cigarette lighter socket (illumination) terminal 2

to map lamp (illumination) terminal 8

to power window main switch illumination terminal 1

to glove box lamp terminal 1

to rear control switch terminal 2

to rear power seat switch RH (illumination) terminal 4 (with rear control switch)

to rear heated seat switch RH (illumination) terminal 7 (with rear control switch)

to rear sunshade cancel relay terminal 6 (with rear control switch)

to automatic return cancel switch (illumination) terminal 4 (with rear control switch)

to rear power seat switch LH (illumination) terminal 4 (with rear control switch) and

to rear heated seat switch LH (illumination) terminal 7 (with rear control switch),

through Intelligent Key unit terminal 12

to push button ignition switch (illumination) terminal 3.
Ground is supplied

to combination meter terminal 14

to combination meter terminal 9, 10 and 11

to push button ignition switch (illumination) terminal 2

to LDW switch (illumination) terminal 4 (with lane departure warning)

to VDC off switch (illumination) terminal 4

to trunk lid opener switch (illumination) terminal 4

to combination switch (spiral cable) terminal 25

ILLUMINATION
LT-295
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

to door mirror remote control switch (illumination) terminal 15

to AFS switch (illumination) terminal 6 (with AFS)

to rear sunshade front switch (illumination) terminal 6 (with rear control switch)

to A/T illumination terminal 2

to snow mode switch (illumination) terminal 6 (ADW models)

to rear control cancel switch (illumination) terminal 5 (with rear control switch)

to clock terminal 4

to multifunction switch terminal 4

to audio unit terminal 8

to DVD player terminal 17 (With DVD player)

to climate controlled seat switch driver side (illumination) terminal 8 (with climate controlled seat) and

to climate controlled seat switch passenger side (illumination) terminal 8 (with climate controlled seat)

through illumination control switch terminal 2

to illumination control switch terminal 3

through grounds M16 and M70,

to cigarette lighter socket (illumination) terminal 1

to map lamp (illumination) terminal 4

to power window main switch illumination terminal 2 and

to glove box lamp terminal 2

through grounds M16 and M70,

to ashtray illumination (rear RH) terminal 2

through grounds B402, B405,

to ashtray illumination (rear LH) terminal 2

to automatic return cancel switch (illumination) terminal 2 (With rear control switch)

to rear power seat switch LH (illumination) terminal 3 (With rear control switch)

to rear heated seat switch LH (illumination) terminal 8 (With rear control switch)

through grounds B5, B40 and B131,

through rear sunshade cancel relay terminal 7(With rear control switch)

to rear sunshade rear switch (illumination) terminal 7 (With rear control switch)

through grounds B5, B40, B131 and B559.

to rear control switch terminal 4

to rear power seat switch RH (illumination) terminal 3 (With rear control switch)

to rear heated seat switch RH (illumination) terminal 8 (With rear control switch)

through grounds B5, B40, B131 and B559.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
BCM activates the exterior lamp battery saver control function and turns off the exterior lamps to prevent bat-
tery from over discharge when the combination switch (lighting switch) is in 1ST or 2ND position and/or the
front fog lamp switch ON and the door lock operation is performed by keyless entry system.
CAN Communication System DescriptionNKS003TI
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003TJ
Refer to LAN-50, "CAN System Specification Chart" .

LT-296
ILLUMINATION
Revision: 2007 April2007 M35/M45

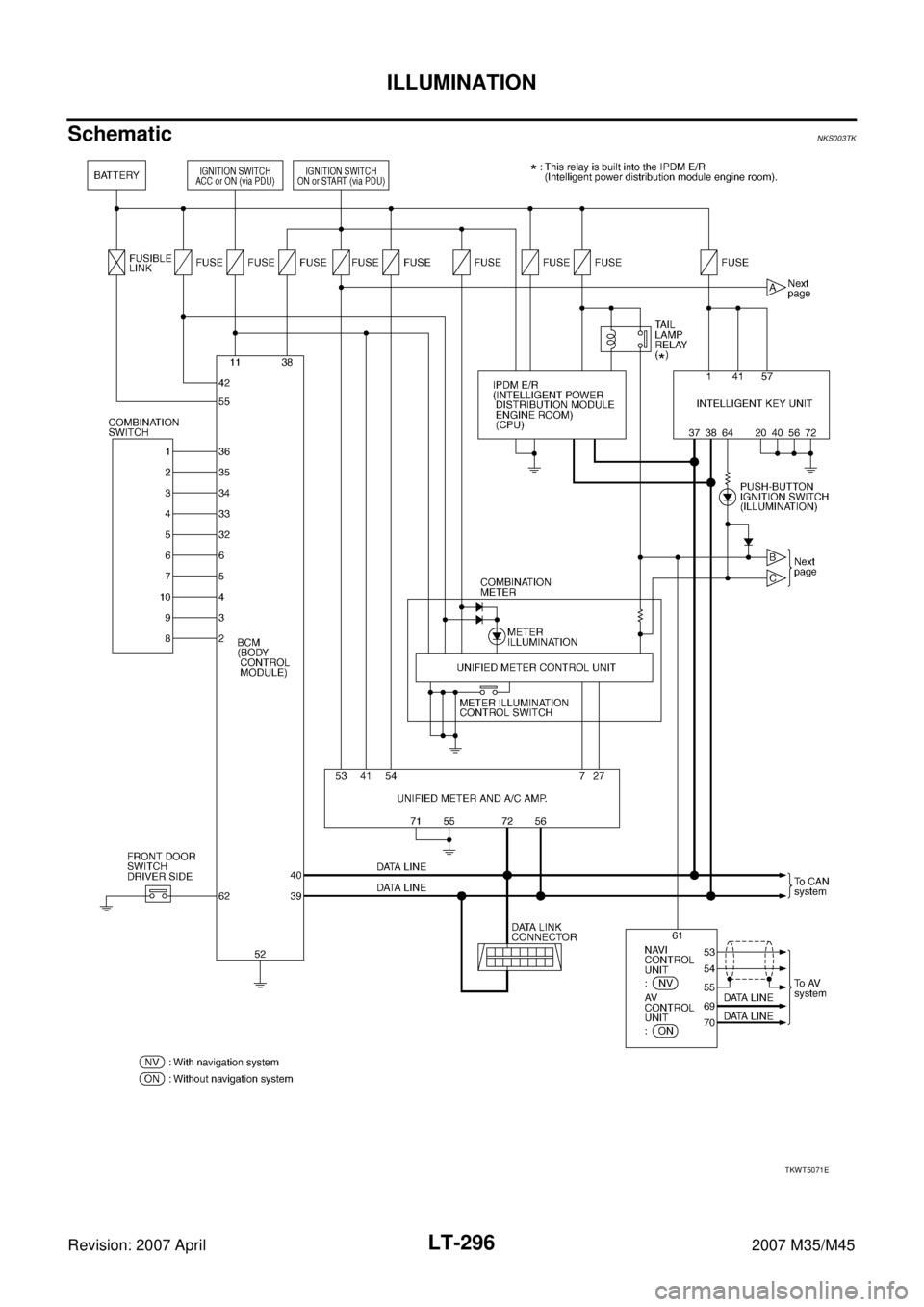

SchematicNKS003TK
TKWT5071E

ILLUMINATION
LT-297
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT5072E

LT-298
ILLUMINATION
Revision: 2007 April2007 M35/M45

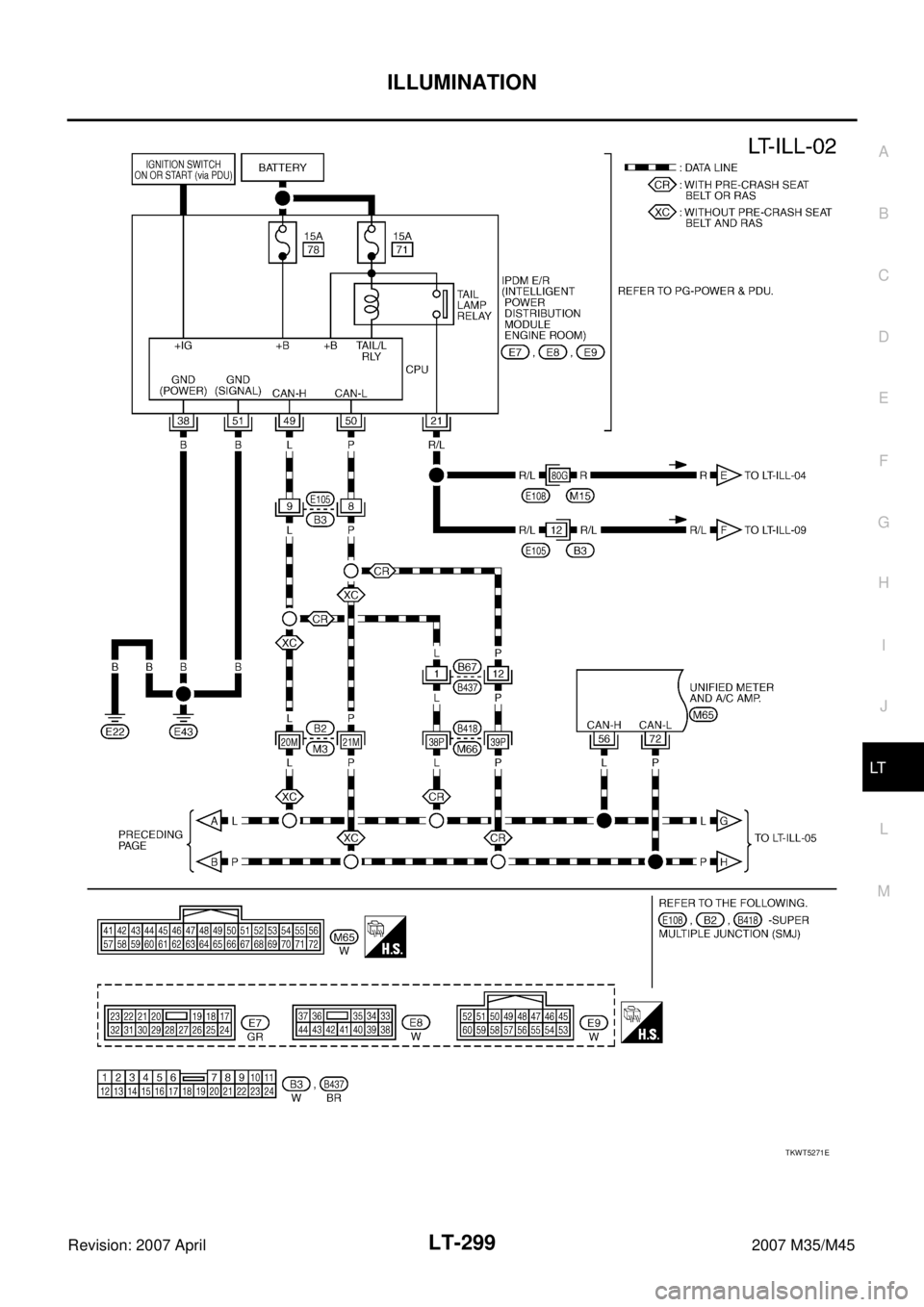

Wiring Diagram — ILL —NKS003TL
TKWT5073E

ILLUMINATION
LT-299
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT5271E
