INFINITI M35 2007 Factory Service Manual

LU-26
[VK45DE]
LUBRICATION SYSTEM
Revision: 2007 April2007 M35/M45

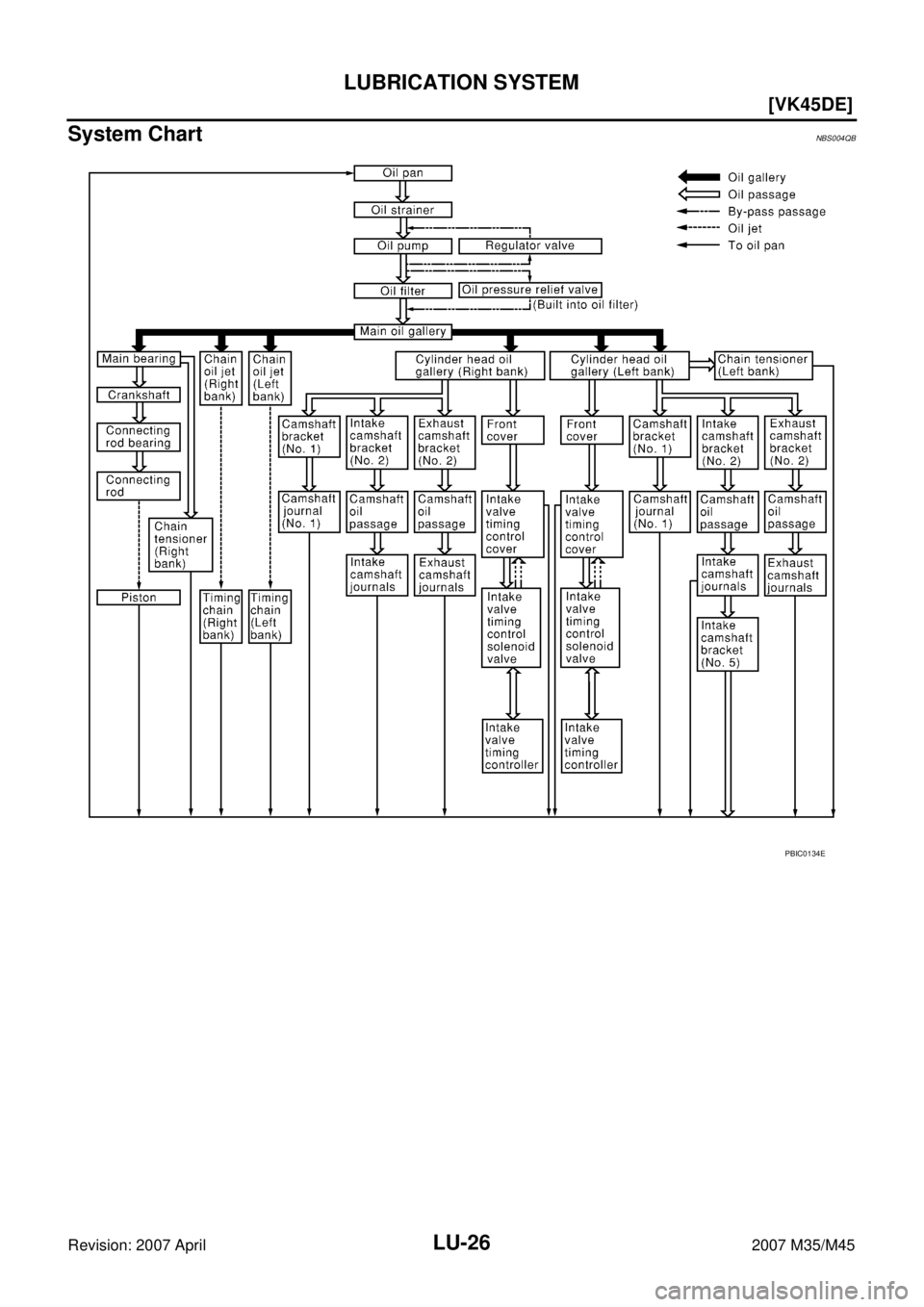

System ChartNBS004QB
PBIC0134E

ENGINE OIL
LU-27
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
ENGINE OILPFP:KLA92
InspectionNBS004QC
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 15 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within
the range shown in the figure.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for oil leakage around the following area.

Oil pan

Oil pan drain plug

Oil pressure switch

Oil filter

Intake valve timing control cover

Intake valve timing control solenoid valve

Front cover

Chain tensioner cover

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seals (front and rear)
OIL PRESSURE CHECK
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.
1. Check the engine oil level. Refer to LU-27, "
ENGINE OIL LEVEL" .
2. Remove front engine undercover with power tool.
3. Disconnect harness connector at oil pressure switch, and
remove oil pressure switch using deep socket (commercial ser-
vice tool).
CAUTION:
Do not drop or shock oil pressure switch.
PBIC0801E
PBIC1524E

LU-28
[VK45DE]
ENGINE OIL
Revision: 2007 April2007 M35/M45
4. Install oil pressure gauge and hose (SST).
5. Start engine and warm it up to normal operating temperature.
6. Check the engine oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80°C (176°F)]
Unit: kPa (kg/cm2 , psi)
If difference is extreme, check oil passage and oil pump for oil leaks.
7. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-47, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS004QD
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components. Refer
to LU-27, "
ENGINE OIL LEAKAGE" .
2. Stop engine and wait for 15 minutes.
3. Loosen oil filler cap.
4. Remove mounting bolts, and then pull down the rear of front engine undercover and secure it using clip.
5. Remove drain plug and then drain engine oil.
SLC926
Engine speed Approximate discharge pressure
Idle speed More than 98 (1.0, 14)
2,000 rpm More than 294 (3.0, 43)
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
PBIC0993E

ENGINE OIL
LU-29
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
6. Install drain plug with new washer. Refer to EM-187, "OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil.
Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, Imp qt)
CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up engine and check area around drain plug and oil filter for oil leakage.
9. Stop engine and wait for 15 minutes.
10. Check the engine oil level. Refer to LU-27, "
ENGINE OIL LEVEL" . Oil pan drain plug:
: 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refillWith oil filter change 5.5 (5-3/4, 4-7/8)
Without oil filter change 4.9 (5-1/8, 4-1/4)
Dry engine (engine overhaul) 6.7 (7-1/8, 5-7/8)

LU-30
[VK45DE]
OIL FILTER
Revision: 2007 April2007 M35/M45
OIL FILTERPFP:15208
Removal and InstallationNBS004QE
REMOVAL
1. Remove front engine undercover with power tool.
2. Using the oil filter wrench (SST), remove the oil filter.
CAUTION:

Oil filter is provided with relief valve. Use Genuine Nissan
Oil Filter or equivalent.

Be careful not to get burned when engine and engine oil
may be hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.
INSTALLATION
1. Remove foreign materials adhering to oil filter installation surface.
2. Apply new engine oil to the oil seal circumference of the new oil
filter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-27, "ENGINE OIL" .
2. Start engine, and check there is no leaks of engine oil.
3. Stop engine and wait for 15 minutes.
4. Check the engine oil level and adjust engine oil. Refer to LU-27, "
ENGINE OIL" .
PBIC1525E
SMA010
Oil filter:
:17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B

OIL PUMP
LU-31
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
OIL PUMPPFP:15010
ComponentsNBS004QF
Removal and InstallationNBS004QG
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-247, "ENGINE ASSEMBLY" .
2. Remove front cover. Refer to EM-203, "
TIMING CHAIN" .
3. Remove oil pump drive spacer.

Set bolts in the two bolt holes [M6 × pitch 1.0 mm (0.04 in)] on
the front surface. Using suitable puller, pull oil pump drive
spacer off from crankshaft.
NOTE:
The dimension between the centers of the two bolt holes is 33
mm (1.30 in).
In the figure, a commercial steering puller is used.
4. Remove oil pump.
INSTALLATION
1. Install the oil pump.
2. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank-
shaft key and the two flat surfaces of oil pump inner rotor.

If the positional relationship does not allow the insertion,
rotate oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi-
tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Oil pump drive spacer 6. Regulator valve
7. Regulator valve spring 8. Regulator valve plug
PBIC1592E
PBIC0054E
PBIC0058E

LU-32
[VK45DE]
OIL PUMP
Revision: 2007 April2007 M35/M45
3. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-27, "ENGINE OIL" .
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 15 minutes.
4. Check the engine oil level and adjust engine oil. Refer to LU-27, "
ENGINE OIL" .
Disassembly and AssemblyNBS004QH
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance

Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil pump body
(Position 1)
–Tip clearance between oil pump inner rotor and oil pump outer
rotor (Position 2)
–If out of the standard, replace inner rotor and outer rotor.

Measure the clearance with feeler gauge and straightedge.
–Side clearance between oil pump inner rotor and oil pump body
(Position 3)
–Side clearance between oil pump outer rotor and oil pump body
(Position 4)

Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP INNER ROTOR OUTER DIAMETER
–Measure the outer diameter of protruded portion of oil pump
inner rotor with micrometer. (Position 5)Standard : 0.114 - 0.200 mm (0.0045 - 0.0079 in)
Standard : Below 0.180 mm (0.0071 in)
PBIC0139E
Standard : 0.030 - 0.070 mm (0.0012 - 0.0028 in)
Standard : 0.030 - 0.090 mm (0.0012 - 0.0035 in)
PBIC0140E
PBIC0141E

OIL PUMP
LU-33
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position 6)
OIL PUMP INNER DIAMETER TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)

If the measured/calculated values are out of the standard, replace oil pump assembly.
Regulator Valve Clearance
(Clearance) = D1 (Valve hole diameter) – D2 (Regulator valve outer
diameter of valve)

If the calculated value is out of the standard, replace oil pump
assembly.
CAUTION:

Coat regulator valve with engine oil.

Make sure that it falls smoothly into regulator valve hole by
its own weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.

Install oil pump inner rotor and oil pump outer rotor with the
punched marks on the oil pump cover side.
PBIC0142E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0143E
PBIC0144E

LU-34
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2007 April2007 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS004QI
ENGINE OIL PRESSURE
Unit: kPa (kg/cm2 /psi)
*: Engine oil temperature at 80°C (176°F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in) Engine speed Approximate discharge oil pressure*
Idle speed More than 98 (1.0, 14)
2,000 rpm More than 294 (3.0, 43)
Drain and refillWith oil filter change 5.5 (5-3/4, 4-7/8)
Without oil filter change 4.9 (5-1/8, 4-1/4)
Dry engine (engine overhaul) 6.7 (7-1/8, 5-7/8)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.200 (0.0045 - 0.0079)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.0071)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Oil pump body to oil pump outer rotor axial clearance 0.030 - 0.090 (0.0012 - 0.0035)
Oil pump inner rotor to oil pump body clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump body clearance 0.040 - 0.097 (0.0016 - 0.0038)

MA-1
MAINTENANCE
L MAINTENANCE
CONTENTS
C
D
E
F
G
H
I
J
K
M
SECTION MA
A
B
MA
Revision: 2007 April2007 M35/M45
MAINTENANCE
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
GENERAL MAINTENANCE ....................................... 4
Explanation of General Maintenance ....................... 4
PERIODIC MAINTENANCE ....................................... 7
Introduction of Periodic Maintenance ....................... 7
Schedule 1 ............................................................... 8
EMISSION CONTROL SYSTEM MAINTE-
NANCE .................................................................. 8
CHASSIS AND BODY MAINTENANCE ............... 9
Schedule 2 ............................................................. 10
EMISSION CONTROL SYSTEM MAINTE-
NANCE ................................................................ 10
CHASSIS AND BODY MAINTENANCE ............. 10
RECOMMENDED FLUIDS AND LUBRICANTS ...... 12
Fluids and Lubricants ............................................. 12
Engine Oil Recommendation ................................. 13
Anti-Freeze Coolant Mixture Ratio ......................... 13
ENGINE MAINTENANCE (VQ35DE ENGINE) ......... 14
Checking Drive Belts .............................................. 14
Tension Adjustment ................................................ 14
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ........................................................ 15
A/C COMPRESSOR BELT ................................. 15
Changing Engine Coolant ...................................... 15
DRAINING ENGINE COOLANT ......................... 15
REFILLING ENGINE COOLANT ........................ 16
FLUSHING COOLING SYSTEM ......................... 17
Checking Fuel Lines ............................................... 18
Changing Air Cleaner Filter .................................... 18
VISCOUS PAPER TYPE ..................................... 18
Changing Engine Oil .............................................. 18
Changing Oil Filter ................................................. 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 20
INSPECTION AFTER INSTALLATION ............... 20
Changing Spark Plugs (Platinum-Tipped Type) ..... 20
REMOVAL ........................................................... 20
INSPECTION AFTER REMOVAL ....................... 21INSTALLATION ................................................... 21
Checking EVAP Vapor Lines .................................. 21
ENGINE MAINTENANCE (VK45DE ENGINE) ......... 22
Checking Drive Belts .............................................. 22
Tension Adjustment ................................................ 22
Changing Engine Coolant ....................................... 22
DRAINING ENGINE COOLANT .......................... 22
REFILLING ENGINE COOLANT ......................... 23
FLUSHING COOLING SYSTEM ......................... 24
Checking Fuel Lines ............................................... 25
Changing Air Cleaner Filter .................................... 25
VISCOUS PAPER TYPE ..................................... 25
Changing Engine Oil ............................................... 25
Changing Oil Filter .................................................. 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
INSPECTION AFTER INSTALLATION ................ 27
Changing Spark Plugs (Platinum-Tipped Type) ...... 27
REMOVAL ........................................................... 27
INSPECTION AFTER REMOVAL ....................... 27
INSTALLATION ................................................... 28
Checking EVAP Vapor Lines .................................. 28
CHASSIS AND BODY MAINTENANCE ................... 29
Checking Exhaust System ...................................... 29
Checking A/T Fluid ................................................. 29
Changing A/T Fluid ................................................. 31
Checking Transfer Fluid ......................................... 31
Changing Transfer Fluid ......................................... 32
Checking Propeller Shaft ........................................ 32
Checking Differential Gear Oil ................................ 32
Changing Differential Gear Oil ................................ 33
Balancing Wheels (Bonding Weight Type) ............. 33
REMOVAL ........................................................... 33
WHEEL BALANCE ADJUSTMENT ..................... 33
Rotation .................................................................. 35
Checking Brake Fluid Level and Leaks .................. 35
Checking Brake Lines and Cables ......................... 35
Changing Brake Fluid ............................................. 35
Checking Disc Brake .............................................. 36
ROTOR ................................................................ 36
