INFINITI M35 2007 Factory Service Manual

LT-310
ILLUMINATION
Revision: 2007 April2007 M35/M45
TKWT3594E

ILLUMINATION
LT-311
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Glove Box LampNKS003TM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove glove box cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn globe box lamp bulb socket (1) counterclockwise and
unlock it.
3. Remove bulb (2).
Installation
Installation is the reverse order of removal.
Cigarette Lighter IlluminationNKS003TN
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal
1. Remove A/T console finisher. Refer to IP-11, "Removal and Installation of Instrument Panel & Pad" .
2. Remove screws (A).
3. Use a screwdriver to undo hooks, remove bulb sockets (1).
4. Remove bulb (2).
Installation
Installation is the reverse order of removal.Glove box lamp : 12V - 1.4W
SKIB4206E
SKIB4207E
Front ashtray and cigarette lighter
illumination: 12V - 1.4W
SKIB4209E

LT-312
ILLUMINATION
Revision: 2007 April2007 M35/M45
Front Ashtray IlluminationNKS003TO
BULB REPLACEMENT, REMOVAL AND INSTALLATION
Refer to LT- 3 1 2 , "Front Ashtray Illumination" .
Rear Ashtray IlluminationNKS003TP
REMOVAL AND INSTALLATION
1. Remove rear door finisher. Refer to EI-34, "DOOR FINISHER" .
2. Turn rear ashtray illumination bulb socket (1) counterclockwise
and unlock it.
3. Remove bulb (2).
INSTALLATION
Installation is the reverse order of removal.Rear ashtray illumination : 12V - 1.4W
SKIB4210E

BULB SPECIFICATIONS
LT-313
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
BULB SPECIFICATIONSPFP:26297
HeadlampNKS003TQ
Exterior LampNKS003TR
Interior Lamp/IlluminationNKS003TS
NOTE:
This lamp is used as both front ashtray and front cigarette lighter.Item Wattage (W)
Low (Halogen type)55 (H1)
Low (Xenon type)35 (D2S)
High60 (HB3)
Item Wattage (W)
Front combination lampFront turn signal lamp 21
Parking lamp 5
Front side marker lamp 5
Rear combination lampStop/Tail lamp LED
Rear turn signal lamp 21 (amber)
Rear side marker lamp LED
Back-up lamp18
Side turn signal lamp5
Front fog lamp55 (H11)
License plate lamp5
High-mounted stop lampLED
Item Wattage (W)
Map lamp8
Personal lamp8
Trunk room lampUpper
5
Lower
Front ashtray and front cigarette lighter illumination
NOTE1.4
Rear ashtray illumination1.4
Ste p lamp5
Vanity mirror lamp1.8
Center console indirect illuminationLED
Glove box lamp1.4
Foot lampDriver side
3.4
Passenger side
Kicking plateDriver side
LED
Passenger side
Power window indirect illuminationLED

LT-314
BULB SPECIFICATIONS
Revision: 2007 April2007 M35/M45

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: 2007 April2007 M35/M45
ENGINE LUBRICATION SYSTEM
VQ35DE
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Chart ........................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 8
Changing Engine Oil ................................................ 9
OIL FILTER ................................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSTALLATION .................................................... 11
INSPECTION AFTER INSTALLATION ................ 11
OIL FILTER BRACKET (AWD) ................................. 13
Components ........................................................... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 14
OIL COOLER ............................................................ 15
Components ........................................................... 15
Removal and Installation ........................................ 16
REMOVAL ........................................................... 16
INSPECTION AFTER REMOVAL ....................... 17
INSTALLATION ................................................... 17
INSPECTION AFTER INSTALLATION ............... 17
OIL PUMP ................................................................. 19
Components ........................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 19INSPECTION AFTER INSTALLATION ................ 19
Disassembly and Assembly .................................... 19
DISASSEMBLY ................................................... 19
INSPECTION AFTER DISASSEMBLY ................ 20
ASSEMBLY ......................................................... 21
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 22
Standard and Limit .................................................. 22
ENGINE OIL PRESSURE ................................... 22
ENGINE OIL CAPACITY (APPROXIMATE) ........ 22
OIL PUMP ........................................................... 22
REGULATOR VALVE .......................................... 22
VK45DE
PRECAUTIONS ........................................................ 23
Precautions for Liquid Gasket ................................ 23
LIQUID GASKET APPLICATION PROCEDURE ... 23
PREPARATION ......................................................... 24
Special Service Tools ............................................. 24
Commercial Service Tools ...................................... 24
LUBRICATION SYSTEM .......................................... 25
Lubrication Circuit ................................................... 25
System Chart .......................................................... 26
ENGINE OIL .............................................................. 27
Inspection ............................................................... 27
ENGINE OIL LEVEL ............................................ 27
ENGINE OIL APPEARANCE .............................. 27
ENGINE OIL LEAKAGE ...................................... 27
OIL PRESSURE CHECK .................................... 27
Changing Engine Oil ............................................... 28
OIL FILTER ............................................................... 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30
INSPECTION AFTER INSTALLATION ................ 30
OIL PUMP ................................................................. 31
Components ........................................................... 31
Removal and Installation ........................................ 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31

LU-2Revision: 2007 April2007 M35/M45 INSPECTION AFTER INSTALLATION ................ 32
Disassembly and Assembly .................................... 32
DISASSEMBLY ................................................... 32
INSPECTION AFTER DISASSEMBLY ................ 32
ASSEMBLY ......................................................... 33SERVICE DATA AND SPECIFICATIONS (SDS) ...... 34
Standard and Limit .................................................. 34
ENGINE OIL PRESSURE .................................... 34
ENGINE OIL CAPACITY (APPROXIMATE) ........ 34
OIL PUMP ............................................................ 34
REGULATOR VALVE ........................................... 34

PRECAUTIONS
LU-3
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS004PR
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.

Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Apply liquid gasket to the liquid gasket application surface.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-47, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .

Within five minutes of liquid gasket application, install the mating component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

LU-4
[VQ35DE]
PREPARATION
Revision: 2007 April2007 M35/M45
PREPARATIONPFP:00002
Special Service ToolsNBS004PS
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNBS004PT
Tool number
(Kent-Moore No.)
Tool nameDescription
ST25051001
(J25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg-cm
2 , 356 psi)
ST25052000
(J25695-2)
HoseAdapting oil pressure gauge to oil pan (upper)
KV10115801
(J38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 mm (2.531 in)
NT050
S-NT559
S-NT375
Tool nameDescription
Power toolsLoosening nuts and bolts
Deep socketRemoving and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E

LUBRICATION SYSTEM
LU-5
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2007 April2007 M35/M45
LUBRICATION SYSTEMPFP:15010

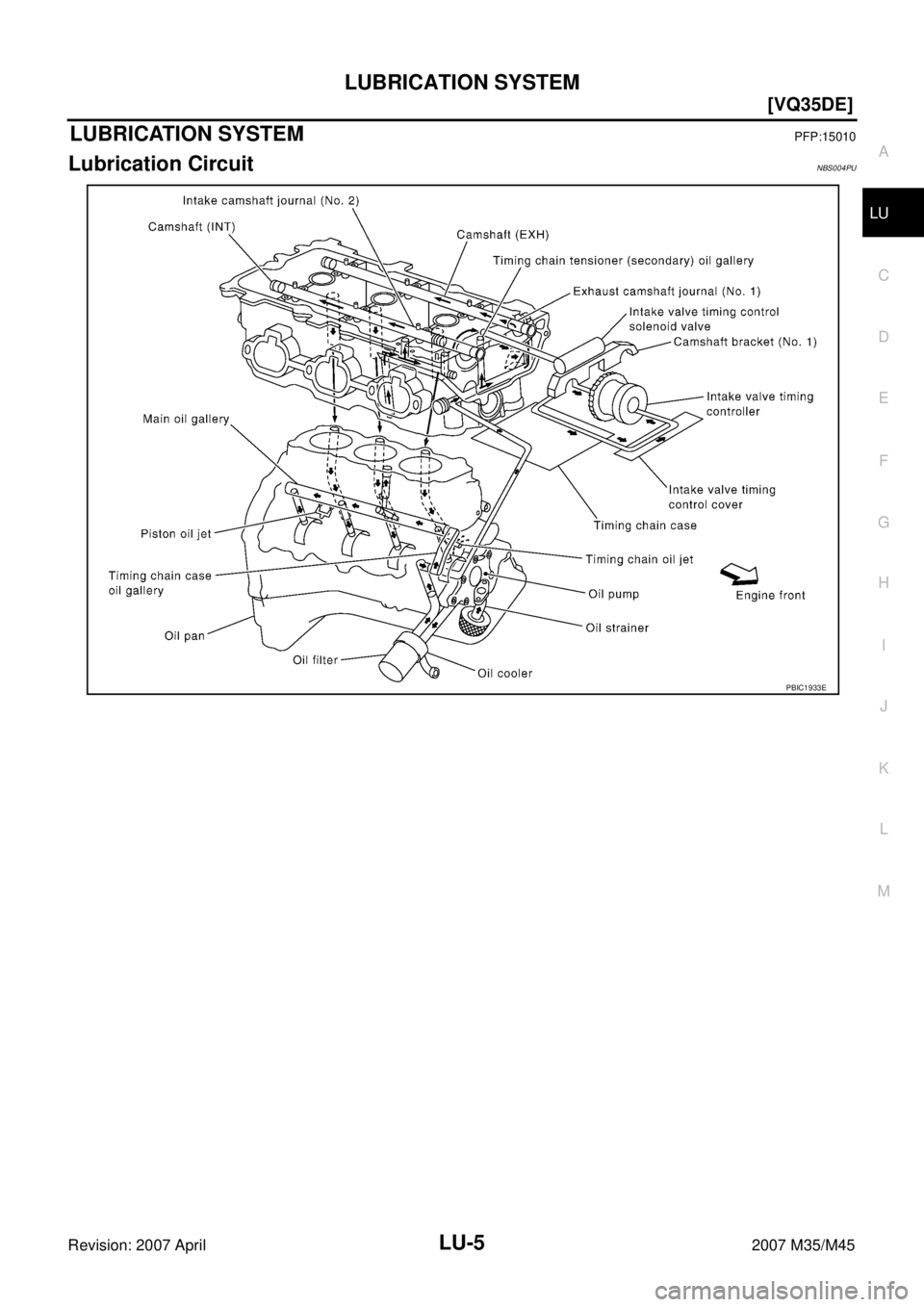

Lubrication CircuitNBS004PU
PBIC1933E
