7. CHECK VEHICLE SPEED SIGNAL CIRCUIT
Change the vehicle speed, and then check voltage waveform
between power steering control unit harness connector M8 and
ground.
OK or NG
OK >> Power steering control unit is inoperative. Replace it.
NG >> Check the following systems and replace if necessary.

Harness between unified meter & A/C amp and power steering control unit.

Unified meter & A/C amp and vehicle speed signal circuit Refer to DI-28, "UNIFIED METER
AND A/C AMP" .
8. CHECK ENGINE SPEED SIGNAL CIRCUIT
Warm up the engine, and then check voltage waveform between
power steering control unit harness connector M8 and ground when
the engine speed is the idling and at approximately 2,000 rpm.
OK or NG
OK >> Power steering control unit is inoperating. Replace it.
NG >> Check the following systems and replace if malfunction is detected.

Harness between ECM and power steering control unit

ECM engine speed signal circuit. Refer to EC-826, "CONSULT-II Function (ENGINE)" .
Terminal 3 – GroundRepeat Approx. 0 V and approx. 5 V
SGIA1237EELF1080D
Terminal 5 – GroundAt Idle
Approx. 2,000 rpmSGIA1289EPBIA3654J
PBIA3655J

REAR ACTIVE STEER
STC-13
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2007 April2007 M35/M45
[RAS]REAR ACTIVE STEERPFP:55705
Removal and InstallationNGS000E5
COMPONENTS
REMOVAL
1. Remove coil spring. Refer to RSU-16, "REAR LOWER LINK & COIL SPRING" .
2. Disconnect harness connector from RAS actuator assembly and rear suspension member.
3. Remove fixing bolts and nuts of RAS actuator assembly (1), and
then remove RAS actuator assembly (1) from rear suspension
member.
INSTALLATION

Installation is the reverse order of removal. For tightening torque, refer to STC-13, "COMPONENTS" .

When installing RAS actuator assembly to rear suspension member, check the mounting surfaces of RAS
actuator assembly and rear suspension member for oil, dirt, sand, or other foreign materials.

To perform the neutral position adjustment. Refer to STC-14, "Neutral Position Adjustment" .
1. Rear lower link 2. Decenter cam 3. RAS actuator assembly
Refer to GI-11, "
Components" , for the symbols in the figure.
SGIA1238E
SGIA1239E

STC-14
[RAS]
REAR ACTIVE STEER
Revision: 2007 April2007 M35/M45
Disassembly and AssemblyNGS000E6
COMPONENTS
DISASSEMBLY
1. Remove mounting bolts of RAS motor assembly, and then remove RAS motor assembly, ground terminal,
O-ring from RAS actuator.
2. Remove mounting bolt of rear wheel steering angle sensor, and then remove rear wheel steering angle
sensor, O-ring from RAS actuator.
INSPECTION AFTER DISASSEMBLY
Check RAS actuator bracket (rear wheel steering angle sensor mounting area) for crush, deformation, cracks,
or other damage. Replace the RAS actuator malfunction is detected.
ASSEMBLY

Assembly is the reverse order of disassembly. For tightening torque, refer to STC-14, "COMPONENTS" .

After assembling RAS actuator assembly (after removing and installing rear wheel steering angle sensor
and RAS motor), perform the neutral position adjustment.
Neutral Position AdjustmentNGS000E7
Adjust neutral position after performing the following procedure.

Removing and installing or replacing the RAS actuator assembly

Disassembling the RAS actuator assembly (when removing rear wheel steering angle sensor and RAS
motor)
CAUTION:
Perform the neutral position adjustment after installing the RAS actuator assembly to the vehicle.
Before that, remove the rear lower link from the RAS actuator.
1. Disconnect harness connector and remove rear wheel steering angle sensor from the RAS actuator
assembly.
2. Disconnect RAS motor harness connector.
3. Turn ignition switch ON.
1. Ground terminal 2. RAS motor assembly 3. O-ring
4. RAS actuator 5. Rear wheel steering angle sensor
Refer to GI-11, "
Components" , for the symbols in the figure.
SGIA1052J

REAR ACTIVE STEER
STC-15
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2007 April2007 M35/M45
4. Supply 6 V voltage by connecting the four 1.5 V batteries in a
series. Connect them to the RAS motor connector (motor side),
and then operate the motor and adjust the rack in the neutral
position (A).
CAUTION:
Do not supply 12 V voltage (battery, etc) to the RAS motor.
NOTE:
For right stroke, connect positive probe to the RAS motor con-
nector terminal 1. For left stroke, connect it to the terminal 2.
5. Install rear wheel steering angle sensor with O-ring to the RAS
actuator assembly. Temporarily tighten the mounting bolts in the specified torque that the sensor can be
moved by hand.
6. Turn and adjust the rear wheel steering angle sensor so as to make each sensor signal of “DATA MONI-
TOR” mode to the following standard with CONSULT-II.
CAUTION:
During DATA MONITOR mode, “MONITORING ERROR” is displayed. But there is not malfunction
in this procedure.
7. Tighten rear wheel steering angle sensor mounting bolts.
8. Perform “ERASE” with CONSULT-II, and then erase the error memory of rear wheel steering angle sen-
sor. Refer to STC-29, "
How to Erase Self-Diagnostic Results" .
9. Perform CONSULT-II “SELF-DIAG RESULTS” again, and then make sure that there is no malfunction.
Refer to STC-28, "
SELF-DIAG RESULT MODE" . Full stroke (B) : 6.8 - 7.2 mm (0.268 - 0.283 in)
STEERING ANG (°) L - 0, R - 0, N - 0
RR ST ANG-MAI (V) Approx. 2.4
RR ST ANG-SUB (V) Approx. 2.4
RR ST ANG-VOL (V) Approx. 5.0
SGIA1240E

STC-16
[RAS]
SYSTEM DESCRIPTION
Revision: 2007 April2007 M35/M45
SYSTEM DESCRIPTIONPFP:00000
ComponentsNGS000E8
RAS (Rear Active Steer) FunctionNGS000E9
A. RAS control unit B. Model following control C. Target vehicle dynamics model
D. Rear wheel steering angle com-
mand value operationE. Rear wheel steering angle servo F. Vehicle speed signal (CAN)
G. Steering angle signal (CAN) H. Vehicle speed sensor I. Steering angle sensor
J. RAS actuator assembly
SGIA1241E
Part name Function
RAS control unit

Calculate the vehicle speed signal from CAN communication and the signals from steering
angle sensor and rear wheel steering angle sensor by a computer, and then control the rear
wheel steering angle.

Fail-safe function is activated when the electrical system is malfunctioning. The output signal
to the actuator is turned OFF during this mode. At that time, the RAS warning lamp illumi-
nates and indicates the system is malfunctioning.

It performs the communication control function with other control units via CAN communica-
tion.

This enables system diagnosis with CONSULT-II.
RAS actuatorThe efficiency of the rear wheel steer improves by locating the electric motor actuator into the
lower link of rear suspension.
Steering angle sensor

Measure the steering angle and send it to RAS control unit via CAN communication.

It is shared with the steering angle sensor for VDC.
Rear wheel steering angle sensor

It sends the rear wheel steering angle status to RAS control unit. The accuracy of rear wheel
steer improves by comparing the vehicle speed signal from CAN communication with the
rear wheel steering angle target value calculated from the wheel angle sensor signal, and it
controls them.

There are 2 types of rear wheel steering angle sensors (main/sub). If one of them is malfunc-
tioning, the other operates the fail-safe mode and stops the control.
RAS warning lamp

It turns on when the fail-safe function is operated and indicates that a RAS control malfunc-
tion has occurred.

It turns on when ignition switch turns on and turns off after the engine is started.

It indicates the suspect system by blinking when performing the self-diagnosis (without CON-
SULT-II).

SYSTEM DESCRIPTION
STC-17
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2007 April2007 M35/M45
Fail-Safe FunctionNGS000EA
In the event there is a malfunction with the electrical system, the RAS control is stopped and the fail-safe
mode is activated. At that time, it indicates the malfunction by turning the RAS warning lamp ON and stops the
rear wheel control.

STC-18
[RAS]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSISPFP:00004
How to Perform Trouble DiagnosisNGS000EB
BASIC CONCEPT

The most important point to perform trouble diagnosis is to understand systems (control and mechanism)
in vehicle thoroughly.

It is also important to clarify customer complaints before inspec-
tion.
First of all, reproduce symptom, and understand it fully.
Ask customer about his/her complaints carefully. In some cases,
they will be necessary to check symptom by driving vehicle with
customer.
CAUTION:
Customers are not professionals. Do not assume “maybe
customer means...” or “maybe customer mentioned this
symptom”.

It is essential to check symptoms right from beginning in order to
repair a malfunction completely.
For an intermittent malfunction, it is important to reproduce
symptom based on interview with customer and past examples.
Do not perform inspection on ad hoc basis. Most intermittent
malfunctions are caused by poor contacts. In this case, it will be
effective to shake suspected harness or connector by hand.
When repairs are performed without any symptom check, no
one can judge if malfunction has actually been eliminated.

After diagnosis, make sure to perform “ERASE MEMORY”.
Refer to STC-29, "
How to Erase Self-Diagnostic Results" .

Always read “GI General Information” to confirm general precau-
tions. Refer to GI-4, "
General Precautions" .
EFJ0028D
SEF233G

TROUBLE DIAGNOSIS
STC-19
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2007 April2007 M35/M45
Component Parts LocationNGS000EC
A. RAS warning lamp B. Steering angle sensor C. RAS control unit
D. RAS motor relay E. RAS motor F. Rear wheel steering angle sensor
G. Noise suppressor
SGIA1053J

STC-20
[RAS]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
SchematicNGS000ED

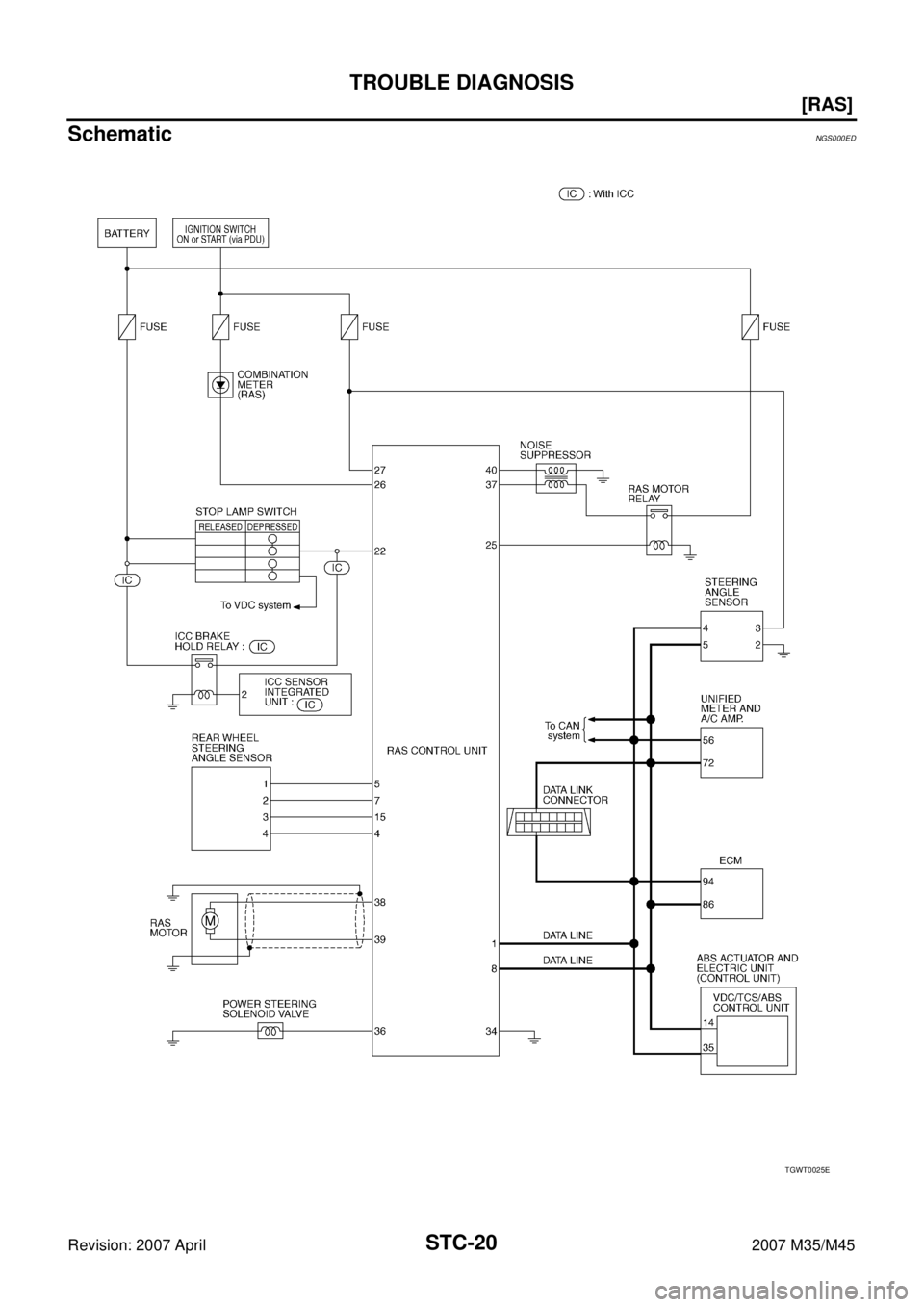

TGWT0025E

TROUBLE DIAGNOSIS
STC-21
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2007 April2007 M35/M45
Wiring Diagram — RAS —NGS000EE
TGWT0062E
