bulb INFINITI M35 2007 Factory Workshop Manual

LT-224
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45
Turn Signal Lamp Does Not OperateNKS003RU
1. CHECK BULB
Check bulb standard of each turn signal lamp is correct.
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb.
2. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure “TURN SIGNAL R” and “TURN SIGNAL L” turns ON-
OFF linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 2 3 9 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Check combination switch (lighting switch). Refer to LT- 2 3 9 , "
Combination Switch Inspection" .
3. ACTIVE TEST
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT
TEST ITEM” screen.
2. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
Select “FLASHER” on “SELECT TEST ITEM” screen.
3. Make sure operation of turn signal lamps.
Without CONSULT-II
GO TO 4.
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> GO TO 4.When lighting switch is
TURN RH position: TURN SIGNAL R ON
When lighting switch is
TURN LH position: TURN SIGNAL L ON
PKIA7600E
Turn signal lamp should operate.
SKIA6190E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-229
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Bulb Replacement/Removal and Installation of Side Turn Signal LampNKS003RX
: Vehicle front
REMOVAL
1. While pressing the side turn signal lamp (1) to direction A (Vehi-
cle front), pull direction B of it and remove.
2. Disconnect side turn signal lamp connector.
CAUTION:

Support side turn signal lamp harness with tape so that it
won't fall into the front fender.

Fix the pawl side of side turn signal lamp housing back at
first. Then install side turn signal lamp while pushing
resin clip side.
3. Turn bulb socket (1) counterclockwise and unlock it.
4. Remove bulb (2).
INSTALLATION
Installation is the reverse order of removal.
Bulb Replacement (Front Turn Signal Lamp)NKS003RY
Refer to LT- 3 8 , "Bulb Replacement" in “HEADLAMP -CONVENTIONAL TYPE-”.
Refer to LT- 7 3 , "
Bulb Replacement" in “HEADLAMP -XENON TYPE-”.
Bulb Replacement (Rear Turn Signal Lamp)NKS003RZ
Refer to LT- 2 6 5 , "Bulb Replacement" .
Removal and Installation of Front Turn Signal LampNKS003S0
Refer to LT- 4 0 , "Removal and Installation" in “HEADLAMP -CONVENTIONAL TYPE-”.
Refer to LT- 7 5 , "
Removal and Installation" in “HEADLAMP -XENON TYPE-”
Removal and Installation of Rear Turn Signal Lamp NKS003S1
Refer to LT- 2 6 5 , "Removal and Installation" .
SKIB4184E
Side turn signal lamp : 12V - 5W
SKIB4185E

LT-244
STOP LAMP
Revision: 2007 April2007 M35/M45
High-Mounted Stop Lamp NKS003SC
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove rear parcel shelf finisher. Refer to EI-42, "REAR PARCEL SHELF FINISHER" .
2. Turned over protection sheet and disconnect connector.
3. Remove screws (A) and remove high-mounted stop lamp (1)
from rear parcel shelf finisher.
Stop LampNKS003SD
BULB REPLACEMENT
Refer to LT- 2 6 5 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
Refer to LT- 2 6 5 , "Removal and Installation" . High-mounted stop lamp : LED
SKIB4187E

LT-246
BACK-UP LAMP
Revision: 2007 April2007 M35/M45
Bulb ReplacementNKS003SF
1. Remove trunk lid finisher inner. Refer to EI-33, "TRUNK LID FINISHER" .
2. Turn bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2) from its socket.
Back-up lamp : 12V-18W
SKIB4189E

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-263
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
6. CHECK PARKING, LICENSE PLATE AND TAIL LAMPS GROUND CIRCUIT
1. Check continuity between front combination lamp harness con-
nector and ground.
2. Check continuity between rear combination lamp harness con-
nector and ground.
3. Check continuity between license plate lamp harness connector
and ground.
OK or NG
OK >> Check bulbs.
NG >> Repair harness or connector.
Parking, License Plate and Tail Lamps Do Not Turn OFF (After Approx. 10 Min-
utes)
NKS003SU

This symptom indicates the malfunction of ignition relay in IPDM E/R. Refer to PG-19, "Function of
Detecting Ignition Relay Malfunction" .

Select “BCM” on CONSULT-II. Select “HEADLAMP” on “SELECT TEST ITEM” screen and select “DATA
MONITOR” on “SELECT DIAG MODE” screen. If “LIGHT SW 1ST” is OFF when lighting switch is OFF,
replace IPDM E/R.
Front combination lamp
(parking and side marker)
connectorTerminal
GroundContinuity
RH E47
1Yes
LH E54
SKIB4839E
Rear combination lamp
(tail and side marker)
connectorTerminal
GroundContinuity
RH B130
4 Yes
LH B135
SKIB4840E
License plate lamp
connectorTerminal
GroundContinuity
RH T105
2 Yes
LH T108
PKIB7990E

LT-264
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2007 April2007 M35/M45
License Plate LampNKS003SV
BULB REPLACEMENT
1. Remove trunk lid finisher inner. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Turn bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2) from its socket.
Removal and InstallationNKS003SW
REMOVAL
1. Remove trunk lid finisher inner. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. From the trunk room inside, push a lamp to outside while push-
ing a resin clip (A).
3. Disconnect connector and remove license plate lamp (1).
INSTALLATION
Installation is the reverse order of removal.
Front Parking (Clearance) LampNKS003SX
BULB REPLACEMENT
Refer to LT- 3 8 , "Bulb Replacement" in “HEAD LAMP - CONVENTIONAL TYPE-”.
Refer to LT- 7 3 , "
Bulb Replacement" in “HEAD LAMP - XENON TYPE-”.
REMOVAL AND INSTALLATION
Refer to LT- 4 0 , "Removal and Installation" . License plate lamp : 12V - 5W
SKIB4191E
SKIB4192E

REAR COMBINATION LAMP
LT-265
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementNKS003SY
REAR TURN SIGNAL LAMP BULB, STOP/TAIL LAMP BULB
1. Remove trunk side finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Turn rear turn signal lamp bulb socket (1) counterclockwise and
unlock it.
3. Remove bulb (2).
Removal and InstallationNKS003SZ
REMOVAL
Rear Fender Side
1. Remove trunk side finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting nuts (A).
4. Pull the rear combination lamp (2) toward rear of the vehicle and
remove from the vehicle.
5. Remove seal packing (1) from the vehicle.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Seal packing cannot be reused.Rear turn signal lamp : 12V - 21W (amber bulb)
Stop tail lamp : LED
SKIB4193E
: N·m (kg-m, in-lb)
: Always replace after every disassembly
SKIB4194E

INTERIOR ROOM LAMP
LT-289
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Map LampNKS003T9
BULB REPLACEMENT
1. Remove lens (1) using clip driver or suitable tool.
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Refer to EI-52, "HEADLINING" .
Personal LampNKS003TA
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Remove screw (A).
2. Use a clip driver or similar tool and remove personal lamp (1).
3. Disconnect connector.
Installation
Installation is the reverse order of removal.Map lamp : 12V - 8 W
SKIB4195E
Personal lamp : 12V - 8W
SKIB4200E
SKIB4201E

LT-290
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
Foot Lamp (Driver Side)NKS003TB
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Use a clip driver or similar tool and remove foot lamp (driver
side) (1).
2. Disconnect connector.
Installation
Installation is the reverse order of removal.Foot lamp (Driver side) : 12V - 3.4W
SKIB4202E
SKIB4203E

INTERIOR ROOM LAMP
LT-291
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

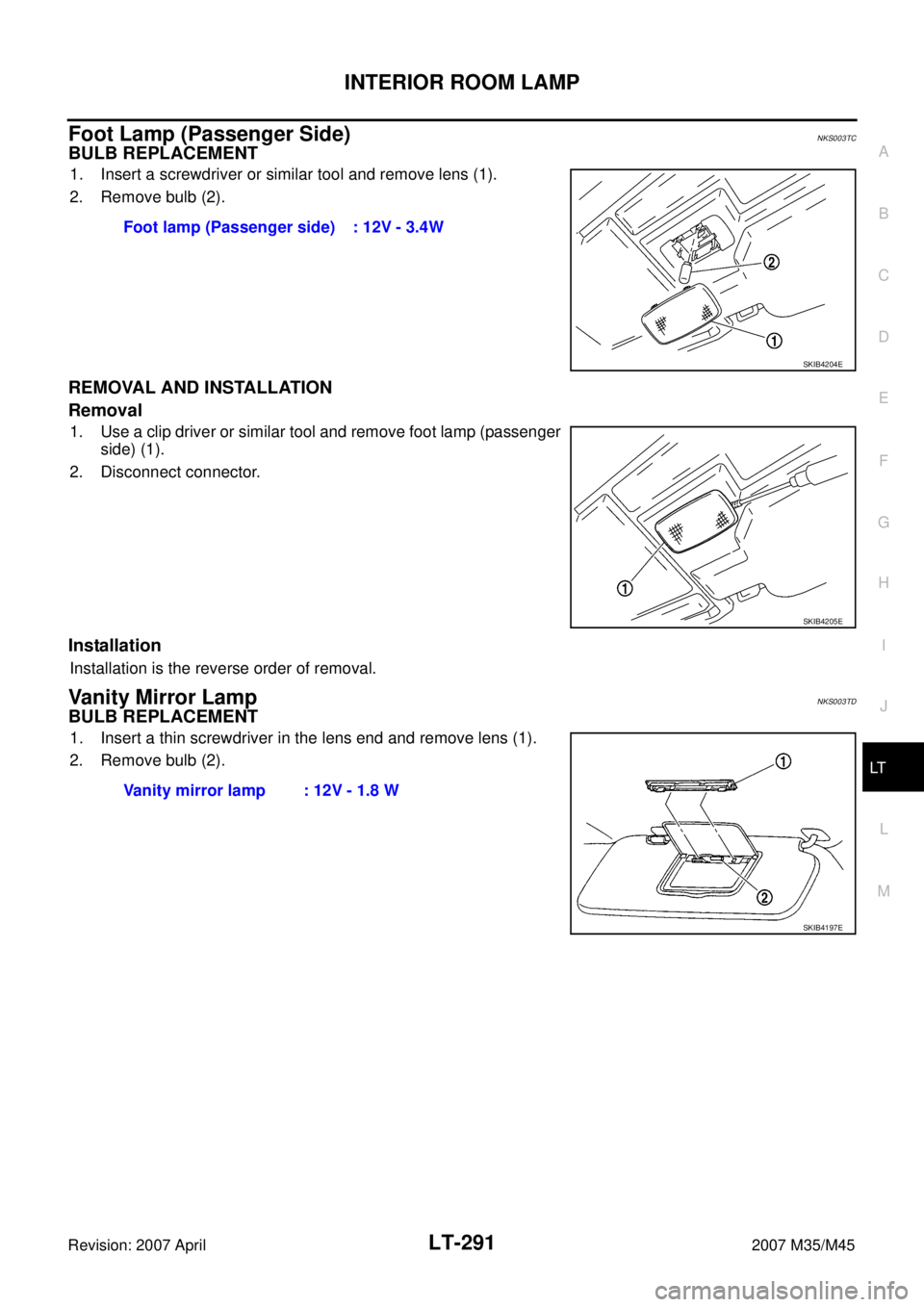

Foot Lamp (Passenger Side)NKS003TC
BULB REPLACEMENT
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
REMOVAL AND INSTALLATION
Removal
1. Use a clip driver or similar tool and remove foot lamp (passenger
side) (1).
2. Disconnect connector.
Installation
Installation is the reverse order of removal.
Vanity Mirror LampNKS003TD
BULB REPLACEMENT
1. Insert a thin screwdriver in the lens end and remove lens (1).
2. Remove bulb (2).Foot lamp (Passenger side) : 12V - 3.4W
SKIB4204E
SKIB4205E
Vanity mirror lamp : 12V - 1.8 W
SKIB4197E
