headrest INFINITI Q50 2014 Owner's Manual

1 Safety—Seats, seat belts and supplemental
restraint system
Seats................................................................... 1-2
Front seats ...................................................... 1-3
Rear seats ....................................................... 1-5
Armrest ........................................................... 1-7
Head restraints/headrests ................................... 1-8 Adjustable head
restraint/headrest components........................ 1-9
Non-adjustable head
restraint/headrest components........................ 1-9
Remove ........................................................... 1-9
Install............................................................ 1-10
Adjust ........................................................... 1-10
Seat belts .......................................................... 1-12
Precautions on seat belt usage ..................... 1-12
Pregnant women ........................................... 1-14
Injured persons ............................................. 1-14
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ......................... 1-14
Three-point type seat belt ............................. 1-15
Seat belt extenders ....................................... 1-21
Seat belt maintenance................................... 1-21
Child safety ....................................................... 1-22 Infants........................................................... 1-23
Small children ............................................... 1-23
Larger children .............................................. 1-23 Child restraints ................................................. 1-24
Precautions on child restraints..................... 1-24
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................ 1-26
Rear-facing child restraint installation
using LATCH................................................. 1-28
Rear-facing child restraint installation using
the seat belts .............................................. 1-30
Forward-facing child restraint installation
using LATCH................................................. 1-33
Forward-facing child restraint installation
using the seat belts ..................................... 1-35
Installing top tether strap ............................ 1-38
Booster seats .............................................. 1-39
Supplemental restraint system .......................... 1-42 Precautions on supplemental
restraint system........................................... 1-42
INFINITI Advanced Air Bag System
(front seats) ................................................. 1-47
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ..................... 1-52
Seat belts with pretensioners (front seats).... 1-54
Supplemental air bag warning labels ........... 1-55
Supplemental air bag warning light ............. 1-55
Repair and replacement procedure............... 1-56

1-8Safety—Seats, seat belts and supplemental restraint system
WARNING
Head restraint/headrest supplement the
other vehicle safety systems. They may
provide additional protection against injury
in certain rear end collisions. Adjustable
head restraint/headrest must be adjusted
properly, as specified in this section. Check
the adjustment after someone else uses the
seat. Do not attach anything to the head
restraint/headrest stalks or remove the
head restraint/headrest. Do not use the
seat if the head restraint/headrest has been
removed. If the head restraint/headrest was
removed, reinstall and properly adjust the
head restraint/headrest before an occupant
uses the seating position. Failure to follow
these instructions can reduce the effective-
ness of the head restraint/headrest. This
may increase the risk of serious injury or
death in a collision.
JVR0089X
The illustration shows the seating posi-
tions equipped with head restraint/head-
rest.
Indicates the seating position is
equipped with a head restraint.
Indicates the seating position is
equipped with a headrest.
+ indicates the seating position is not
equipped with a head restraint or head-
rest.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable. .
Adjustable head restraints/headrests
have multiple notches along the stalk
to lock them in a desired adjustment
position.
. The non-adjustable head restraints/
headrests have single locking notch to
secure them to the seat frame.
. Proper Adjustment:
— For the adjustable type, align the
head restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head re-
straint/headrest.
— If your ear position is still higher
than the recommended alignment,
place the head restraint/headrest at
the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.
HEAD RESTRAINTS/HEADRESTS

SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVE
Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up tothe highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose
in the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant
Safety —Seats, seat belts and supplemental restraint system1-9

1-10Safety—Seats, seat belts and supplemental restraint system
uses the seating position.
SSS1038
INSTALL
1. Align the head restraint/headrest
stalks with the holes in the seat. Make
sure that the head restraint/headrest is
facing the correct direction. The stalk
with the adjustment notch
*1must be
installed in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
SSS0997
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears.
If your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.

JVR0259X
For non-adjustable head restraint/head-
rest
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS1035
Raise
To raise the head restraint/headrest, pull it
up.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
SSS1036
Lower
To lower, push and hold the lock knob and
push the head restraint/headrest down.
Make sure the head restraint/headrest is
positioned so the lock knob is engaged in
the notch before riding in that designated
seating position.
Safety—Seats, seat belts and supplemental restraint system1-11

7. Check to make sure that the childrestraint is properly secured prior to
each use. If the seat belt is not locked,
repeat steps 1 through 6.
After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.
FORWARD-FACING CHILD RESTRAINT
INSTALLATION USING LATCH
Refer to all Warnings and Cautions in the
“Child safety” and“Child restraints” sec-
tions before installing a child restraint.
Follow these steps to install a forward-
facing child restraint using the LATCH
system:
1. Position the child restraint on the seat. Always follow the child restraint man-
ufacturer’s instructions.
SSS0645
Forward-facing web-mounted —step 2
2. Secure the child restraint anchor at-
tachments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point. See “Installing top
tether strap” (P.1-38). Do not install
child restraints that require the use of a
top tether strap in seating positions
that do not have a top tether anchor.
SSS0646
Forward-facing rigid-mounted —step 2
3. The back of the child restraint should
be secured against the vehicle seat-
back.
If necessary, adjust or remove the head
restraint to obtain the correct child
restraint fit. If the head restraint is
removed, store it in a secure place. Be
sure to reinstall the head restraint
when the child restraint is removed.
See “Head restraints/headrests” (P.1-8)
for head restraint adjustment informa-
tion.
If the seating position does not have an
adjustable head restraint and it is
Safety —Seats, seat belts and supplemental restraint system1-33

1-36Safety—Seats, seat belts and supplemental restraint system
2. Position the child restraint on the seat.
Always follow the child restraint man-
ufacturer’s instructions.
The back of the child restraint should
be secured against the vehicle seat-
back.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct child restraint fit. If the head
restraint or headrest is removed, store
it in a secure place. Be sure to reinstall
the head restraint or headrest when
the child restraint is removed. See
“Head restraints/headrests” (P.1-8) for
head restraint or headrest adjustment,
removal and installation information.
If the seating position does not have an
adjustable head restraint or headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.
SSS0360B
Forward-facing —step 3
3. Route the seat belt tongue through the
child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child
restraint manufacturer’ s instructions
for belt routing.
If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point (rear seat installa-
tion only). See “Installing top tether
strap” (P.1-38). Do not install child
restraints that require the use of a top
tether strap in seating positions that do
not have a top tether anchor.
SSS0651
Forward-facing —step 4
4. Pull the shoulder belt until the belt is
fully extended. At this time, the seat
belt retractor is in the Automatic Lock-
ing Retractor (ALR) mode (child restraint
mode). It reverts to Emergency Locking
Retractor (ELR) mode when the seat belt
is fully retracted.

First, secure the child restraint with the
LATCH lower anchors (rear outboard seat
positions only) or the seat belt, as applic-
able.
1. Flip up the anchor cover from theanchor point which is located directly
behind the child seat.
2. If necessary, raise or remove the head restraint or headrest to position the top
tether strap over the top of the seat-
back. If the head restraint or headrest
is removed, store it in a secure place.
Be sure to reinstall the head restraint or
headrest when the child restraint is
removed.
See “Head restraints/headrests” (P.1-
8) for head restraint or headrest
adjustment, removal and installation
information.
Position the top tether strap over the
top of the seatback.
3. Secure the tether strap to the tether anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this
section before tightening the tether
strap. If you have any questions when installing
a top tether strap, consult your INFINITI
retailer for details.
BOOSTER SEATS
Precautions on booster seats

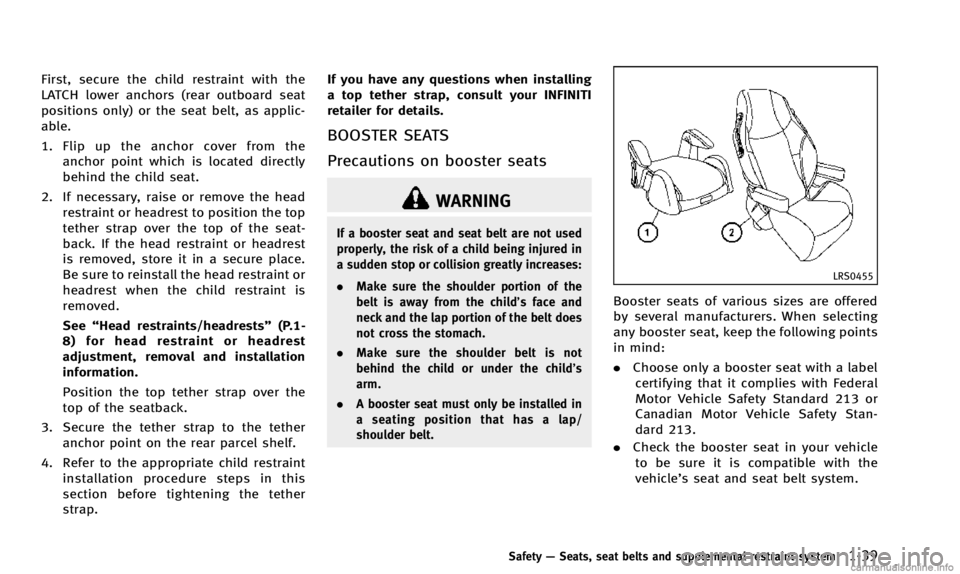

WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured in
a sudden stop or collision greatly increases:
.
Make sure the shoulder portion of the
belt is away from the child’s face and
neck and the lap portion of the belt does
not cross the stomach.
. Make sure the shoulder belt is not
behind the child or under the child’s
arm.
. A booster seat must only be installed in
a seating position that has a lap/
shoulder belt.
LRS0455
Booster seats of various sizes are offered
by several manufacturers. When selecting
any booster seat, keep the following points
in mind:
.Choose only a booster seat with a label
certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.
. Check the booster seat in your vehicle
to be sure it is compatible with the
vehicle’s seat and seat belt system.
Safety —Seats, seat belts and supplemental restraint system1-39

SSS0640
1.If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direc-
tion. Always follow the booster seat
manufacturer’s instructions.
LRS0454
Front passenger position
3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct booster seat fit. If the head
restraint or headrest is removed, store
it in a secure place. Be sure to reinstall
the head restraint or headrest when
the booster seat is removed. See“Head
restraints/headrests” (P.1-8) for head
restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have an
adjustable head restraint or headrest and it is interfering with the proper
booster seat fit, try another seating
position or a different booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be
sure to follow the booster seat manu-
facturer’s instructions for adjusting the
seat belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up
extra slack. Be sure the shoulder belt is
positioned across the top, middle por-
tion of the child’s shoulder. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
6. Follow the warnings, cautions and instructions for properly fastening a
seat belt shown in “Seat belts”(P.1-
12).
Safety —Seats, seat belts and supplemental restraint system1-41

Forward emergency braking system
warning light .................................................... 2-13
Front passenger air bag and status light ........... 1-49
Front power seat adjustment ............................... 1-3
Front seatFront seat adjustment .................................... 1-3
Fuel
Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................. 5-100
Fuel information ............................................. 9-4
Fuel octane rating .......................................... 9-4
Fuel-filler cap ............................................... 3-21
Fuel-filler door ............................................. 3-21
Gauge ............................................................ 2-9
Fuel Efficient Driving Tips .................................. 5-99
Fuses ................................................................ 8-22
Fusible links ..................................................... 8-22
G
Garage door opener
HomeLink®Universal Transceiver ................. 2-56
Gas cap ............................................................ 3-21
Gauge ................................................................. 2-6
Engine coolant temperature gauge ................. 2-8
Fuel gauge ..................................................... 2-9
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-28
General maintenance .......................................... 8-2 Glove box ......................................................... 2-47
H
Hazard warning flasher switch ............................ 6-2
Head restraints/headrests ................................... 1-8
Headlights
Aiming control (See Adaptive Front lighting
System (AFS)) .............................................. 2-41
Headlight switch .......................................... 2-36
Heated seats ...................................................... 1-5
Heater Engine block heater ................................... 5-113
High beam assist .............................................. 2-38
Hill start assist system ................................... 5-111
HomeLink
®Universal Transceiver ...................... 2-56
Hood release .................................................... 3-18
Hook Coat hooks .................................................. 2-48
Trunk hooks ................................................. 2-48
Horn ................................................................. 2-43
I
Ignition switch
(Push-button) ............................................... 5-10
Automatic transmission models ................... 5-15
Immobilizer system ........................................... 2-32
Indicator Vehicle information display .......................... 2-20
Indicator lights ................................................. 2-17 Indicators for operation (vehicle
information display) .......................................... 2-22
INFINITI Drive Mode Selector ............................. 5-21
Infiniti InTouch Owner’s Manual .......................... 4-2
INFINITI Vehicle Immobilizer System .................. 2-32
Engine start ................................................. 2-32
Inside mirror ..................................................... 3-26
Inspection/maintenance (I/M) test .................... 9-22
Instrument brightness control ........................... 2-42
Instrument panel ................................................ 2-5
Intelligent All-Wheel Drive (AWD) ..................... 5-101
Intelligent Cruise Control (ICC) system ............... 5-58
Intelligent Cruise Control (ICC) system
ON indicator ..................................................... 2-24
Intelligent Key ..................................................... 3-2
Intelligent Key system ......................................... 3-6
Battery replacement ..................................... 8-24
Key operating range ....................................... 3-8
Key operation ................................................ 3-9
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-54
Interior light replacement .................................. 8-27
Interior lights .................................................... 2-53
Interior trunk lid release ................................... 3-21
ISOFIX child restraint ........................................ 1-26
J
Jump starting ...................................................... 6-9
10-3
