Page 2 of 24
*See your Owner’s Manual for information.
Behind
steering wheel Behind
steering wheel
01 VEHICLE INFORMATION DISPLAY
02 LOW TIRE PRESSURE WARNING LIGHT
03 HEADLIGHT AND TURN SIGNAL CONTROL
04 PUSH BUTTON IGNITION SWITCH
05 PADDLE SHIFTERS*
06 WINDSHIELD WIPER AND WASHER SWITCH
07 CRUISE CONTROL/DRIVER’S
ASSISTANCE SWITCHES
08 STEERING WHEEL SWITCHES FOR
AUDIO*/BLUETOOTH®
09 INSTRUMENT BRIGHTNESS CONTROL*/
TRIP RESET SWITCH
10 VEHICLE INFORMATION DISPLAY SWITCHES
11 TILT AND TELESCOPIC STEERING COLUMN*
12 VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH*
13 TRUNK RELEASE SWITCH
14 HOOD RELEASE*
15 UPPER DISPLAY
16 CLIMATE CONTROL SWITCHES
17 LOWER DISPLAY
18 AUDIO SYSTEM
19 FRONT PASSENGER AIR BAG
STATUS LIGHT*
20 HEATED SEAT SWITCHES
21 INFINITI CONTROLLER
22 DRIVE MODE SWITCH*
22
21
2020
19
18
171616
14
1312
11
0807
04030201
060505
09
10
15
Page 3 of 24
table of contents
new system features Main Interface Switches Overview .................................2 User Registration
...............................................2
Upper Display..................................................2
Around View® Monitor (AVM) with Moving Object Detection (MOD) (if so equipped) ................................................3
essential information
Tire Pressure Monitoring System (TPMS) ............................5 Loose Fuel Cap.................................................5 Lower Display Maintenance
......................................
6 Driving Aids (if so equipped)......................................6 Active Lane Control (if so equipped)................................6
Heated Steering Wheel (if so equipped).............................6
first drive features INFINITI Intelligent Key System...................................7 Trunk Lid Release...............................................8
Seat Adjustments...............................................8 Heated Seats (if so equipped)
....................................
9
Automatic Drive Positioner (if so equipped)
.........................
9
Outside Mirror Control Switch....................................10
Starting/Stopping the Engine
....................................
10
Headlight Control Switch........................................10
Windshield Wiper and Washer Switch
.............................
11

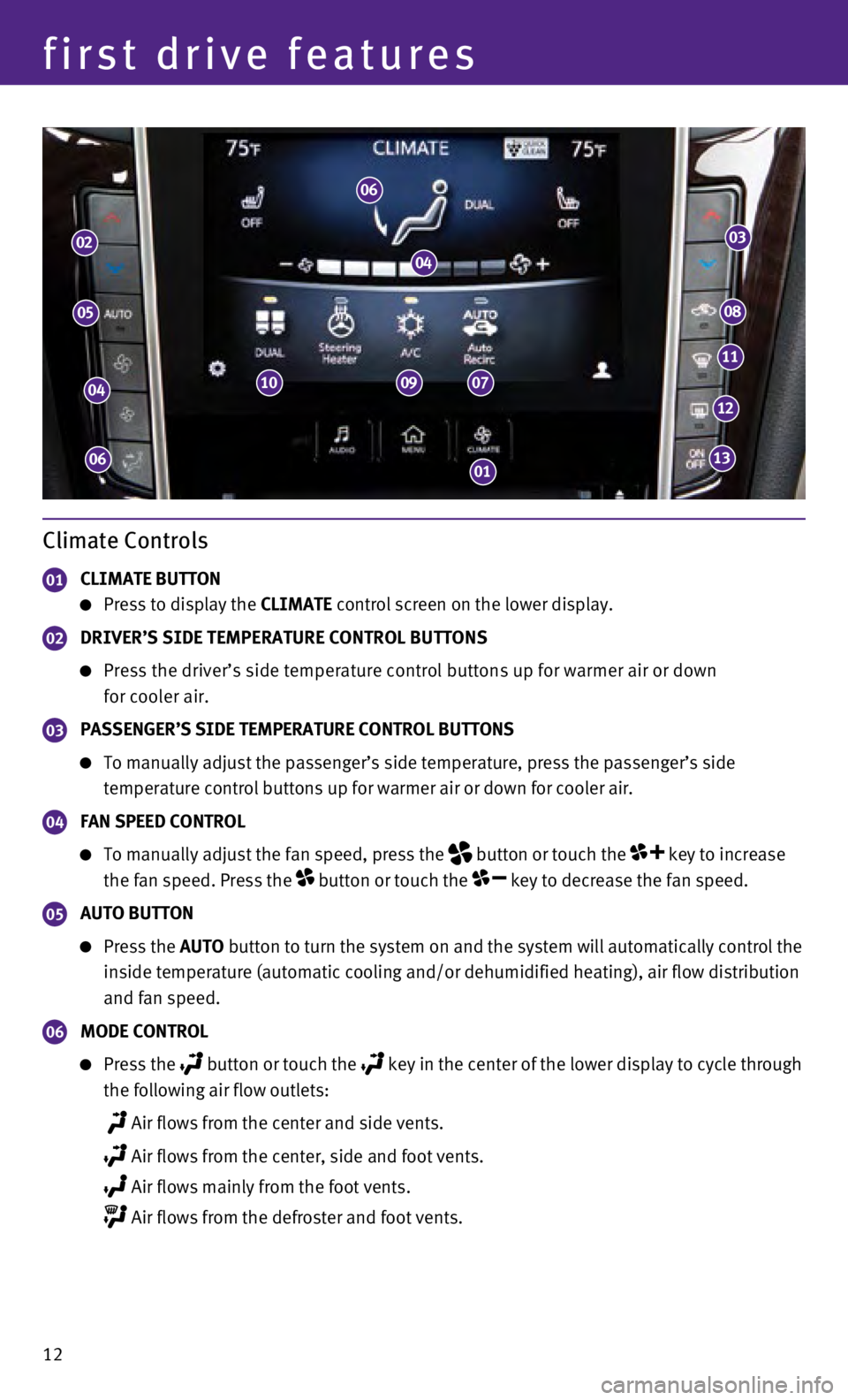

Climate Controls...............................................12
FM/AM/HD Radio
®/SiriusXM Satellite Radio (SXM) (if so equipped).....14
USB/iPod® Interface ...........................................15 Conventional (Fixed Speed) Cruise Control .........................15 Intelligent Cruise Control (ICC) System (if so equipped)
...................
15 Fuel-Filler Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .16
system guide Trip Computer.................................................17
Bluetooth® Hands-free Phone System .............................17
System Operating Tips .......................................17 Navigation System (if so equipped)
...............................
20
HomeLink
® Universal Transceiver (if so equipped)...................21
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2014/q50 or snap this barcode with an
appropriate barcode reader.
Additional information about your vehicle is also available
in your Owner’s Manual, Navigation System Owner’s Manual
and at www.InfinitiUSA.com.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to their
age and weight.
• Do not drink and drive.
For more information, refer to your InTouch Owner’s Manual,
the “Safety –– Seats, seat belts and supplemental restraint
system (section 1 )”, and the “Starting and driving (section 5 )”
of your Owner’s Manual.
Page 4 of 24
2
User Registration
Driving positions, navigation, climate controls, etc.,
can be memorized for each user.
To register a new user:
1
.
Press the MENU button. The menu screen will appear.
2.
Touch the right arrow key until “Edit User” is
displayed. Then, touch “Edit User”.
3. Touch “
User List”.
4.
Touch “
Add New”. From here you can edit Name and Picture.
5. Touch “
Finish” when finished.
For more information, refer to the “Information and Settings (section 8)” of your InTouch Owner’s Manual.
Main Interface Switches Overview
01 AUDIO – Press to navigate to the main audio screen.
From here all of the audio functions can be accessed.
02 MENU – Press to navigate to the main menu screen.
From here there is access to the navigation functions
and all the applications which includes the settings application.
03 CLIMATE – Press to navigate to the CLIMATE controls screen. From here you have access to
climate control, heated steering wheel, and heated seat functions.
For more information, refer to the “Getting Started (section 2)” of your InTouch Owner’s Manual.
Upper Display
The upper display is controlled by touchscreen, Infiniti
controller, and the switch on the steering wheel.
Press OK
01 on the Infiniti controller or OK on the
steering wheel switch to display the menu screen.
From here you are able to choose from audio sources,
map settings, hands-free phonebook, and adding
new options.
Use the dial on the Infiniti controller to move the
cursor, and press OK 01 to select an item. While on the map screen, use the Infiniti controller
to navigate to another location on the map by sliding
the controller in the direction you would like to go.
Press the 02 button to return to the previous page.
Map and Display View (with Navigation)
There are different variations of split screen views that can be display\
ed on the upper
display. The map is always displayed on the right-hand side of the scree\
n. Some of the left
side options are, turn list, intersection, and turn by turn.
To customize the split screen views on the upper display:
1.
When the current location map screen is displayed, press the
MAP/VOICE
03 button on
the Infiniti controller and the display view bar will appear at the bott\
om of the screen.
2.
Touch an icon on the display view bar, or use the dial on the Infiniti c\
ontroller to scroll
through the possible options and press OK
01 to select one. For more information, refer to the “
Getting Started (section 2)” of your InTouch Owner’s Manual.
new system features
010203
0103
02
Page 5 of 24
3
Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped)
With the ignition switch in the ON position, the
Around View Monitor is activated by pressing the
CAMERA
button
01, located on the control panel,
or by moving the shift lever to the
R (REVERSE)
position. The control panel displays various views
of the position of the vehicle.
When the shift lever is in the P (PARK), N (NEUTRAL)
or D (DRIVE)
position and the CAMERA button
01 is
pressed, the following views will display in order:
01
Start from any Control Panel screen
Press
Press
Press
Press
Front wide view Front view and bird’s-eye viewFront view and front-side view
When the shift lever is in the
R (REVERSE) position and the CAMERA button
01 is pressed,
the following views will display in order:
Rear view and bird’s-eye view
Press
Press
Press Rear view and front-side view
Rear wide view
Page 6 of 24

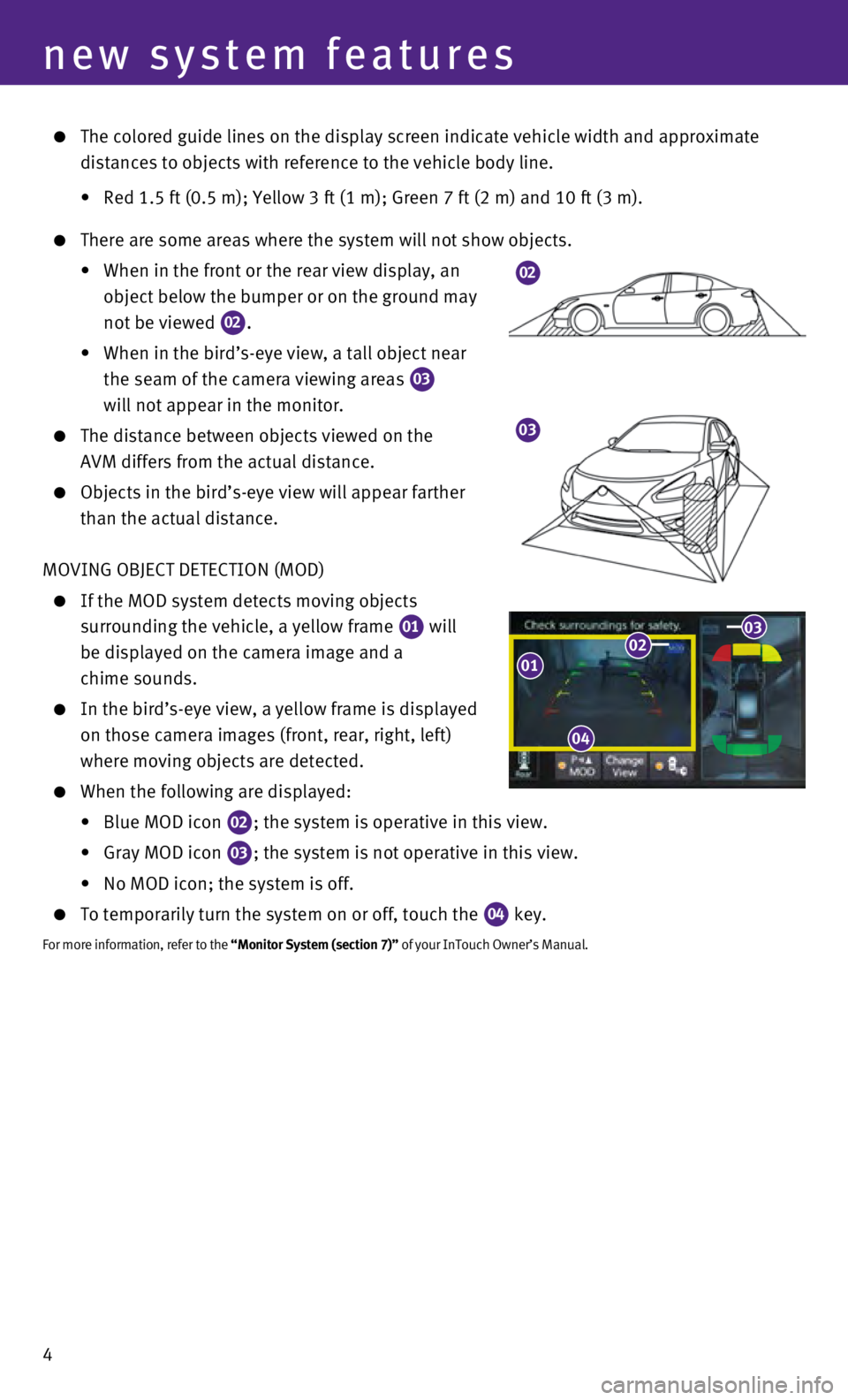

![INFINITI Q50 2014 Quick Reference Guide 4
03
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
•
Red 1.5 ft (0.5 m); Yell](/img/42/34967/w960_34967-5.png "INFINITI Q50 2014 Quick Reference Guide 4
03
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
•
Red 1.5 ft (0.5 m); Yell")
4
03
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
•
Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft \
(3 m).
There are some areas where the system will not show objects.
•
When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed
02.
•
When in the bird’s-eye view, a tall object near
the seam of the camera viewing areas
03
will not appear in the monitor.
The distance between objects viewed on the
AVM differs from the actual distance.
Objects in the bird’s-eye view will appear farther
than the actual distance.
MOVING OBJECT DETECTION (MOD)
If the MOD system detects moving objects
surrounding the vehicle, a yellow frame 01 will
be displayed on the camera image and a
chime sounds.
In the bird’s-eye view, a yellow frame is displayed
on those camera images (front, rear, right, left)
where moving objects are detected.
When the following are displayed:
•
Blue MOD icon 02; the system is operative in this view.
•
Gray MOD icon 03; the system is not operative in this view.
•
No MOD icon; the system is off.
To temporarily turn the system on or off, touch the 04 key.For more information, refer to the “Monitor System (section 7)” of your InTouch Owner’s Manual.
010203
04
new system features
02
Page 7 of 24
5
Loose Fuel Cap
A LOOSE FUEL CAP warning message will appear in
the vehicle information display
01 when the fuel-filler
cap is not tightened correctly.
To tighten, turn the cap clockwise until a single click
is heard.
The warning message will disappear when the veh icle
detects the fuel-filler cap is properly tightened and
the
or button 02 is pressed. If the cap is not properly tightened, the Malfunction
Indicator Light
may illuminate.For more information, refer to the “Instruments and controls (section 2)” and
the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Tire Pressure Monitoring System (TPMS)
A
Flat Tire Visit Dealer or Tire Pressure Low — Add
Air warning message will appear in the vehicle
information display
01 and the low tire pressure
warning light 02 will illuminate when one or more
tires are low on pressure and air is needed.
•
The tire pressures should be checked when
the tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours
or more or driven less than 1 mi (1.6 km) at
moderate speeds.
After tire pressures are adjusted, drive the vehicle
at speeds above 16 MPH (25 km/h). The Flat Tire
Visit Dealer or Tire Pressure Low — Add Air warning
message and low tire pressure warning light will disappear.
When the low tire pressure warning light flashes for 1 minute and then r\
emains on, the
TPMS is not functioning properly. Have the system checked by an INFINITI\
retailer.
Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low
tire pressure warning light to illuminate. If the warning light illumina\
tes, check the tire
pressure in your tires.
•
Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.
The Tire and Loading Information label contains valuable information. Pl\
ease refer to
section 9, “Technical and consumer information”, in your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
essential information
01
01
02
02
Page 8 of 24
6
essential information
Lower Display Maintenance
Only use a microfiber cloth to clean the lower display.
For more information, refer to the “Appearance and Care (section 7)” of your Owner’s Manual.
Active Lane Control (if so equipped)
Active lane control assists in stable driving. The system corrects front\
tire angles and
steering wheel torque allowing the driver to make fewer steering wheel c\
orrections. These
corrections may cause slight steering wheel vibrations.
Active lane control is active when:
•
The vehicle is driven at speeds of approximately 45 MPH and above.
•
The lane departure prevention and active lane control systems are enable\
d in the
Settings menu.
For more information, refer to the “Starting and Driving (section 5)” of your Owner’s Manual.
Driving Aids (if so equipped)
The trip computer displays different driving aids including Forward Collision, Lane
Departure Prevention, and Blind spot intervention, if they are currently activated.
To disable driving aids/warnings:
1.
Press the
MENU button just below the lower display.
2.
Touch the right arrow key until you see “Driver
Assistance”. Touch the “Driver Assistance” key.
3.
Touch the key that corresponds with the driving
aid/warning you would like to turn off (
Forward
Assist, Lane Assist, or Blind Spot Assist).
4. Select the driving aid line key to disable.
For more information, refer to the “Starting and Driving (section 5)” of your Owner’s Manual.
Heated Steering Wheel (if so equipped)
The heated steering wheel system is designed to operate only when the su\
rface
temperature of the steering wheel is below approximately 68°F (20°\
C). The steering wheel
heater will also turn off automatically after approximately 30 minutes.
To manually turn on the heated steering wheel, touch the steering wheel \
heater icon 01
within the CLIMATE control screen in the lower display. The indicator light will illuminat\
e.
AUTOMATIC STEERING WHEEL HEATER
When turned on, the steering wheel heater will
automatically heat the steering wheel whenever the
temperature inside the vehicle compartment is below
approximately 68°F (20°C) at the time of ignition ON.
To turn on the automatic steering wheel heater:
1.
Press the
MENU button just below the lower display.
2. Touch the “
Settings” key.
3.
Touch the right arrow
key
until you see “Others”.
Touch the “Others” key.
4. Touch “
Climate”.
5. Touch “
Steering Heater Auto”
02 to turn on. For more information, refer to the “
Heater and Air Conditioner (section 3)” of your InTouch Owner’s Manual.
01
02
Page 11 of 24
9
Heated Seats (if so equipped)
There are 2 ways to operate the heated seats:
1. By pressing the heated seat switch 01.
•
Every press of the switch allows you to cycle
through the 5 different modes of
AUTO – Hi –
Mid – Lo – OFF.
2.
While on the
CLIMATE control screen on the
lower display, touch the left or right heated seat
icon
02.
•
The Left or Right Seat Setting screen is
displayed with a list of the 5 different modes
of AUTO – Hi – Mid – Lo – OFF to choose from.
•
The indicator light on the heated seat switch
01 will illuminate when the system is in AUTO – Hi – Mid – Lo.
•
While in AUTO, the heated seats will turn on/off automatically, depending on
temperature conditions in the vehicle compartment.
•
To view which one of the 5 modes the system is in, press the CLIMATE
button
03
. This will bring up the CLIMATE control screen on the lower display. From here you
will see the heated seat icons
02 for the driver and passenger side, and below the
icon is the mode the system is in currently.
For more information, refer to the “Heater and Air Conditioner (section 3)” of your InTouch Owner’s Manual.
0202
03
0101
Automatic Drive Positioner (if so equipped)
Two positions for the driver’s seat, steering column
and outside mirrors can be stored in the automatic
drive positioner memory.
Follow these procedures to set the memory positions:
•
Confirm the shift lever is in the
P (PARK) position.
•
Push the ignition switch to the
ON position.
•
Adjust the driver’s seat, steering column and outside mirrors to the \
desired positions
using the adjusting switches for each feature.
•
Push the SET switch and within 5 seconds, push the memory switch (1 or 2) for at least 1
second.
•
The indicator light on the memory switch you select will illuminate for \
approximately
5 seconds.
•
The driver’s seat, steering column and outside mirror positions are n\
ow set to
your preference.
When you turn off your vehicle the driver’s seat, steering column, an\
d outside mirror positions
are automatically remembered and recalled the next time you log into you\
r vehicle.
For more information, refer to the “Pre-driving checks and adjustments (section 3 )” of your Owner’s Manual, and “Information and
Settings (section 8)” of your InTouch Owner’s Manual.
Page 14 of 24
12
first drive features
Climate Controls
01 CLIMATE BUTTON
Press to display the CLIMATE control screen on the lower display.
02 DRIVER’S SIDE TEMPERATURE CONTROL BUTTONS
Press the driver’s side temperature control buttons up for warmer air\
or down
for cooler air.
03 PASSENGER’S SIDE TEMPERATURE CONTROL BUTTONS
To manually adjust the passenger’s side temperature, press the passen\
ger’s side
temperature control buttons up for warmer air or down for cooler air.
04 FAN SPEED CONTROL
To manually adjust the fan speed, press the button or touch the key to increase
the fan speed. Press the button or touch the key to decrease the fan speed.
05 AUTO BUTTON
Press the AUTO button to turn the system on and the system will automatically control \
the
inside temperature (automatic cooling and/or dehumidified heating), ai\
r flow distribution
and fan speed.
06 MODE CONTROL
Press the button or touch the key in the center of the lower display to cycle through
the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
06
04
05
02
06
04
100907
01
03
08
11
12
13
Page 16 of 24
14
first drive features
FM/AM/HD Radio®/SiriusXM* Satellite Radio (SXM) (if so equipped)
01 AUDIO BUTTON
Press to display the AUDIO screen on the lower display.
02 VOLUME CONTROL DIAL/
(POWER) BUTTON
Turn the VOL/
dial right or left to increase or decrease the volume. Press the
button to
turn the system on or off.
03 SEEK•CAT/TRACK BUTTON
To scan quickly through each broadcasting station, press the SEEK•CAT/TRACK button to
stop at the previous or next broadcast station.
For SiriusXM Satellite Radio, press the SEEK•CAT/ TRACK button to switch to the first
channel of the previous or next category.
For HD Radio®, press the SEEK•CAT/ TRACK button to change the station.
Press the SEEK•CAT/TRACK button to change tracks on a CD.
Press and hold the SEEK•CAT/TRACK button to fast forward or rewind a track on a CD.04 TUNE•CH/FOLDER BUTTON
To manually tune the radio, press the TUNE•CH/FOLDER button left or right.
Press and hold the TUNE•CH/FOLDER button left or right to accelerate radio tuning.05 RADIO BUTTON
Press to change audio source in the order of AM, FM, and SXM (SiriusXM).
06 DISC•AUX BUTTON
Press to change audio source (CD, iPod®, USB, Bluetooth® Streaming Audio or AUX).
07 STATION PRESET KEYS
Up to 36 stations/channels can be set for AM, FM and SXM (SiriusXM).
To store a station in a preset, you must first select a radio band by pr\
essing the RADIO
button, then tune to the desired AM, FM, or SXM station.
Now select and hold the desired station memory key ( 1-36) until the preset number is
updated on the display and a beep is heard. Programming is now complete.\
To retrieve a previously set station, arrow right or left 08 and touch the memory key (1-36)
that contains the stored station/channel you wish to listen to.
*SiriusXM Satellite Radio is only available on vehicles equipped with op\
tional SiriusXM Satellite Radio subscription service.
For more information, refer to the “Audio System (section 4)” of your InTouch Owner’s Manual.
01
02
07
03
08
050604
08
