traction control INFINITI Q50 2019 User Guide

10 Technical and consumer information
Capacities and recommended fluids/lubricants ..... 10-2Fuel information (for VR30DDTT
engine model) ............................................................ 10-4
Fuel information (for 2.0L turbo gasoline
engine model) ............................................................. 10-6
Engine oil and oil filter recommendation .......... 10-8
Air conditioning system refrigerant and
lubricant recommendations ................................. 10-10
Specifications ................................................................. 10-11 Engine ........................................................................\
. 10-11
Wheels and tires ..................................................... 10-12
Dimensions ............................................................... 10-13
When traveling or registering in
another country ............................................................ 10-14
Vehicle identification .................................................. 10-14 Vehicle Identification Number (VIN) plate ...... 10-14
Vehicle identification number
(chassis number) ..................................................... 10-14
Engine serial number ............................................. 10-15
F.M.V.S.S./C.M.V.S.S. certification label ........ 10-15
Emission control information label ................... 10-16
Tire and loading information label .................... 10-16 Air conditioner specification label ................... 10-16
Installing front license plate ...................................... 10-17
Removing air deflectors ............................................ 10-18
Vehicle loading information ..................................... 10-19 Terms ....................................................................... 10-19
Vehicle load capacity .......................................... 10-20
Loading tips ........................................................... 10-21
Measurement of weights ................................... 10-21
Towing a trailer ........................................................... 10-22 Flat towing ............................................................. 10-22
Uniform tire quality grading .................................... 10-22 Treadwear .............................................................. 10-22
Traction AA, A, B and C ..................................... 10-23
Temperature A, B and C .................................... 10-23
Emission control system warranty ......................... 10-23
Reporting safety defects .......................................... 10-24
Readiness for Inspection/Maintenance (I/M)
test (US only) ................................................................ 10-25
Event Data Recorders (EDR) ................................... 10-26
Owner’s Manual/Service Manual
order information ........................................................ 10-26

10-22Technical and consumer information
Do not tow a trailer with your
vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.
CAUTION
.Failure to follow these guidelines can
result in severe transmission damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any Automatic Trans-
mission (AT) vehicle with all four
wheels on the ground (flat towing).
Doing so WILL DAMAGE internal
transmission parts due to lack of
transmission lubrication.
. DO NOT tow any All-Wheel Drive
(AWD) vehicle with any of the wheels
on the ground. Doing so may cause
serious and expensive damage to the
powertrain.
. For emergency towing procedures
refer to “Towing recommended by INFINITI” (P.6-18).
Automatic Transmission
All-Wheel Drive (AWD) models:
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly
MUST
be placed under the towed vehicle’s
drive wheels. Alwaysfollow the dolly man-
ufacturer’s recommendations when using
their product. DOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, however,
and may depart significantly from the norm
due to variations in driving habits, service
practices and differences in road character-
istics and climate.
TOWING A TRAILERUNIFORM TIRE QUALITY GRADING

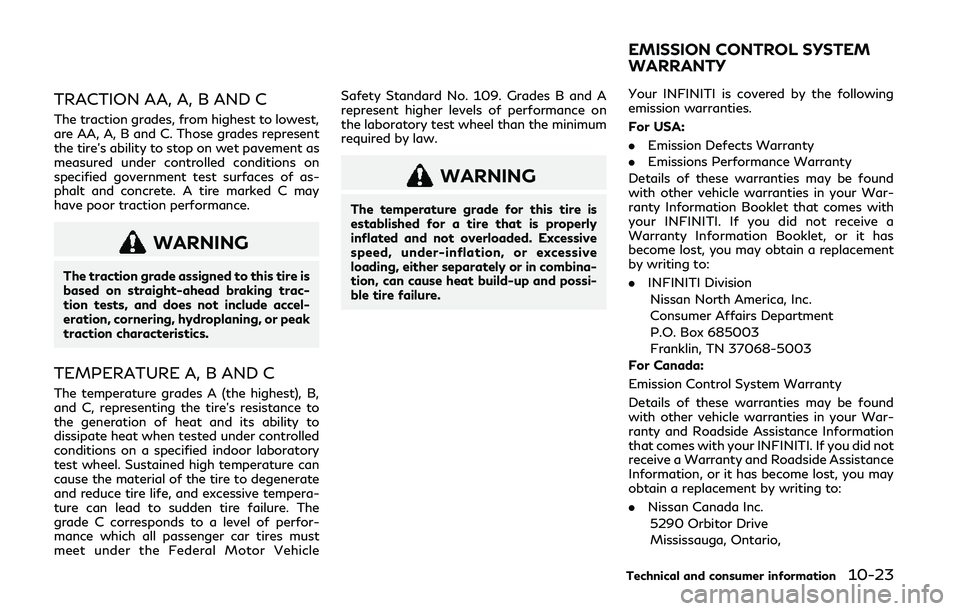

TRACTION AA, A, B AND C
The traction grades, from highest to lowest,
are AA, A, B and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may
have poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking trac-
tion tests, and does not include accel-
eration, cornering, hydroplaning, or peak
traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The
grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor VehicleSafety Standard No. 109. Grades B and A
represent higher levels of performance on
the laboratory test wheel than the minimum
required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combina-
tion, can cause heat build-up and possi-
ble tire failure.
Your INFINITI is covered by the following
emission warranties.
For USA:
.
Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet that comes with
your INFINITI. If you did not receive a
Warranty Information Booklet, or it has
become lost, you may obtain a replacement
by writing to:
. INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty and Roadside Assistance Information
that comes with your INFINITI. If you did not
receive a Warranty and Roadside Assistance
Information, or it has become lost, you may
obtain a replacement by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
Technical and consumer information10-23
EMISSION CONTROL SYSTEM
WARRANTY
