INFINITI Q50 HYBRID 2014 Owner's Manual

2-18Instruments and controls
.The supplemental air bag warning light
remains on after approximately 7 sec-
onds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Unless checked and repaired, the Supple-
mental Restraint Systems and/or the pre-
tensioner seat belt may not function
properly.
For additional information, see “Supple-
mental restraint system” (P.1-37).
WARNING
If the supplemental air bag warning light is
on, it could mean that the supplemental
front air bag, supplemental side air bag,
curtain side-impact air bag systems and/or
pretensioner seat belt will not operate in an
accident. To help avoid injury to yourself or
others, have your vehicle checked by a
retailer as soon as possible.
Vehicle Dynamic Control (VDC)
warning light
The light will blink when the Vehicle
Dynamic Control (VDC) system or the
traction control system is operating, thus
alerting the driver that the vehicle is
nearing its traction limits. The road surface
may be slippery.
When the VDC warning light illuminates
when the VDC system is turned on, this
light alerts the driver to the fact that the
VDC system’s fail-safe mode is operating,
for example the VDC, active trace control,
rise-up and build-up function, brake force
distribution or hill start assist system may
not be functioning properly. Have the
system checked by an INFINITI retailer. If
a malfunction occurs in the system, the
VDC system function will be canceled but
the vehicle is still driveable. For additional
information, see “Vehicle Dynamic Control
(VDC) system” (P.5-108).
INDICATOR LIGHTS
Approaching Vehicle Sound
for Pedestrians (VSP) OFF indicator
light
This light comes on if there is a malfunc-
tion in the Approaching Vehicle Sound for
Pedestrians (VSP) system. (See “Approach-
ing Vehicle Sound for Pedestrians (VSP)
system” (P.Hybrid System-8) for the VSP
system.)
ECO drive indicator light
When the ignition switch is pushed to the
ON position, the light will come on and
then turn off.
When the INFINITI Drive Mode Selector is
turned to the ECO mode, the ECO drive
indicator light will illuminate, blink or
remain off depending on the accelerator
pedal operation to help assist the driver to
drive economically. For more details, see
“ECO mode” (P.5-21).
EV indicator light
This illuminates to indicate the vehicle is
being driven powered only by the motor.

Exterior light indicator
This indicator illuminates when the head-
light switch is turned to the AUTO,orposition and the front parking lights,
instrument panel lights, rear combination
lights, license plate lights or headlights are
on. The indicator turns off when these
lights are turned off.
Front fog light indicator light
The front fog light indicator light illumi-
nates when the front fog lights are on. (See
“Fog light switch” (P.2-47).)
Front passenger air bag status
light
The front passenger air bag status light
() located on the instrument panel will
be lit and the passenger front air bag will
be OFF depending on how the front
passenger seat is being used.
For front passenger air bag status light
operation, see “INFINITI Advanced Air Bag
System (front seats)” (P.1-42).
High beam assist indicator
light (if so equipped)
The indicator light illuminates when the
headlights come on while the headlight switch is in the AUTO position with the
high beam selected. This indicates that the
high beam assist system is operational.
(See
“High beam assist” (P.2-43).)
High beam indicator light
This light comes on when the headlight
high beam is on and goes out when the low
beam is selected.
Malfunction Indicator Light
(MIL)
If the Malfunction Indicator Light (MIL)
comes on steady or blinks while the engine
is running, it may indicate a potential
emission control malfunction.
The malfunction indicator light may also
come on steady if the fuel-filler cap is loose
or missing, or if the vehicle runs out of fuel.
Check to make sure the fuel-filler cap is
installed and closed tightly, and that the
vehicle has at least 3 US gallons (11.4
liters) of fuel in the fuel tank.
After a few driving trips, the
light
should turn off if no other potential
emission control system malfunction ex-
ists.
If this indicator light remains on for 20
seconds and then blinks for 10 seconds when the engine is not running, it indicates
that the vehicle is not ready for an
emission control system inspection/main-
tenance test. (See
“Readiness for Inspec-
tion/Maintenance (I/M) test (US only)” (P.9-
22).)
Operation:
The malfunction indicator light will come
on in one of two ways:
. Malfunction indicator light on steady —
An emission control system malfunc-
tion has been detected. Check the fuel-
filler cap if the Loose Fuel Cap warning
appears in the vehicle information dis-
play. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If thelight does not turn off
after a few driving trips, have the
vehicle inspected by an INFINITI retai-
ler. You do not need to have your
vehicle towed to the retailer.
. Malfunction indicator light blinking —
An engine misfire has been detected
which may damage the emission con-
trol system.
To reduce or avoid emission control
system damage:
Instruments and controls2-19

2-20Instruments and controls
1) Do not drive at speeds above 45MPH (72 km/h).
2) Avoid hard acceleration or decelera- tion.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may
stop blinking and remain on.
Have the vehicle inspected by an
INFINITI retailer. You do not need to
have your vehicle towed to the retailer.
CAUTION
Continued vehicle operation without having
the emission control system checked and
repaired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission control
system.
READY to drive indicator light
The READY to drive indicator light illumi-
nates when the hybrid system is powered
and the vehicle may be driven.
Security indicator light
The light blinks when the ignition switch is
in the ACC, OFF or LOCK position. This
function indicates the security system
equipped on the vehicle is operational.
If the security system is malfunctioning,
this light will remain on while the ignition
switch is in the ON position. For additional
information, see “Security systems” (P.2-
35).
Turn signal/hazard indicator
lights
The light flashes when the turn signal
switch lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
The light comes on when the Vehicle
Dynamic Control (VDC) off switch is pushed
to OFF. This indicates that the VDC system
and traction control system are not operat-
ing.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed
to the ACC position. Make sure the ignition
switch is pushed to the OFF position, and
take the Intelligent Key with you when
leaving the vehicle.
Light reminder chime
A chime will sound when the driver side
door is opened with the light switch in the
orposition and the ignition switch
in the ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The parking brake reminder chime will
sound if the vehicle is driven at more than
4 MPH (7 km/h) with the parking brake
applied. Stop the vehicle and release the
parking brake.
Brake pad wear warning
The disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in

motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
warning sound is heard.
JVI0641X
The vehicle information display*1is
located between the tachometer and the
speedometer, and it displays the warnings
and information. The following items are
also displayed if the vehicle is equipped
with them:
. Automatic Transmission (AT)
—“ Driving the vehicle” (P.5-14)
. All-Wheel Drive (AWD)
—“ Intelligent All-Wheel Drive (AWD)”
(P.5-101)
. Cruise control
—“ Cruise control” (P.5-56) .
Intelligent Cruise Control (ICC)
—“ Intelligent Cruise Control (ICC) sys-
tem” (P.5-58)
. Active Lane Control
—“ Active Lane Control” (P.5-24)
. Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP) system
—“ Lane Departure Warning (LDW) sys-
tem/Lane Departure Prevention
(LDP) system” (P.5-30)
. Blind Spot Warning (BSW)/Blind Spot
Intervention
TM(BSI)/Back-up Collision
Intervention (BCI) systems
—“ Blind Spot Warning/Blind Spot
Intervention
TM/Back-up Collision In-
tervention systems” (P.5-37)
. Distance Control Assist (DCA) system
—“ Distance Control Assist (DCA) sys-
tem” (P.5-79)
. Forward emergency braking system
—“ Forward emergency braking sys-
tem” (P.5-89)
. Predictive forward collision warning
system
—“ Predictive forward collision warn-
ing system” (P.5-94)
. Active trace control
Instruments and controls2-21
VEHICLE INFORMATION DISPLAY

2-22Instruments and controls
—“Active trace control” (P.5-110)
. Intelligent Key system
—“ Intelligent Key system” (P.3-6)

JVI0672X
Instruments and controls2-23

2-24Instruments and controls
INDICATORS FOR OPERATION
1. Hybrid system start operation
indicator
This indicator appears when the shift lever
is in the P (Park) position.
This indicator means that the INFINITI
Direct Response Hybrid
®System will start
by pushing the ignition switch with the
brake pedal depressed. You can start the
hybrid system directly in any position of
the ignition switch.
2. NO KEY warning
The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.
See “Intelligent Key system” (P.3-6) for
more details.
3. SHIFT “P”warning
This warning will appear in the following
conditions.
.When the shift lever is in any position
except P (Park) and the push button
ignition switch has been placed in the
OFF position from the ON position. .
When the shift lever is operated while
the READY to drive indicator light is
flashing.
. The driver’s door is opened with the
shift lever in “N”,“D”or“R”.
. When the vehicle cannot be driven
because the hybrid system temperature
has become too high.
. When the engine stops due to sudden
deceleration on a cold winter day.
. If a malfunction occurs in a situation
other than those described above and
the engine cannot start automatically.
When this warning appears, place the shift
lever in the P (Park) position.
When the SHIFT “P”warning appears, a
buzzer will sound.
This warning will turn off in the following
conditions.
. When the shift lever has been placed in
the P (Park) position.
. When the ignition switch has been
pushed to ON.
4. Shift to Park - Li-ion battery low
warning
This warning appears when the shift lever
is in the “N”position and level of remain- ing charge in the Li-ion battery is low.
When this warning appears, place the shift
lever in the P (Park) position.
This will turn off in the following condi-
tions.
.
When the shift lever has been placed in
the P (Park) position.
5. Shift to Park - Press brake and
start warning
This warning appears after the hybrid
system was automatically turned off if the
level of remaining charge in the Li-ion
battery is low.
When this warning appears, place the shift
lever in the P (Park) position and restart
the hybrid system.
6. “PUSH” warning
This warning appears when the shift lever
is moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT“P”warning appears.
To push the ignition switch to the OFF
position, perform the following procedure:
. SHIFT “P”warning ?(Move the shift
lever to “P”)?PUSH warning ?(Push
the ignition switch ?ignition switch

position is turned to ON)?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to
OFF)
7. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the
battery with a new one. (See “Intelligent
Key battery replacement” (P.8-25).)
8. Hybrid system start operation for
Intelligent Key system indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and
vehicle are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while
depressing the brake pedal. (See “Intelli-
gent Key battery discharge” (P.5-13).)
9. Key ID Incorrect warning
The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recog-
nized by the system. You cannot start the hybrid system with an unregistered key.
Use the registered Intelligent Key.
See
“Intelligent Key” (P.3-2).
10. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
11. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
12. Low washer fluid warning
This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See “Window washer fluid”
(P.8-16).)
13. Door/trunk open warning
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
14. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the Intelligent Key system.
If this warning appears while the hybrid
system is stopped, the hybrid system
cannot be started. If this warning appears
while the hybrid system is running, the
vehicle can be driven. However, contact an
INFINITI retailer for repair as soon as
possible.
15. Loose Fuel Cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap ”(P.3-22).)
16. Tire Pressure Low - Add Air
warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected.
The warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light
remains illuminated. If this warning ap-
pears, stop the vehicle and adjust the
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Instruments and controls2-25

2-26Instruments and controls
Information label. (See“Low tire pressure
warning light” (P.2-15) and“Tire Pressure
Monitoring System (TPMS)” (P.5-4).)
17. Flat Tire - Visit dealer warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and one or more flat tires are
detected while driving. A chime also
sounds for approximately 10 seconds.
(See“Low tire pressure warning light”
(P.2-15) and “Tire Pressure Monitoring
System (TPMS)” (P.5-4).)
18. Low oil pressure warning
This warning appears if low engine oil
pressure is detected. If the warning
appears during normal driving, pull off
the road in a safe area, stop the engine
immediately and call an INFINITI retailer or
other authorized repair shop.
The low oil pressure warning is not
designed to indicate a low oil level. Use
the dipstick to check the oil level. (See
“Engine oil”(P.8-12).)
19. High temperature warning
This warning appears when the engine
coolant temperature is extremely high.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON
position, stop the vehicle safely as soon
as possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine. (See “If your vehicle overheats”
(P.6-7) for the immediate action required.)
20. Hybrid system overheat warn-
ing
This warning appears when the tempera-
ture of the hybrid system is extremely high.
Stop the vehicle in a safe location as soon
as possible. Avoid quick starting or abrupt
acceleration. When the warning turns off,
the vehicle can be driven.
If the warning appears again soon after it
turns off, have the vehicle checked by an
INFINITI retailer.
WARNING
Do not hold the vehicle in a stopped
position on an uphill grade by depressing
the accelerator or by slowly creeping for-
ward. This may cause damage to the
transmission or the vehicle may enter traffic
causing serious injury or death. Always use
the brake pedal when stopping on an uphill
grade.
CAUTION
. If you continue to drive the vehicle while
the warning is displayed, the vehicle
may become undriveable. If this occurs,
place the shift lever in the “P”position
and wait for a short period of time with
the vehicle stopped until the display
goes out. In this case, the warning will
be displayed alternately with the SHIFT
“P” warning. (See “3. SHIFT“P”warn-
ing” (P.2-24).)
. Do not drive the vehicle with the warning
on. Doing so could cause a hybrid
system malfunction.

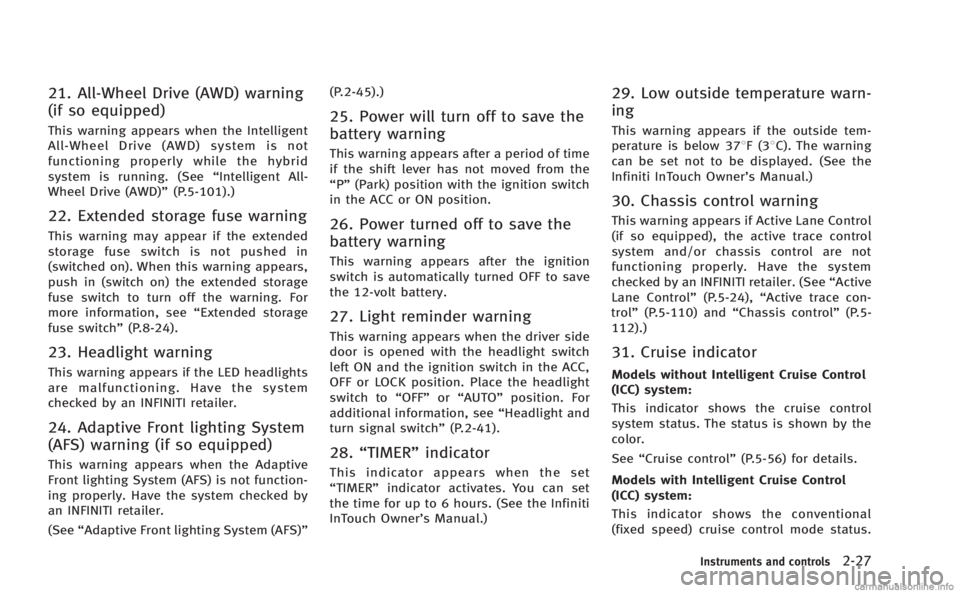

21. All-Wheel Drive (AWD) warning
(if so equipped)
This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not
functioning properly while the hybrid
system is running. (See“Intelligent All-
Wheel Drive (AWD)” (P.5-101).)
22. Extended storage fuse warning
This warning may appear if the extended
storage fuse switch is not pushed in
(switched on). When this warning appears,
push in (switch on) the extended storage
fuse switch to turn off the warning. For
more information, see “Extended storage
fuse switch” (P.8-24).
23. Headlight warning
This warning appears if the LED headlights
are malfunctioning. Have the system
checked by an INFINITI retailer.
24. Adaptive Front lighting System
(AFS) warning (if so equipped)
This warning appears when the Adaptive
Front lighting System (AFS) is not function-
ing properly. Have the system checked by
an INFINITI retailer.
(See“Adaptive Front lighting System (AFS)” (P.2-45).)
25. Power will turn off to save the
battery warning
This warning appears after a period of time
if the shift lever has not moved from the
“P”
(Park) position with the ignition switch
in the ACC or ON position.
26. Power turned off to save the
battery warning
This warning appears after the ignition
switch is automatically turned OFF to save
the 12-volt battery.
27. Light reminder warning
This warning appears when the driver side
door is opened with the headlight switch
left ON and the ignition switch in the ACC,
OFF or LOCK position. Place the headlight
switch to “OFF”or“AUTO” position. For
additional information, see “Headlight and
turn signal switch” (P.2-41).
28.“TIMER” indicator
This indicator appears when the set
“TIMER” indicator activates. You can set
the time for up to 6 hours. (See the Infiniti
InTouch Owner’s Manual.)
29. Low outside temperature warn-
ing
This warning appears if the outside tem-
perature is below 378F(3 8C). The warning
can be set not to be displayed. (See the
Infiniti InTouch Owner’s Manual.)
30. Chassis control warning
This warning appears if Active Lane Control
(if so equipped), the active trace control
system and/or chassis control are not
functioning properly. Have the system
checked by an INFINITI retailer. (See “Active
Lane Control” (P.5-24),“Active trace con-
trol” (P.5-110) and “Chassis control” (P.5-
112).)
31. Cruise indicator
Models without Intelligent Cruise Control
(ICC) system:
This indicator shows the cruise control
system status. The status is shown by the
color.
See “Cruise control” (P.5-56) for details.
Models with Intelligent Cruise Control
(ICC) system:
This indicator shows the conventional
(fixed speed) cruise control mode status.
Instruments and controls2-27
