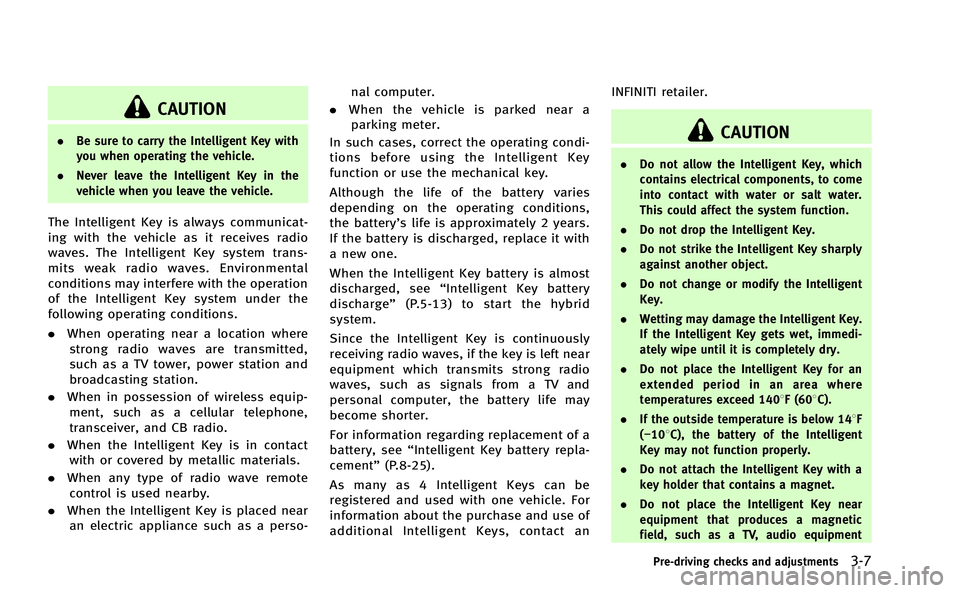

CAUTION
.Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.
.When operating near a location where
strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
. When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
. When the Intelligent Key is in contact
with or covered by metallic materials.
. When any type of radio wave remote
control is used nearby.
. When the Intelligent Key is placed near
an electric appliance such as a perso- nal computer.
. When the vehicle is parked near a
parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.
When the Intelligent Key battery is almost
discharged, see “Intelligent Key battery
discharge” (P.5-13) to start the hybrid
system.
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery repla-
cement” (P.8-25).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use of
additional Intelligent Keys, contact an INFINITI retailer.
CAUTION
.
Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key sharply
against another object.
. Do not change or modify the Intelligent
Key.
. Wetting may damage the Intelligent Key.
If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
. Do not place the Intelligent Key for an
extended period in an area where
temperatures exceed 1408F (608C).
. If the outside temperature is below 148F
(−108C), the battery of the Intelligent
Key may not function properly.
. Do not attach the Intelligent Key with a
key holder that contains a magnet.
. Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment
Pre-driving checks and adjustments3-7

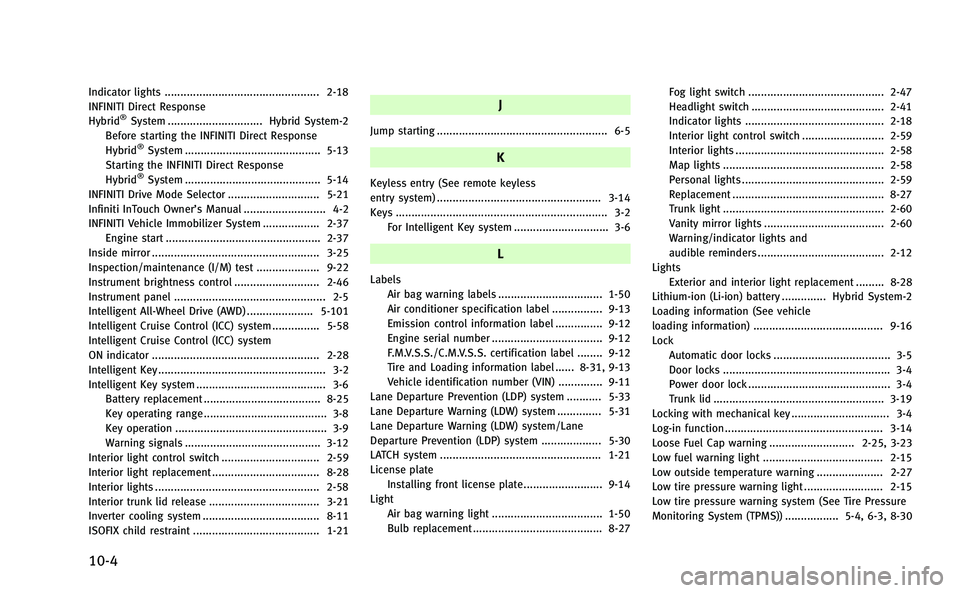

10-4
Indicator lights ................................................. 2-18
INFINITI Direct Response
Hybrid
®System .............................. Hybrid System-2
Before starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-13
Starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-14
INFINITI Drive Mode Selector ............................. 5-21
Infiniti InTouch Owner’s Manual .......................... 4-2
INFINITI Vehicle Immobilizer System .................. 2-37 Engine start ................................................. 2-37
Inside mirror ..................................................... 3-25
Inspection/maintenance (I/M) test .................... 9-22
Instrument brightness control ........................... 2-46
Instrument panel ................................................ 2-5
Intelligent All-Wheel Drive (AWD) ..................... 5-101
Intelligent Cruise Control (ICC) system ............... 5-58
Intelligent Cruise Control (ICC) system
ON indicator ..................................................... 2-28
Intelligent Key ..................................................... 3-2
Intelligent Key system ......................................... 3-6 Battery replacement ..................................... 8-25
Key operating range ....................................... 3-8
Key operation ................................................ 3-9
Warning signals ........................................... 3-12
Interior light control switch ............................... 2-59
Interior light replacement .................................. 8-28
Interior lights .................................................... 2-58
Interior trunk lid release ................................... 3-21
Inverter cooling system ..................................... 8-11
ISOFIX child restraint ........................................ 1-21
J
Jump starting ...................................................... 6-5
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-6
L
LabelsAir bag warning labels ................................. 1-50
Air conditioner specification label ................ 9-13
Emission control information label ............... 9-12
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-12
Tire and Loading information label ...... 8-31, 9-13
Vehicle identification number (VIN) .............. 9-11
Lane Departure Prevention (LDP) system ........... 5-33
Lane Departure Warning (LDW) system .............. 5-31
Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system ................... 5-30
LATCH system ................................................... 1-21
License plate Installing front license plate ......................... 9-14
Light Air bag warning light ................................... 1-50
Bulb replacement ......................................... 8-27 Fog light switch ........................................... 2-47
Headlight switch .......................................... 2-41
Indicator lights ............................................ 2-18
Interior light control switch .......................... 2-59
Interior lights ............................................... 2-58
Map lights ................................................... 2-58
Personal lights ............................................. 2-59
Replacement ................................................ 8-27
Trunk light ................................................... 2-60
Vanity mirror lights ...................................... 2-60
Warning/indicator lights and
audible reminders ........................................ 2-12
Lights
Exterior and interior light replacement ......... 8-28
Lithium-ion (Li-ion) battery .............. Hybrid System-2
Loading information (See vehicle
loading information) ......................................... 9-16
Lock Automatic door locks ..................................... 3-5
Door locks ..................................................... 3-4
Power door lock ............................................. 3-4
Trunk lid ...................................................... 3-19
Locking with mechanical key ............................... 3-4
Log-in function .................................................. 3-14
Loose Fuel Cap warning ........................... 2-25, 3-23
Low fuel warning light ...................................... 2-15
Low outside temperature warning ..................... 2-27
Low tire pressure warning light ......................... 2-15
Low tire pressure warning system (See Tire Pressure
Monitoring System (TPMS)) ................. 5-4, 6-3, 8-30

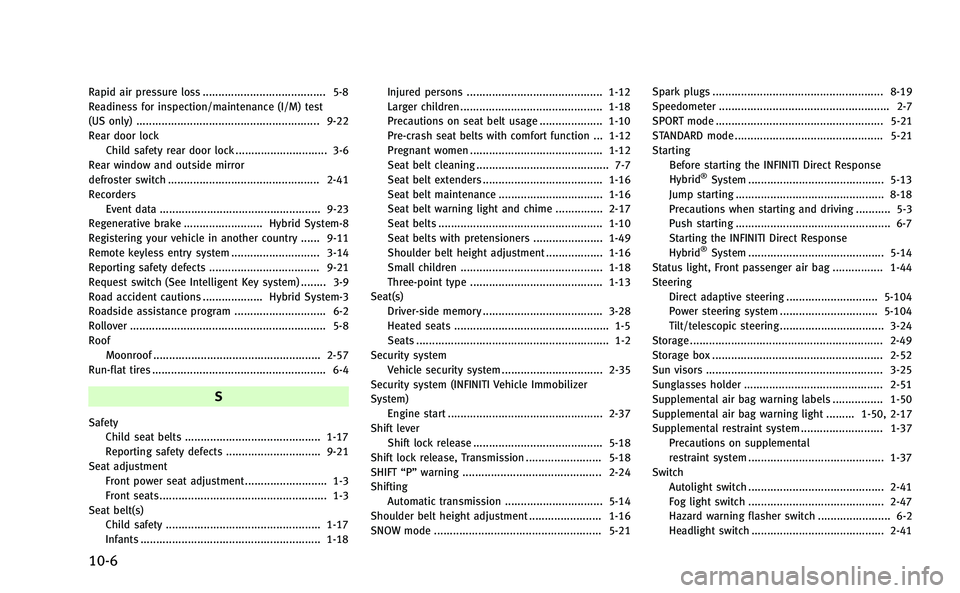

10-6
Rapid air pressure loss ....................................... 5-8
Readiness for inspection/maintenance (I/M) test
(US only) .......................................................... 9-22Rear door lock
Child safety rear door lock ............................. 3-6
Rear window and outside mirror
defroster switch ................................................ 2-41
Recorders Event data ................................................... 9-23
Regenerative brake ......................... Hybrid System-8
Registering your vehicle in another country ...... 9-11
Remote keyless entry system ............................ 3-14
Reporting safety defects ................................... 9-21
Request switch (See Intelligent Key system) ........ 3-9
Road accident cautions ................... Hybrid System-3
Roadside assistance program ............................. 6-2
Rollover .............................................................. 5-8
Roof Moonroof ..................................................... 2-57
Run-flat tires ....................................................... 6-4
S
Safety Child seat belts ........................................... 1-17
Reporting safety defects .............................. 9-21
Seat adjustment Front power seat adjustment .......................... 1-3
Front seats ..................................................... 1-3
Seat belt(s) Child safety ................................................. 1-17
Infants ......................................................... 1-18 Injured persons ........................................... 1-12
Larger children ............................................. 1-18
Precautions on seat belt usage .................... 1-10
Pre-crash seat belts with comfort function ... 1-12Pregnant women .......................................... 1-12
Seat belt cleaning .......................................... 7-7
Seat belt extenders ...................................... 1-16
Seat belt maintenance ................................. 1-16
Seat belt warning light and chime ............... 2-17
Seat belts .................................................... 1-10
Seat belts with pretensioners ...................... 1-49
Shoulder belt height adjustment .................. 1-16
Small children ............................................. 1-18
Three-point type .......................................... 1-13
Seat(s) Driver-side memory ...................................... 3-28
Heated seats ................................................. 1-5
Seats ............................................................. 1-2
Security system
Vehicle security system ................................ 2-35
Security system (INFINITI Vehicle Immobilizer
System)
Engine start ................................................. 2-37
Shift lever Shift lock release ......................................... 5-18
Shift lock release, Transmission ........................ 5-18
SHIFT “P”warning ............................................ 2-24
Shifting
Automatic transmission ............................... 5-14
Shoulder belt height adjustment ....................... 1-16
SNOW mode ..................................................... 5-21 Spark plugs ...................................................... 8-19
Speedometer ...................................................... 2-7
SPORT mode ..................................................... 5-21
STANDARD mode ............................................... 5-21
Starting
Before starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-13
Jump starting ............................................... 8-18
Precautions when starting and driving ........... 5-3
Push starting ................................................. 6-7
Starting the INFINITI Direct Response
Hybrid
®System ........................................... 5-14
Status light, Front passenger air bag ................ 1-44
Steering Direct adaptive steering ............................. 5-104
Power steering system ............................... 5-104
Tilt/telescopic steering ................................. 3-24
Storage ............................................................. 2-49
Storage box ...................................................... 2-52
Sun visors ........................................................ 3-25
Sunglasses holder ............................................ 2-51
Supplemental air bag warning labels ................ 1-50
Supplemental air bag warning light ......... 1-50, 2-17
Supplemental restraint system .......................... 1-37 Precautions on supplemental
restraint system ........................................... 1-37
Switch Autolight switch ........................................... 2-41
Fog light switch ........................................... 2-47
Hazard warning flasher switch ....................... 6-2
Headlight switch .......................................... 2-41

Ignition switch ............................................. 5-14
Power door lock switch .................................. 3-5
Rear window and outside mirror
defroster switch ........................................... 2-41
Turn signal switch ........................................ 2-47
Vehicle Dynamic Control (VDC) off switch ..... 2-48
T
Tachometer ......................................................... 2-8
TemperatureEngine coolant temperature gauge ............... 2-33
Theft (INFINITI Vehicle Immobilizer System)
Engine start ................................................. 2-37
Thigh extension .................................................. 1-5
Three-way catalyst .............................................. 5-4
Tilt/telescopic steering ...................................... 3-24
Tire Flat Tire - Visit dealer warning ..................... 2-26
Run-flat tires .................................................. 6-4
Tire replacement indicator ............................ 2-29
Tire rotation ................................................. 8-38
Tire pressure Low tire pressure warning light .................... 2-15
Tire Pressure Low - Add Air warning .................. 2-25
Tires Flat tire .......................................................... 6-3
Low tire pressure warning system ... 5-4, 6-3, 8-30
Run-flat tires ................................................ 8-36
Tire and Loading information label ...... 8-31, 9-13
Tire chains ................................................... 8-37
Tire dressing .................................................. 7-4 Tire pressure................................................ 8-30
Tire Pressure Monitoring
System (TPMS) .............................. 5-4, 6-3, 8-30
Types of tires ............................................... 8-35
Uniform tire quality grading ......................... 9-19
Wheel/tire size .............................................. 9-9
Wheels and tires .......................................... 8-30
Towing Flat towing ................................................... 9-19
Tow truck towing ............................................ 6-8
Towing a trailer ............................................ 9-19
TPMS Tire Pressure Monitoring System ... 5-4, 6-3, 8-30
TPMS, Tire pressure monitoring system TPMS with Tire Inflation Indicator................... 5-7
Trailer towing .................................................... 9-19
Transceiver HomeLink
®Universal Transceiver ................. 2-61
Transmission
Automatic transmission fluid (ATF) ............... 8-15
Driving with automatic transmission ............ 5-14
Transmission shift lever lock release ............ 5-18
Transmitter (See remote keyless entry system) ... 3-14
Traveling or registering your vehicle in
another country ................................................ 9-11
Trip computer ................................................... 2-31
Trip odometer ................................................... 2-33
Trunk Interior trunk lid release .............................. 3-21
Light ............................................................ 2-60
Trunk hooks ................................................. 2-53 Trunk lid ...................................................... 3-19
Trunk lid release switch ............................... 3-19
Trunk open request switch ........................... 3-19
Trunk release power cancel switch ............... 3-20
Turn signal switch ............................................. 2-47
U
Underbody cleaning ............................................ 7-3
Uniform tire quality grading .............................. 9-19
V
Vanity mirror ..................................................... 3-28
Vanity mirror lights ........................................... 2-60
Vehicle Dimensions .................................................. 9-10
Recovery (freeing a stuck vehicle) ................ 6-11
Vehicle Dynamic Control (VDC) off switch ..... 2-48
Vehicle Dynamic Control (VDC) system ....... 5-108
Vehicle Dynamic Control (VDC)
warning light ............................................... 2-18
Vehicle identification number (VIN) ................... 9-11
Vehicle information display ............................... 2-21
Vehicle loading information .............................. 9-16
Vehicle security system ..................................... 2-35
Ventilators .......................................................... 4-2
W
Warning Blind Spot Warning (BSW) system ................ 5-38
10-7
