TPMS INFINITI Q50-HYBRID 2018 User Guide

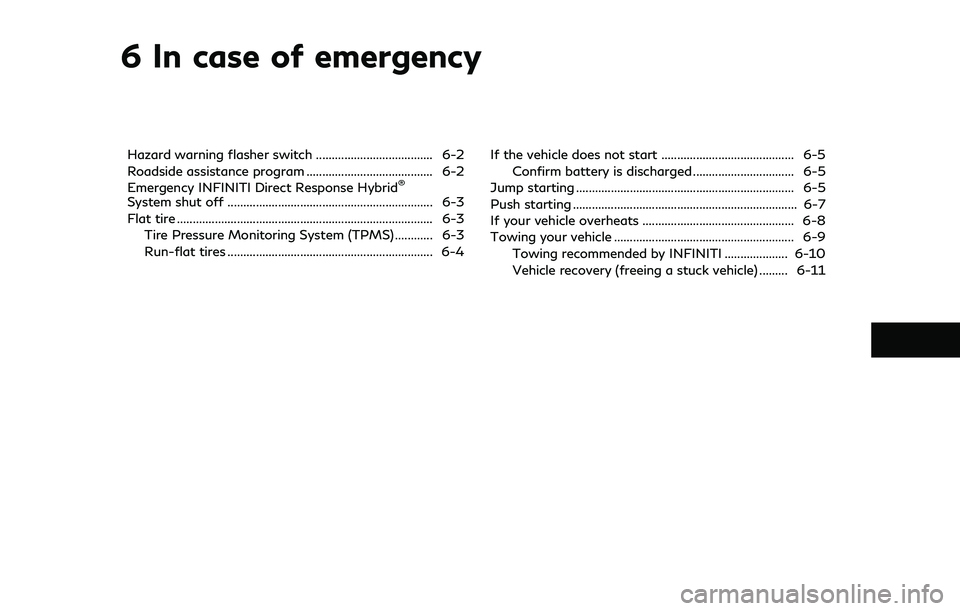

6 In case of emergency
Hazard warning flasher switch ..................................... 6-2
Roadside assistance program ........................................ 6-2
Emergency INFINITI Direct Response Hybrid
®
System shut off ................................................................. 6-3
Flat tire ........................................................................\
......... 6-3Tire Pressure Monitoring System (TPMS) ............ 6-3
Run-flat tires ................................................................. 6-4 If the vehicle does not start .......................................... 6-5
Confirm battery is discharged ................................ 6-5
Jump starting ..................................................................... 6-5
Push starting ....................................................................... 6-7
If your vehicle overheats ................................................ 6-8
Towing your vehicle ......................................................... 6-9
Towing recommended by INFINITI .................... 6-10
Vehicle recovery (freeing a stuck vehicle) ......... 6-11

To shut off the INFINITI Direct Response
Hybrid®System in an emergency situation
while driving, perform the following proce-
dure:
. Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds. Your vehicle is equipped with run-flat tires
and you can continue driving to a safe
location even if they are punctured. (See
“Run-flat tires” (P.8-34).)
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low - Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated. If the vehicle is
being driven with low tire pressure, the
TPMS will activate and warn you of it by
the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
For more details, see “Low tire pressure
warning light” (P.2-12) and “Tire Pressure
Monitoring System (TPMS)” (P.5-5).
WARNING
.
Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-
ufacturer for the possible influences before use.
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and
increase the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving
after adjusting the tire pressure, a
tire may be flat.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light will
remain on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended you visit an INFINITI retailer
for these services.
In case of emergency6-3
EMERGENCY INFINITI DIRECT
RESPONSE HYBRID®SYSTEM SHUT OFFFLAT TIRE

6-4In case of emergency
.Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
RUN-FLAT TIRES
Run-flat tires are those tires that can be
used temporarily if they are punctured. See
“Run-flat tires” (P.8-34).
Also, refer to “Important Tire Safety Infor-
mation” (US) or “Tire Safety Information”
(Canada) in the INFINITI Warranty Informa-
tion Booklet.
WARNING
.Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling stabi-
lity is reduced, which could lead to an
accident and personal injury. Also,
driving a long distance at high speeds
may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than approximately 93 miles (150 km) with a punctured run-flat
tire. The actual distance the vehicle
can be driven on a flat tire depends on
outside temperature, vehicle load,
road conditions and other factors.
. Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the
vehicle.
. If you detect any unusual sounds or
vibrations while driving with a punc-
tured run-flat tire, pull off the road
to a safe location and stop the vehicle
as soon as possible. The tire may be
seriously damaged and need to be
replaced.
CAUTION
.Never install tire chains on a punctu-
red run-flat tire, as this could damage
your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smaller
than normal.
. Do not enter an automated car wash
with a punctured run-flat tire. .
It is recommended you have the
punctured tire inspected by an
INFINITI retailer or other authorized
repair shop. Replace the tire as soon
as possible if the tire is seriously
damaged.
If you have a flat tire and have to stop the
vehicle, follow the instructions below.
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
P (Park) position.
4. Turn off the hybrid system.
5. Raise the hood to warn other traffic, and to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
For the tire removing procedure, see “Jack-
ing up the vehicle and replacing tires” (P.8-
39).

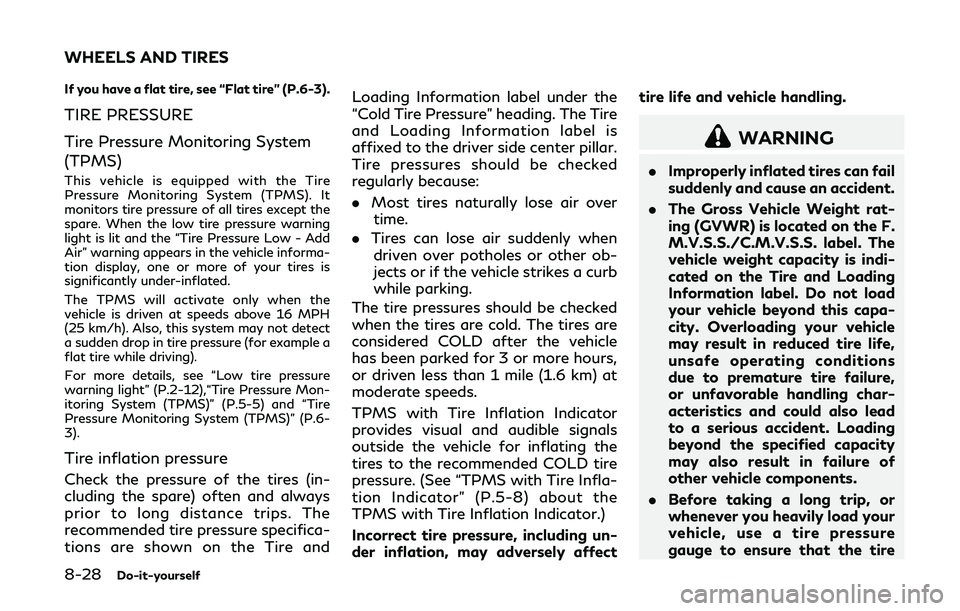

8-28Do-it-yourself
If you have a flat tire, see “Flat tire” (P.6-3).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low - Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example a
flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-12),“Tire Pressure Mon-
itoring System (TPMS)” (P.5-5) and “Tire
Pressure Monitoring System (TPMS)” (P.6-
3).
Tire inflation pressure
Check the pressure of the tires (in-
cluding the spare) often and always
prior to long distance trips. The
recommended tire pressure specifica-
tions are shown on the Tire andLoading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.
Most tires naturally lose air over
time.
. Tires can lose air suddenly when
driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. (See “TPMS with Tire Infla-
tion Indicator” (P.5-8) about the
TPMS with Tire Inflation Indicator.)
Incorrect tire pressure, including un-
der inflation, may adversely affect tire life and vehicle handling.
WARNING
.
Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. label. The
vehicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capa-
city. Overloading your vehicle
may result in reduced tire life,
unsafe operating conditions
due to premature tire failure,
or unfavorable handling char-
acteristics and could also lead
to a serious accident. Loading
beyond the specified capacity
may also result in failure of
other vehicle components.
. Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
WHEELS AND TIRES

8-34Do-it-yourself
TYPES OF TIRES
WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or
Snow) and construction. An INFINITI
retailer may be able to help you with
information about tire type, size,
speed rating and availability.
. Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle speed.
Never exceed the maximum speed
rating of the tire.
. Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-
ranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and may
be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice. Sum-
mer tires do not have the tire traction rating
M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and
handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.
If you install snow tires, they must be thesame size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires. Skid and
traction capabilities of studded snow tires,
on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Run-flat tires
Your vehicle is equipped with run-flat tires.
You can continue driving to a safe location
even if they are punctured. Always use run-
flat tires of the specified size on all four
wheels. Mixing tire sizes or construction may
reduce vehicle handling stability. If neces-
sary, contact an INFINITI retailer for assis-
tance.
Frequently check the tire pressure and adjust
pressure of each tire properly. The tire
pressure can be also checked in the vehicle
information display.
It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described earlier in this section. If
the tire becomes under-inflated while driv-
ing, the low tire pressure warning light will
illuminate. If the tire becomes flat while
driving, the low tire pressure warning light

8-38Do-it-yourself
tire pressure to be displayed in the vehicle
information display while the vehicle is
driven. Depending on the radio wave circum-
stance, tire pressure may not correctly be
displayed.
WARNING
.The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted, radial or run-
flat), or tread patterns can adversely
affect the ride, braking, handling,
ground clearance, body-to-tire clear-
ance, tire chain clearance, speed-
ometer calibration, headlight aim
and bumper height. Some of these
effects may lead to accidents and
could result in serious personal injury.
. For Two-Wheel Drive (2WD) models,
if your vehicle was originally
equipped with 4 tires that were the
same size and you are only replacing
2 of the 4 tires, install the new tires
on the rear axle. Placing new tires on
the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and
personal injury. .
If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interference
can lead to decreased braking effi-
ciency and/or early brake pad/shoe
wear. See “Wheels and tires” (P.10-
9) of this manual for wheel off-set
dimensions.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light will
remain on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended you visit an INFINITI retailer
for these services.
. Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.
. The TPMS sensor may be damaged if
it is not handled correctly. Be careful
when handling the TPMS sensor.
. When replacing the TPMS sensor, the
ID registration may be required. It is
recommended you contact an INFINITI retailer for ID registration.
. Do not use a valve stem cap that is
not specified by INFINITI. The valve
stem cap may become stuck.
. Be sure that the valve stem caps are
correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause a malfunction or loss of pres-
sure.
. Do not install a damaged or deformed
wheel or tire even if it has been
repaired. Such wheels or tires could
have structural damage and could fail
without warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-
ranty Information Booklet.

other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are
missing, and check for any loose wheel nuts.
Tighten if necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km).
Tires*: Check the pressure with a gauge
often and always prior to long distance trips.
If necessary, adjust the pressure in all tires,
including the spare, to the pressure speci-
fied. Check carefully for damage, cuts or
excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and
cap when the tires are replaced due to wear
or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect
uneven or abnormal tire wear, there may be
a need for wheel alignment.
If the steering wheel or seat vibrates at normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the shift lever in
the P (Park) position without applying any
brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.
Brakes:
Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, it is recommended you
visit an INFINITI retailer for this service.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position. Check
that the head restraints move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjuster and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Steering wheel: Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
Maintenance and schedules9-3

Locking with mechanical key ............................. 3-4
Log-in function .................................................... 3-15
Loose Fuel Cap warning ....................... 2-21, 3-26
Low fuel warning light ....................................... 2-12
Low outside temperature warning ................. 2-23
Low tire pressure warning light ...................... 2-12
Low tire pressure warning system (See Tire
Pressure Monitoring
System (TPMS)) ................................ 5-5, 6-3, 8-28
M
MaintenanceBattery .............................................................. 8-14
General maintenance ...................................... 9-2
HEV Li-ion battery
replacement record ....................................... 9-14
Indicators for maintenance (vehicle
information display) ...................................... 2-25
Inside the vehicle ............................................. 9-3
Maintenance log ............................................ 9-16
Maintenance precautions .............................. 8-2
Maintenance requirements ........................... 9-2
Maintenance schedules ................................. 9-6
Maintenance under severe
driving conditions .......................................... 9-13
Outside the vehicle ......................................... 9-2
Seat belt maintenance ................................. 1-15
Standard maintenance .................................... 9-7
Under the hood and vehicle ......................... 9-4
Maintenance schedules ........................................ 9-6
Malfunction Indicator Light (MIL) .................. 2-16 Map lights .............................................................. 2-56
Master warning light .......................................... 2-13
Mechanical key (Intelligent Key system) .......... 3-3
Memory storage
Automatic drive positioner ......................... 3-31
Meter Trip computer ................................................. 2-27
Meters and gauges ................................................ 2-5 Instrument brightness control ................... 2-42
Mirror
Inside mirror .................................................... 3-28
Outside mirrors .............................................. 3-29
Vanity mirror .................................................. 3-30
Moonroof ............................................................... 2-54
N
NAVI Shift Control .............................................. 5-19
New vehicle break-in ........................................ 5-121
Noise and vibration .................... Hybrid System-12
O
Odometer .................................................................. 2-6
Off-road recovery .................................................. 5-9
Oil Capacities and
recommended fluids/lubricants ................. 10-2
Changing engine oil and oil filter ............. 8-10
Checking engine oil level ............................... 8-9
Engine oil ........................................................... 8-9
Engine oil viscosity ........................................ 10-7 One touch unlock sensor (See Intelligent
Key system) .............................................................. 3-9
Operation
Indicators for operation ............................... 2-20
Operation of the INFINITI Direct
Response Hybrid
®System ......... Hybrid System-4
Outside mirrors .................................................... 3-29
Overheat, If your vehicle overheats ................. 6-8
Owner’s Manual/Service Manual
order information ............................................. 10-22
P
Panic alarm ............................................................ 3-17
Parking
Parking brake operation ............................. 5-20
Parking on hills ............................................. 5-125
Parking brake break-in .................................... 5-129
Personal lights ...................................................... 2-57
PERSONAL mode ............................................... 5-23
Phone Car phone or CB radio ................................... 4-3
Power Power door lock ............................................... 3-4
Power outlet ................................................... 2-46
Power steering system .............................. 5-126
Power windows ............................................. 2-52
Power moonroof ................................................. 2-54
Power steering warning light ........................... 2-14
Precautions Braking precautions ................................... 5-128
Child restraints ............................................... 1-18
11-5

Starting the INFINITI Direct Response
Hybrid®System .............................................. 5-14
Status light, Front passenger air bag ............ 1-45
Steering
Direct Adaptive Steering ........................... 5-126
Heated steering wheel ................................. 2-45
Power steering system .............................. 5-126
Tilt/telescopic steering ................................ 3-27
Storage ................................................................... 2-47
Storage box ........................................................... 2-50
Sun visors ............................................................... 3-27
Sunglasses holder ................................................ 2-49
Supplemental air bag warning labels ............. 1-54
Supplemental air bag warning light ... 1-54, 2-14
Supplemental restraint system ........................ 1-37 Precautions on supplemental
restraint system ............................................. 1-37
Switch Autolight switch ............................................. 2-37
Fog light switch ............................................. 2-43
Hazard warning flasher switch .................... 6-2
Headlight switch ............................................ 2-36
Ignition switch ................................................ 5-15
Power door lock switch ................................. 3-5
Rear window and outside mirror
defroster switch ............................................. 2-36
Turn signal switch ......................................... 2-42
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-43T
Tachometer .............................................................. 2-7
Temperature Engine coolant temperature gauge .......... 2-29
Theft (INFINITI Vehicle Immobilizer System)
Engine start ..................................................... 2-32
Three-way catalyst ................................................ 5-5
Tilt/telescopic steering ...................................... 3-27
Tire Flat Tire - Visit dealer warning ................. 2-22
Run-flat tires .................................................... 6-4
Tire replacement indicator .......................... 2-25
Tire rotation .................................................... 8-36
Tire pressure
Low tire pressure warning light ................ 2-12
Tire Pressure Low - Add Air warning ........... 2-21
Tires Flat tire ............................................................... 6-3
Low tire pressure
warning system ........................... 5-5, 6-3, 8-28
Run-flat tires ................................................. 8-34
Tire and Loading
information label ............................. 8-30, 10-12
Tire chains ........................................................ 8-35
Tire dressing ...................................................... 7-4
Tire pressure .................................................. 8-28
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-28
Types of tires ................................................. 8-34
Uniform tire quality grading .................... 10-18 Wheel/tire size ............................................... 10-9
Wheels and tires ........................................... 8-28
Towing
Flat towing ................................................... 10-18
Tow truck towing ............................................ 6-9
Towing a trailer ........................................... 10-18
TPMS
Tire Pressure
Monitoring System .................... 5-5, 6-3, 8-28
TPMS with Tire Inflation Indicator ............ 5-8
Trailer towing .................................................... 10-18
Transceiver HomeLink
®Universal Transceiver ............ 2-59
Transmission Automatic Transmission Fluid (ATF) ....... 8-12
Driving with automatic transmission ....... 5-15
Transmission shift lever lock release ....... 5-18
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering in
another country ................................................ 10-10
Trip computer ....................................................... 2-27
Trip odometer ....................................................... 2-29
Trunk Interior trunk lid release .............................. 3-24
Light .................................................................. 2-58
Trunk hooks .................................................... 2-51
Trunk lid ........................................................... 3-22
Trunk lid release switch ............................... 3-22
Trunk open request switch ......................... 3-22
Trunk release power cancel switch .......... 3-23
11-7

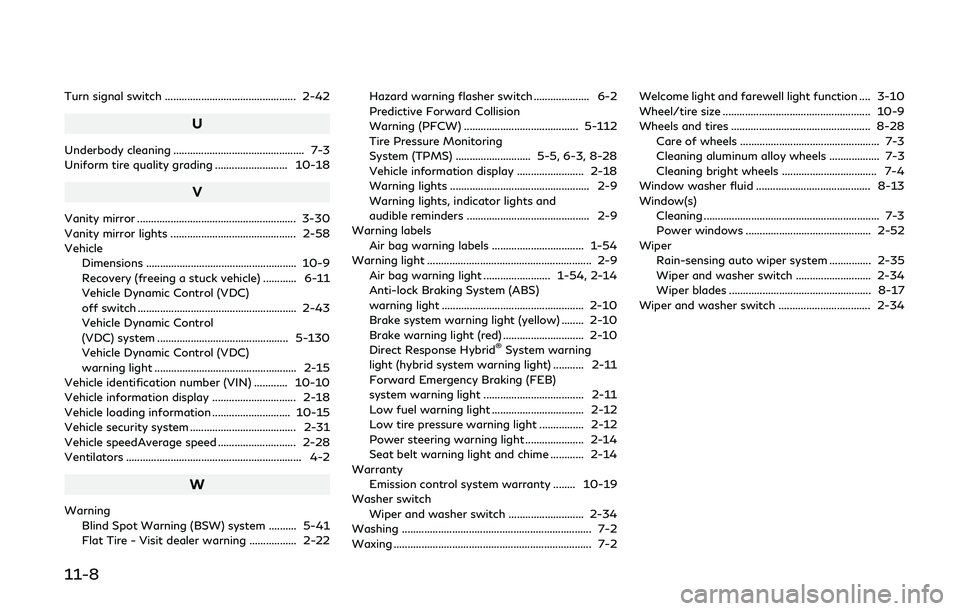

11-8
Turn signal switch ............................................... 2-42
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading .......................... 10-18
V
Vanity mirror ......................................................... 3-30
Vanity mirror lights ............................................. 2-58
VehicleDimensions ...................................................... 10-9
Recovery (freeing a stuck vehicle) ............ 6-11
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-43
Vehicle Dynamic Control
(VDC) system ............................................... 5-130
Vehicle Dynamic Control (VDC)
warning light ................................................... 2-15
Vehicle identification number (VIN) ............ 10-10
Vehicle information display .............................. 2-18
Vehicle loading information ............................ 10-15
Vehicle security system ...................................... 2-31
Vehicle speedAverage speed ............................ 2-28
Ventilators ............................................................... 4-2
W
Warning Blind Spot Warning (BSW) system .......... 5-41
Flat Tire - Visit dealer warning ................. 2-22 Hazard warning flasher switch .................... 6-2
Predictive Forward Collision
Warning (PFCW) ......................................... 5-112
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-28
Vehicle information display ........................ 2-18
Warning lights .................................................. 2-9
Warning lights, indicator lights and
audible reminders ............................................ 2-9
Warning labels
Air bag warning labels ................................. 1-54
Warning light ........................................................... 2-9 Air bag warning light ........................ 1-54, 2-14
Anti-lock Braking System (ABS)
warning light ................................................... 2-10
Brake system warning light (yellow) ........ 2-10
Brake warning light (red) ............................. 2-10
Direct Response Hybrid
®System warning
light (hybrid system warning light) ........... 2-11
Forward Emergency Braking (FEB)
system warning light .................................... 2-11
Low fuel warning light ................................. 2-12
Low tire pressure warning light ................ 2-12
Power steering warning light ..................... 2-14
Seat belt warning light and chime ............ 2-14
Warranty Emission control system warranty ........ 10-19
Washer switch
Wiper and washer switch ........................... 2-34
Washing .................................................................... 7-2
Waxing ....................................................................... 7-2 Welcome light and farewell light function .... 3-10
Wheel/tire size ..................................................... 10-9
Wheels and tires .................................................. 8-28
Care of wheels .................................................. 7-3
Cleaning aluminum alloy wheels .................. 7-3
Cleaning bright wheels .................................. 7-4
Window washer fluid ......................................... 8-13
Window(s) Cleaning ............................................................... 7-3
Power windows ............................................. 2-52
Wiper Rain-sensing auto wiper system ............... 2-35
Wiper and washer switch ........................... 2-34
Wiper blades ................................................... 8-17
Wiper and washer switch ................................. 2-34
