12-volt battery charge warning lightMaster warning lightFront fog light indicator light
Anti-lock Braking System (ABS) warning
lightPower steering warning lightFront passenger air bag status light
Seat belt warning light and chimeHigh beam assist indicator light (if so
equipped)
Brake system warning light (yellow)Supplemental air bag warning lightHigh beam indicator light
Brake warning light (red)Vehicle Dynamic Control (VDC) warning
lightMalfunction Indicator Light (MIL)
Direct Response Hybrid®System warn-
ing lightApproaching Vehicle Sound for Pedes-
trians (VSP) OFF indicator lightREADY to drive indicator light
Forward Emergency Braking (FEB) sys-
tem warning lightECO drive indicator lightSecurity indicator light
Low fuel warning lightEV indicator lightTurn signal/hazard indicator lights
Low tire pressure warning lightExterior light indicatorVehicle Dynamic Control (VDC) off in-
dicator light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the INFINITI Direct Response Hy-
brid
®System. The following lights (if so
equipped) will come on:
,or(red),,,,
The following lights (if so equipped) come on
briefly and then go off:
,or,,,,,(yellow) If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. It is recommended you have the system
checked by an INFINITI retailer.
Some indicators and warnings are also
displayed in the vehicle information display
between the speedometer and tachometer.
(See “Vehicle information display” (P.2-18).)
WARNING LIGHTS
12-volt battery charge warn-
ing light
When the ignition switch is in the ON
position, the 12-volt battery charge warning
light illuminates. After starting the hybrid
system, the light turns off.
If the light continues to illuminate after
starting the hybrid system, it may indicate
the charging system is not functioning
Instruments and controls2-9
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

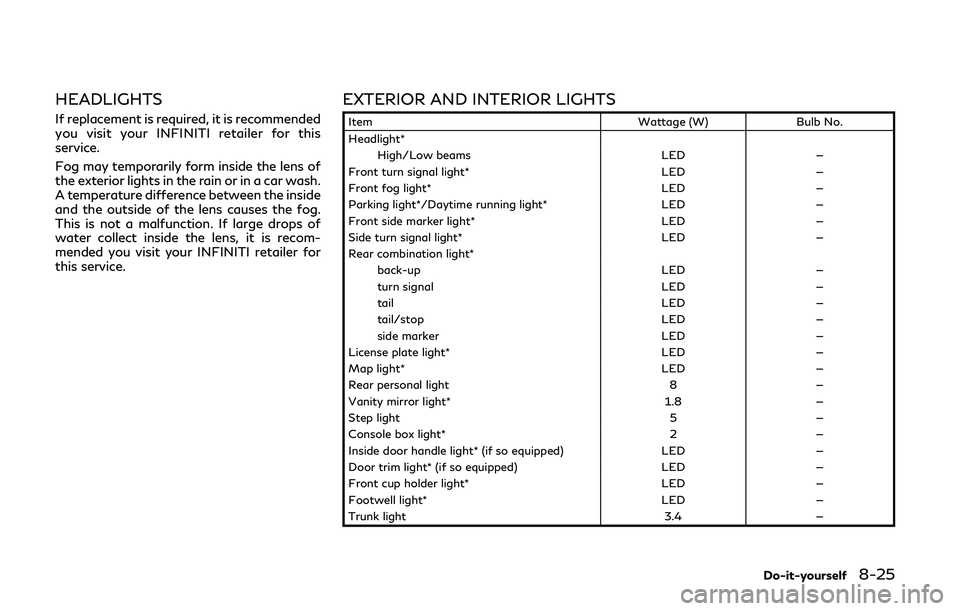

HEADLIGHTS
If replacement is required, it is recommended
you visit your INFINITI retailer for this
service.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car wash.
A temperature difference between the inside
and the outside of the lens causes the fog.
This is not a malfunction. If large drops of
water collect inside the lens, it is recom-
mended you visit your INFINITI retailer for
this service.
EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight* High/Low beams LED—
Front turn signal light* LED—
Front fog light* LED—
Parking light*/Daytime running light* LED—
Front side marker light* LED—
Side turn signal light* LED—
Rear combination light* back-up LED—
turn signal LED—
tail LED—
tail/stop LED—
side marker LED—
License plate light* LED—
Map light* LED—
Rear personal light 8—
Vanity mirror light* 1.8—
Step light 5—
Console box light* 2—
Inside door handle light* (if so equipped) LED—
Door trim light* (if so equipped) LED—
Front cup holder light* LED—
Footwell light* LED—
Trunk light 3.4—
Do-it-yourself8-25

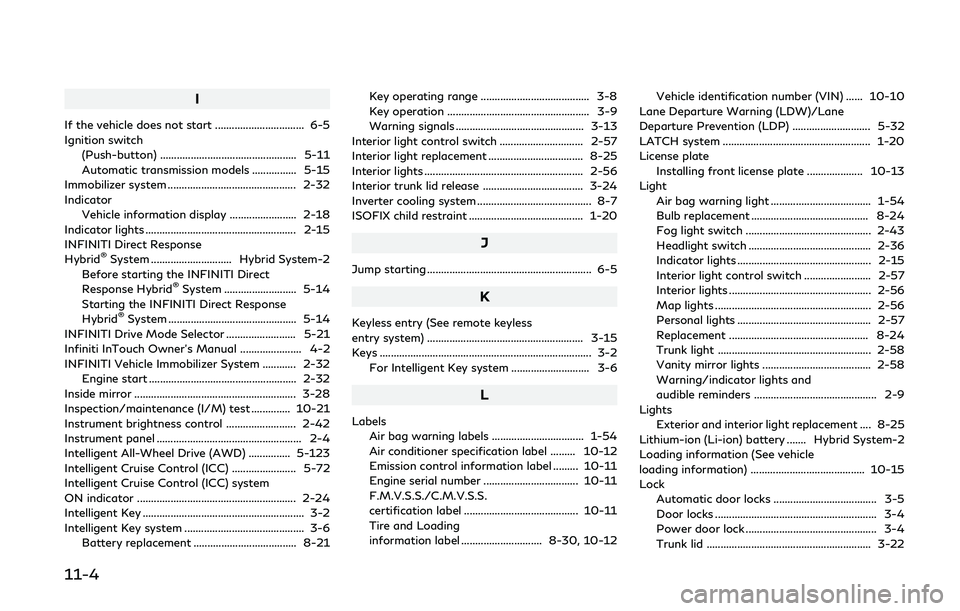

11-4
I
If the vehicle does not start ................................ 6-5
Ignition switch(Push-button) ................................................. 5-11
Automatic transmission models ................ 5-15
Immobilizer system .............................................. 2-32
Indicator Vehicle information display ........................ 2-18
Indicator lights ...................................................... 2-15
INFINITI Direct Response
Hybrid
®System ............................. Hybrid System-2
Before starting the INFINITI Direct
Response Hybrid
®System .......................... 5-14
Starting the INFINITI Direct Response
Hybrid
®System .............................................. 5-14
INFINITI Drive Mode Selector ......................... 5-21
Infiniti InTouch Owner’s Manual ...................... 4-2
INFINITI Vehicle Immobilizer System ............ 2-32 Engine start ..................................................... 2-32
Inside mirror .......................................................... 3-28
Inspection/maintenance (I/M) test .............. 10-21
Instrument brightness control ......................... 2-42
Instrument panel .................................................... 2-4
Intelligent All-Wheel Drive (AWD) ............... 5-123
Intelligent Cruise Control (ICC) ....................... 5-72
Intelligent Cruise Control (ICC) system
ON indicator ......................................................... 2-24
Intelligent Key .......................................................... 3-2
Intelligent Key system ........................................... 3-6 Battery replacement ..................................... 8-21 Key operating range ....................................... 3-8
Key operation ................................................... 3-9
Warning signals .............................................. 3-13
Interior light control switch .............................. 2-57
Interior light replacement .................................. 8-25
Interior lights ......................................................... 2-56
Interior trunk lid release .................................... 3-24
Inverter cooling system ......................................... 8-7
ISOFIX child restraint ......................................... 1-20
J
Jump starting ........................................................... 6-5
K
Keyless entry (See remote keyless
entry system) ........................................................ 3-15
Keys ........................................................................\
.... 3-2
For Intelligent Key system ............................ 3-6
L
LabelsAir bag warning labels ................................. 1-54
Air conditioner specification label ......... 10-12
Emission control information label ......... 10-11
Engine serial number .................................. 10-11
F.M.V.S.S./C.M.V.S.S.
certification label ......................................... 10-11
Tire and Loading
information label ............................. 8-30, 10-12 Vehicle identification number (VIN) ...... 10-10
Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP) ............................ 5-32
LATCH system ..................................................... 1-20
License plate Installing front license plate .................... 10-13
Light
Air bag warning light .................................... 1-54
Bulb replacement .......................................... 8-24
Fog light switch ............................................. 2-43
Headlight switch ............................................ 2-36
Indicator lights ................................................ 2-15
Interior light control switch ........................ 2-57
Interior lights ................................................... 2-56
Map lights ........................................................ 2-56
Personal lights ................................................ 2-57
Replacement .................................................. 8-24
Trunk light ....................................................... 2-58
Vanity mirror lights ....................................... 2-58
Warning/indicator lights and
audible reminders ............................................ 2-9
Lights
Exterior and interior light replacement .... 8-25
Lithium-ion (Li-ion) battery ....... Hybrid System-2
Loading information (See vehicle
loading information) ......................................... 10-15
Lock
Automatic door locks ..................................... 3-5
Door locks .......................................................... 3-4
Power door lock ............................................... 3-4
Trunk lid ........................................................... 3-22
