headrest INFINITI Q50-HYBRID 2018 User Guide

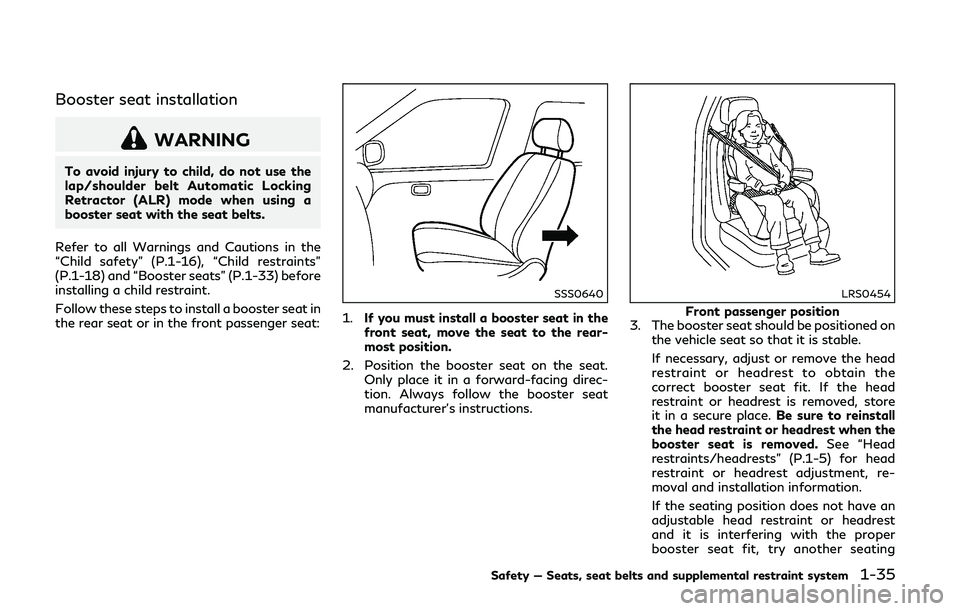

Booster seat installation
WARNING
To avoid injury to child, do not use the
lap/shoulder belt Automatic Locking
Retractor (ALR) mode when using a
booster seat with the seat belts.
Refer to all Warnings and Cautions in the
“Child safety” (P.1-16), “Child restraints”
(P.1-18) and “Booster seats” (P.1-33) before
installing a child restraint.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:
SSS0640
1. If you must install a booster seat in the
front seat, move the seat to the rear-
most position.
2. Position the booster seat on the seat. Only place it in a forward-facing direc-
tion. Always follow the booster seat
manufacturer’s instructions.
LRS0454
Front passenger position
3. The booster seat should be positioned on
the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct booster seat fit. If the head
restraint or headrest is removed, store
it in a secure place. Be sure to reinstall
the head restraint or headrest when the
booster seat is removed. See “Head
restraints/headrests” (P.1-5) for head
restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have an
adjustable head restraint or headrest
and it is interfering with the proper
booster seat fit, try another seating
Safety — Seats, seat belts and supplemental restraint system1-35

EV mode odometer and twin
trip odometer ........................................................ 2-27
Event Data Recorders (EDR) ......................... 10-21
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5
F
F.M.V.S.S./C.M.V.S.S. certification label .... 10-11
FilterAir cleaner housing filter ............................. 8-16
Changing engine oil and oil filter ............. 8-10
Flashers (See hazard warning
flasher switch) ......................................................... 6-2
Flat tire ...................................................................... 6-3
Flat Tire - Visit dealer warning ....................... 2-22
Flat towing ......................................................... 10-18
Floor mat cleaning ................................................. 7-6
Floor mat installation ............................................ 7-7
Fluid Automatic Transmission Fluid (ATF) ....... 8-12
Brake fluid ....................................................... 8-12
Capacities and
recommended fluids/lubricants ................. 10-2
Engine coolant .................................................. 8-5
Engine oil ........................................................... 8-9
Window washer fluid ................................... 8-13
Fog light switch ................................................... 2-43
Forward Emergency Braking (FEB) ............ 5-104
Forward Emergency Braking (FEB) system
warning light .......................................................... 2-11 Front passenger air bag and status light ..... 1-45
Front power seat adjustment ............................. 1-3
Front seat
Front seat adjustment .................................... 1-3
Fuel Capacities and
recommended fluids/lubricants ................. 10-2
Fuel economy ............................................... 5-122
Fuel octane rating ........................................ 10-4
Fuel recommendation .................................. 10-4
Fuel-filler cap .................................................. 3-24
Fuel-filler door ............................................... 3-24
Gauge ................................................................... 2-7
Fuel economy history .................. Hybrid System-7
Fuel Efficient Driving Tips .............................. 5-121
Fuses ....................................................................... 8-19
Fusible links ........................................................... 8-20
G
Garage door opener HomeLink®Universal Transceiver ............ 2-59
Gas cap ................................................................... 3-24
Gauge ........................................................................\
. 2-5 Engine coolant temperature gauge .......... 2-29
Fuel gauge .......................................................... 2-7
Odometer ........................................................... 2-6
Speedometer ..................................................... 2-6
Tachometer ........................................................ 2-7
Trip computer ................................................. 2-27
General maintenance ............................................. 9-2
Glove box ............................................................... 2-49
H
Hazard warning flasher switch ........................... 6-2
Head restraints/headrests .................................. 1-5
Headlights
Aiming control (See Adaptive Front
lighting System (AFS)) ................................. 2-41
Headlight switch ............................................ 2-36
Heated seats ......................................................... 2-44
Heated steering wheel ....................................... 2-45
Heater Engine block heater ................................... 5-136
High beam assist ................................................. 2-38
High temperature warning ............................... 2-22
High voltage cautions ................. Hybrid System-2
High voltage components ....... Hybrid System-10
Hill start assist system ..................................... 5-134
HomeLink
®Universal Transceiver .................. 2-59
Hood release ......................................................... 3-21
Hook Coat hooks ...................................................... 2-51
Trunk hooks .................................................... 2-51
Horn ........................................................................\
. 2-43
Hybrid system over heat warning .................. 2-22
Hybrid system start operation indicator ....... 2-20
Hybrid
vehicle characteristics ............... Hybrid System-11
Hybrid vehicle precautions ...... Hybrid System-10
11-3
