glove box INFINITI Q50-HYBRID 2018 Owners Manual

JVC1101X
1. Meters and gauges (P.2-5)— Clock (P.2-30)
2. Push-button ignition switch (P.5-11)
3. Center ventilator (P.4-2)
4. Automatic climate control system*
5. Upper touch screen display* (upper display) and Navigation system* (if so
equipped)
6. Lower touch screen display* (lower display)
7. Rear window and outside mirror defroster switch (P.2-36) 8. Front passenger supplemental air bag
(P.1-37)
9. Hood release handle (P.3-21)
10. Fuse box cover (P.8-20)
11. Parking brake (P.5-20)
12 Storage box (P.2-50) and power outlet (P.2-46)
13. Seat heater switch (P.2-44)
14. Audio system*
15. Trunk release power cancel switch (P.3-23)
16. Glove box (P.2-49)
*: Refer to the Infiniti InTouch Owner’s Manual.
Illustrated table of contents0-7
INSTRUMENT PANEL

1-44Safety — Seats, seat belts and supplemental restraint system
.Make sure that there is no object
placed between the seat cushion and
center console or between the seat
cushion and the door.
. Be sure that the front passenger seat
does not contact the rear seat, in-
strument panel, etc., or the head
restraint does not contact the roof.
. Confirm the operating condition with
the front passenger air bag status
light.
. If you notice that the front passenger
air bag status light is not operating
as described in this section, it is
recommended you visit an INFINITI
retailer to check the passenger seat
Advanced Air Bag System.
. Until you have confirmed with a
retailer that your passenger seat
Advanced Air Bag System is working
properly, position the occupants in
the rear seating positions.
. Do not position the front passenger
seat so it contacts the rear seat. If the
front seat does contact the rear seat,
the air bag system may determine a
sensor malfunction has occurred and
the front passenger air bag status
light may illuminate and the supple-
mental air bag warning light may flash.
This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements
under U.S. regulations. It is also permitted in
Canada. All of the information, cautions and
warnings in this manual apply and must be
followed.
The driver supplemental front-impact air
bag is located in the center of the steering
wheel. The front passenger supplemental
front-impact air bag is mounted in the
instrument panel above the glove box. The
front air bags are designed to inflate in
higher severity frontal collisions, although
they may inflate if the forces in another type
of collision are similar to those of a higher
severity frontal impact. They may not inflate
in certain frontal collisions. Vehicle damage
(or lack of it) is not always an indication of
proper front air bag operation.
The INFINITI Advanced Air Bag System has
dual stage air bag inflators. The system
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), seat
belt buckle switches and the occupant
classification sensors (weight sensors). In-
flator operation is based on the severity of a
collision and seat belt usage for the driver. For the front passenger, the occupant
classification sensors are also monitored.
Based on information from the sensors, only
one front air bag may inflate in a crash,
depending on the crash severity and whether
the front occupants are belted or unbelted.
Additionally, the front passenger air bag
may be automatically turned OFF under
some conditions, depending on the informa-
tion provided by the occupant classification
sensors. If the front passenger air bag is
OFF, the front passenger air bag status light
will be illuminated. (See “Front passenger air
bag and status light” (P.1-45) for further
details.) One front air bag inflating does not
indicate improper performance of the sys-
tem.
If you have any questions about your air bag
system, it is recommended you visit an
INFINITI retailer to obtain information
about the system. If you are considering
modification of your vehicle due to a dis-
ability, you may also contact an INFINITI
retailer. Contact information is contained in
the front of this Owner’s Manual.
When a front air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken not
to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.

2 Instruments and controls
Cockpit ........................................................................\
......... 2-3
Instrument panel ................................................................ 2-4
Meters and gauges ........................................................... 2-5Speedometer and odometer ..................................... 2-6
Tachometer ..................................................................... 2-7
Assist charge gauge ..................................................... 2-7
Fuel gauge ...................................................................... 2-7
Warning lights, indicator lights and
audible reminders .............................................................. 2-9 Checking lights ............................................................. 2-9
Warning lights ............................................................... 2-9
Indicator lights ............................................................ 2-15
Audible reminders ...................................................... 2-17
Vehicle information display .......................................... 2-18 Indicators for operation ........................................... 2-20
Indicators for maintenance ..................................... 2-25
Trip computer ............................................................. 2-27
Clock and outside air temperature ...................... 2-30
Security systems .............................................................. 2-31 Vehicle Security System ........................................... 2-31
INFINITI Vehicle Immobilizer System .................. 2-32
Wiper and washer switch ............................................. 2-34 Rain-sensing auto wiper system ........................... 2-35
Rear window and outside mirror
defroster switch ............................................................... 2-36 Headlight and turn signal switch ............................... 2-36
Headlight switch ...................................................... 2-36
Turn signal switch .................................................... 2-42
Fog light switch ........................................................ 2-43
Horn ........................................................................\
............ 2-43
Vehicle Dynamic Control (VDC) OFF switch .......... 2-43
Heated seats ................................................................... 2-44 Operation with switch ............................................ 2-45
Operation with touch screen ................................ 2-45
AUTO mode setting ................................................ 2-45
Heated steering wheel .................................................. 2-45
Power outlet .................................................................... 2-46
Ashtray ........................................................................\
...... 2-47 Rear ........................................................................\
..... 2-47
Storage ........................................................................\
...... 2-47 Cup holders ................................................................ 2-47
Soft bottle holder ................................................... 2-48
Sunglasses holder .................................................... 2-49
Glove box ................................................................... 2-49
Console box .............................................................. 2-50
Card holder ............................................................... 2-50
Storage box .............................................................. 2-50
Coat hooks ................................................................ 2-51
Trunk hooks ............................................................... 2-51

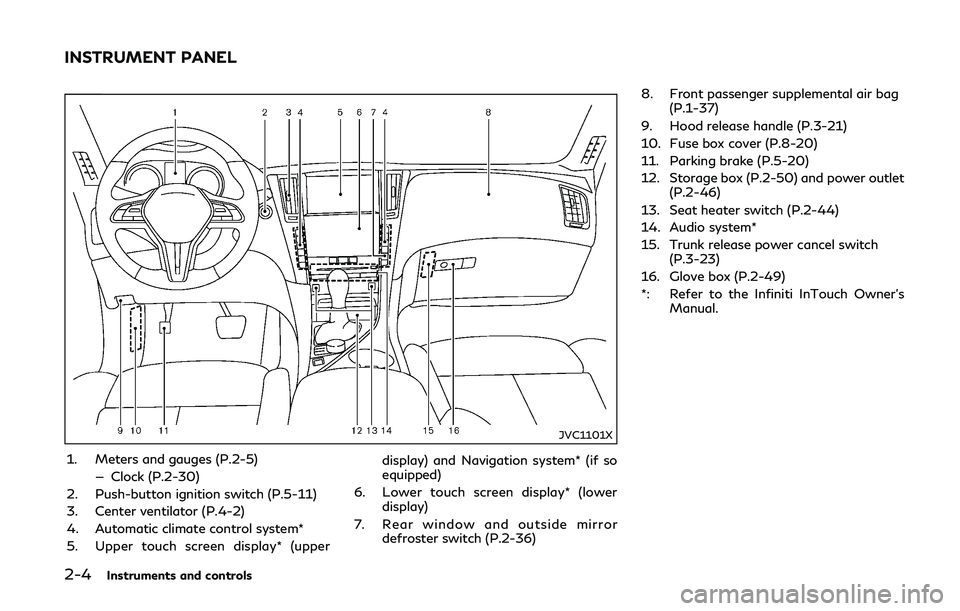

2-4Instruments and controls
JVC1101X
1. Meters and gauges (P.2-5)— Clock (P.2-30)
2. Push-button ignition switch (P.5-11)
3. Center ventilator (P.4-2)
4. Automatic climate control system*
5. Upper touch screen display* (upper display) and Navigation system* (if so
equipped)
6. Lower touch screen display* (lower display)
7. Rear window and outside mirror defroster switch (P.2-36) 8. Front passenger supplemental air bag
(P.1-37)
9. Hood release handle (P.3-21)
10. Fuse box cover (P.8-20)
11. Parking brake (P.5-20)
12. Storage box (P.2-50) and power outlet (P.2-46)
13. Seat heater switch (P.2-44)
14. Audio system*
15. Trunk release power cancel switch (P.3-23)
16. Glove box (P.2-49)
*: Refer to the Infiniti InTouch Owner’s Manual.
INSTRUMENT PANEL

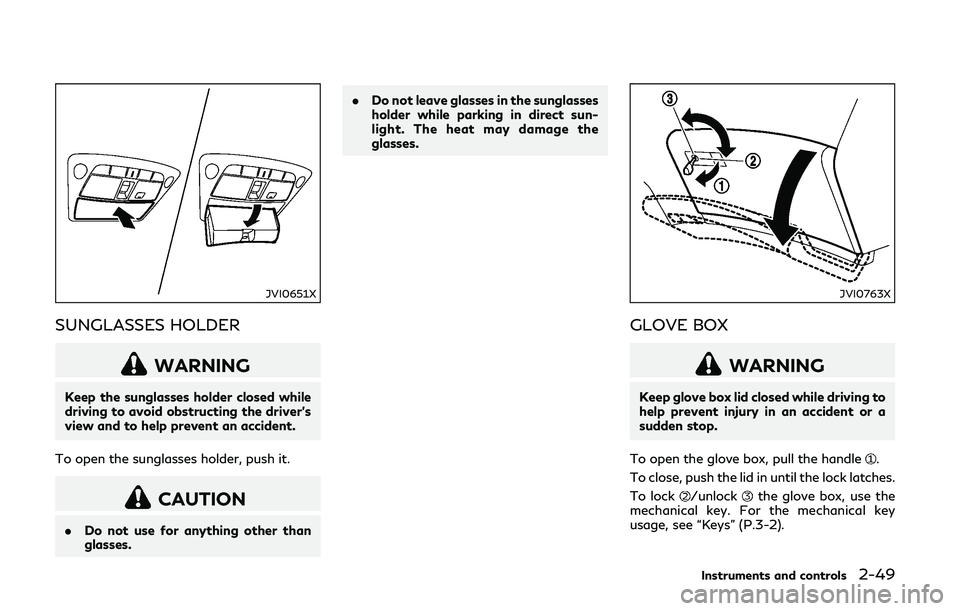

JVI0651X
SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
To open the sunglasses holder, push it.
CAUTION
. Do not use for anything other than
glasses. .
Do not leave glasses in the sunglasses
holder while parking in direct sun-
light. The heat may damage the
glasses.
JVI0763X
GLOVE BOX
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
.
To close, push the lid in until the lock latches.
To lock
/unlockthe glove box, use the
mechanical key. For the mechanical key
usage, see “Keys” (P.3-2).
Instruments and controls2-49

140°F (60°C).
— Do not change or modify the Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key near an electric appliance such as
a television set or personal com-
puter.
— Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This could
affect the system function.
. If an Intelligent Key is lost or stolen,
INFINITI recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from un-
authorized use to unlock the vehicle.
For information regarding the eras-
ing procedure, it is recommended you
visit an INFINITI retailer.
SPA2033
Mechanical key
To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors and glove box, if they are equipped
with a key cylinder.
See “Doors” (P.3-4) and “Glove box” (P.2-
49).
CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFF
When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.

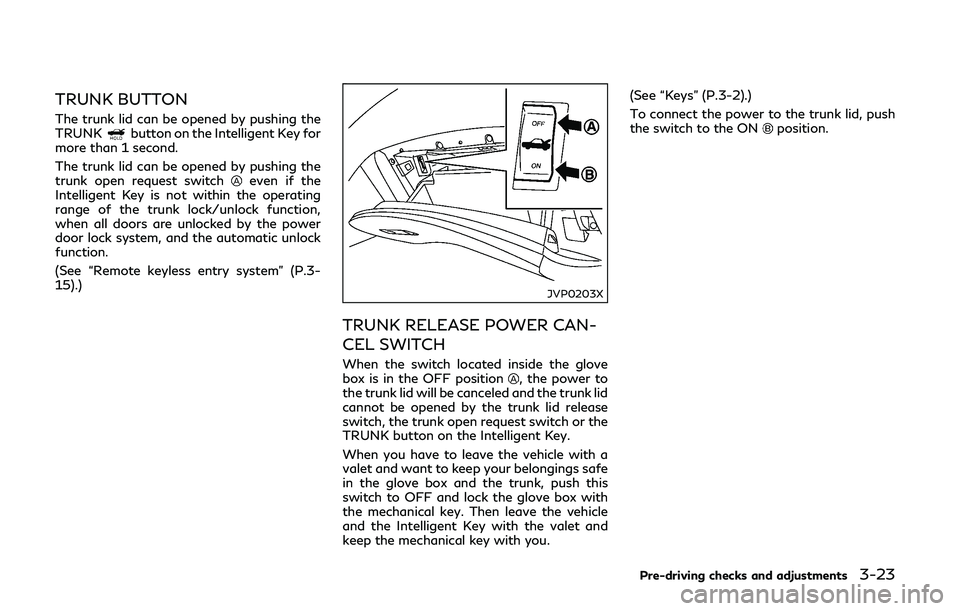

1. Push the trunk release power cancel
switch to the OFF (cancel) side.
2. Remove the mechanical key from the Intelligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.
See “Trunk lid” (P.3-22) and “Glove box”
(P.2-49).
Pre-driving checks and adjustments3-3

tion, see the Infiniti InTouch Owner’s Man-
ual.
Lockout protection
To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.
When the driver’s side door is open, the
doors are locked, and then the Intelligent
Key is put inside the vehicle and all the doors
are closed; the lock will automatically unlock
and the door buzzer sounds.
NOTE:
The doors may not lock when the Intelligent
Key is in the same hand that is operating the
request switch to lock the door. Put the
Intelligent Key in a purse, pocket or your
other hand.
CAUTION
The lockout protection may not function
under the following conditions:
.When the Intelligent Key is placed on
top of the instrument panel.
. When the Intelligent Key is placed
inside the glove box or a storage bin. .
When the Intelligent Key is placed
inside the door pockets.
. When the Intelligent Key is placed
inside or near metallic materials.
JVP0233X
Locking doors, trunk lid and fuel-
filler door
1. Push the ignition switch to the OFF
position and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors.*2
3. Push the door handle request switch (driver’s or front passenger’s)
while
carrying the Intelligent Key with you.*3
4. All the doors, trunk lid and fuel-filler door will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
*1: Doors will lock with the Intelligent Key
Pre-driving checks and adjustments3-11

TRUNK BUTTON
The trunk lid can be opened by pushing the
TRUNKbutton on the Intelligent Key for
more than 1 second.
The trunk lid can be opened by pushing the
trunk open request switch
even if the
Intelligent Key is not within the operating
range of the trunk lock/unlock function,
when all doors are unlocked by the power
door lock system, and the automatic unlock
function.
(See “Remote keyless entry system” (P.3-
15).)
JVP0203X
TRUNK RELEASE POWER CAN-
CEL SWITCH
When the switch located inside the glove
box is in the OFF position, the power to
the trunk lid will be canceled and the trunk lid
cannot be opened by the trunk lid release
switch, the trunk open request switch or the
TRUNK button on the Intelligent Key.
When you have to leave the vehicle with a
valet and want to keep your belongings safe
in the glove box and the trunk, push this
switch to OFF and lock the glove box with
the mechanical key. Then leave the vehicle
and the Intelligent Key with the valet and
keep the mechanical key with you. (See “Keys” (P.3-2).)
To connect the power to the trunk lid, push
the switch to the ON
position.
Pre-driving checks and adjustments3-23

5-12Starting and driving
hybrid system.
.The trunk area is not included in the
operating range but the Intelligent Key
may function.
. If the Intelligent Key is placed on the
instrument panel, rear parcel shelf, inside
the glove box or door pocket, the
Intelligent Key may not function.
. If the Intelligent Key is placed near the
door or window outside the vehicle, the
Intelligent Key may function.
CAUTION
When pressing the ignition to the OFF
position, make sure the button is not
pressed twice. This may unintentionally
leave the vehicle in ACC or ON mode.
This may discharge the 12-volt battery.
JVS0266X
PUSH-BUTTON IGNITION
SWITCH OPERATION
When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch position will change as follows:
. Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to
OFF. (No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to
LOCK during the OFF position.
If the ignition switch is pushed quickly or is
rapidly pushed twice, the hybrid system may
not start. If this occurs, put the shift lever in the “P” (Park) position, and leave the ignition
switch in the “OFF” position for one minute.
Then depress the brake pedal and push the
ignition switch to “ON”. When the READY to
drive indicator light
illuminates, the
vehicle can be driven.
The ignition lock is designed so that the
ignition switch position cannot be switched
to LOCK until the shift lever is moved to the
P (Park) positon.
When the ignition switch cannot be
switched toward the LOCK position, move
the shift lever into the P (Park) position.
PUSH-BUTTON IGNITION
SWITCH POSITIONS
LOCK (Normal parking position)
The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it
is pushed to the ACC position while carrying
the Intelligent Key.
ACC (Accessories)
This position activates electrical accessories
such as the radio, when the hybrid system is
not running.

EV mode odometer and twin
trip odometer ........................................................ 2-27
Event Data Recorders (EDR) ......................... 10-21
Exhaust gas (carbon monoxide) ........................ 5-4
Explanation of scheduled
maintenance items ................................................. 9-5
F
F.M.V.S.S./C.M.V.S.S. certification label .... 10-11
FilterAir cleaner housing filter ............................. 8-16
Changing engine oil and oil filter ............. 8-10
Flashers (See hazard warning
flasher switch) ......................................................... 6-2
Flat tire ...................................................................... 6-3
Flat Tire - Visit dealer warning ....................... 2-22
Flat towing ......................................................... 10-18
Floor mat cleaning ................................................. 7-6
Floor mat installation ............................................ 7-7
Fluid Automatic Transmission Fluid (ATF) ....... 8-12
Brake fluid ....................................................... 8-12
Capacities and
recommended fluids/lubricants ................. 10-2
Engine coolant .................................................. 8-5
Engine oil ........................................................... 8-9
Window washer fluid ................................... 8-13
Fog light switch ................................................... 2-43
Forward Emergency Braking (FEB) ............ 5-104
Forward Emergency Braking (FEB) system
warning light .......................................................... 2-11 Front passenger air bag and status light ..... 1-45
Front power seat adjustment ............................. 1-3
Front seat
Front seat adjustment .................................... 1-3
Fuel Capacities and
recommended fluids/lubricants ................. 10-2
Fuel economy ............................................... 5-122
Fuel octane rating ........................................ 10-4
Fuel recommendation .................................. 10-4
Fuel-filler cap .................................................. 3-24
Fuel-filler door ............................................... 3-24
Gauge ................................................................... 2-7
Fuel economy history .................. Hybrid System-7
Fuel Efficient Driving Tips .............................. 5-121
Fuses ....................................................................... 8-19
Fusible links ........................................................... 8-20
G
Garage door opener HomeLink®Universal Transceiver ............ 2-59
Gas cap ................................................................... 3-24
Gauge ........................................................................\
. 2-5 Engine coolant temperature gauge .......... 2-29
Fuel gauge .......................................................... 2-7
Odometer ........................................................... 2-6
Speedometer ..................................................... 2-6
Tachometer ........................................................ 2-7
Trip computer ................................................. 2-27
General maintenance ............................................. 9-2
Glove box ............................................................... 2-49
H
Hazard warning flasher switch ........................... 6-2
Head restraints/headrests .................................. 1-5
Headlights
Aiming control (See Adaptive Front
lighting System (AFS)) ................................. 2-41
Headlight switch ............................................ 2-36
Heated seats ......................................................... 2-44
Heated steering wheel ....................................... 2-45
Heater Engine block heater ................................... 5-136
High beam assist ................................................. 2-38
High temperature warning ............................... 2-22
High voltage cautions ................. Hybrid System-2
High voltage components ....... Hybrid System-10
Hill start assist system ..................................... 5-134
HomeLink
®Universal Transceiver .................. 2-59
Hood release ......................................................... 3-21
Hook Coat hooks ...................................................... 2-51
Trunk hooks .................................................... 2-51
Horn ........................................................................\
. 2-43
Hybrid system over heat warning .................. 2-22
Hybrid system start operation indicator ....... 2-20
Hybrid
vehicle characteristics ............... Hybrid System-11
Hybrid vehicle precautions ...... Hybrid System-10
11-3
