INFINITI Q50-HYBRID 2018 Owners Manual

9-14Maintenance and schedules

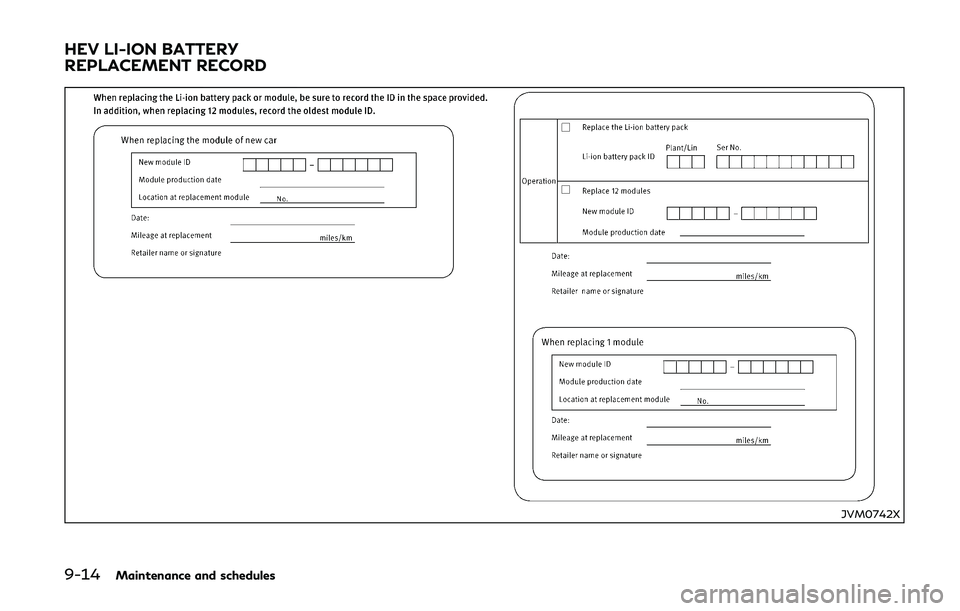

JVM0742X
HEV LI-ION BATTERY
REPLACEMENT RECORD

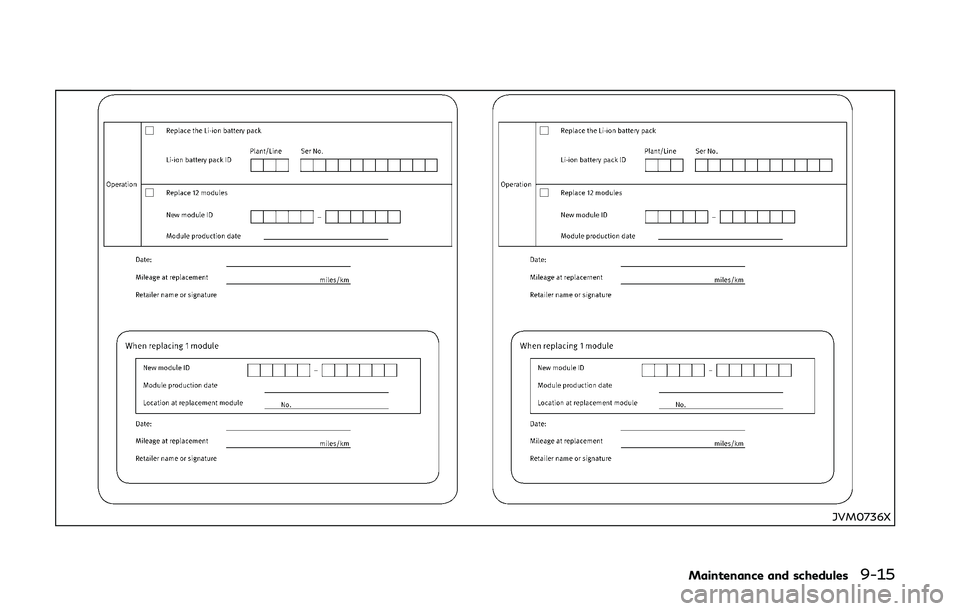

JVM0736X
Maintenance and schedules9-15

9-16Maintenance and schedules
5,000 Miles (8,000 km) or 6 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:10,000 Miles (16,000 km) or 12 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:15,000 Miles (24,000 km) or 18 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
20,000 Miles (32,000 km) or 24 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 25,000 Miles (40,000 km) or 30 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:30,000 Miles (48,000 km) or 36 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
35,000 Miles (56,000 km) or 42 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 40,000 Miles (64,000 km) or 48 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:45,000 Miles (72,000 km) or 54 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:

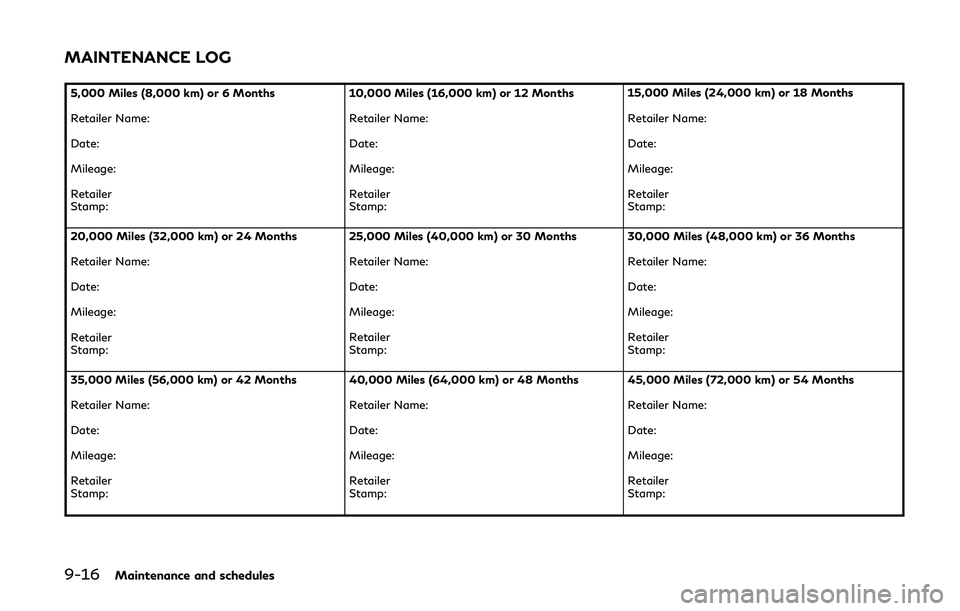

MAINTENANCE LOG

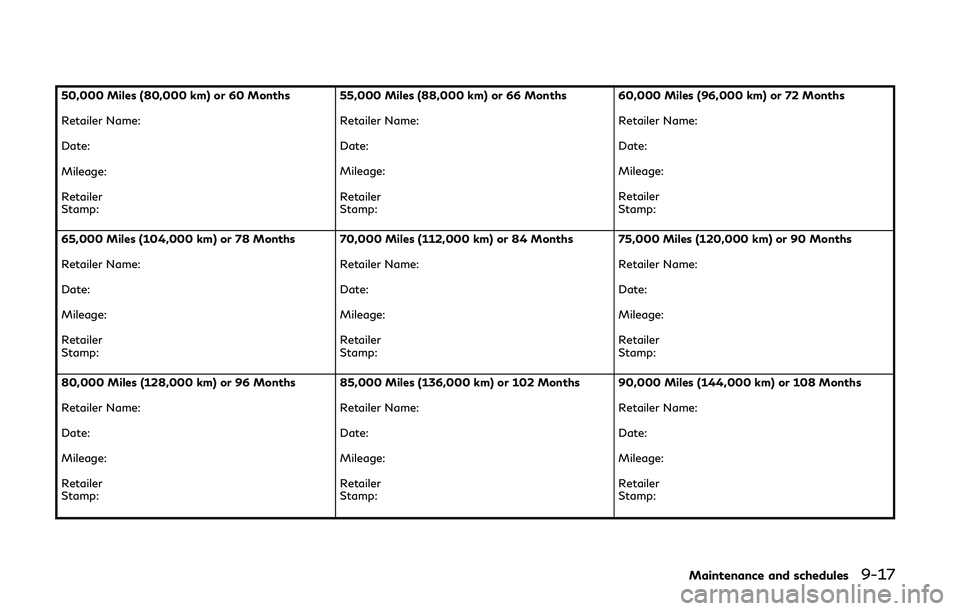

50,000 Miles (80,000 km) or 60 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:55,000 Miles (88,000 km) or 66 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:60,000 Miles (96,000 km) or 72 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
65,000 Miles (104,000 km) or 78 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 70,000 Miles (112,000 km) or 84 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:75,000 Miles (120,000 km) or 90 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
80,000 Miles (128,000 km) or 96 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 85,000 Miles (136,000 km) or 102 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:90,000 Miles (144,000 km) or 108 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
Maintenance and schedules9-17

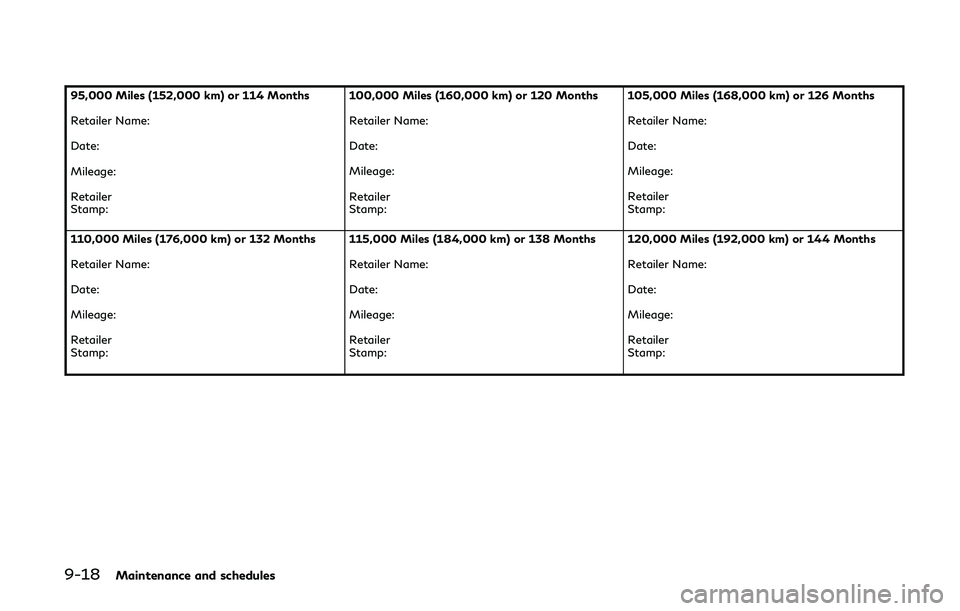

9-18Maintenance and schedules
95,000 Miles (152,000 km) or 114 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:100,000 Miles (160,000 km) or 120 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:105,000 Miles (168,000 km) or 126 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:
110,000 Miles (176,000 km) or 132 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp: 115,000 Miles (184,000 km) or 138 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:120,000 Miles (192,000 km) or 144 Months
Retailer Name:
Date:
Mileage:
Retailer
Stamp:

10 Technical and consumer information
Capacities and recommended fluids/lubricants ..... 10-2Fuel information ........................................................ 10-4
Engine oil and oil filter recommendation ............ 10-6
Air conditioning system refrigerant and
lubricant recommendations ..................................... 10-7
Specifications .................................................................. 10-8
Engine ........................................................................\
.. 10-8
Wheels and tires ........................................................ 10-9
Dimensions ................................................................... 10-9
When traveling or registering in
another country ............................................................ 10-10
Vehicle identification ................................................... 10-10 Vehicle Identification Number (VIN) plate ....... 10-10
Vehicle identification number
(chassis number) ...................................................... 10-10
Engine serial number .............................................. 10-11
F.M.V.S.S./C.M.V.S.S. certification label .......... 10-11
Emission control information label ..................... 10-11
Tire and loading information label ..................... 10-12
Air conditioner specification label ...................... 10-12 Installing front license plate ..................................... 10-13
Removing air deflectors ............................................. 10-14
Vehicle loading information ...................................... 10-15
Terms ........................................................................\
10-15
Vehicle load capacity ........................................... 10-16
Loading tips ............................................................. 10-17
Measurement of weights .................................... 10-17
Towing a trailer ............................................................ 10-18 Flat towing ............................................................. 10-18
Uniform tire quality grading ..................................... 10-18
Treadwear ............................................................... 10-18
Traction AA, A, B and C ..................................... 10-19
Temperature A, B and C ..................................... 10-19
Emission control system warranty ......................... 10-19
Reporting safety defects ........................................... 10-20
Readiness for Inspection/Maintenance (I/M)
test (US only) ................................................................ 10-21
Event Data Recorders (EDR) ................................... 10-21
Owner’s Manual/Service Manual
order information ......................................................... 10-22

10-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 67.4 L 17-7/8 gal 14-7/8 galÂSee “Fuel information” (P.10-4).
Engine oil
*1Drain and refill*1: For additional information, see “Changing engine oil and oil filter”
(P.8-10). With oil filter change 4.9 L 5-1/8 qt 4-3/8 qt
ÂGenuine “Nissan Motor Oil Ester 5W-30 SN” is
recommended.
 If the above motor oil is not available, use an
equivalent motor oil that matches the above grade
and viscosity. For additional information, see “En-
gine oil and oil filter recommendation” (P.10-6).
Without oil filter
change
4.6 L 4-7/8 qt 4 qt
Engine coolant With reservoir Pressurized radiator reservoir tank 10.8 L 11-3/8 qt 9-1/2 qtÂPre-diluted Genuine NISSAN Long Life Antifreeze/
Coolant (blue) or equivalent
Non-pressurized ra-
diator reservoir tank 2WD model
9.8 L 10-3/8 qt 8-5/8 qt
AWD model 10.3 L 10-7/8 qt 9-1/8 qt
Reservoir Pressurized radiator reservoir tank 0.9 L1 qt 3/4 qt
Non-pressurized radiator reservoir tank 0.8 L 7/8 qt 3/4 qt
Inverter coolant With reservoir 2.4 L 2-1/2 qt 2-1/8 qt
Reservoir 0.4 L 3/8 qt 3/8 qt
Automatic transmission fluid
———Â
Genuine NISSAN Matic S ATF
 INFINITI recommends using Genuine NISSAN Ma-
tic S ATF ONLY in INFINITI automatic transmis-
sions. Do not mix with other fluids. Using fluids that
are not equivalent to Genuine NISSAN Matic S ATF
may damage the automatic transmission. Damage
caused by the use of fluids other than as recom-
mended is not covered under the INFINITI’s new
vehicle limited warranty.
Differential gear oil Front
———Â
Genuine NISSAN Differential Oil Hypoid Super GL-
5 80W-90 or equivalent conventional (non-syn-
thetic) oil.
Rear ———Â
Genuine NISSAN Differential Oil Hypoid Super-S
GL-5 synthetic 75W-90 or equivalent
Transfer fluid ———ÂGenuine NISSAN Matic J ATF
 INFINITI recommends using Genuine NISSAN Ma-
tic J ATF ONLY in INFINITI transfers. Do not mix
with other fluids. Using fluids that are not equiva-
lent to Genuine NISSAN Matic J ATF may damage
the transfer. Damage caused by the use of fluids
other than as recommended is not covered under
the INFINITI’s new vehicle limited warranty.
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

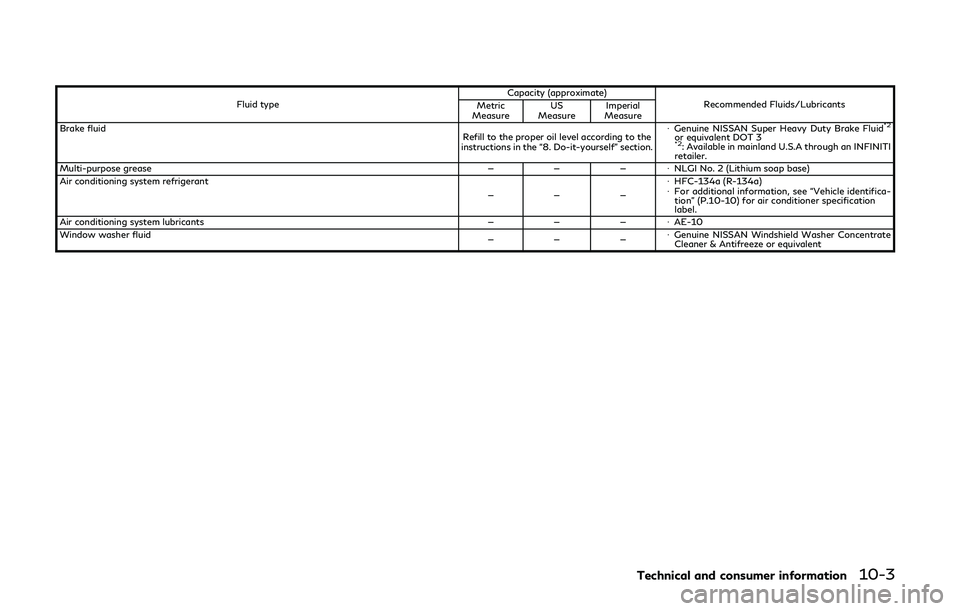

Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Brake fluid Refill to the proper oil level according to the
instructions in the “8. Do-it-yourself” section. Â
Genuine NISSAN Super Heavy Duty Brake Fluid
*2or equivalent DOT 3*2: Available in mainland U.S.A through an INFINITI
retailer.
Multi-purpose grease ———ÂNLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant
———Â
HFC-134a (R-134a)
 For additional information, see “Vehicle identifica-
tion” (P.10-10) for air conditioner specification
label.
Air conditioning system lubricants —— —ÂAE-10
Window washer fluid ———Â
Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze or equivalent
Technical and consumer information10-3

10-4Technical and consumer information
FUEL INFORMATION
Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 96).
If unleaded premium gasoline is not avail-
able, unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) may be tem-
porarily used, but only under the following
precautions:
.Have the fuel tank filled only partially
with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible.
. Avoid full throttle driving and abrupt
acceleration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst. .
Do not use a fuel containing more
than 15% ethanol in your vehicle.
Your vehicle is not designed to run on
a fuel containing more than 15%
ethanol. Using a fuel containing more
than 15% ethanol in a vehicle not
specifically designed for a fuel con-
taining more than 15% ethanol can
adversely affect the emission control
devices and systems of the vehicle.
Damage caused by such fuel is not
covered by the INFINITI new vehicle
limited warranty.
. Do not use fuel that contains the
octane booster methylcyclopentadie-
nyl manganese tricarbonyl (MMT).
Using fuel containing MMT may
adversely affect vehicle performance
and vehicle emissions. Not all fuel
dispensers are labeled to indicate
MMT content, so you may have to
consult your gasoline retailer for
more details. Note that Federal and
California laws prohibit the use of
MMT in reformulated gasoline.
. U.S. government regulations require
ethanol dispensing pumps to be iden-
tified by a small, square, orange and
black label with the common abbre-
viation or the appropriate percen-
tage for that region.
Gasoline specifications
INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is available.
Many of the automobile manufacturers
developed this specification to improve
emission system and vehicle performance.
Ask your service station manager if the
gasoline meets the World-Wide Fuel Char-
ter (WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing
reformulated gasolines. These gasolines are
specially designed to reduce vehicle emis-
sions. INFINITI supports efforts towards
cleaner air and suggests that you use
reformulated gasoline when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt, ask
your service station manager.
If you use oxygenate-blend gasoline, please
take the following precautions as the usage
of such fuels may cause vehicle performance

problems and/or fuel system damage.
.The fuel should be unleaded and have an
octane rating no lower than that re-
commended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 15% oxygenate.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or vehi-
cle performance problems. At this time,
sufficient data is not available to ensure
that all methanol blends are suitable for
use in INFINITI vehicles.
If any undesirable driveability problems such
as engine stalling or hard hot starting are
experienced after using oxygenate-blend
fuels, immediately change to a non-oxyge-
nate fuel or a fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.E-15 fuel
E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline. E-
15 can only be used in vehicles designed to
run on E-15 fuel. U.S. government regula-
tions require fuel ethanol dispensing pumps
to be identified with small, square, orange
and black label with the common abbrevia-
tion or the appropriate percentage for that
region.
E-85 fuel
E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline. E-
85 can only be used in a Flexible Fuel Vehicle
(FFV). Do not use E-85 fuel in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified
by a small, square, orange and black label
with the common abbreviation or the appro-
priate percentage for that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. INFINITI does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to consult your gasoline retailer for more de-
tails.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may
contain active solvent or similar ingredients
that can be harmful to the fuel system and
engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If severe,
this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level roads,
it is recommended you have an INFINITI
retailer correct the condition. Failure to
correct the condition is misuse of the
vehicle, for which INFINITI is not respon-
sible.
Incorrect ignition timing will result in knock-
ing, after-run or overheating. This in turn
may cause excessive fuel consumption or
Technical and consumer information10-5
