10-6Technical and consumer information
damage to the engine. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended you visit an
INFINITI retailer for servicing.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
JVT0159X
API certification mark
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2). INFINITI recommends
the use of an energy conserving oil in order
to improve fuel economy.
Select only engine oils that meet the Amer-
ican Petroleum Institute (API) certificationor International Lubricant Standardization
and Approval Committee (ILSAC) certifica-
tion and SAE viscosity standard. These oils
have the API certification mark on the front
of the container. Oils which do not have the
specified quality label should not be used as
they could cause engine damage.Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.

Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is
important that the engine oil viscosity be
selected based on the temperatures at which
the vehicle will be operated before the next
oil change. Choosing an oil viscosity other
than that recommended could cause serious
engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other
than the specified quality, or oil and filter
change intervals longer than recommended
could reduce engine life. Damage to engines
caused by improper maintenance or use of
incorrect oil and filter quality and/or vis-
cosity is not covered by the new INFINITI
vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have
to change the oil before the first recom-mended change interval. Oil and filter
change intervals depend upon how you use
your vehicle.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
AE-10.
CAUTION
The use of any other refrigerant or
lubricant may cause severe damage to
the air conditioning system and may
require the replacement of all air condi-
tioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
governmental regulations require the recov-
ery and recycling of any refrigerant during
automotive air conditioning system service.
Your INFINITI retailer has the trained tech-
nicians and equipment needed to recover
and recycle your air conditioning system refrigerant.
It is recommended you visit an INFINITI
retailer when servicing your air conditioning
system.
Technical and consumer information10-7

10-8Technical and consumer information
ENGINE
ModelVQ35HR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore × Stroke in (mm) 3.760 × 3.205
(95.5 × 81.4)
Displacement cu in (cm
3)213.45 (3,498)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing
(B.T.D.C.) degree/rpm
Spark plug FXE22HR11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
STI0425
VQ35HR engine
SPECIFICATIONS

WHEELS AND TIRES
Road wheel
TypeSize Offset in (mm)
Conventional 19 × 8.5J 1.97 (50)
Tire
TypeSize Pressure PSI (kPa) [Cold]
Conventional P245/40RF19 94V
35 (240)
245/40RF19 94W
DIMENSIONS
in (mm)
Overall length (with front license plate) 189.6 (4,815)
Overall length (without front license plate) 189.1 (4,803)
Overall width 71.8 (1,824)
Overall height 56.8 (1,443)*1
57.2 (1,453)*2
Front tread 60.4 (1,534)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Two-Wheel Drive (2WD) models
*2: All-Wheel Drive (AWD) models
Technical and consumer information10-9

10-10Technical and consumer information
If you plan to travel in another country,you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. INFINITI is not responsible
for any inconvenience that may result.
STI0716
VEHICLE IDENTIFICATION NUM-
BER (VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used in
the vehicle registration.
STI0717
VEHICLE IDENTIFICATION NUM-
BER (chassis number)
The number is stamped as shown in the
engine compartment.
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRYVEHICLE IDENTIFICATION

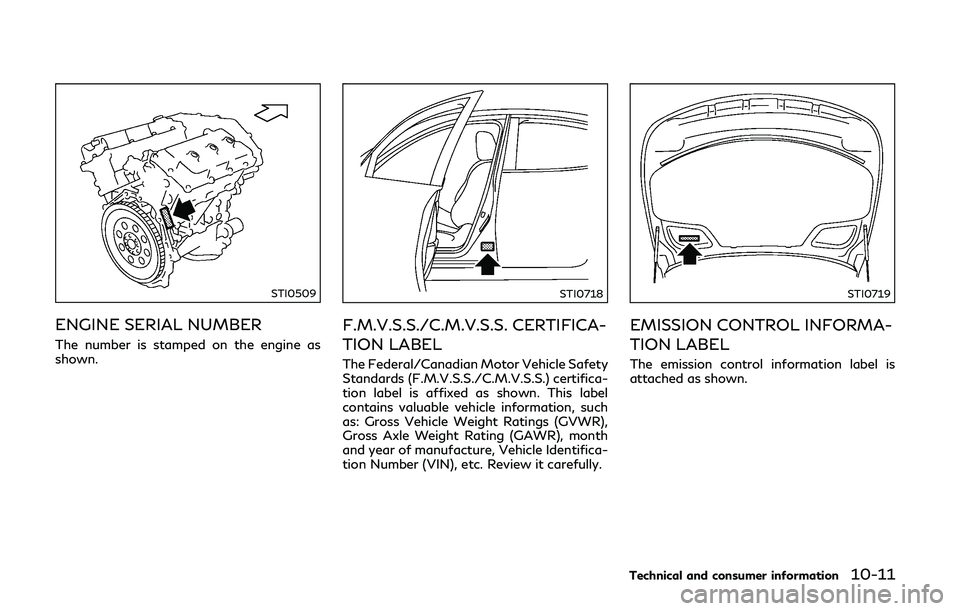

STI0509
ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
STI0718
F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label
contains valuable vehicle information, such
as: Gross Vehicle Weight Ratings (GVWR),
Gross Axle Weight Rating (GAWR), month
and year of manufacture, Vehicle Identifica-
tion Number (VIN), etc. Review it carefully.
STI0719
EMISSION CONTROL INFORMA-
TION LABEL
The emission control information label is
attached as shown.
Technical and consumer information10-11

10-12Technical and consumer information
JVT0220X
TIRE AND LOADING INFORMA-
TION LABEL
The cold tire pressure is shown on the Tire
and Loading Information label affixed to the
pillar as illustrated.
STI0721
AIR CONDITIONER SPECIFICA-
TION LABEL
The air conditioner specification label is
attached as shown.

JVT0530X
Use the following steps to mount the license
plate:
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag.
Only use the recommended mounting posi-
tion, otherwise the radar sensor (Intelligent
Cruise Control (ICC) system) (if so equipped)
obstruction may result.
.License plate bracket
. J-nut × 2
. Screw × 2
. Screw grommet × 2
1. Park the vehicle on flat, level ground.
2. Locate the center position
as illu-
strated. Position the license plate brack-
et at a distance of approximately 0.91 in
(23 mm)
from the bottom of the
bumper. Hold the license plate bracket
in place.
3. Mark the center of the hole
with a felt-
tip pen.
4. Carefully drill two pilot holes using a 0.35 in (9 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
6. Insert a flat-blade screwdriver into the
Technical and consumer information10-13
INSTALLING FRONT LICENSE PLATE

10-14Technical and consumer information
grommet hole to add 90° turn onto the
part.
7. Install the license plate bracket with screws.
STI0623
Left side
This vehicle is equipped with air deflectors in
front of the front wheels. The deflectors will
change the air flow to help improve aero-
dynamic performance.
When transporting your vehicle on a trailer,
the air deflectors may interfere with a steep
slope to a trailer bed. In this case, remove the
deflectors from the undercover of the ve-
hicle.
1. Loosen three screws as shown and
remove the left-side air deflector
.
2. Tighten the removed screw
in its
original position.
3. Perform the same procedure to remove the right-side air deflector. 4. Store the two air deflectors and four
screws to reinstall in the reverse order.
5. When reinstalling, make sure all six screws are firmly tightened on both air
deflectors.
REMOVING AIR DEFLECTORS

WARNING
.It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.
.Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.
.Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.
TERMS
It is important to familiarize yourself
with the following terms before load-
ing your vehicle:
.Curb Weight (actual weight ofyour vehicle) - vehicle weight in-
cluding: standard and optional
equipment, fluids, emergency
tools, and spare tire assembly. This
weight does not include passen- gers and cargo.
.GVW (Gross Vehicle Weight) -
curb weight plus the combined
weight of passengers and cargo.
.GVWR (Gross Vehicle Weight Rat-ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This information
is located on the F.M.V.S.S./C.M.
V.S.S. label.
.GAWR (Gross Axle Weight Rating)- maximum weight (load) limit
specified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
.GCWR (Gross Combined Weight
Rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer.
.Vehicle Capacity Weight, Loadlimit, Total load capacity - max-
imum total weight limit specified
of the load (passengers and cargo)
for the vehicle. This is the max-
imum combined weight of occu- pants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.
.Cargo capacity - permissible
weight of cargo, the weight of
total occupants weight subtracted
from the load limit.
Technical and consumer information10-15
VEHICLE LOADING INFORMATION
