2-40Instruments and controls
.Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar materi-
als.
. If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked
by an INFINITI retailer.
SSS0911
The front seats are warmed by built-in
heaters. The switches located on the center
console can be operated independently of
each other.
1. Start the engine.
2. Turn the control knob
*Ato the right*1
and select the desired heat range..For high heat, turn the knob to the
right
*1..For low heat, turn the knob to the left
*2..The indicator light*Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob to the OFF position
*3. Make sure that
the indicator light turns off.
The heater is controlled by a thermis-
tor, automatically turning the heater on
and off. The indicator light will remain
on as long as the switch is on.
When the vehicle’s interior is warmed,
or before you leave the vehicle, be sure
to turn off the switch.

SIC3602
For driving or starting the vehicle on snowy
roads or slippery areas, turn on the SNOW
mode switch. The indicator light
*1on the
switch will illuminate. When the SNOW
mode is activated, engine output is con-
trolled to avoid wheel spin.
JVS0022X
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is
depressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will illumi-
nate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See “Vehicle Dynamic Control (VDC) system”
(P.5-58).)
Instruments and controls2-41
SNOW MODE SWITCH (if so equipped)
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH

2-42Instruments and controls
SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push thebutton
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button” (P.4-14).
JVI0329X
Automatic transmission models
SIC4684
Manual transmission models
SIC4316
Automatic transmission models
The power outlet is located in the center
console and storage box (if so equipped).
CAUTION
. The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the engine run-
ning to avoid discharging the vehicle
battery.
CLOCK POWER OUTLET

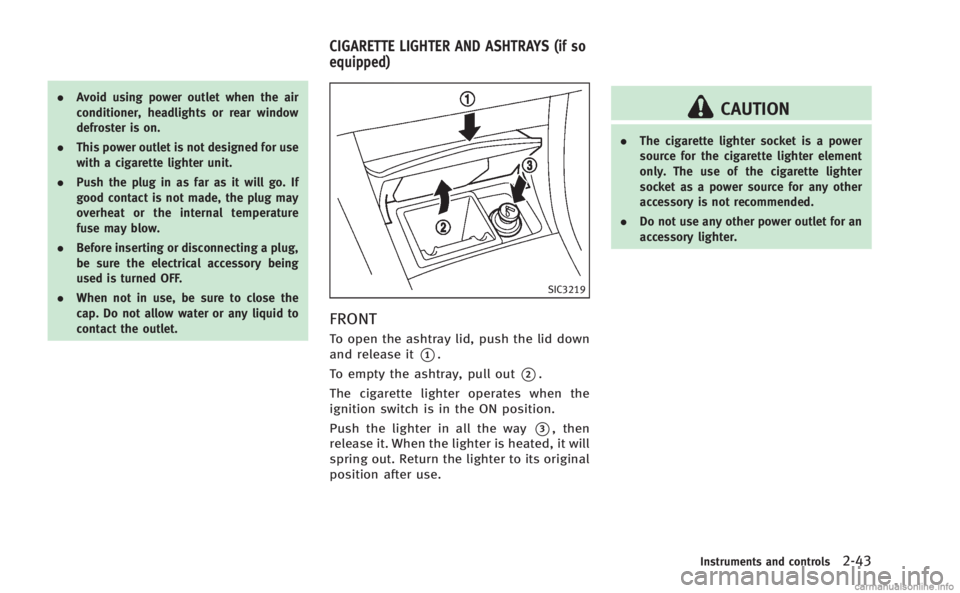

.Avoid using power outlet when the air
conditioner, headlights or rear window
defroster is on.
. This power outlet is not designed for use
with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may blow.
. Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water or any liquid to
contact the outlet.
SIC3219
FRONT
To open the ashtray lid, push the lid down
and release it
*1.
To empty the ashtray, pull out
*2.
The cigarette lighter operates when the
ignition switch is in the ON position.
Push the lighter in all the way
*3, then
release it. When the lighter is heated, it will
spring out. Return the lighter to its original
position after use.
CAUTION
. The cigarette lighter socket is a power
source for the cigarette lighter element
only. The use of the cigarette lighter
socket as a power source for any other
accessory is not recommended.
. Do not use any other power outlet for an
accessory lighter.
Instruments and controls2-43
CIGARETTE LIGHTER AND ASHTRAYS (if so
equipped)

2-44Instruments and controls
SIC2570

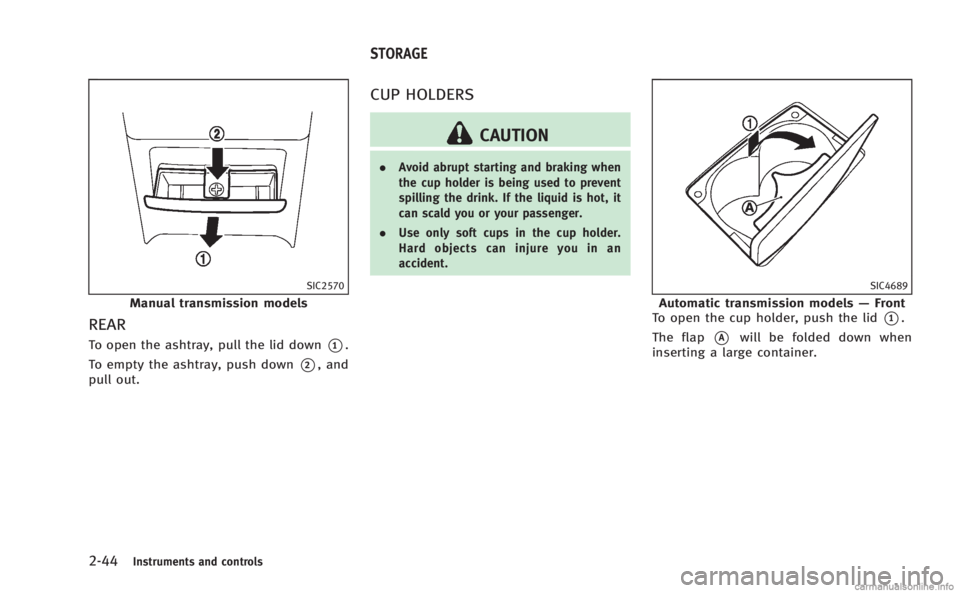

Manual transmission models
REAR
To open the ashtray, pull the lid down*1.
To empty the ashtray, push down
*2, and
pull out.
CUP HOLDERS
CAUTION
. Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4689
Automatic transmission models —Front
To open the cup holder, push the lid
*1.
The flap
*Awill be folded down when
inserting a large container.
STORAGE

SIC3925

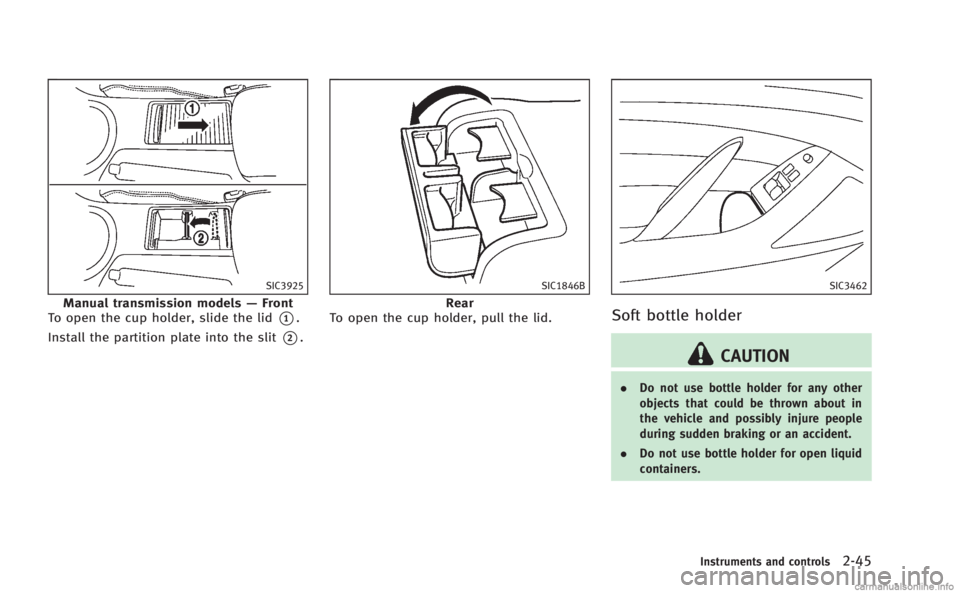

Manual transmission models—Front
To open the cup holder, slide the lid
*1.
Install the partition plate into the slit
*2.
SIC1846B
Rear
To open the cup holder, pull the lid.
SIC3462
Soft bottle holder
CAUTION
. Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
. Do not use bottle holder for open liquid
containers.
Instruments and controls2-45

2-46Instruments and controls
SIC3246
SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
To open the sunglasses holder, push*1.
CAUTION
.Do not use for anything other than
glasses. .
Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
SIC3469
GLOVE BOX
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle*1.
To close, push the lid in until the lock
latches.
To lock
*2/unlock*3the glove box, use
the mechanical key. For the mechanical key
usage, see “Keys”(P.3-2).

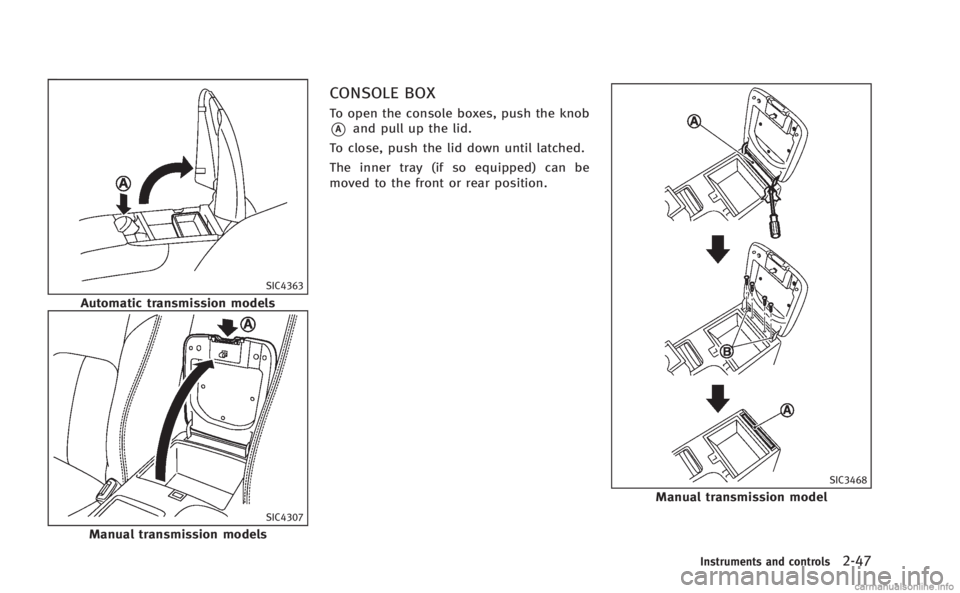

SIC4363
Automatic transmission models
SIC4307
Manual transmission models
CONSOLE BOX
To open the console boxes, push the knob
*Aand pull up the lid.
To close, push the lid down until latched.
The inner tray (if so equipped) can be
moved to the front or rear position.
SIC3468
Manual transmission model
Instruments and controls2-47

2-48Instruments and controls

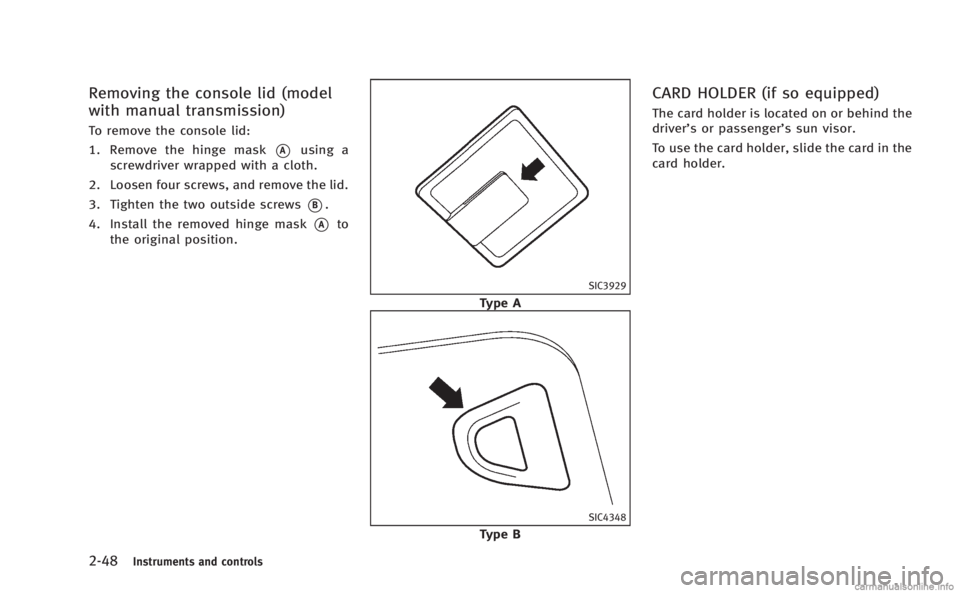

Removing the console lid (model
with manual transmission)
To remove the console lid:
1. Remove the hinge mask
*Ausing a
screwdriver wrapped with a cloth.
2. Loosen four screws, and remove the lid.
3. Tighten the two outside screws
*B.
4. Install the removed hinge mask
*Ato
the original position.
SIC3929
Type A
SIC4348
Type B
CARD HOLDER (if so equipped)
The card holder is located on or behind the
driver’s or passenger’s sun visor.
To use the card holder, slide the card in the
card holder.

SIC4308

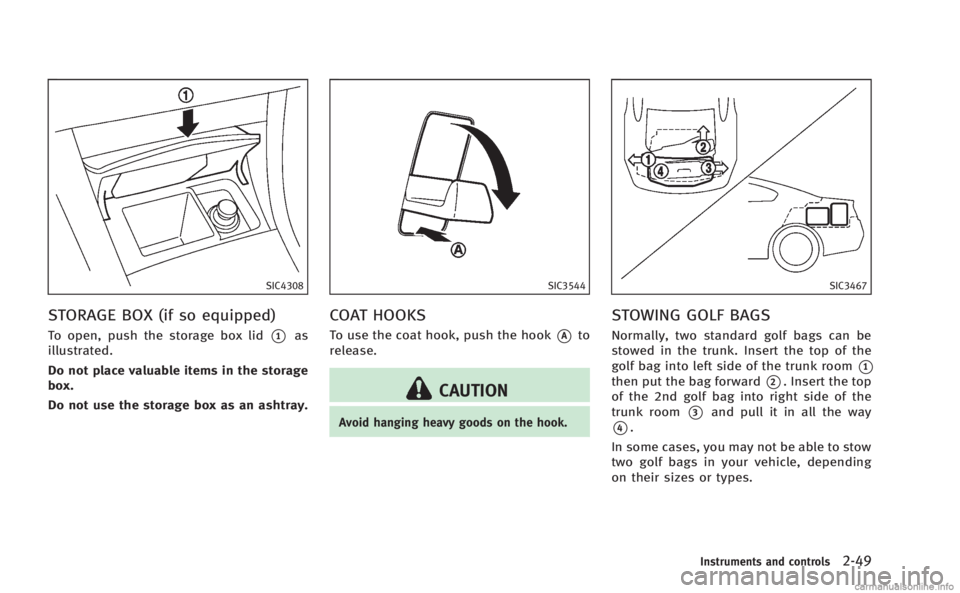

STORAGE BOX (if so equipped)
To open, push the storage box lid*1as
illustrated.
Do not place valuable items in the storage
box.
Do not use the storage box as an ashtray.
SIC3544
COAT HOOKS
To use the coat hook, push the hook*Ato
release.
CAUTION
Avoid hanging heavy goods on the hook.
SIC3467
STOWING GOLF BAGS
Normally, two standard golf bags can be
stowed in the trunk. Insert the top of the
golf bag into left side of the trunk room
*1
then put the bag forward*2. Insert the top
of the 2nd golf bag into right side of the
trunk room
*3and pull it in all the way
*4.
In some cases, you may not be able to stow
two golf bags in your vehicle, depending
on their sizes or types.
Instruments and controls2-49
