9-18Technical and consumer information
3.Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.
4.The resulting figure equals the
available amount of cargo and
luggage load capacity. For exam-
ple, if the XXX amount equals
1400 lbs. and there will be five
150 lb. passengers in your vehi-
cle, the amount of available cargo
and luggage load capacity is 650
lbs. (1400−750 (5 x 150) = 650
lbs or 640 −340 (5 x 70) = 300
kg.)
5.Determine the combined weight of
luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.
6.If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle,
confirm that you do not exceed the
Gross Vehicle Weight Rating (GVWR)
or the Gross Axle Weight Rating
(GAWR) for your vehicle. (See “Mea-
surement of weights” (P.9-19).)
Also check tires for proper inflation
pressures. See the Tire and Loading
Information label.
LOADING TIPS
.The GVW must not exceed GVWR or GAWR as specified on the F.M.V.
S.S./C.M.V.S.S. certification label.
.Do not load the front and rear axle
to the GAWR. Doing so will exceed
the GVWR.
WARNING
.Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
.Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle can
break, tire damage could occur, or
it can change the way your vehicle
handles. This could result in loss
of control and cause personal
injury.
.Overloading could not only short-
en the life of your vehicle and the
tires, but also could lead to
hazardous vehicle handling and
long braking distance. This may
cause a premature tire malfunc-
tion, which could result in a
serious accident and personal in-
jury. Failures caused by overload-
ing are not covered by the
vehicle’s warranty.

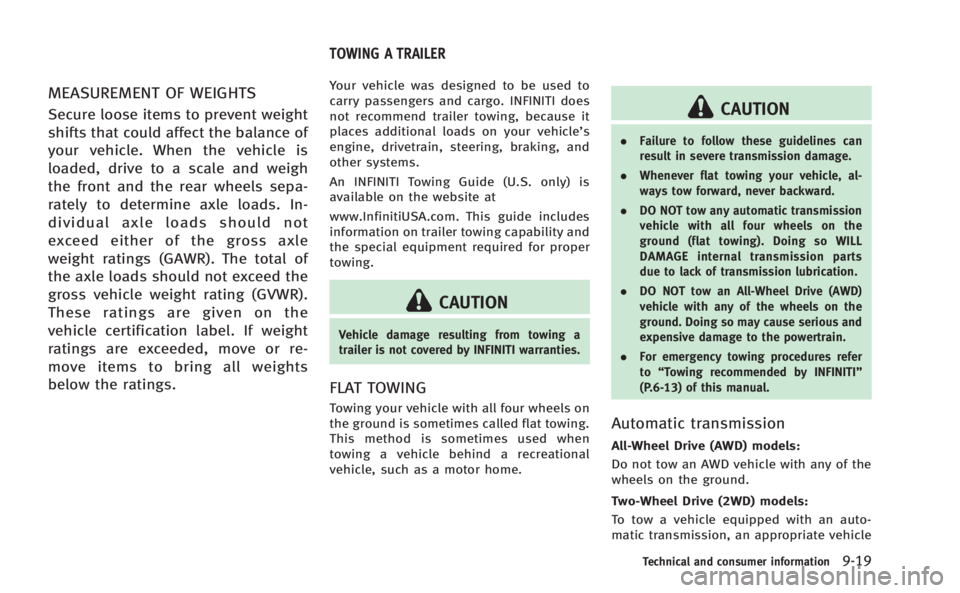

MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is
loaded, drive to a scale and weigh
the front and the rear wheels sepa-
rately to determine axle loads. In-
dividual axle loads should not
exceed either of the gross axle
weight ratings (GAWR). The total of
the axle loads should not exceed the
gross vehicle weight rating (GVWR).
These ratings are given on the
vehicle certification label. If weight
ratings are exceeded, move or re-
move items to bring all weights
below the ratings.
Your vehicle was designed to be used to
carry passengers and cargo. INFINITI does
not recommend trailer towing, because it
places additional loads on your vehicle’s
engine, drivetrain, steering, braking, and
other systems.
An INFINITI Towing Guide (U.S. only) is
available on the website at
www.InfinitiUSA.com. This guide includes
information on trailer towing capability and
the special equipment required for proper
towing.
CAUTION
Vehicle damage resulting from towing a
trailer is not covered by INFINITI warranties.
FLAT TOWING
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational
vehicle, such as a motor home.
CAUTION
. Failure to follow these guidelines can
result in severe transmission damage.
. Whenever flat towing your vehicle, al-
ways tow forward, never backward.
. DO NOT tow any automatic transmission
vehicle with all four wheels on the
ground (flat towing). Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
. DO NOT tow an All-Wheel Drive (AWD)
vehicle with any of the wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
. For emergency towing procedures refer
to“Towing recommended by INFINITI”
(P.6-13) of this manual.
Automatic transmission
All-Wheel Drive (AWD) models:
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
To tow a vehicle equipped with an auto-
matic transmission, an appropriate vehicle
Technical and consumer information9-19
TOWING A TRAILER

9-20Technical and consumer information
dollyMUST be placed under the towed
vehicle’s drive wheels. Alwaysfollow the
dolly manufacturer’ s recommendations
when using their product.
Manual transmission
. Always tow with the manual transmis-
sion in Neutral.
. Your vehicle speed should never exceed
70 MPH (112 km/h) when flat towing
your vehicle.
. After towing 500 miles, start and idle
the engine with the transmission in
Neutral for two minutes. Failure to idle
the engine after every 500 miles of
towing may cause damage to the
transmission’s internal parts. DOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where applic-
able on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course. For
example, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon actual conditions of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to low-
est, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of the
tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden
UNIFORM TIRE QUALITY GRADING

tire failure. The grade C corresponds to a
level of performance which all passenger
car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive loading,
either separately or in combination, can
cause heat build-up and possible tire failure.
Your INFINITI is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty (See
Warranty Information Booklet for de-
tails.)
For Canada:
Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your
Warranty Information Booklet (Warranty
and Roadside Assistance Information (Ca-
nada only)) that comes with your INFINITI. If
you did not receive a Warranty Information
Booklet (Warranty and Roadside Assis-
tance Information (Canada only)), or it
has become lost, you may obtain a
replacement by writing to:
. INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
Technical and consumer information9-21
EMISSION CONTROL SYSTEM WARRANTY

9-22Technical and consumer information

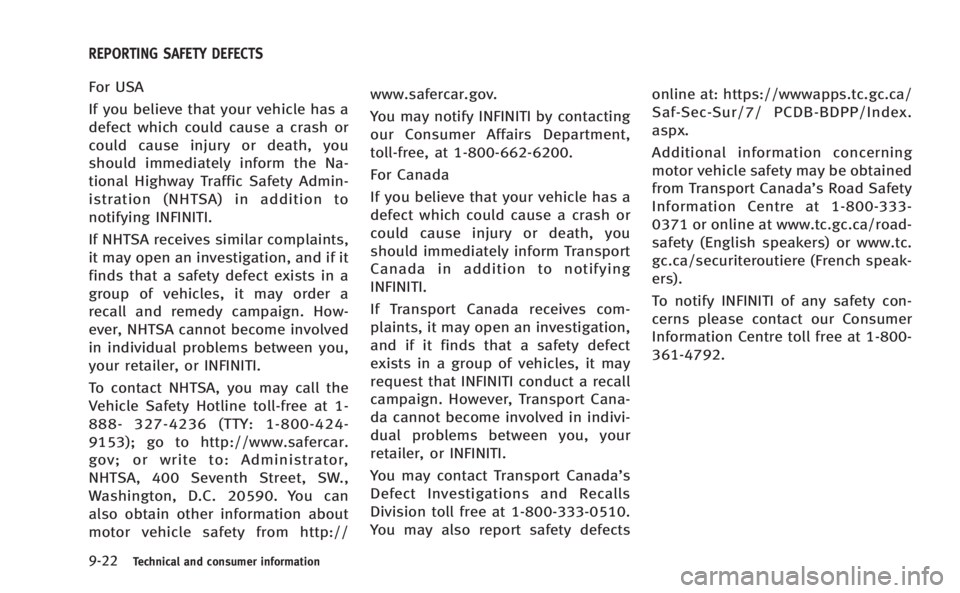

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to
notifying INFINITI.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a
recall and remedy campaign. How-
ever, NHTSA cannot become involved
in individual problems between you,
your retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888- 327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.
gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW.,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from http://www.safercar.gov.
You may notify INFINITI by contacting
our Consumer Affairs Department,
toll-free, at 1-800-662-6200.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Transport
Canada in addition to notifying
INFINITI.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that INFINITI conduct a recall
campaign. However, Transport Cana-
da cannot become involved in indivi-
dual problems between you, your
retailer, or INFINITI.
You may contact Transport Canada’s
Defect Investigations and Recalls
Division toll free at 1-800-333-0510.
You may also report safety defects
online at: https://wwwapps.tc.gc.ca/
Saf-Sec-Sur/7/ PCDB-BDPP/Index.
aspx.
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada’s Road Safety
Information Centre at 1-800-333-
0371 or online at www.tc.gc.ca/road-
safety (English speakers) or www.tc.
gc.ca/securiteroutiere (French speak-
ers).
To notify INFINITI of any safety con-
cerns please contact our Consumer
Information Centre toll free at 1-800-
361-4792.
REPORTING SAFETY DEFECTS

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dynam-
ometers used by some states for emissions
testing), or similar equipment. Make sure
you inform test facility personnel that your
vehicle is equipped with AWD before it is
placed on a dynamometer. Using the wrong
test equipment may result in transmission
damage or unexpected vehicle movement
which could result in serious vehicle da-
mage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be
in what is called the“ready condition”for
an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of the
vehicle.
If a powertrain system component is
repaired or the battery is disconnected,
the vehicle may be reset to a “not readycondition”
. Before taking the I/M test,
check the vehicle’ s inspection/mainte-
nance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10
seconds, the I/M test condition is “not
ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
Contact an INFINITI retailer to set the
“ready condition” or to prepare the vehicle
for testing. This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to
record such data as:
.
How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fastened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data
(e.g. name, gender, age and crash location)
Technical and consumer information9-23
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only) EVENT DATA RECORDERS (EDR)

9-24Technical and consumer information
are recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired during
a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI
retailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailerships. Genuine
INFINITI Owner’
s Manual can also be
purchased.
For USA:
For current pricing and availability of
genuine INFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of
genuine INFINITI Owner’s Manuals,con-
tact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, please contact your
nearest INFINITI retailer. For the phone
number and location of an INFINITI retailer
in your area call the INFINITI Satisfaction
Center at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.
OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION

10 Index
A
ABS (Anti-lock Braking System) ......................... 5-57
Advanced air bag system .................................. 1-43
Air bag systemAdvanced air bag system ............................. 1-43
Front passenger air bag and status light ...... 1-45
Front-seat mounted side-impact supplemental
air bag system ............................................. 1-48
Roof-mounted curtain side-impact
supplemental air bag system ....................... 1-48
Air bag warning labels ...................................... 1-51
Air bag warning light ............................... 1-51, 2-17
Air cleaner housing filter ................................... 8-20
Air conditioner
Air conditioner service ................................. 4-38
Air conditioner specification label ................ 9-12
Air conditioning system refrigerant and
lubricant recommendations ................... 4-38, 9-7
Automatic climate control ............................ 4-31
In-cabin microfilter ....................................... 4-38
Alarm, How to stop alarm (see vehicle
security system) ................................................ 2-29
Alcohol, drugs and driving .................................. 5-8
All-wheel drive (AWD) ........................................ 5-48
All-wheel drive (AWD) driving
safety precautions .............................................. 5-8
All-wheel drive (AWD) warning light .................. 2-12
Antenna ............................................................ 4-76
Anti-lock Braking System (ABS) ......................... 5-57
Anti-lock braking system (ABS) warning light .... 2-13 Appearance care
Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-4
Ashtrays (See cigarette lighter and ashtrays) .... 2-43
Audible reminders ............................................ 2-19
Audio operation precautions ............................. 4-39
Audio system .................................................... 4-39
Steering wheel audio controls ...................... 4-74
Autolight system ............................................... 2-35
Automatic Automatic adjusting function
(front windows) ............................................ 2-52
Automatic climate control ............................ 4-32
Automatic transmission fluid (ATF) ............... 8-12
Climate control ............................................ 4-31
Door locks ..................................................... 3-5
Drive positioner ........................................... 3-28
Driving with automatic transmission ............ 5-14
Moonroof ..................................................... 2-53
Seat positioner ............................................ 3-28
Average fuel consumption and speed ................ 2-26
Avoiding collision and rollover ............................ 5-6
B
Battery .............................................................. 8-15 Battery saver system ................................... 2-37
Intelligent Key .............................................. 8-25
Variable voltage control system ................... 8-18
Before starting the engine ................................ 5-12 Belts (See drive belts) ....................................... 8-18
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-77
Bluetooth
®hands-free phone system
(models without navigation system) .................. 4-87
Bluetooth
®streaming audio ............................. 4-66
Brake Anti-lock Braking System (ABS) .................... 5-57
Brake and clutch fluid .................................. 8-13
Brake fluid ................................................... 8-14
Brake system ............................................... 5-53
Parking brake operation ............................... 5-21
Warning light ............................................... 2-13
Break-in schedule ............................................. 5-46
Brightness control Display ON/OFF button .................................. 4-9
Instrument panel ......................................... 2-38
Bulb check/instrument panel ............................ 2-12
Bulb replacement .............................................. 8-27
C
Cabin air filter ................................................... 4-38
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ...................................... 4-76
Card holder ....................................................... 2-48
Cargo net retainers ........................................... 2-50
Catalytic converter, Three way catalyst ................ 5-4
CD/CF/USB memory care and cleaning ............. 4-73
Center multi-function control panel ..................... 4-3

10-2
Child restraints ................................................. 1-22LATCH system .............................................. 1-23
Precautions on child restraints ..................... 1-22
Child safety ...................................................... 1-20
Chimes Audible reminders ....................................... 2-19
Seat belt warning light and chime ............... 2-16
Cigarette lighter and ashtrays ........................... 2-43
Circuit breaker, Fusible link............................... 8-23
Cleaning exterior and interior ....................... 7-2, 7-4
Climate control, Automatic climate control ........ 4-31
Clock ................................................................ 2-42
Clutch fluid ....................................................... 8-13
Coat hooks ....................................................... 2-49
Cockpit ............................................................... 2-3
Cold weather driving ......................................... 5-60
Compact Disc (CD) player (See audio system) ... 4-56
Compact spare tire ........................................... 8-40
Compass ............................................................. 2-9
Console box ...................................................... 2-47
Controller, Center multi-function control panel .... 4-5
Controls Control panel button ...................................... 4-3
INFINITI Controller .......................................... 4-5
Coolant
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Checking engine coolant level ........................ 8-9
Corrosion protection ........................................... 7-7
Cruise control ................................................... 5-22 Fixed speed cruise control (on ICC system) ... 5-41
Intelligent cruise control (ICC) system .......... 5-24
Cup holders ...................................................... 2-44
Current fuel consumption .................................. 2-26
D
Daytime running light system ........................... 2-37
Defroster switch, Rear window and outside mirror
defroster switch ................................................ 2-34
Dimensions ......................................................... 9-9
Distance to empty ............................................. 2-26
Door/trunk open warning .................................. 2-23
Dot matrix liquid crystal display ....................... 2-20
Drive belts ........................................................ 8-18
Drive positioner ................................................ 3-28
Driving All-wheel drive (AWD) ................................... 5-48
Cold weather driving .................................... 5-60
Driving with automatic transmission ............ 5-14
Driving with manual transmission ................ 5-19
Precautions when starting and driving ........... 5-3
DS (Drive Sport) mode ...................................... 5-16
DVD player operation ........................................ 4-57
E
Economy, Fuel ................................................... 5-47
Elapsed time ..................................................... 2-26
Elapsed time and trip odometer ........................ 2-26
Emission control information label .................... 9-11
Emission control system warranty ..................... 9-21 Engine
Before starting the engine ........................... 5-12
Break-in schedule ........................................ 5-46
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................... 8-9
Changing engine oil and filter ...................... 8-10
Checking engine coolant level ........................ 8-9
Checking engine oil level ............................. 8-10
Coolant temperature gauge ............................ 2-8
Emergency engine shut off ........................... 5-11
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-8
Engine oil .................................................... 8-10
Engine oil and oil filter recommendation ........ 9-6
Engine oil replacement indicator .................. 2-24
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-11
Engine specifications ..................................... 9-8
Engine start operation indicator (Automatic
Transmission models) .................................. 2-22
Engine start operation indicator (Manual
Transmission models) .................................. 2-23
If your vehicle overheats .............................. 6-11
Starting the engine ...................................... 5-13
Event Data Recorders (EDR) ............................... 9-23
Exhaust gas (carbon monoxide) .......................... 5-3
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-11

FilterAir cleaner housing filter .............................. 8-20
Changing engine oil and filter ...................... 8-10
Flashers (See hazard warning flasher switch) ...... 6-2
Flat tire ............................................................... 6-3
Flat towing ........................................................ 9-19
Floor mat cleaning .............................................. 7-5
Fluid Automatic transmission fluid (ATF) ............... 8-12
Brake and clutch fluid .................................. 8-13
Brake fluid ................................................... 8-14
Capacities and
recommended fuel/lubricants ........................ 9-2
Engine coolant ............................................... 8-8
Engine oil .................................................... 8-10
Power steering fluid ..................................... 8-13
Window washer fluid ................................... 8-14
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................ 4-53
Fog light switch ................................................ 2-39
Front passenger air bag and status light ........... 1-45
Front power seat adjustment ............................... 1-3
Front seat, Front seat adjustment ........................ 1-3
Front-seat active head restraints ....................... 1-12
Fuel Capacities and
recommended fuel/lubricants ........................ 9-2
Fuel economy............................................... 5-47
Fuel economy information (display) .............. 4-11
Fuel information ............................................. 9-4
Fuel octane rating .......................................... 9-4 Fuel-filler cap ............................................... 3-21
Fuel-filler door ............................................. 3-21
Gauge ............................................................ 2-9
LOOSE FUEL CAP warning ............................. 3-23
Fuel Efficient Driving Tips .................................. 5-46
Fuses ................................................................ 8-23
Fusible links ..................................................... 8-23
G
Garage door opener HomeLink®Universal Transceiver ................. 2-56
Gas cap ............................................................ 3-21
Gauge ................................................................. 2-6 Engine coolant temperature gauge ................. 2-8
Fuel gauge ..................................................... 2-9
Odometer....................................................... 2-7
Speedometer ................................................. 2-7
Tachometer .................................................... 2-8
Trip computer .............................................. 2-26
General maintenance .......................................... 8-2
Glove box ......................................................... 2-46
Golf bag stowing .............................................. 2-49
H
Hands-free phone system, Bluetooth®
(models with navigation system) ....................... 4-77
Hands-free phone system, Bluetooth®
(models without navigation system) .................. 4-87
Hazard warning flasher switch ............................ 6-2
Head restraints (front seats) ............................... 1-9 Head restraints (rear seats) ............................... 1-13
Headlights Bulb replacement ......................................... 8-28
Headlight switch .......................................... 2-35
Xenon headlights ......................................... 2-34
Heated seats .................................................... 2-39
Heater, Automatic climate control ..................... 4-31
HomeLink
®Universal Transceiver ...................... 2-56
Hood release .................................................... 3-17
Hook, Coat hooks ............................................. 2-49
Horn ................................................................. 2-39
I
Ignition switch (Push-button) ................................................. 5-9
Manual transmission models ....................... 5-19
Immobilizer system ........................................... 2-30
In-cabin microfilter ............................................ 4-38
Indicator Dot matrix display ....................................... 2-20
Lights .......................................................... 2-17
INFINITI Vehicle Immobilizer System .................. 2-30
INFINITI voice recognition system .................... 4-101
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-25
Inspection/maintenance (I/M) test .................... 9-23
Instrument brightness control ........................... 2-38
Instrument panel ................................................ 2-4
Intelligent cruise control (ICC) system ............... 5-24 Preview function .......................................... 5-45
10-3
