SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
.A scraper and stiff-bristled brush to
remove ice and snow from the windows
and wiper blades.
.A sturdy, flat board to be placed under
the jack to give it firm support.
.A shovel to dig the vehicle out of
snowdrifts.
.Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICE
WARNING
.Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip”
under these conditions. Try to avoid
driving on wet ice until the road is
salted or sanded.
.Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction..Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.
.Allow greater following distances on
slippery roads.
.Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steer-
ing maneuvers.
.Do not use the cruise control on
slippery roads.
.Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in
cold temperature starting.
The engine block heater should be used
when the outside temperature is 20°F
(−7°C) or lower.
To use the engine block heater
1. Turn the engine off.
2. Open the hood and unwrap the engine
block heater cord.
3. Plug the engine block heater cord into a
grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground
Fault Interrupt (GFI) protected,
grounded 110-volt AC (VAC) outlet.
5. The engine block heater must be plugged
in for at least 2 - 4 hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.
6. Before starting the engine, unplug and
properly store the cord to keep it away
from moving parts.
WARNING
.Do not use your engine block heater
with an ungrounded electrical system
or a 2-pronged adapter. You can be
seriously injured by an electrical
shock if you use an ungrounded
connection.
.Disconnect and properly store the
engine block heater cord before
Starting and driving5-139

CAUTION
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle fire.
.To avoid the danger of being scalded,
never remove the radiator cap while
the engine is still hot. When the
radiator cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.
.Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc., take the following
steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
shift lever to the P (Park) position.
Do not stop the engine.
2. Turn off the climate control. Open all the
windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engineat a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off the
engine.) Do not open the hood further
until no steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine coolingfan can start at any time.
7. After the engine cools down, check the
coolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired. It is recommended you
visit an INFINITI retailer for this service.
In case of emergency6-13
IF YOUR VEHICLE OVERHEATS

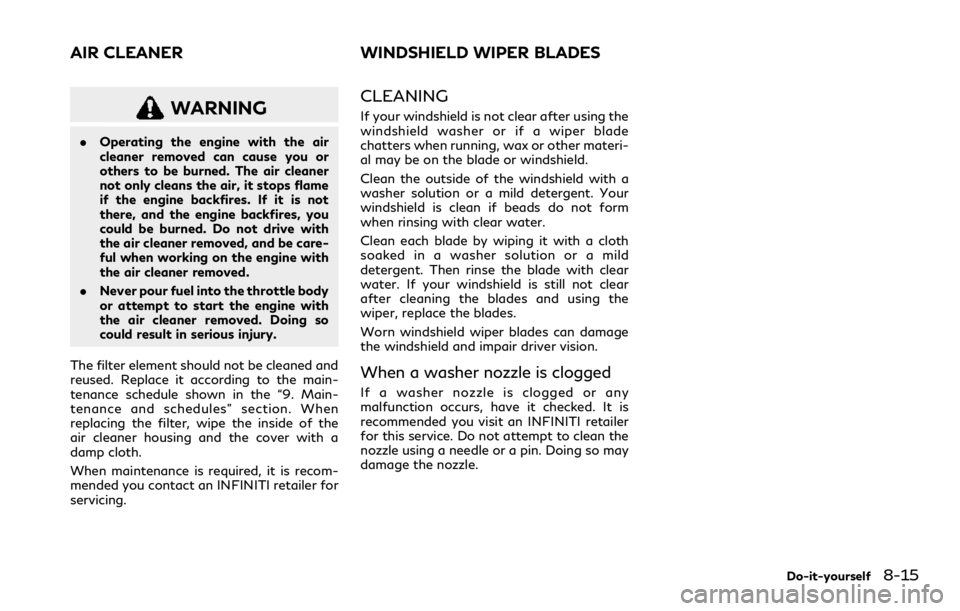

WARNING
.Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine backfires. If it is not
there, and the engine backfires, you
could be burned. Do not drive with
the air cleaner removed, and be care-
ful when working on the engine with
the air cleaner removed.
.Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.
The filter element should not be cleaned and
reused. Replace it according to the main-
tenance schedule shown in the “9. Main-
tenance and schedules” section. When
replacing the filter, wipe the inside of the
air cleaner housing and the cover with a
damp cloth.
When maintenance is required, it is recom-
mended you contact an INFINITI retailer for
servicing.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade
chatters when running, wax or other materi-
al may be on the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form
when rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild
detergent. Then rinse the blade with clear
water. If your windshield is still not clear
after cleaning the blades and using the
wiper, replace the blades.
Worn windshield wiper blades can damage
the windshield and impair driver vision.
When a washer nozzle is clogged
If a washer nozzle is clogged or any
malfunction occurs, have it checked. It is
recommended you visit an INFINITI retailer
for this service. Do not attempt to clean the
nozzle using a needle or a pin. Doing so may
damage the nozzle.
Do-it-yourself8-15
AIR CLEANER WINDSHIELD WIPER BLADES

11 Index
A
ABS (Anti-lock Braking System) .................. 5-130
Active Lane Control ............................................ 5-25
Active noise cancellation ................................. 5-141
Active sound enhancement ............................ 5-141
Active trace control .......................................... 5-133
Air bag system
Front-seat mounted side-impact
supplemental air bag system ..................... 1-52
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...... 1-52
Air bag warning labels ....................................... 1-55
Air bag warning light .............................. 1-55, 2-14
Air cleaner housing filter ................................... 8-15
Air conditioner
Air conditioner operation ........................... 4-34
Air conditioner service ................................. 4-41
Air conditioner specification label ......... 10-13
Air conditioning system refrigerant
and oil recommendations ................ 4-41, 10-7
Automatic air conditioner ........................... 4-36
Heater and air conditioner ......................... 4-34
Servicing air conditioner .............................. 4-41
Sync mode setting ......................................... 4-39
Air deflectors ...................................................... 10-15
Alarm
How to stop alarm (see vehicle
security system) ............................................. 2-33
Alcohol, drugs and driving ................................ 5-10Android Auto .......................................................... 4-2
Antenna .................................................................. 4-42
Anti-lock Braking System (ABS) .................. 5-130
Appearance care
Exterior appearance care ............................... 7-2
Interior appearance care ................................ 7-5
Apple CarPlay
®...................................................... 4-2
Around View®Monitor ...................................... 4-11
Audible reminders ................................................ 2-20
Autolight system .................................................. 2-38
Automatic
Automatic adjusting function
(power windows) ........................................... 2-55
Automatic air conditioner ........................... 4-36
Automatic Transmission Fluid (ATF) ......... 8-9
Driving with Automatic
Transmission (AT) .......................................... 5-16
Automatic door locks ............................................ 3-5
Automatic seat positioner ................................ 3-33
Avoiding collision and rollover ............................ 5-9
B
Back-up Collision Intervention (BCI) .............. 5-62
Battery .................................................................... 8-11
Battery replacement, Intelligent Key ......... 3-2
Battery saver system .................................... 2-41
Intelligent Key ................................................. 8-19
Variable voltage control system ............... 8-13
Before starting the engine ................................ 5-14Belts (See drive belts) ......................................... 8-13
Blind Spot Intervention
®(BSI) ......................... 5-48
Blind Spot Warning (BSW) .............................. 5-40
Brake
Anti-lock Braking System (ABS) ............ 5-130
Brake fluid ......................................................... 8-9
Brake force distribution ............................. 5-132
Brake system ................................................ 5-129
Parking brake operation ............................. 5-20
Brake warning light ............................................. 2-13
Break-in schedule .............................................. 5-122
Bulb check/instrument panel ........................... 2-13
Bulb replacement ................................................. 8-22
C
Camera aiding sonar function ......................... 4-24
Capacities and
recommended fluids/lubricants ....................... 10-2
Car phone or CB radio ....................................... 4-42
Card holder ............................................................ 2-52
Catalytic converter
Three-way catalyst ......................................... 5-5
Center ventilators ................................................ 4-34
Chassis control ................................................... 5-135
Check tire pressure warning ............................. 2-24
Checking intercooler coolant level .................... 8-6
Child restraints ..................................................... 1-20
LATCH system ............................................... 1-22
Precautions on child restraints .................. 1-20
