JVS0845X
Dynamic driver assistance switch
Driver assist system forward indicator
(green) (on the vehicle information dis-
play)
Lower display
TURNING THE DCA SYSTEM ON/
OFF
To turn on the DCA system, push the
dynamic driver assistance switchon the
steering wheel after starting the engine. The
driver assistance switch indicator
in the
vehicle information display will appear. Push
the dynamic driver assistance switch
again
to turn off the DCA system. The driver
assistance switch indicator
will turn off.
The system will start to operate after the
vehicle speed is above approximately 3 MPH
(5 km/h).
The dynamic driver assistance switch
is
used for the DCA, Active Lane Control (if so
equipped), Lane Departure Prevention (LDP)
and Blind Spot Intervention
®(BSI) systems.
When the dynamic driver assistance switch
is pushed, Active Lane Control, LDP and
BSI systems will also turn on or off simulta-
neously. The DCA system can be individually
set to on or off on the lower display
. If the
system is set to off, the system will not turn
on even if the dynamic driver assistance
switch
is pushed to on. To set the system
to on or off on the display, see “How to
enable/disable the DCA system” (P.5-98).
When the conventional (fixed speed) cruise
control mode is operating, the DCA system
will not operate. (To use the DCA system,
turn the conventional (fixed speed) cruise
Starting and driving5-97

5-98Starting and driving
control mode off, then push the dynamic
driver assistance switch.)
For details about the conventional (fixed
speed) cruise control mode, see “Intelligent
Cruise Control (ICC)” (P.5-72).
When the engine is turned off, the DCA
system is automatically turned off.
JVS0246X
HOW TO ENABLE/DISABLE THE
DCA SYSTEM
Perform the following steps to enable or
disable the DCA system.
1. Push the MENU
button and touch
[Driver Assistance] on the lower display.
2. Touch [Forward Assist].
3. Touch [Distance Control] to enable or
disable the system.
The displayed keys on the lower display may
vary depending on models, specifications
and software version.
JVS0225X
DCA SYSTEM DISPLAY AND IN-
DICATORS
The display is located between the speed-
ometer and tachometer.
1. Driver assist system forward indicator
.Driver assist system forward indicator
(green):
Indicates that the DCA system is ON.
.Driver assist system forward indicator
(orange):
Indicates whether there is a malfunc-
tion in the DCA system.
2. Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in

5-102Starting and driving
For details about the VDC system, see
“Vehicle Dynamic Control (VDC) system”
(P.5-132)
.When the VDC or ABS (including the
traction control system) operates
.When the INFINITI Drive Mode Selector
is turned to the SNOW mode (To use the
DCA system, turn the INFINITI Drive
Mode Selector to a mode other than the
SNOW mode, then turn on the dynamic
driver assistance switch
.) For details
about the INFINITI Drive Mode Selector,
see “INFINITI Drive Mode Selector” (P.5-
21)
.When the radar signal is temporarily
interrupted
Action to take:
When the conditions listed above are no
longer present, turn the DCA system back on
to use the system.
Condition B
Under the following conditions, making it
impossible to detect a vehicle ahead, the
DCA system is automatically canceled.
The chime will sound, the driver assist
system forward indicator (orange) and the
“front radar obstruction” warning message
will appear in the vehicle information display.
.When the radar sensor area of the frontbumper is covered with dirt or is ob-
structed
Action to take:
If the driver assist system forward indicator
(orange) and the warning message appear,
stop the vehicle in a safe place, place the
shift lever in the P (Park) position and turn
the engine off. When the radar signal is
temporarily interrupted, clean the sensor
area of the front bumper and restart the
engine. If the warning message continues to
be displayed, have the DCA system checked.
It is recommended you visit an INFINITI
retailer for this service.
.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)
Action to take:
When the above conditions no longer exist,
the DCA system will resume automatically.SYSTEM MALFUNCTION
When the DCA system is not operating
properly, the chime sounds, the driver assist
system forward indicator (orange) and the
system “malfunction” warning message will
appear in the vehicle information display.Action to take:
If the driver assist system forward indicator
(orange) and the warning message appear,
stop the vehicle in a safe place and place the
shift lever in the P (Park) position. Turn the
engine off, restart the engine, and turn on
the DCA system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal con-
ditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.
SYSTEM MAINTENANCE
The sensor for the DCA system is common
with the Intelligent Cruise Control (ICC)
system and is located behind the grille of
the front bumper.
For the sensor maintenance, see “Intelligent
Cruise Control (ICC)” (P.5-72).
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1.This device may not cause harmful
interference, and

5-106Starting and driving
JVS0847X
FEB system warning light (on the
instrument panel)
Lower display
MENU button
TURNING THE FEB WITH PE-
DESTRIAN DETECTION SYSTEM
ON/OFF
Perform the following steps to turn the FEB
with pedestrian detection system on or off.
1. Push the MENU button
and touch
[Driver Assistance] on the lower display
.
2. Touch [Emergency Assist].
3. Touch [Emergency Braking] to turn the
system ON/OFF.
When the FEB with pedestrian detection
system is turned off, the FEB system warn-
ing light (orange)
illuminates.
The displayed keys on the lower display may
vary depending on models, specifications
and software version.
NOTE:
.The FEB with pedestrian detection sys-
tem will be automatically turned ON
when the engine is restarted.
.The Predictive Forward Collision Warn-
ing (PFCW) system is integrated into
the FEB with pedestrian detection sys-
tem. There is not a separate selection in
the display for the PFCW system. When
the FEB with pedestrian detection sys-
tem is turned off, the PFCW system is
also turned off.

Condition B
Under the following conditions, making it
impossible to detect a vehicle ahead, the
FEB with pedestrian detection system is
automatically turned off.
The FEB system warning light (orange)
and the driver assist system forward indi-
cator (orange)will illuminate and the
“front radar obstruction” warning message
will appear in the vehicle information display.
.When the sensor area of the front
bumper is covered with dirt or is ob-
structed
Action to take:
If the FEB system warning light (orange)
comes on, stop the vehicle in a safe place,
place the shift lever in the P (Park) position
and turn the engine off. Clean the radar
cover on the front grille with a soft cloth, and
restart the engine. If the FEB system warn-
ing light continues to illuminate, have the
FEB with pedestrian detection system
checked. It is recommended you visit an
INFINITI retailer for this service.
.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)Action to take:
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
Condition C
When the accelerator pedal actuator detects
that the internal motor temperature is high,
the FEB with pedestrian detection system is
automatically turned off. The FEB system
warning light (orange)
and the driver
assist system forward indicator (orange)
will illuminate and the “Unavailable High
Accelerator Temperature” warning message
will appear in the vehicle information display.
Action to take:
When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.
SYSTEM MALFUNCTION
If the FEB with pedestrian detection system
malfunctions, it will be turned off automa-
tically, a chime will sound, the FEB system
warning light (orange)
and the driver
assist system forward indicator (orange)
will illuminate and the system “malfunction”
warning message will appear in the vehicle
information display.Action to take:
If the FEB system warning light (orange)
comes on, stop the vehicle in a safe location
and place the shift lever in the P (Park)
position. Turn the engine off and restart the
engine. If the warning light continues to
illuminate, have the FEB with pedestrian
detection system checked. It is recom-
mended you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with pedestrian detection system
stops working, the PFCW system will also
stop working.
Starting and driving5-111

Action to take:
If the FEB system warning light (orange)
comes on, stop the vehicle in a safe place,
place the shift lever in the P (Park) position
and turn the engine off. Clean the radar
cover on the front grille with a soft cloth, and
restart the engine. If the FEB system warn-
ing light (orange)
continues to illuminate,
have the PFCW system checked. It is
recommended you visit an INFINITI retailer
for this service.
.When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)
Action to take:
When the above conditions no longer exist,
the PFCW system will resume automatically.
NOTE:
If the FEB with pedestrian detection system
stops working, the PFCW system will also
stop working.
SYSTEM MALFUNCTION
If the PFCW malfunctions, it will be turned
off automatically, a chime will sound, the
FEB system warning light (orange)
and
the driver assist system forward indicator
(orange)
will illuminate, and the system
“malfunction” message will appear in the
vehicle information display.
Action to take:
If the FEB system warning light (orange)
comes on, stop the vehicle in a safe location,
turn the engine off and restart the engine. If
the warning light continues to illuminate,
have the PFCW system checked. It is
recommended you visit an INFINITI retailer
for this service.
JVS0869X
SYSTEM MAINTENANCE
The sensoris located behind the grille of
the front bumper.
To keep the system operating properly, be
sure to observe the following:
.Always keep the sensor area of the front
grille clean.
.Do not strike or damage the areas around
the sensor.
.Do not cover or attach stickers or similar
objects on the front bumper near the
sensor area. This could cause failure or
malfunction.
.Do not attach metallic objects near the
sensor area (brush guard, etc.). This
Starting and driving5-121

5-122Starting and driving
could cause failure or malfunction.
.Do not alter, remove or paint the front
bumper. It is recommended you contact
an INFINITI retailer before customizing
or restoring the front bumper.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1.This device may not cause harmful
interference, and
2.This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modification not expressly ap-
proved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
1.This device may not cause interference,
and
2.This device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and en-
sure the future reliability and economy
of your new vehicle.
Failure to follow these recommendations
may result in shortened engine life and
reduced engine performance.
.Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
.Do not accelerate at full throttle in any
gear.
.Avoid quick starts.
.Avoid hard braking as much as possible.Follow these easy-to-use Fuel Efficient
Driving Tips to help you achieve the most
fuel economy from your vehicle.
1. Use smooth accelerator and brake pedal
application.
.Avoid rapid starts and stops..Use smooth, gentle accelerator and
brake application whenever possible.
.Maintain constant speed while com-
muting and coast whenever possible.
2. Maintain constant speed.
.Look ahead to try and anticipate and
minimize stops.
.Synchronizing your speed with traffic
lights allows you to reduce your
number of stops.
.Maintaining a steady speed can mini-
mize red light stops and improve fuel
efficiency.
3. Use air conditioning (A/C) at higher
vehicle speeds.
.Below 40 MPH (64 km/h), it is more
efficient to open windows to cool the
vehicle due to reduced engine load.
.Above 40 MPH (64 km/h), it is more
efficient to use A/C to cool the
vehicle due to increased aerodynamic
drag.
.Recirculating the cool air in the cabin
when the A/C is on reduces cooling
load.
BREAK-IN SCHEDULE FUEL EFFICIENT DRIVING TIPS

4. Drive at economical speeds and dis-
tances.
.Observing the speed limit and not
exceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel
efficiency due to reduced aerody-
namic drag.
.Maintaining a safe following distance
behind other vehicles reduces unne-
cessary braking.
.Safely monitoring traffic to anticipate
changes in speed permits reduced
braking and smooth acceleration
changes.
.Select a gear range suitable to road
conditions.
5. Use cruise control.
.Using cruise control during highway
driving helps maintain a steady speed.
.Cruise control is particularly effective
in providing fuel savings when driving
on flat terrains.
6. Plan for the shortest route.
.Utilize a map or navigation system to
determine the best route to save time.
7. Avoid idling.
.Shutting off your engine when safe
for stops exceeding 30-60 seconds
saves fuel and reduces emissions.8. Buy an automated pass for toll roads.
.Automated passes permit drivers to
use special lanes to maintain cruising
speed through the toll and avoid
stopping and starting.
9. Winter warm up.
.Limit idling time to minimize impact to
fuel economy.
.Vehicles typically need no more than
30 seconds of idling at start-up to
effectively circulate the engine oil
before driving.
.Your vehicle will reach its ideal oper-
ating temperature more quickly while
driving versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered parking
area or in the shade whenever possi-
ble.
.When entering a hot vehicle, opening
the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system..Keep your engine tuned up.
.Follow the recommended scheduled
maintenance.
.Keep the tires inflated to the correct
pressure. Low tire pressure increases tire
wear and lowers fuel economy.
.Keep the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
.Use the recommended viscosity engine
oil. (See “Engine oil and oil filter recom-
mendation” (P.10-6).)
Starting and driving5-123
INCREASING FUEL ECONOMY

5-124Starting and driving
If any malfunction occurs in the Intelligent
All-Wheel Drive (AWD) system while the
engine is running, warning messages appear
in the vehicle information display.
JVS0228M
If the “AWD Error” warningappears, there
may be a malfunction in the Intelligent AWD
system. Reduce vehicle speed and have the
system checked as soon as possible. It is
recommended you visit an INFINITI retailer
for this service.
The “AWD High Temp.” (high temperature)
warning
may appear while trying to free astuck vehicle due to increased oil tempera-
ture. The driving mode may change to Two-
Wheel Drive (2WD). If this warning is
displayed, stop the vehicle with the engine
idling, as soon as it is safe to do so. Then if
the warning turns off, you can continue
driving.
The “Tire Size Incorrect” warning
may
appear if there is a large difference between
the diameters of front and rear wheels. Pull
off the road in a safe area, with the engine
idling. Check that all tire sizes are the same,
that the tire pressure is correct and that the
tires are not excessively worn.
If any warning message continues to be
displayed, have your vehicle checked as soon
as possible. It is recommended you visit an
INFINITI retailer for this service.
WARNING
.For AWD equipped vehicles, do not
attempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result
in drivetrain damage or unexpected
vehicle movement which could result
in serious vehicle damage or personal
injury.
INTELLIGENT ALL-WHEEL
DRIVE (AWD) (if so equipped)

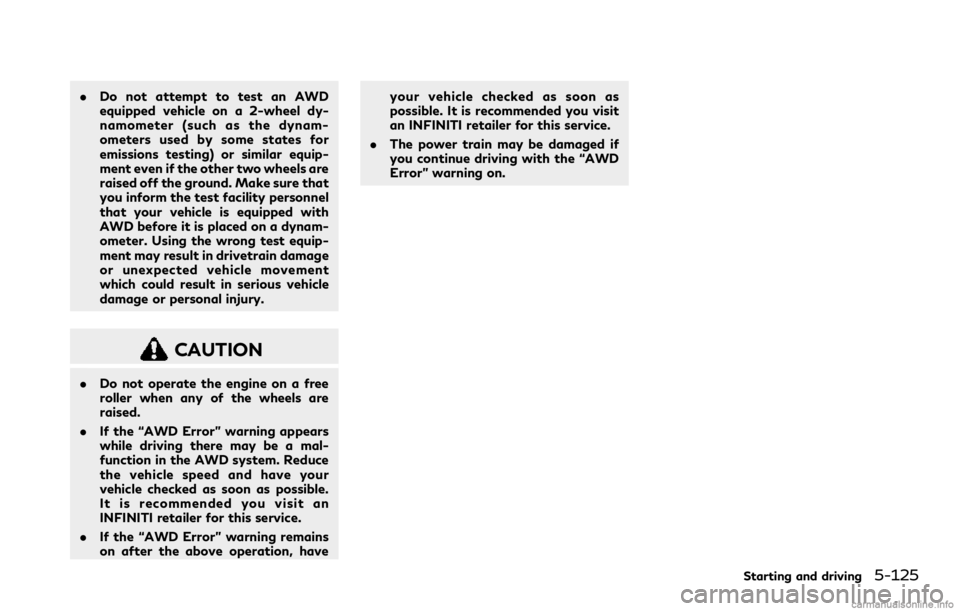

.Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer (such as the dynam-
ometers used by some states for
emissions testing) or similar equip-
ment even if the other two wheels are
raised off the ground. Make sure that
you inform the test facility personnel
that your vehicle is equipped with
AWD before it is placed on a dynam-
ometer. Using the wrong test equip-
ment may result in drivetrain damage
or unexpected vehicle movement
which could result in serious vehicle
damage or personal injury.
CAUTION
.Do not operate the engine on a free
roller when any of the wheels are
raised.
.If the “AWD Error” warning appears
while driving there may be a mal-
function in the AWD system. Reduce
the vehicle speed and have your
vehicle checked as soon as possible.
It is recommended you visit an
INFINITI retailer for this service.
.If the “AWD Error” warning remains
on after the above operation, haveyour vehicle checked as soon as
possible. It is recommended you visit
an INFINITI retailer for this service.
.The power train may be damaged if
you continue driving with the “AWD
Error” warning on.
Starting and driving5-125
