5-140Starting and driving

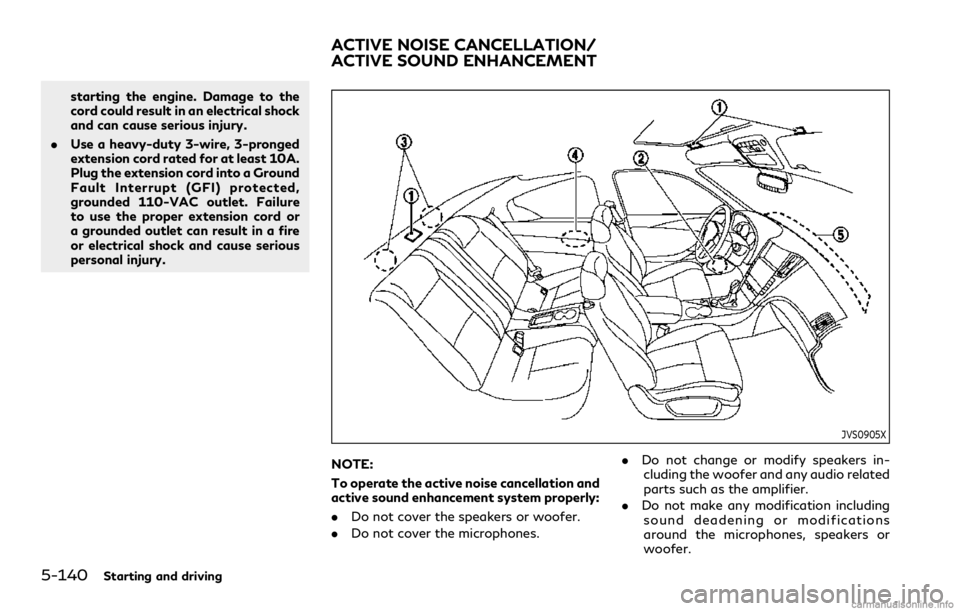

starting the engine. Damage to the
cord could result in an electrical shock
and can cause serious injury.
.Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least 10A.
Plug the extension cord into a Ground
Fault Interrupt (GFI) protected,
grounded 110-VAC outlet. Failure
to use the proper extension cord or
a grounded outlet can result in a fire
or electrical shock and cause serious
personal injury.
JVS0905X
NOTE:
To operate the active noise cancellation and
active sound enhancement system properly:
.Do not cover the speakers or woofer.
.Do not cover the microphones..Do not change or modify speakers in-
cluding the woofer and any audio related
parts such as the amplifier.
.Do not make any modification including
sound deadening or modifications
around the microphones, speakers or
woofer.
ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT
Page 363 of 492

ACTIVE NOISE CANCELLATION
The active noise cancellation uses micro-
phoneslocated inside the vehicle to detect
engine booming noises. The system then
automatically produces a muted engine
booming noise through the speakers
,(if so equipped),(if so equipped) and
wooferto reduce engine booming noise.
If the microphone
or the area around it is
tapped, abnormal noise may be output from
the speaker.
ACTIVE SOUND ENHANCEMENT
The active sound enhancement generates
sounds according to engine speed and
driving modes through the speakers
and(if so equipped) to enhance the quality of
the engine sound.
Starting and driving5-141
Page 365 of 492

6 In case of emergency
Hazard warning flasher switch ..................................... 6-2
Roadside assistance program ....................................... 6-2
Emergency engine shut off ............................................ 6-3
Flat tire ................................................................................ 6-3
Tire Pressure Monitoring System (TPMS) ........... 6-3
Run-flat tires ................................................................ 6-4
Repairing a flat tire (for models with emergency
tire puncture repair kit) .............................................. 6-5Jump starting .................................................................. 6-10
Push starting ................................................................... 6-12
If your vehicle overheats .............................................. 6-13
Towing your vehicle ...................................................... 6-14
Towing recommended by INFINITI ................... 6-15
Vehicle recovery (freeing a stuck vehicle) ........ 6-16
Page 367 of 492

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
.Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
.Push and hold the push-button ignition
switch for more than 2 seconds.If you have a flat tire, follow the instructions
in this section.
For models with run-flat tires, you can
continue driving to a safe location even if
they are punctured. (See “Run-flat tires”
(P.6-4) and “Run-flat tires” (P.8-32).)
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low - Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated. If the vehicle is
being driven with low tire pressure, the
TPMS will activate and warn you of it by
the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
For more details, see “Warning lights, in-
dicator lights and audible reminders” (P.2-
12) and “Tire Pressure Monitoring System
(TPMS)” (P.5-5).
WARNING
.Radio waves could adversely affect
electric medical equipment. Thosewho use a pacemaker should contact
the electric medical equipment man-
ufacturer for the possible influences
before use.
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and
increase the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving
after adjusting the tire pressure, a
tire may be flat. If you have a flat tire,
replace it with a spare tire (if so
equipped) or repair it with the emer-
gency tire puncture repair kit (if so
equipped) as soon as possible. If no
tire is flat and all tires are properly
inflated, it is recommended you con-
sult an INFINITI retailer.
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE
Page 369 of 492

1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the
parking brake. Move the shift lever to the
P (Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and
to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the
vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
For the tire removing procedure, see “Jack-
ing up the vehicle and replacing tires” (P.8-
38).
REPAIRING A FLAT TIRE (for
models with emergency tire punc-
ture repair kit)

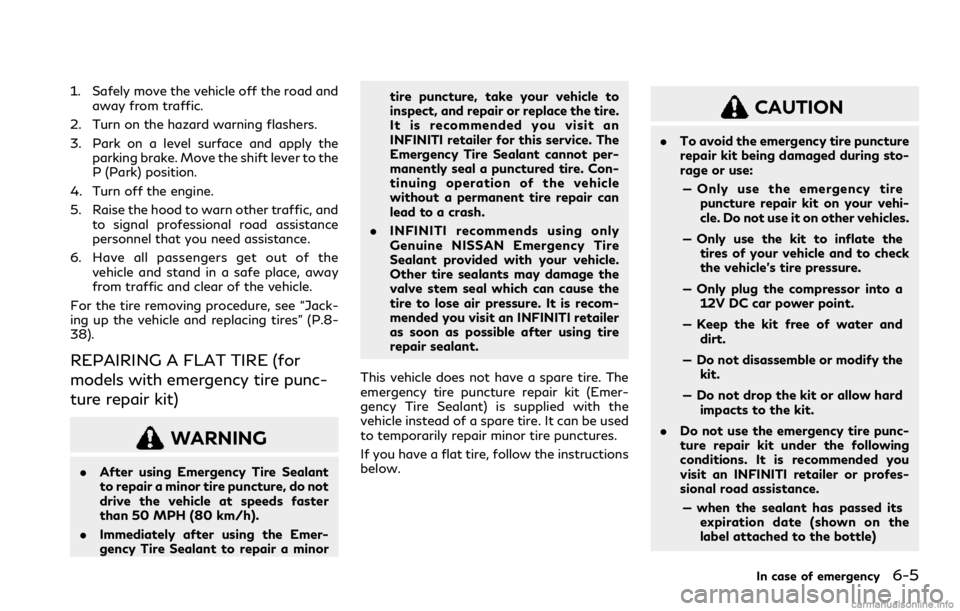

WARNING
.After using Emergency Tire Sealant
to repair a minor tire puncture, do not
drive the vehicle at speeds faster
than 50 MPH (80 km/h).
.Immediately after using the Emer-
gency Tire Sealant to repair a minortire puncture, take your vehicle to
inspect, and repair or replace the tire.
It is recommended you visit an
INFINITI retailer for this service. The
Emergency Tire Sealant cannot per-
manently seal a punctured tire. Con-
tinuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
.INFINITI recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit an INFINITI retailer
as soon as possible after using tire
repair sealant.
This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the
vehicle instead of a spare tire. It can be used
to temporarily repair minor tire punctures.
If you have a flat tire, follow the instructions
below.
CAUTION
.To avoid the emergency tire puncture
repair kit being damaged during sto-
rage or use:
— Only use the emergency tire
puncture repair kit on your vehi-
cle. Do not use it on other vehicles.
— Only use the kit to inflate the
tires of your vehicle and to check
the vehicle’s tire pressure.
— Only plug the compressor into a
12V DC car power point.
— Keep the kit free of water and
dirt.
— Do not disassemble or modify the
kit.
— Do not drop the kit or allow hard
impacts to the kit.
.Do not use the emergency tire punc-
ture repair kit under the following
conditions. It is recommended you
visit an INFINITI retailer or profes-
sional road assistance.
— when the sealant has passed its
expiration date (shown on the
label attached to the bottle)
In case of emergency6-5
Page 370 of 492

6-6In case of emergency
— when the cut or the puncture is
approximately 0.25 in (6 mm) or
longer
— when the tire sidewall is damaged
— when the vehicle has been driven
with extremely low tire pressure
— when the tire has come off the
inside or the outside of the wheel.
— when the tire wheel is damaged
— when two or more tires are flat
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the
parking brake.
4. Move the shift lever to the P (Park)
position.
5. Turn off the engine.
6. Raise the hood to warn other traffic and
to signal professional road assistance
personnel that you need assistance.
7. Have all passengers get out of the
vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmission
is shifted into P (Park).
.Never repair tires when the vehicle is
on a slope, ice or slippery areas. This
is hazardous.
.Never repair tires if oncoming traffic
is close to your vehicle. Wait for
professional road assistance.
JVE0418X
Getting emergency tire puncture
repair kit
Raise the trunk floor cover. (While pulling up
the center strap, fold down the right end of
the trunk floor cover to pull up the trunk
floor cover.) Take out the emergency tire
puncture repair kit located in the trunk.
The emergency tire puncture repair kit
consists of the following items:
.Tire sealant bottle
.Air compressor
.Speed restriction sticker
Page 374 of 492

6-10In case of emergency
position, then screw the hose securely
onto the tire valve. Check the tire
pressure with the pressure gauge. The
temporary repair is completed if the tire
pressure does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the
steps from 5 to 9. If the pressure drops
again or under 19 psi (130 kPa),the tire
cannot be repaired with this tire punc-
ture repair kit.It is recommended you
visit an INFINITI retailer for this servi-
cing.
The sealant bottle and hose cannot be
reused to repair another punctured tire.
It is recommended you visit an INFINITI
retailer to purchase replacements.
After repairing tire
It is recommended you visit an INFINITI
retailer for tire repair/replacement as soon
as possible.
WARNING
.After using Emergency Tire Sealant
to repair a minor tire puncture, do not
drive the vehicle at speeds fasterthan 50 MPH (80 km/h).
.Immediately after using Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to in-
spect, and repair or replace the tire.
It is recommended you visit an
INFINITI retailer for this service. The
Emergency Tire Sealant cannot per-
manently seal a punctured tire. Con-
tinuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
.INFINITI recommends using only
Genuine NISSAN Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure. It is recom-
mended you visit an INFINITI retailer
as soon as possible after using tire
repair sealant.To start your engine with a booster battery,
the instructions and precautions below must
be followed.
WARNING
.If done incorrectly, jump starting can
lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.
.Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away from
the battery.
.Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is a
corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
.Keep the battery out of the reach of
children.
.The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
.Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
JUMP STARTING
Page 375 of 492

industrial safety spectacles) and re-
move rings, metal bands, or any other
jewelry. Do not lean over the battery
when jump starting.
.Do not attempt to jump start a
frozen battery. It could explode and
cause serious injury.
.Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it.
JVE0282X
WARNING
Always follow the instructions below.
Failure to do so could result in damage to
the charging system and cause personal
injury.1. If the booster battery is in another
vehicle
, position the two vehiclesandto bring the batteries into close
proximity to each other.
In case of emergency6-11
Page 376 of 492

6-12In case of emergency
CAUTION
.Do not allow the two vehicles to
touch.
2. Apply parking brake. Move the shift lever
to the P (Park) position. Switch off all
unnecessary electrical systems (light,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with a
firmly wrung out moist cloth
to reduce
explosion hazard.
4. Connect jumper cables in the sequence
as illustrated (
???).
CAUTION
.Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (as illustrated) − not to the
battery.
.Make sure the jumper cables do not
touch moving parts in the engine
compartment and that clamps do
not contact any other metal.
5. Start the engine of the booster vehicle
and let it run for a few minutes.6. Keep the engine speed of the booster
vehicle
at about 2,000 rpm, and start
the engine of the vehicle being jump
started
.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, push the
ignition switch to the OFF position and
wait 10 seconds before trying again.
7. After starting your engine, carefully
disconnect the negative cable and then
the positive cable (
???).
8. Replace the vent caps (if so equipped).
Be sure to dispose of the cloth used to
cover the vent holes as it may be
contaminated with corrosive acid.
9. Put the battery cover and the engine
cover back to the original location.Do not attempt to start the engine by
pushing.
CAUTION
.Automatic Transmission (AT) models
cannot be push-started or tow-
started. Attempting to do so may
cause transmission damage.
.Three-way catalyst equipped models
should not be started by pushing
since the three-way catalyst may be
damaged.
.Never try to start the vehicle by
towing it; when the engine starts,
the forward surge could cause the
vehicle to collide with the tow vehi-
cle.
PUSH STARTING
Page 377 of 492

CAUTION
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle fire.
.To avoid the danger of being scalded,
never remove the radiator cap while
the engine is still hot. When the
radiator cap is removed, pressurized
hot water will spurt out, possibly
causing serious injury.
.Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc., take the following
steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
shift lever to the P (Park) position.
Do not stop the engine.
2. Turn off the climate control. Open all the
windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engineat a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off the
engine.) Do not open the hood further
until no steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine coolingfan can start at any time.
7. After the engine cools down, check the
coolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired. It is recommended you
visit an INFINITI retailer for this service.
In case of emergency6-13
IF YOUR VEHICLE OVERHEATS
