warning light INFINITI Q60 COUPE 2021 Owner's Manual

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ...................................................................... 0-2
Exterior front ..................................................................... 0-3
Exterior rear ....................................................................... 0-4
Passenger compartment ................................................. 0-5
Cockpit ................................................................................. 0-6Instrument panel .............................................................. 0-8
Meters and gauges .......................................................... 0-9
Engine compartment .................................................... 0-10
VR30DDTT engine ................................................ 0-10
Warning and indicator lights ...................................... 0-11

0-6Illustrated table of contents
WAA0093X
1. Side ventilator (P.4-34)
2. Headlight, fog light and turn signal
switch (P.2-37)
3. Steering wheel
— Horn (P.2-44)
— Driver supplemental air bag (P.1-38)— Heated steering wheel (if so
equipped) (P.2-46)
— Power steering (P.5-127)
4. Windshield wiper and washer switch
(P.2-34)
5. Hazard warning flasher switch (P.6-2)6. Shift lever (P.5-16)
7. INFINITI controller*
8. Vehicle Dynamic Control (VDC) OFF
switch (P.2-44, P.5-132)
9. Trunk lid release switch (P.3-23)
10. Instrument brightness control switch
(P.2-43)
11. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
12. Electric tilting/telescopic steering
wheel switch (if so equipped) (P.3-27)
13. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-27)
14. Steering-wheel-mounted controls (left
side)
— Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*
15. Steering-wheel-mounted controls
(right side)
— Trip computer switches (P.2-29)
— Cruise control switches (if so
equipped) (P.5-70)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-72)
— Dynamic driver assistance switch (if
so equipped) (P. 5-25, P.5-33, P.5-48,
P.5-92)
COCKPIT

JVC0428X
1. Tachometer (P.2-8)
2. Warning and indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge
(P.2-8)
5. Vehicle information display (P.2-20)/Odometer/twin trip odometer (P.2-7)
6. Fuel gauge (P.2-9)
Illustrated table of contents0-9
METERS AND GAUGES

Red light Name Page
Brake warning light 2-13
Charge warning light 2-13
Master warning light 2-14
Seat belt warning light and
chime2-14
Security indicator light 2-14
Supplemental air bag warn-
ing light2-14Yellow
lightName Page
Anti-lock Braking System
(ABS) warning light2-15
Forward Emergency Braking
(FEB) system warning light (if
so equipped)2-15
Front passenger air bag sta-
tus light2-15
Low fuel warning light 2-15
Low tire pressure warning
light2-15
Malfunction Indicator Light
(MIL)2-17
Master warning light 2-18
Power steering warning light 2-18
Vehicle Dynamic Control
(VDC) off indicator light2-19
Vehicle Dynamic Control
(VDC) warning light2-19Other
lightName Page
ECO drive indicator light 2-19
Exterior light indicator 2-19
Front fog light indicator light 2-19
High beam assist indicator
light (if so equipped)2-19
High beam indicator light 2-19
Turn signal/hazard indicator
lights2-19
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS

1 Safety — Seats, seat belts and supplemental
restraint system
Seats ...................................................................................... 1-2
Front seats ..................................................................... 1-3
Rear seats ....................................................................... 1-6
Head restraints/headrests .............................................. 1-7
Adjustable head
restraint/headrest components .............................. 1-8
Non-adjustable head
restraint/headrest components ............................... 1-9
Remove ........................................................................... 1-9
Install ............................................................................... 1-9
Adjust ........................................................................... 1-10
Seat belts ........................................................................... 1-11
Precautions on seat belt usage .............................. 1-11
Seat belt warning light and chime ....................... 1-13
Pregnant women ....................................................... 1-14
Injured persons ........................................................... 1-14
Pre-crash seat belts with comfort function
(front seats) (if so equipped) .................................. 1-14
Three-point type seat belt ...................................... 1-14
Seat belt extenders ................................................... 1-17
Seat belt maintenance ............................................. 1-17
Child safety ...................................................................... 1-18
Infants .......................................................................... 1-18
Small children ............................................................. 1-18
Larger children ........................................................... 1-19Child restraints ................................................................ 1-20
Precautions on child restraints ............................ 1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ...................................................... 1-22
Rear-facing child restraint installation
using LATCH ............................................................ 1-24
Rear-facing child restraint installation using
the seat belts ............................................................ 1-26
Forward-facing child restraint installation
using LATCH ............................................................ 1-28
Forward-facing child restraint installation
using the seat belts ................................................ 1-31
Booster seats ........................................................... 1-35
Supplemental restraint system .................................. 1-38
Precautions on supplemental
restraint system ....................................................... 1-38
INFINITI Advanced Air Bag System
(front seats) .............................................................. 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ..... 1-52
Seat belts with pretensioners (front seats) ..... 1-54
Supplemental air bag warning labels ................ 1-55
Supplemental air bag warning light ................... 1-55
Repair and replacement procedure .................... 1-56

1-12Safety — Seats, seat belts and supplemental restraint system
SSS0016
SSS0014

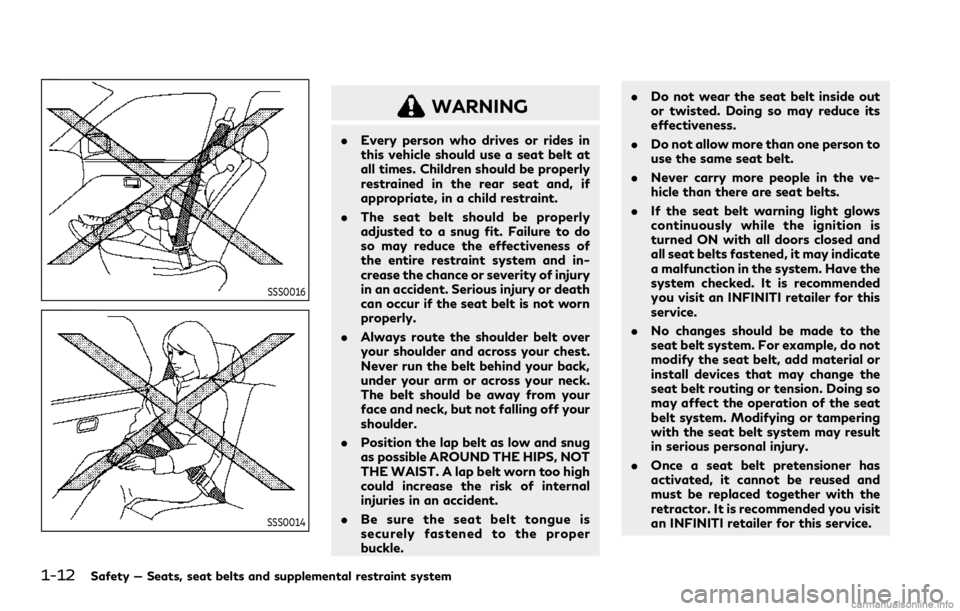

WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be properly
restrained in the rear seat and, if
appropriate, in a child restraint.
.The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of injury
in an accident. Serious injury or death
can occur if the seat belt is not worn
properly.
.Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
.Position the lap belt as low and snug
as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal
injuries in an accident.
.Be sure the seat belt tongue is
securely fastened to the proper
buckle..Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
.Do not allow more than one person to
use the same seat belt.
.Never carry more people in the ve-
hicle than there are seat belts.
.If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may indicate
a malfunction in the system. Have the
system checked. It is recommended
you visit an INFINITI retailer for this
service.
.No changes should be made to the
seat belt system. For example, do not
modify the seat belt, add material or
install devices that may change the
seat belt routing or tension. Doing so
may affect the operation of the seat
belt system. Modifying or tampering
with the seat belt system may result
in serious personal injury.
.Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. It is recommended you visit
an INFINITI retailer for this service.

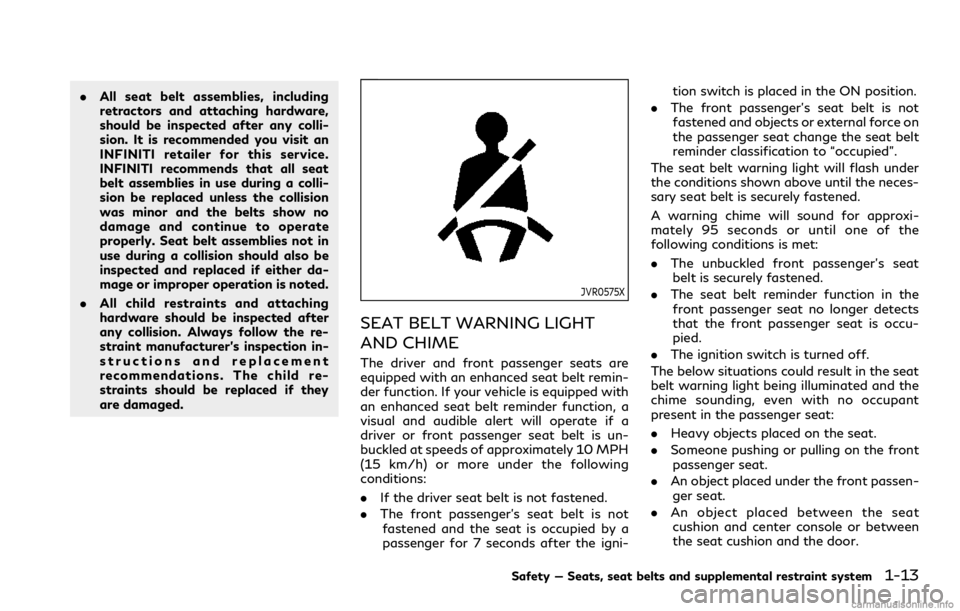

.All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion. It is recommended you visit an
INFINITI retailer for this service.
INFINITI recommends that all seat
belt assemblies in use during a colli-
sion be replaced unless the collision
was minor and the belts show no
damage and continue to operate
properly. Seat belt assemblies not in
use during a collision should also be
inspected and replaced if either da-
mage or improper operation is noted.
.All child restraints and attaching
hardware should be inspected after
any collision. Always follow the re-
straint manufacturer’s inspection in-
structions and replacement
recommendations. The child re-
straints should be replaced if they
are damaged.
JVR0575X
SEAT BELT WARNING LIGHT
AND CHIME
The driver and front passenger seats are
equipped with an enhanced seat belt remin-
der function. If your vehicle is equipped with
an enhanced seat belt reminder function, a
visual and audible alert will operate if a
driver or front passenger seat belt is un-
buckled at speeds of approximately 10 MPH
(15 km/h) or more under the following
conditions:
.If the driver seat belt is not fastened.
.The front passenger’s seat belt is not
fastened and the seat is occupied by a
passenger for 7 seconds after the igni-tion switch is placed in the ON position.
.The front passenger’s seat belt is not
fastened and objects or external force on
the passenger seat change the seat belt
reminder classification to “occupied”.
The seat belt warning light will flash under
the conditions shown above until the neces-
sary seat belt is securely fastened.
A warning chime will sound for approxi-
mately 95 seconds or until one of the
following conditions is met:
.The unbuckled front passenger’s seat
belt is securely fastened.
.The seat belt reminder function in the
front passenger seat no longer detects
that the front passenger seat is occu-
pied.
.The ignition switch is turned off.
The below situations could result in the seat
belt warning light being illuminated and the
chime sounding, even with no occupant
present in the passenger seat:
.Heavy objects placed on the seat.
.Someone pushing or pulling on the front
passenger seat.
.An object placed under the front passen-
ger seat.
.An object placed between the seat
cushion and center console or between
the seat cushion and the door.
Safety — Seats, seat belts and supplemental restraint system1-13

1-26Safety — Seats, seat belts and supplemental restraint system
5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
REAR-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-46).
For additional information, refer to all
Warnings and Cautions in the “Child safety”
(P.1-18) and “Child restraints” (P.1-20)
before installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If thecombined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:
SSS0100
Rear-facing — step 1
1.Child restraints for infants must be used
in the rear-facing direction and there-
fore must not be used in the front seat.
Position the child restraint on the seat.
Always follow the restraint manufac-
turer’s instructions.

The child restraint top tether strap must be
used when installing forward-facing child
restraints with the LATCH lower anchor
attachments.
First, secure the child restraint with the
LATCH lower anchors (rear outboard seat-
ing positions only).
1. Flip up the anchor cover from the anchor
point which is located directly behind the
child restraint.
2. Position the top tether strap over the top
of the seatback.
3. Secure the tether strap to the tether
anchor point on the rear parcel shelf.
4. Refer to the appropriate child restraint
installation procedure steps in this sec-
tion before tightening the tether strap.
If you have any questions when installing a
top tether strap, it is recommended you
visit an INFINITI retailer for this service.FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
THE SEAT BELTS
WARNING
The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-46).
SSS0640
Forward-facing (front passenger seat) —
step 1
Refer to all Warnings and Cautions in the
“Child safety” and “Child restraints” sections
before installing a child restraint.
Do not use the lower anchors if the com-
bined weight of the child and the child
restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure to
follow the child restraint manufacturer’s
instructions for installation.
Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front
Safety — Seats, seat belts and supplemental restraint system1-31

1-34Safety — Seats, seat belts and supplemental restraint system
seat belt is not locked, repeat steps 2
through 8.
JVR0192X
Forward-facing — step 10
10. If the child restraint is installed in the
front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should
illuminate. If this light is not illuminated,
see “Front passenger air bag and status
light” (P.1-46).Move the child restraint
to another seating position.Have the
system checked. It is recommended you
visit an INFINITI retailer for this service.
After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.
SSS0790
Installing top tether strap
WARNING
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorage,
and a child could be seriously injured or
killed in a collision.
