CAUTION
.The cigarette lighter socket is a power
source for the cigarette lighter element
only. The use of the cigarette lighter
socket as a power source for any other
accessory is not recommended.
. Do not use any other power outlet for an
accessory lighter.
SIC4341
REARY51D-V-E01-C4884D38-5807-4336-8EF7-7B6C4E1162F8To open the ashtray lid, pull*1.
To empty the ashtray, pull
*2.
Y51D-V-E01-1541CD52-EDAB-422F-A971-82BAC026DA56
CUP HOLDERSY51D-V-E01-9FD9C96C-5FD2-489E-A25B-35DC5BEABC76
CAUTION
. Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Instruments and controls2-47
STORAGE
Condition:

Black plate (120,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-48Instruments and controls
SIC4342
Front
To open the cup holder, push the lid
*1.
To remove the inner tray for cleaning, pull
it up as illustrated
*2.
SIC2875
Rear
Open the lid of the rear center armrest to
use the cup holder.
SIC4344
SUNGLASSES HOLDERY51D-V-E01-BA6292D3-3959-4458-B5FE-E980BEA75EBD
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
To open the sunglasses holder, push*1.
CAUTION
. Do not use for anything other than
glasses.
Condition:

Black plate (121,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
SIC4345
GLOVE BOXY51D-V-E01-F6CF0AA5-0A30-48C6-AD56-CE8831BA2E34
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle*1.
To close, push the lid in until the lock
latches.
To lock
*2/unlock*3the glove box, use
the mechanical key. For the mechanical key
usage, see “Keys”(P.3-2).
SIC4346
CONSOLE BOXY51D-V-E01-7E281298-B6E5-49A9-B436-68642C896FE8To open the console box, push up the knob
*Aand pull up the lid.
To close, push the lid down until latched.
Instruments and controls2-49
Condition:

Black plate (122,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-50Instruments and controls
SIC3929
Type A
SIC4348
Type B
CARD HOLDERY51D-V-E01-246B0920-FB36-4ED2-B10F-54EFFD4D038EThe card holder is located on or behind the
driver’s or passenger’s sun visor.
To use the card holder, slide the card in the
card holder.
SIC4351
REAR POCKETY51D-V-E01-B887F4F6-9A7B-4102-991B-51818C1F7783To open the rear pocket, push the button
*1.
Condition:

Black plate (123,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

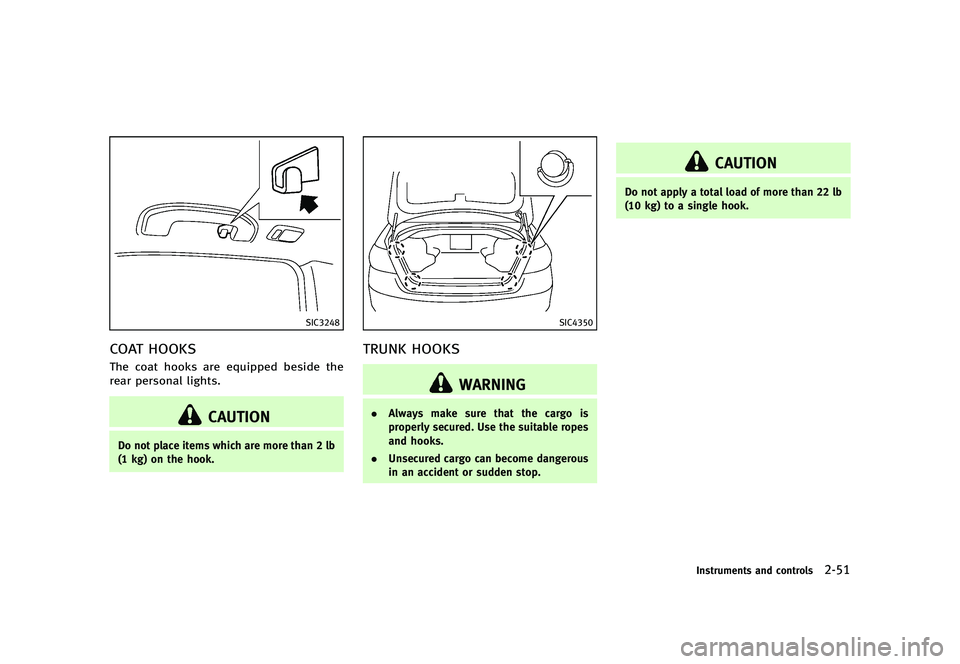

SIC3248
COAT HOOKSY51D-V-E01-6E60A118-4C06-4622-A493-70124199F866The coat hooks are equipped beside the
rear personal lights.
CAUTION
Do not place items which are more than 2 lb
(1 kg) on the hook.
SIC4350
TRUNK HOOKSY51D-V-E01-7F2F2069-5E83-4347-9CDB-726F230769B1
WARNING
.Always make sure that the cargo is
properly secured. Use the suitable ropes
and hooks.
. Unsecured cargo can become dangerous
in an accident or sudden stop.
CAUTION
Do not apply a total load of more than 22 lb
(10 kg) to a single hook.
Instruments and controls2-51
Condition:

Black plate (124,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-52Instruments and controls
Y51D-V-E01-AEEC66EB-668F-4E7B-84D1-AD1A2C0B8DED
POWER WINDOWSY51D-V-E01-32865A53-28E7-447C-A9B9-84195410C4C2
WARNING
.Make sure that all passengers have their
hands, etc. inside the vehicle while it is
in motion and before closing the win-
dows. Use the window lock switch to
prevent unexpected use of the power
windows.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls and be-
come trapped in the window. Unat-
tended children could become involved
in serious accidents.
The power windows operate when the
ignition switch is in the ON position or for
about 45 seconds after the ignition switch
is pushed to the OFF position. If the
driver’s or front passenger’s door is
opened during this period of about 45
seconds, power to the windows is can-
celed.
SIC4352
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
Main power window switch (driver’s
side)
Y51D-V-E01-4CC7580C-9AEC-4BCE-8EA6-560903CB5918To open or close the window, push down
*Aor pull up*Bthe switch and hold it.
The main switch (driver side switches) will
open or close all the windows.
Locking passengers’ windowsY51D-V-E01-1AF70CF8-9271-414A-9F81-8379097AA7C3When the lock button*Cis pushed in, only
the driver side window can be opened or
closed. Push it in again to cancel.
WINDOWS
Condition:

Black plate (125,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SIC4353
Passenger side power window
switch
Y51D-V-E01-B42ADBEB-6953-4EEC-ADED-0C589C38B75BThe passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.
SIC4354
Automatic operationY51D-V-E01-F5F5D3C4-D373-48F6-B2C1-91677EF6C965To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close all
the way. To stop the window, just push or
lift the switch in the opposite direction.
A light push or pull on the switch will cause
the window to open or close until the
switch is released.
Auto reverse functionY51D-V-E01-66ABF044-1E85-49F9-B21E-B3C2FACE3B04
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the window.
If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.
The auto reverse function can be activated
when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Instruments and controls2-53
Condition:

Black plate (126,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-54Instruments and controls
If the windows do not close auto-
matically
Y51D-V-E01-5018873A-9CDE-4190-B631-67416ADECA64If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.
1. Push the ignition switch to the ONposition.
2. Close the door.
3. Open the window completely by oper- ating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold
the switch more than 3 seconds after
the window is closed completely.
5. Release the power window switch.
Operate the window by the automatic
function to confirm the initialization is
complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked by an INFINITI retailer.
Y51D-V-E01-3D9EDB99-CE88-4104-A686-8F1FA044EF82
WARNING
. In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child re-
straints.
. Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
.Remove water drops, snow, ice or sand
from the moonroof before opening.
. Do not place any heavy object on the
moonroof or surrounding area.
POWER MOONROOFY51D-V-E01-C1CAC059-3CCB-4E01-98BE-41B5326A9282The moonroof only operates when the
ignition switch is in the ON position.
The moonroof is operational for about 45
seconds, even if the ignition switch is
pushed to the OFF position. If the driver’s
door or the passenger’s door is opened
during this period of about 45 seconds,
power to the moonroof is canceled.
MOONROOF
Condition:

Black plate (127,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SIC4355
SunshadeY51D-V-E01-1CD6C51E-2CF6-43DE-9B7C-FDFE087F32E1The sunshade will open automatically
when the moonroof is opened. However,
it must be closed manually.
Tilting the moonroofY51D-V-E01-7327959F-D789-4278-BFE2-34D57E1B72DDTo tilt up, first close the moonroof, then
push the switch to the tilt up position
*1
and release it; it need not be held. To tilt
down the moonroof, push the switch to the
tilt down position
*2.
Sliding the moonroofY51D-V-E01-78F09A38-DBBE-4D88-953D-2C8E2EF42DCETo fully open or close the moonroof, push
the switch to the open
*2or close*1
position and release it; it need not be held.
The roof will automatically open or close all
the way. To stop the roof, push the switch
once more while it is opening or closing.
Auto reverse functionY51D-V-E01-FAC8DE64-E355-4396-BF7A-507608B95F7B
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the moonroof.
If the control unit detects something
caught in the moonroof when it is closing,
the moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed auto-
matically when the auto reverse function
activates due to a malfunction, push and
hold the moonroof switch to the close
position
*1.Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operateY51D-V-E01-62DFF97A-CA79-46FA-94FD-BBA830AE3E72If the moonroof does not operate properly,
perform the following procedure to initi-
alize the moonroof operation system.
1. If the moonroof is open, close it fully by
repeatedly pushing the moonroof
switch to the close position
*1to tilt
the moonroof up.
2. Push and hold the switch to the close position
*1.
3. Release the moonroof switch after the moonroof moves slightly up and down.
4. Push and hold the switch to the open position
*2to fully tilt the moonroof
down.
5. Check if the moonroof switch operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked by an INFINITI retailer.
Instruments and controls2-55
Condition:

Black plate (128,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-56Instruments and controls
Y51D-V-E01-DEF8DF80-ECE1-42C8-BB63-BDC1A6B86AF9
CAUTION
.To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, arm rail and sunshade
inlet port.
. Do not allow children near the rear
sunshade system. They could be injured.
. Do not place objects on or near the rear
sunshade. This could cause improper
operation or damage it.
. Do not pull or push the rear sunshade.
This could cause improper operation or
damage it.
SIC4349
The rear sunshade operates when the
ignition switch is in the ON position.
The rear sunshade switch is located on the
instrument panel.
To raise and lower the sunshade, push the
switch.
The switch need not be held.
When the shift lever is moved to the "R"
(Reverse) position, the rear sunshade
automatically lowers.
CAUTION
.Do not place objects (such as news-
papers, handkerchiefs, etc.) on the
sunshade inlet port. Doing so may
entangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or damage
to the sunshade.
. Do not push the sunshade arm with your
hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.
. Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
. Do not hang any object on the arm rail
as this may result in improper operation
or damage the sunshade.
. Do not forcefully pull the sunshade.
Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.
REAR SUNSHADE (if so equipped)
Condition:
