The autolight system can turn on the
headlights automatically when it is dark
and turn off the headlights when it is light.
For US models: The headlights will also be
turned on automatically at twilight or in
rainy weather (when the windshield wiper
is operated continuously).
If the ignition switch is pushed to the OFF
position and one of the doors is opened
and this condition is continued, the head-
lights remain on for 5 minutes.
Automatic headlights off delay:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0You can keep the headlights on for up to
180 seconds after you push the ignition
switch to OFF and open any door then close
all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF)
to 180 seconds. The factory default setting
is 45 seconds.
For automatic headlights off delay setting,
see“Light Off Delay” (P.4-22).SAA0642A
Be sure not to put anything on top of the
photo sensor
*Alocated on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
SIC3269
Headlight beam selectY51D-V-E01-F70D9D7A-F42F-45D3-9507-557BBC6C84AE*1To select the low beam, put the lever
in the neutral position as shown.
*2To select the high beam, push the
lever forward while the switch is in the
position. Pull it back to select the
low beam.
*3Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF
position.
Condition:

Black plate (116,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-44Instruments and controls
ahead. (See“Forward Collision Warning
(FCW) system” (P.5-83).)
The LDW system will sound a warning
chime and blink the LDW indicator light
(orange) to alert the driver if the vehicle is
traveling close to either the left or the right
of a traveling lane with detectable lane
markers. (See “Lane Departure Warning
(LDW) system/Lane Departure Prevention
(LDP) system” (P.5-23).)
The BSW system will turn on the BSW/
Blind Spot Intervention (BSI) indicator
lights, located next to the outside mirrors,
if the radar sensors detect a vehicle in the
detection zone. If the turn signal is
activated in the direction of the detected
vehicle, a chime sounds twice and the
BSW/BSI indicator light will flash. (See
“Blind Spot Warning (BSW) system/Blind
Spot Intervention
TM(BSI) system” (P.5-33).)
Y51D-V-E01-17358321-C656-4645-AE2B-FD1F15122493
SIC4337
The vehicle should be driven with the
Intelligent Brake Assist (IBA) system on
for most driving conditions.
The Intelligent Brake Assist (IBA) system
will sound a warning chime and the vehicle
ahead detection indicator light blinks to
alert the driver when the vehicle is travel-
ing too close to the vehicle ahead. The
system will also apply the brake control if
necessary.
To turn off the system, push the IBA OFF
switch. The
indicator will illuminate.
The IBA system will remain in the last ON
or OFF state it was left in until it is
manually changed by pushing the IBA OFF switch.
See
“Intelligent Brake Assist (IBA) system”
(P.5-87).
INTELLIGENT BRAKE ASSIST (IBA) OFF
SWITCH (if so equipped)
Condition:

Black plate (161,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-899C7DDA-DD40-4329-80A8-CE6DFE22FD97
SPA2447
INSIDE MIRRORY51D-V-E01-10BF6E9D-94BA-434D-B556-9F6B29EFE1E4Adjust the height and the angle of the
inside mirror to the desired position.
SPA2450
Automatic anti-glare typeY51D-V-E01-544653BF-F3F0-4DF6-B343-B51FC6A721BAThe inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is
pushed to the ON position.
The anti-glare system also operates for the
outside rearview mirrors.
When the anti-glare system is turned on,
the indicator light
*Awill illuminate and
excessive glare from the headlights of the
vehicle behind you will be reduced. Push the
“*”switch
*Cto make the
inside rearview mirror operate normally.
The indicator light will turn off. Push the “I”
switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper
operation.
For the HomeLink
®Universal Transceiver
operation, see “HomeLink®Universal
Transceiver” (P.2-60).
OUTSIDE MIRRORSY51D-V-E01-0D342898-430F-456A-9040-9578417F2830
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear.
Be careful when moving to the right. Using
only this mirror could cause an accident.
Use the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
Pre-driving checks and adjustments3-25
MIRRORS
Condition:

Black plate (211,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.The Dual control mode cannot be
activated when the air conditioner is
in the front defrosting mode “
”.
Automatic upper ventilator system:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE01. Push the “CLIMATE”button to on.
2. Select the “Upper Vent”key and the
indicator on the screen will illuminate.
The air flow against the driver’s or
passenger’s upper body becomes gen-
tle.
In this mode, air from the center
ventilators flows both straight and
upward in order to control the cabin
temperature without blowing air di-
rectly on the occupants.
Distribution between straight and upward
flows is determined automatically by the
climate control system. If you prefer strong
air flow against your upper body, select
“Upper Vent” key to turn the indicator off.
. When the outside temperature de-
creases to approximately 148F
(−108C), the “Upper Vent” function
does not activate. The “Upper Vent”
function reactivates automatically when
the ambient temperature is 148F
(−108C) or more. Display Forest Air
®system setting screen:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The
“Forest Air setting” screen will appear
when selecting the “Forest Air Setting” key.
For the details about the Forest Air
®
system setting operation, see “Setting
Forest Air®” (P.4-45).
Display Forest Air
®Information screen:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The Forest Air®system information screen
will appear when selecting the “Forest Air
Info” key.
For details about the Forest Air
®system
information screen, see “Forest Air®sys-
tem Information” (P.4-46).
FOREST AIR®(if so equipped)Y51D-V-E01-4E3D2E2C-EF45-431E-A6F5-661AE504E2B8The Forest Air®system keeps the air inside
the vehicle clean using the automatic air
intake system and automatic ventilation.
The Forest Air
®system also makes the
inside of the vehicle more comfortable,
using a combination of the upper ventilator
and center ventilators at random.
*Forest Air
®is a trademark of Nissan Motor
Co., Ltd.
Main operationY51D-V-E01-2954897B-9BB4-4A02-9E95-B59CEABD9595Push the “”Forest button.
(The “
”and “AUTO” indicator light on the button will illuminate.)
When the following functions and sensors
are turned on, the Forest Air
®system
settings will activate.
. Breeze Mode
. Outside odor and exhaust gas detection
sensor
. Inside Air Quality sensor
. Auto humidity control
The fan speed and air flow is automatically
set to the AUTO position.
. The Forest Air
®system can be adjusted
and/or activated/deactivated for each
function. For details of The Forest Air
®
system settings, see later in this
section.
. When the “
”Forest button is
pushed while the air conditioner is
off, the air conditioner will automati-
cally activate.
. When the outside temperature de-
creases to approximately 328F (08C),
the outside odor and exhaust gas
detection sensor and auto humidity
control functions will not operate. The
system will not be reactivated auto-
matically even if the outside tempera-
ture reaches 328F (08C). To reactivate
Monitor, climate, audio, phone and voice recognition systems4-43
Condition:

Black plate (212,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-44Monitor, climate, audio, phone and voice recognition systems
the system, push theForest button
manually. (The indicator light on the
Forest button will illuminate.)
. The air flow control is not available in
the front defroster mode. When the
“
” button is pushed while the
Forest Air®system is turned on, the
Forest Air®system will turn off.
Operating tipsY51D-V-E01-87D0287B-7DD9-42BB-A6D6-B681BDA780E4
Breeze Mode:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this mode is ON, fan speed fluc-
tuates during the Forest Air®system
operation, creating a wind breeze similar
to a natural breeze using a combination of
the upper ventilator and the center venti-
lators at random.
. Breeze Mode will activate after the
temperature of the passenger compart-
ment becomes suitable.
. This function will not operate immedi-
ately after the engine starts.
. Breeze Mode will activate when the air
flow mode is in the “
”and “”
mode.
. This function will turn off if the fan
speed or a ventilator outlet is manually
adjusted. .
The breeze patterns may change in
accordance with the amount of sun
load.
. When operating fan speed or air flow
control while the Forest Air
®system is
turned on, the “
”indicator light on
the button will turn off automatically,
and the Breeze Mode function will turn
off.
. When the Breeze Mode function is
turned off while the Forest Air
®system
is on, the Breeze Mode function will
remain off until the “
”Forest button
is turned off and on again.
Outside odor and exhaust gas detection
sensor:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This vehicle is equipped with an outside
odor and exhaust gas detection sensor.
When the automatic intake air control is
on, the sensor detects odors and exhaust
gas, and then the system automatically
changes from the outside air circulation
mode to the recirculation mode. When the
“
” Forest button is pushed, the outside
odor and exhaust gas detection sensor will
turn on.
When the Forest Air
®system is on, for the
first 40 seconds, the recirculation mode is
selected to prevent dust, dirt and pollen from entering the vehicle, and the system
cleans the air inside of the vehicle with
Plasmacluster
®ion that are emitted from
the ventilator. After 40 seconds, the out-
side odor and exhaust gas sensor activates
and automatically alternates between the
recirculation mode and outside air circula-
tion mode.
. The outside odor and exhaust gas
detection sensor detects industry odors
such as pulp or chemicals, and exhaust
gas such as gasoline or diesel.
Inside Air Quality sensor:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This vehicle is equipped with an inside air
quality sensor. When the sensor detects
odor in the cabin, the system increases the
fan speed automatically. When the Forest
Air
®system is on, the inside air quality
sensor will turn on. This function may not
work during the first 5 minutes after the
engine is started because the system is
still warming up.
. The Outside/Inside Air Mix function will
turn off when the air recirculation and
outside air circulation modes are chan-
ged manually. When the Outside/Inside
Air Mix function is not active, turn off
and on the Forest Air
®system, the
Outside/Inside Air Mix function will
Condition:

Black plate (213,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
activate again.
Auto humidity control:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The sensor installed on the upper side of
the windshield detects the temperature
and humidity of the passenger compart-
ment and the surface of the windshield,
and controls the humidity of the passenger
compartment to not be over-dry or moist
enough to fog the windows. Moreover, it
detects potential fog before formation on
the windows and operates to remove it.
. Push the “AUTO”or“
”Forest button
(The “AUTO” or“
”indicator light on
the button will illuminate and “AUTO
DEF” will appear on the display.)
. The “Auto humidity control” function
will not operate if the fan speed or a
vent outlet is manually adjusted.
(“AUTO DEF” will disappear from the
display.)
. When auto humidity control is turned
off while the Forest Air
®system is on,
turn off and on the Forest Air®system,
the auto humidity control will activate
again.

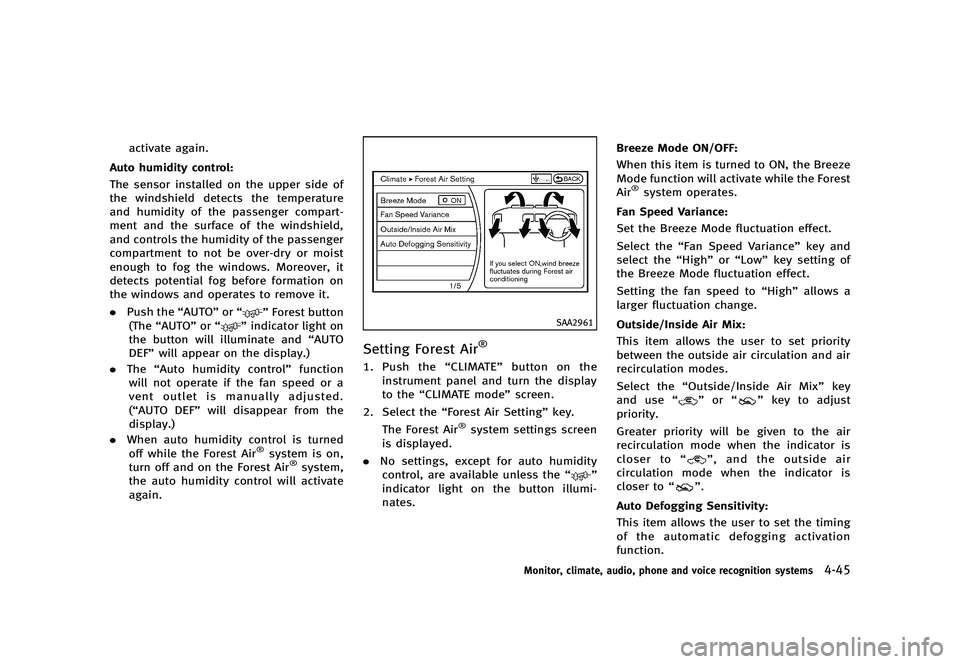

SAA2961
Setting Forest Air®Y51D-V-E01-B20BFEAC-8C6A-4E39-A45E-D5662260EE8D1. Push the “CLIMATE” button on the
instrument panel and turn the display
to the “CLIMATE mode” screen.
2. Select the “Forest Air Setting” key.
The Forest Air
®system settings screen
is displayed.
. No settings, except for auto humidity
control, are available unless the “
”
indicator light on the button illumi-
nates. Breeze Mode ON/OFF:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, the Breeze
Mode function will activate while the Forest
Air
®system operates.
Fan Speed Variance:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Set the Breeze Mode fluctuation effect.
Select the “Fan Speed Variance” key and
select the “High”or“Low” key setting of
the Breeze Mode fluctuation effect.
Setting the fan speed to “High”allows a
larger fluctuation change.
Outside/Inside Air Mix:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This item allows the user to set priority
between the outside air circulation and air
recirculation modes.
Select the “Outside/Inside Air Mix” key
and use “
”or “”key to adjust
priority.
Greater priority will be given to the air
recirculation mode when the indicator is
closer to “
”, and the outside air
circulation mode when the indicator is
closer to “
”.
Auto Defogging Sensitivity:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This item allows the user to set the timing
of the automatic defogging activation
function.
Monitor, climate, audio, phone and voice recognition systems4-45
Condition:

Black plate (216,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-48Monitor, climate, audio, phone and voice recognition systems
The sensors*Aand*Bon the instrument
panel helps maintain a constant tempera-
ture. Do not put anything on or around this
sensor.
LINKING INTELLIGENT KEYGUID-BF69D1FC-1387-40CF-82CD-F392D72AD5A9The Climate control system settings can be
memorized for each Intelligent Key. For
more details, see “Setting memory func-
tion” (P.3-30).
IN-CABIN MICROFILTERY51D-V-E01-785030EE-08BA-43B6-A88C-00F044790061
Without Forest Air®systemY51D-V-E01-E979F6F5-2A36-4BC3-B97C-A8907FEC6CB7The climate control system is equipped
with an in-cabin microfilter which collects
dirt, pollen, dust, allergen (such as pollen,
tick shell), etc. To make sure that the air
conditioner heats, defogs, and ventilates
efficiently, replace the filter in accordance
with the maintenance schedule in the
INFINITI Service and Maintenance Guide.
To replace the filter, contact an INFINITI
retailer.
The filter should be replaced if the air flow
decreases significantly or if windows fog
up easily when operating the heater or air
conditioner.
With Forest Air®systemY51D-V-E01-AA38FB15-6E05-4F11-895E-EF3B0A2AE36EThe climate control system is equipped
with a natural grape seed polyphenol filter
which collects and neutralizes dirt, pollen,
dust, etc. To make sure that the air
conditioner heats, defogs and ventilates
efficiently, replace the filter in accordance
with the maintenance schedule in the
INFINITI Service and Maintenance Guide.
To replace the filter, contact an INFINITI
retailer.
The filter should be replaced if the air flow
decreases significantly or if windows fog
up easily when operating the heater or air
conditioner.
SERVICING CLIMATE CONTROLY51D-V-E01-88385B5B-392F-4C76-AE03-D5B56C8221ADThe climate control system in your INFINITI
is charged with a refrigerant designed with
the environment in mind. This refrigerant
will not harm the earth’s ozone layer.
However, special charging equipment and
lubricant are required when servicing your
INFINITI air conditioner. Using improper
refrigerants or lubricants will cause severe
damage to your climate control system.
(See “Capacities and recommended fuel/
lubricants” (P.9-2) for climate control sys-
tem refrigerant and lubricant recommenda- tions.)
Your INFINITI retailer will be able to service
your environmentally friendly climate con-
trol system.
WARNING
The system contains refrigerant under high
pressure. To avoid personal injury, any air
conditioner service should be done only by
an experienced technician with the proper
equipment.
Condition:

Black plate (308,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-6Starting and driving
COLD tire pressure shown on the Tire
and Loading Information label to turn
the low tire pressure warning light OFF. If
the light still illuminates while driving
after adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See“Flat tire”(P.6-3) for
changing a flat tire.)
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.CAUTION
.The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.
. Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some exam-
ples are:
.Facilities or electric devices using simi-
lar radio frequencies are near the
vehicle.
. If a transmitter set to similar frequen-
cies is being used in or near the
vehicle.
. If a computer (or similar equipment) or
a DC/AC converter is being used in or
near the vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any
interference, including interference that
may cause undesired operation of the
device.
Condition:

Black plate (335,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-AE691347-2F2F-4CF9-A4BB-8C5C984C5366The Blind Spot Warning (BSW) and Blind
Spot Intervention (BSI) systems can help
alert the driver of other vehicles in
adjacent lanes when changing lanes.
SSD1027
The BSW system uses radar sensors*1
installed near the rear bumper to detect
other vehicles beside your vehicle in an
adjacent lane. In addition to the radar
sensors, the BSI system uses a camera
*2
installed behind the windshield to monitor
the lane markers of your traveling lane.
SSD1030
Detection zone
The radar sensors can detect vehicles on
either side of your vehicle within the
detection zone shown as illustrated. This
detection zone starts from the outside
mirror of your vehicle and extends approxi-
mately 10 ft (3.0 m) behind the rear
bumper, and approximately 10 ft (3.0 m)
sideways.
The BSW system operates above approxi-
mately 20 MPH (32 km/h). If the radar
sensors detects vehicles in the detection
zone, the BSW/BSI indicator light illumi-
nates. If the driver then activates the turn
signal, a chime will sound twice and the
BSW/BSI indicator light will flash.
Starting and driving5-33
BLIND SPOT WARNING (BSW) SYSTEM/
BLIND SPOT INTERVENTIONTM(BSI)
SYSTEM (if so equipped)
Condition:

Black plate (336,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-34Starting and driving
The BSI system operates above approxi-
mately 37 MPH (60 km/h). If the system
detects a vehicle in the detection zone and
your vehicle is approaching the lane
marker, the BSI system provides an audi-
ble warning (three times), flashes the
BSW/BSI indicator light and slightly ap-
plies the brakes for a short period of time
on one side to help return the vehicle back
to the traveling lane. The BSI system
provides an audible warning and turns on
or flashes the BSW/BSI indicator light even
if the BSW system is off.
WARNING
.The BSW and BSI systems are not a
replacement for proper driving procedure
and are not designed to prevent contact
with vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the direc-
tion you will move to ensure it is safe to
change lanes. Never rely solely on the
BSW or BSI system.
. Using the BSI system under some road,
lane marker or weather conditions could
lead to improper system operation. Al-
ways rely on your own steering and braking operation to avoid accidents.
. The BSW and BSI systems may not
provide a warning or brake control for
vehicles that pass through the detection
zone quickly.
SSD1028
BSW/BSI indicator light
BSW SYSTEM OPERATIONY51D-V-E01-32E603AE-BDF4-490E-B5AC-9FF1A64159F4If the radar sensors detect a vehicle in the
detection zone, the BSW/BSI indicator
light located by the outside mirrors illumi-
nates. If the turn signal is then activated,
the BSW/BSI indicator light flashes and a
chime sounds twice. The indicator light
continues to flash until the detected
vehicles leave the detection zone.
The BSW/BSI indicator lights illuminate for
a few seconds when the ignition switch is
pushed to the ON position.
The brightness of the BSW/BSI indicator
lights is adjusted automatically depending
Condition:
