warning INFINITI Q70 2015 Quick Reference Guide

23
25
*See your Owner’s Manual for information.
1
77
22
2424
131415
16
12
8
2
6
21
1110
Behind
steering wheel
Behind
steering wheel Behind
steering wheel
9
34
5
181917
20
1 ADAPTIVE FRONT LIGHTING SYSTEM
(AFS) SWITCH*
2 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
3 VEHICLE INFORMATION DISPLAY
4 TRIP RESET SWITCH*
5 TRIP COMPUTER SWITCHES
6 HEADLIGHT AND TURN SIGNAL SWITCH
7 PADDLE SHIFTERS*
8 LOW TIRE PRESSURE WARNING LIGHT
9 WINDSHIELD WIPER AND
WASHER SWITCH
10 STEERING WHEEL SWITCHES
FOR AUDIO* / BLUETOOTH®
11 INTELLIGENT CRUISE CONTROL
12 DYNAMIC DRIVER ASSISTANCE SWITCH*
13 VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH*
14 BACK-UP COLLISION INTERVENTION (BCI)
SYSTEM OFF SWITCH
15 WARNING SYSTEMS SWITCH
16 TILT / TELESCOPIC STEERING WHEEL SWITCH*
17 REAR SUNSHADE SWITCH*
18 HEATED STEERING WHEEL SWITCH*
19 TRUNK LID RELEASE SWITCH
20 HOOD RELEASE*
21 CONTROL PANEL DISPLAY SCREEN
22 CLIMATE-CONTROL SYSTEM
23 AUDIO SYSTEM
24 CLIMATE CONTROLLED SEAT SWITCH*
25 INFINITI DRIVE MODE SELECTOR
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 310/8/14 11:35 AM

table of contents
new system features Around View® Monitor with Moving Object Detection (MOD) (if so equipped) ..2
INFINITI Connection™* (if so equipped) ................................ 4
Automatic Anti-glare Mirrors .......................................... 5
Blind Spot Warning (BSW) and Blind Spot Intervention
® (BSI)
(if so equipped) .................................................... 6
Back-up Collision Intervention (BCI) System (if so equipped) ...............6
Predictive Forward Collision Warning (PFCW) System (if so equipped) ........6
Forward Emergency Braking (FEB) System (if so equipped) ................. 7
Lane Departure Warning (LDW) System (if so equipped) ................... 7
NavTraffic and NavWeather (if so equipped) .............................7
essential information Tire Pressure Monitoring System (TPMS) ................................8
Warning Systems Switch (if so equipped) ...............................9
INFINITI Drive Mode Selector ....................................... 10
Accessing the Front Cup Holders ..................................... 10
Loose Fuel Cap .................................................... 11
Fuel-filler Door .................................................... 11
Clock Set / Adjustment ............................................. 11
first drive features INFINITI Intelligent Key System ...................................... 12
Trunk Lid Release .................................................. 13
Seat Adjustments ................................................. 13
Automatic Drive Positioner .......................................... 14
Outside Mirror Control Switch ........................................ 14
Starting/Stopping the Engine ........................................ 15
Headlight Control Switch ............................................ 15
Windshield Wiper and Washer Switch ................................. 16
Automatic Climate Controls ......................................... 17
FM/AM/SiriusXM
® Satellite Radio with CD/DVD (if so equipped) Player ......19
USB (Universal Serial Bus) Connection Port/iPod® Interface ............... 20
Conventional (Fixed Speed) Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Intelligent Cruise Control (ICC) System (if so equipped) .................. 21
system guide Trip Computer ..................................................... 22
Bluetooth® Hands-free Phone System ................................. 22
System Operating Tips ........................................... 22
Bluetooth
® System with Navigation (if so equipped) ..................... 23
Bluetooth® System without Navigation (if so equipped) .................. 25
Navigation System (if so equipped) ................................... 26
DVD Player (if so equipped) ......................................... 27
HomeLink
® Universal Transceiver ..................................... 28
Additional information about your vehicle is also available in your Owne\
r’s
Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.

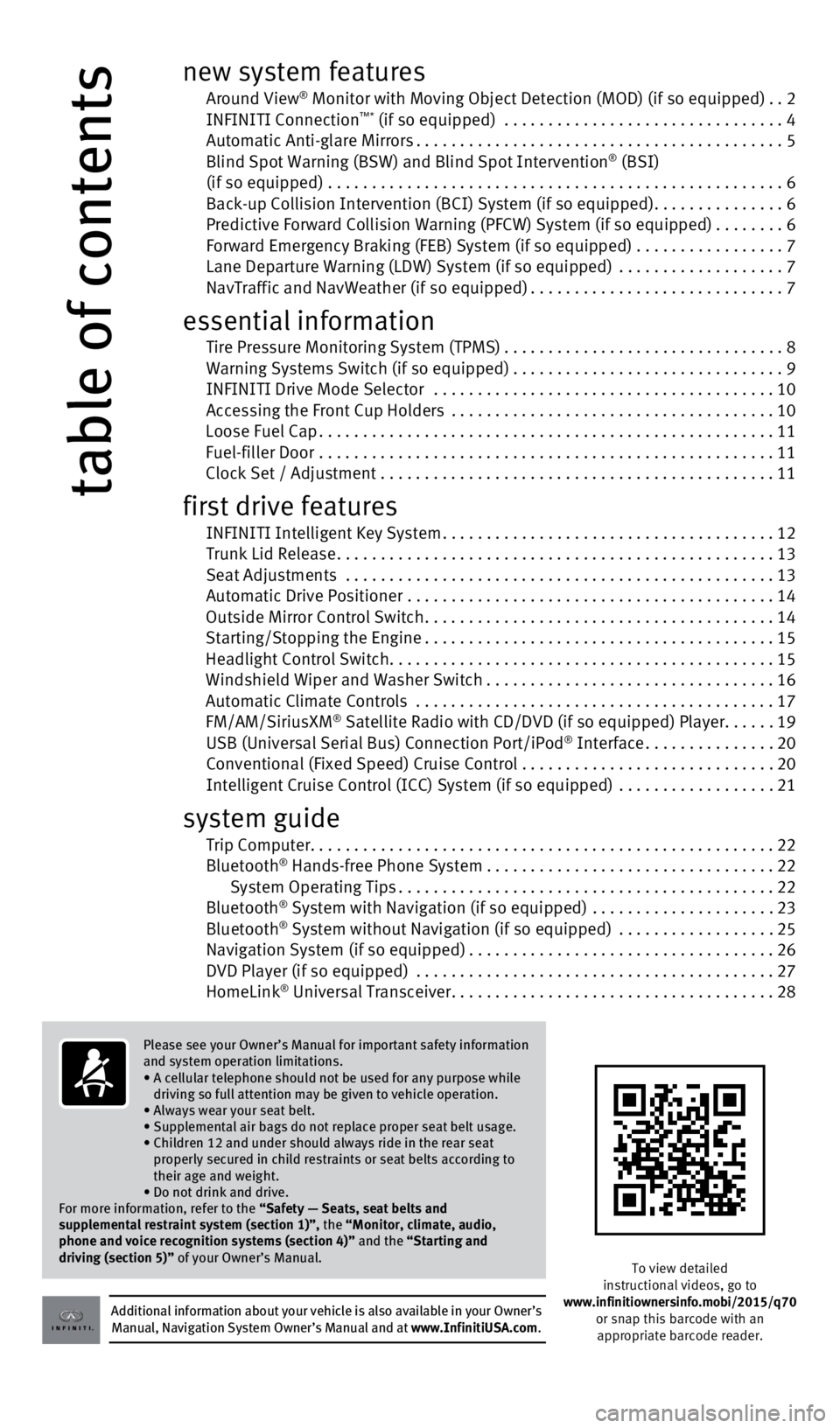

Please see your Owner’s Manual for important safety information
and system operation limitations.
•
A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate, audio,
phone and voice recognition systems (section 4)” and the “Starting and
driving (section 5)” of your Owner’s Manual.
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2015/q70 or snap this barcode with an appropriate barcode reader.
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 410/8/14 11:35 AM

5
Automatic Anti-glare Mirrors
The inside rearview mirror and both outside mirrors are designed to auto\
matically change
reflection according to the intensity of the headlights of the vehicle f\
ollowing you.

The anti-glare system will be automatically turned on when the ignition \
switch is in the
ON position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Scheduled Maintenance Notification – Receive scheduled maintenance no\
tifications based
on mileage data provided by your vehicle.

Maintenance Alert – Receive notification of a vehicle system malfunct\
ion that triggers
instrument panel warning lights.

Destination Assistance – Receive point-of-interest assistance via gui\
ded IVR (Interactive
Voice Response) or a Response Specialist by pressing the
key on the map screen or the
INFINITI Connection™ web portal.

Destination Send-to-Vehicle – Find and download point-of interest inf\
ormation from
Google Maps™. To access, go to the INFINITI Connection menu and select “Sync All
Information Feeds”. Then go to the feeds menu page and download the d\
esired
destination information.

Connected Search – Select “Connected Search” from the Destinati\
on menu on the vehicle’s
navigation system to conduct a point-of-interest search within a certain\
distance of the
vehicle’s location.

Drive Zone – Monitor the movement of your vehicle within a specified \
region. Set up
boundaries in the Monitoring section of the INFINITI Connection web port\
al.

Max Speed Alert – Set up a maximum speed on the INFINITI Connection w\
eb portal. You
will receive notifications if your vehicle exceeds the max speed setting\
.


Mobile Information Service – Receive the latest news headlines, stock\
quotes and sports

scores by setting up preferences on the Mobile Information Service page \
in the INFINITI
Connection web portal.

Valet Alert – Use Valet Alert to set up a 0.2 mile radius around your\
vehicle.
• Activate alerts by pressing the “Connect to Voice Menu” button on \
the INFINITI
Connection screen or by pressing the
key on the map screen.
• At the prompt, say “Valet Alert” and then “Activate” or “\
Deactivate”.
For more information, refer to the “Viewing technical information (section 7)” of your Navigation System Owner’s Manual.
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 510/8/14 11:36 AM

6
Back-up Collision Intervention (BCI) System (if so equipped)
The Back-up Collision Intervention (BCI) system can help alert the dri\
ver of an approaching
vehicle or objects behind the vehicle when backing out of parking spaces\
.

The rear radar sensors detect the approaching vehicle from up to approxi\
mately 49 ft (15 m)
from the bumper.
For more information, refer to the “Starting and driving (section 5)” in your Owner’s Manual.
Blind Spot Warning (BSW) and Blind Spot Intervention® (BSI)
(if so equipped)
The Blind Spot Warning (BSW) system alerts the
driver when another vehicle moves into the vehicle’s
blind spot area.

An indicator light
1 near the outside mirror will
illuminate if the radar sensors detect a vehicle in
the detection zone.

The Blind Spot Intervention® (BSI) system can assist the driver in
returning the vehicle to the center of the traveling lane by applying
individual brake pressure to the left or right wheels for a short period\

of time.

The indicator light
2 will first illuminate in orange and then turn green
before extinguishing. This indicates that the Blind Spot Warning (BSW)\

and Blind Spot Intervention
® (BSI) systems are operational.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1
2
new system features
Predictive Forward Collision Warning (PFCW) System (if so equipped)
The Predictive Forward Collision Warning (PFCW) system can help alert \
the driver when
there is sudden braking of the second vehicle traveling in front of the \
vehicle ahead travel -
ing in the same lane.

The PFCW uses a sensor in the front bumper to measure the distance of a \
second vehicle
ahead in the traveling lane. The system operates at speeds above 3 mph (\
5 km/h).

If there is potential risk, the PFCW will warn the driver with a blinkin\
g driver assist system
forward indicator and an audible warning tone will be heard.
For more information, refer to the “Starting and driving (section 5)” in your Owner’s Manual.
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 610/8/14 11:36 AM

7
Lane Departure Warning (LDW) System (if so equipped)
The LDW system can help alert the driver when the vehicle is traveling t\
oo close to either
the left or the right side of a traveling lane.

The system will operate when the vehicle is driven at speeds of approxim\
ately 45 mph (70
km/h) and above and only when the lane markings are clearly visible on \
the road.

When the vehicle approaches either the left or the right side of the tra\
veling
lane, the LDW system will chime and the orange LDW light

1 on the
instrument panel will blink to alert the driver.

The LDW system can be turned on and off through
the settings menu in the vehicle information
display. To temporarily turn off the system, push the
warning systems switch

2 .

When the system is off, the indicator light
3 on the
switch is off.
For more information, refer to the “Instruments and controls (section 2)” and the “Starting and driving (section 5)” of your
Owner’s Manual.
Forward Emergency Braking (FEB) System (if so equipped)
The Forward Emergency Braking (FEB) system can assist the driver when \
there is risk of a
forward collision with the vehicle in the traveling lane.

The FEB operates at speeds greater than 3 mph (5 km/h).

If there is risk of a collision, an audible tone will be heard, a visual\
warning will display
and the vehicle will push up on the accelerator pedal. If the driver rel\
eases the accelerator
pedal, the vehicle will begin applying the brakes; however, if the drive\
r does nothing, the
system will issue another audible and visual warning and apply the brake\
s harder.
For more information, refer to the “Starting and driving (section 5)” in your Owner’s Manual.
1
2
NavTraffic* and NavWeather* (if so equipped)
Your vehicle’s Navigation System is equipped with
NavTraffic and NavWeather capabilities.

NavTraffic enables your vehicle’s Navigation System
to display real-time traffic conditions, such as
accidents or road construction, and may provide a
detour to help avoid congestion.

NavWeather tracks nationwide weather
information, provides real-time weather reports
and automatically alerts you to severe weather
conditions around your current vehicle location.
*These features, SiriusXM® Satellite Radio, NavTraffic and NavWeather
require an active subscription. Multiple subscriptions may be necessary \
to
activate the various features.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of
your Owner’s Manual.
3
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 710/8/14 11:36 AM

8
Tire Pressure Monitoring System (TPMS)
A CHECK TIRE PRESSURE warning message will
appear in the vehicle information display

1 and
the low tire pressure warning light 2 will illuminate
when one or more tires are low in pressure and air
is needed.
•
The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.

After the tire pressures are adjusted, drive the vehicle at speeds above\
16 mph
(25 km/h). The CHECK TIRE PRESSURE warning message and low tire pressure warning
light will extinguish.

When the low tire pressure warning light flashes for 1 minute and then r\
emains on, the
TPMS is not functioning properly. Have the system checked by an INFINITI\
retailer.

Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low
tire pressure warning light to illuminate. If the warning light illumina\
tes, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.

The Tire and Loading Information label contains valuable information. Pl\
ease refer to the
“Technical and consumer information” (section 9) in your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
essential information
1
2
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 810/8/14 11:36 AM

9
Warning Systems Switch (if so equipped)
The warning systems switch
1 will turn on or off
any enabled warning systems including the LDW
and BSW. Systems that are not enabled will always
remain off.

When the warning systems switch is turned off, the
indicator light
2 on the switch is off. If the warning

systems switch is illuminated, the system is on. The
indicator will also be off if all of the warning systems
are deactivated using the Settings menu.

To enable or disable these systems, perform the
following operation:
1. Press the SETTING button

3 on the control panel.
2.
Using the INFINITI Controller

4 , highlight the
“Driver Assistance” key
5 on the display. Then

press the ENTER button 6 .
3.
Highlight the corresponding warning system key

7 , select ON (enabled) or OFF (disabled) and
press the ENTER button
6 .
For more information, refer to the “Starting and driving (section 5)” of your
Owner’s Manual.
3
4
6
2
1
5
7
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 910/8/14 11:36 AM

11
Fuel-filler Door
The fuel-filler door is located on the passenger’s side of
the vehicle.

When the doors of the vehicle are locked or unlocked,
the fuel-filler door is automatically locked or unlocked
at the same time.

To open the door, push the upper left side of the door.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
Loose Fuel Cap
A LOOSE FUEL CAP warning message will appear in the
vehicle information display
1 when the fuel-filler
cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will extinguish when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button
2 is pressed for more than 1 second.

If the cap is not properly tightened, the Malfunction
Indicator Light
may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and

the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
2
1
Clock Set/Adjustment
DIGITAL CLOCK ADJUSTMENT

To adjust the time and the appearance of the clock
on the display:
1. Press the SETTING button on the control panel.
2. Touch the Others key.
3. Touch the Clock key.

The following settings can be adjusted:
• On-screen Clock: The clock in the upper right corner of the display can be turned ON or O\
FF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
• Daylight Savings Time: The application of daylight savings time can be turned ON or OFF.
• Time Zone: Adjust the time zone. Choose a time zone from the available list.

Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 1110/8/14 11:36 AM

22
Trip Computer
When the
button
1 is pressed, the following

modes will appear on the vehicle information
display.
2 :
• MPG – Displays the current fuel consumption.
• MPG/MPH – Displays the average fuel consumption
and speed since the last reset.
— To reset the displayed MPG/MPH, press and hold
the
button 3 for more than 1 second. Both
displayed MPG/MPH will reset at the same time.
• TIME/MILES – Displays the elapsed time and
total distance the vehicle has been driven since
the last reset.
— To reset the elapsed time/miles, press and hold the
button 3 for more than 1 second.
Both elapsed time/miles will reset at the same time.
• RANGE – Displays the estimated distance to empty (dte) the vehicle can b\
e driven
before refueling.
• OUTSIDE TEMP – Displays the exterior air temperature, including a low temperature\

warning feature.
• SETTING – Allows you to set reminders for alerts and maintenance intervals o\
r change the
language and units used in the system.
— Press the
button 3 to cycle through the various setting modes.
— Press the

button
1 to choose the selected menu.
• WARNING – Displays when a warning is present.

Press the
button
3 for approximately 1 second to reset the currently displayed trip

odometer to zero.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
Bluetooth® Hands-free Phone System
A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS

Press the or button to interrupt the voice
prompts at any time and speak a command after
the tone.

For vehicles not equipped with Navigation:
•
To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example,
press the
or button and after the tone say
“Call Redial”.
3
1
2
Bluetooth®
Controls
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
system guide
Microphone
1727653‎_15b_Infiniti_Q70_QRG_100814.indd 2210/8/14 11:37 AM
